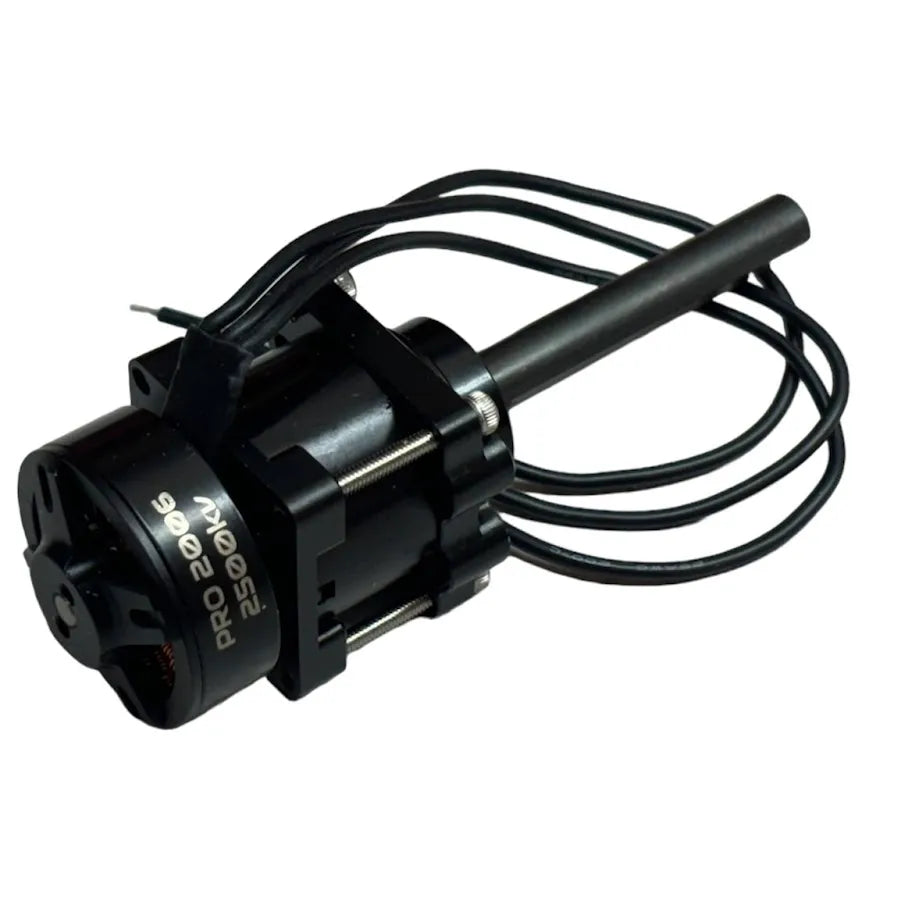

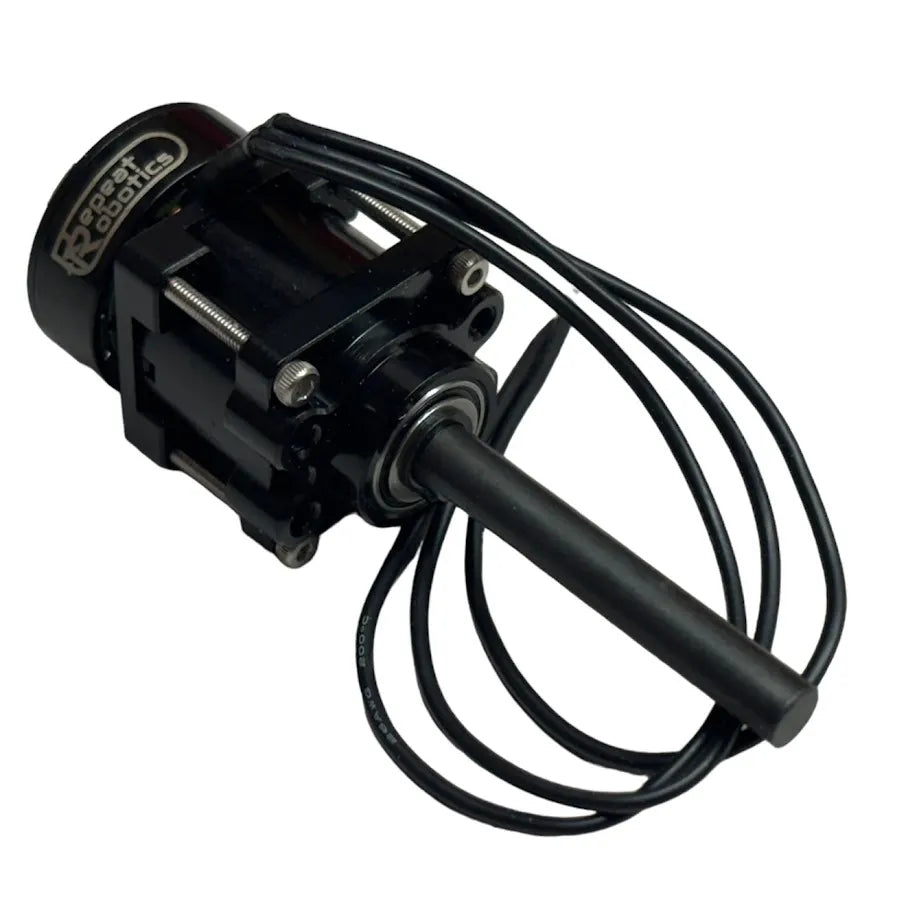

Pro Brushless 2006 - Beetleweight planetary gearmotor

$25.00 - $60.00

Does your beetleweight need more drive power? Not happy with any of the options on the market? Tired of trying to put your own shafts into a 2xxx motor to get all the torque??? Repeat drive pro is modeled after the drivetrain that drove lynx to 3 world championship titles. Its a customized 24mm 27:1 gearbox with a 2006 motor built in.

kV: 2500kv (4S version)
Type: Drive Gearmotor (27:1)
$55.00
$55.00
Availability: 854 in stock
Repeat RoboticsCompact Brushed - Beetleweight planetary gearmotor
Compact Brushed - Beetleweight planetary gearmotor

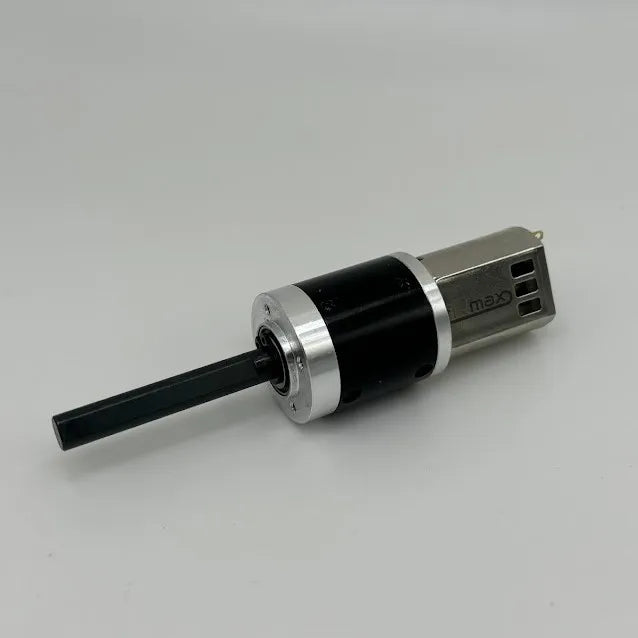

Max Brushed - Beetleweight planetary gearmotor
Repeat RoboticsMax Brushed - Beetleweight planetary gearmotor
$55.00
$55.00

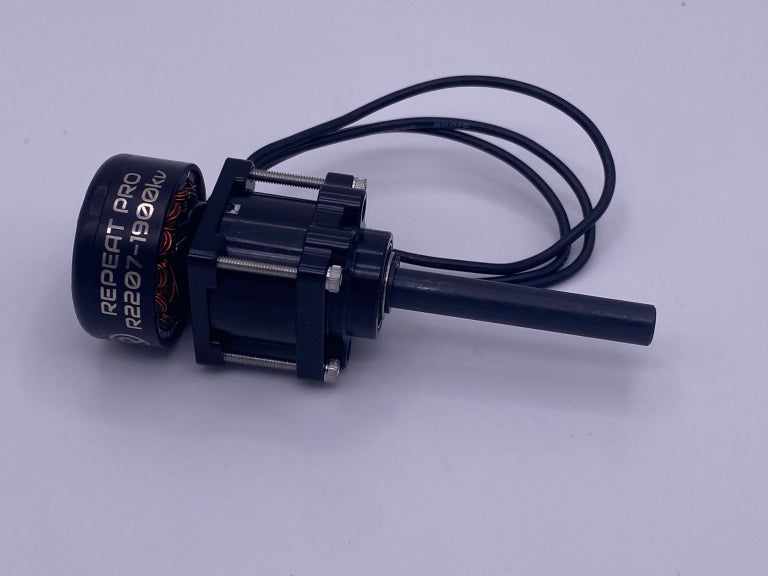

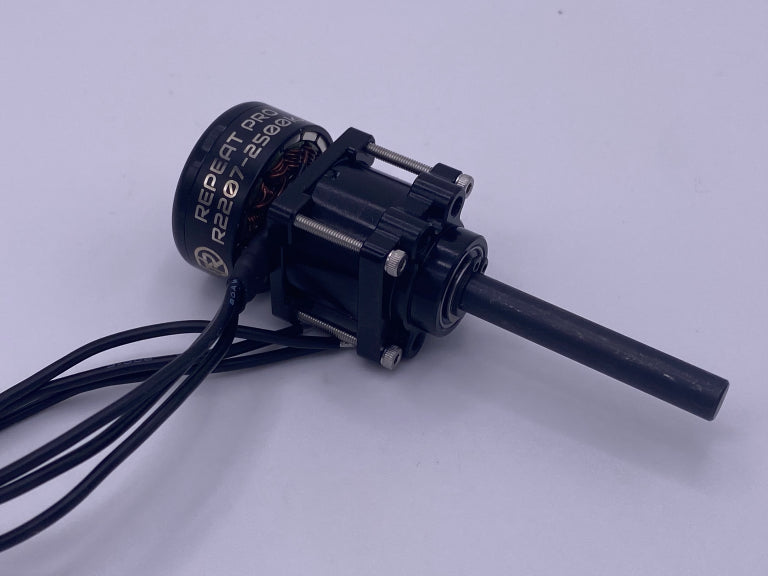

Pro 2207 can be found here: https://repeat-robotics.com/products/pro-brushless-2207

Features:

  • Custom wound 2006 brushless motor

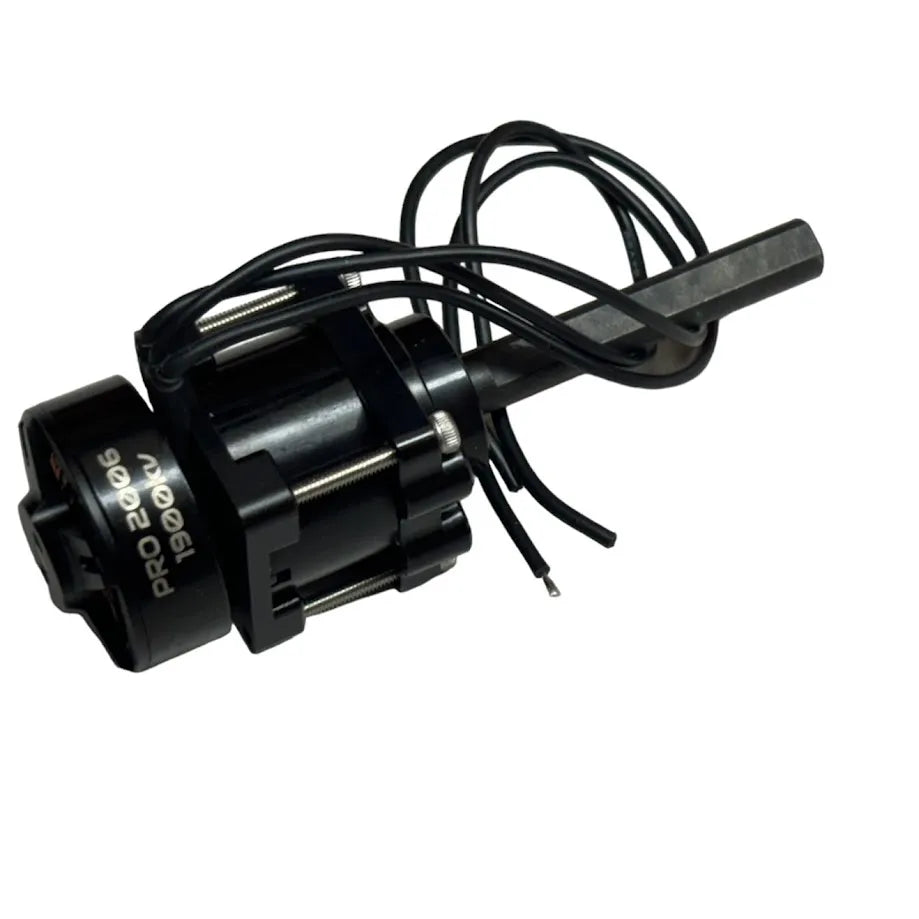

  • 1900kv - 2-6S voltage
  • 2500kv - 2-4S voltage
  • 24mm, 27:1 custom designed all metal planetary gearbox
  • 6mm "D" extra long output shaft (cut to the length that you need to save weight)
  • Custom billet 4130 final planet carrier and output shaft
  • Output shaft c-clip has been changed to minimize the groove and provide the strongest product.
  • 64.5g weight

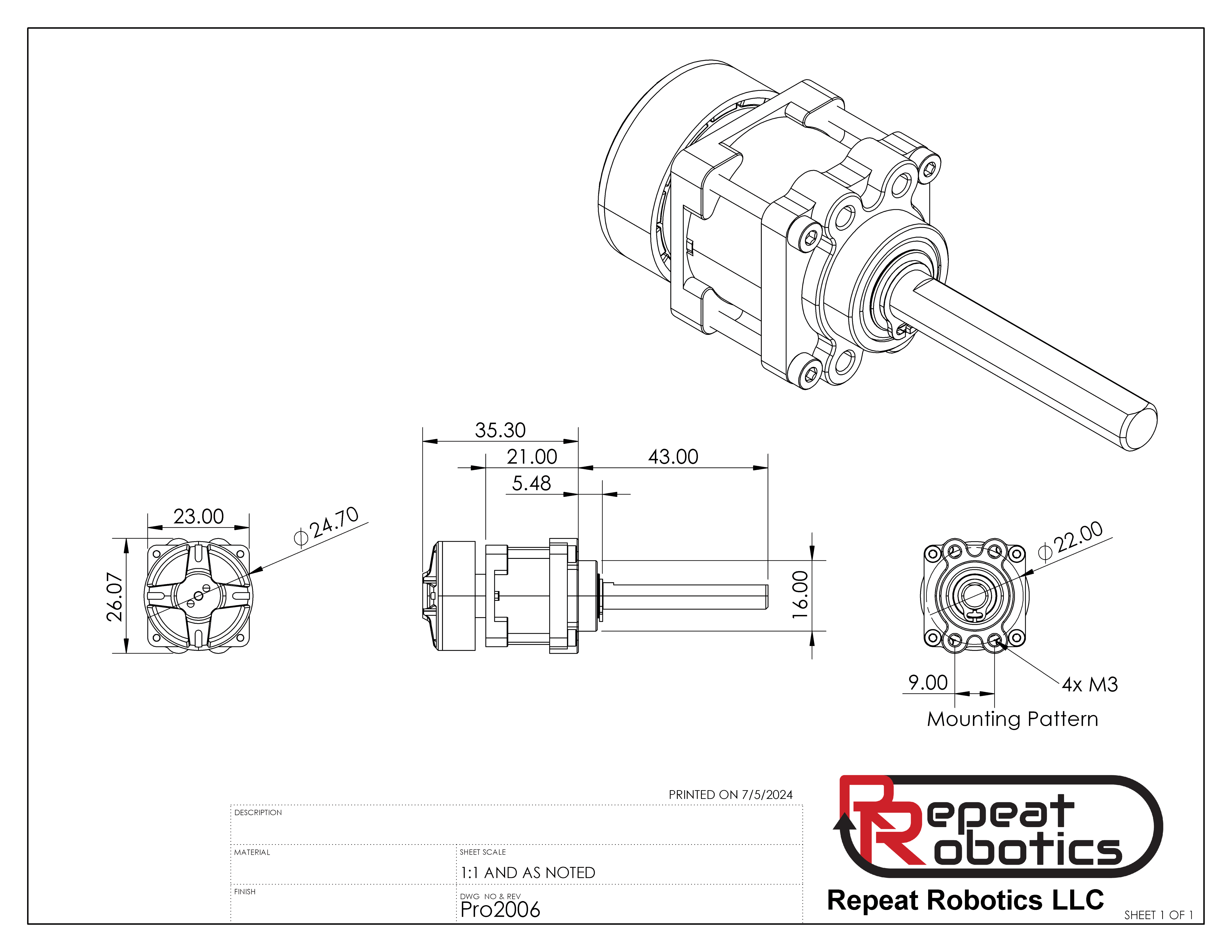

  • Custom square M3 facemount hole pattern (9mm apart, 22mm hole circle (~9x20mm rectangle))

CAD model: https://grabcad.com/library/repeat-drive-pro-2006-1

Replacement Motor :

  • Ready to bolt onto a pro gearbox
  • Comes with pinion gear already attached

Re-greasing is recommended for high voltage usage and improved performance. Replacing the grease with a thinner grease or oil will reduce load and heating.
