Pro Brushless 2207 - Beetleweight planetary gearmotor

$65.00
$65.00

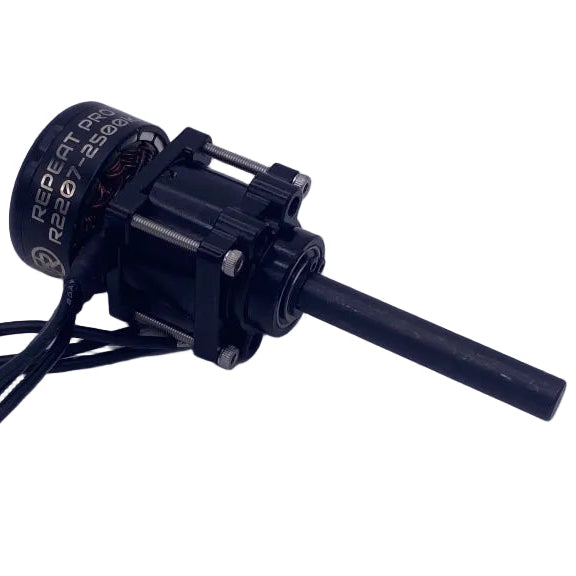

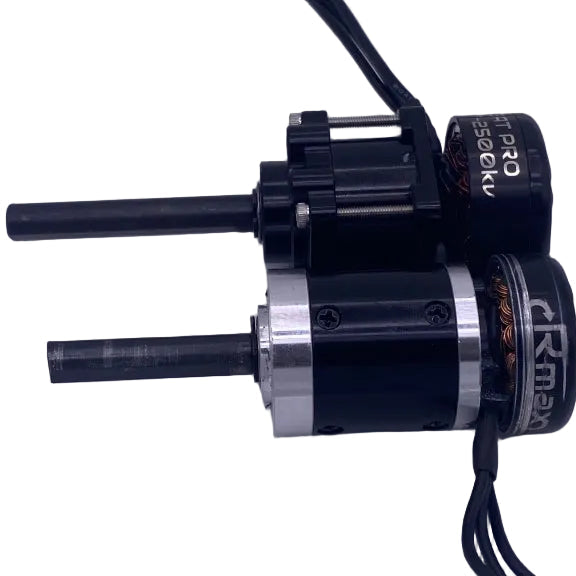

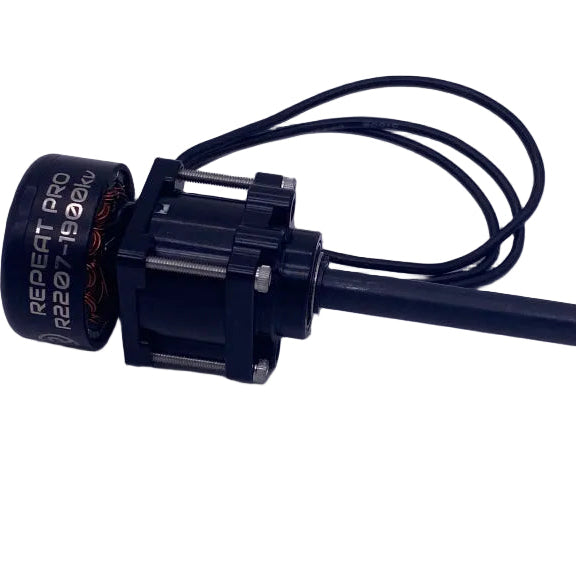

Does your beetleweight need more drive power? Not happy with any of the options on the market? Tired of trying to put your own shafts into a 2xxx motor to get all the torque??? Repeat drive pro is modeled after the drivetrain that drove lynx to 3 world championship titles. Its a customized 24mm 27:1 gearbox with a massive 2207.5 motor slapped on it. This motor gives more torque than any 3lber could ever hope to use, but sometimes overkill is best.

kV: 2500kv (4S version)
Availability: 27 in stock
Repeat RoboticsTangent Drive 1406 - Antweight drive motor
Repeat Tangent Drive Motors image 3
$65.00
$65.00

Features:

  • Custom wound 2207.5 brushless motor
  • 1900kv - 2-6S voltage, 1065W on 6S
  • 2500kv - 2-4S voltage, 709W on 4S
  • 24mm, 27:1 custom designed all metal planetary gearbox
  • 6mm "D" extra long output shaft (cut to the length that you need to save weight)
  • Custom billet 4130 final planet carrier and output shaft
  • Output shaft c-clip has been changed to minimize the groove and provide the strongest product.
  • ~80g weight
  • Custom square M3 face mount hole pattern (9mm apart, 22mm hole circle (~9x20mm rectangle))

CAD model: https://grabcad.com/library/repeat-drive-pro-1

Re-greasing is recommended for high voltage usage and improved performance. Replacing the grease with a thinner grease or oil will reduce load and heating.
