Repeat Compact Brushed

$26.00
$26.00

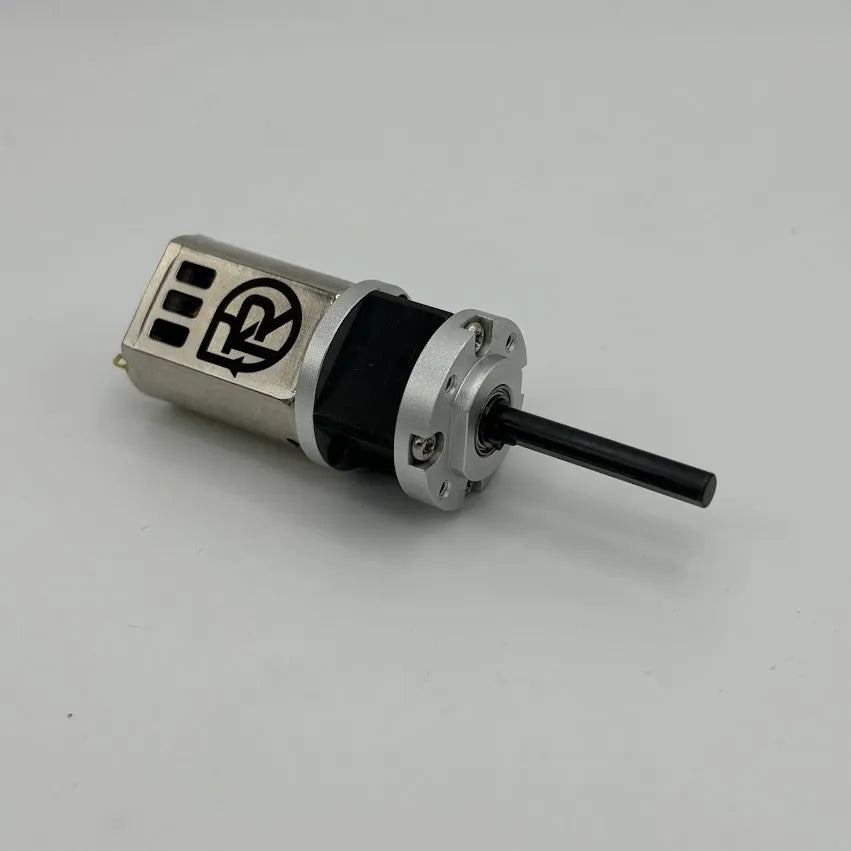

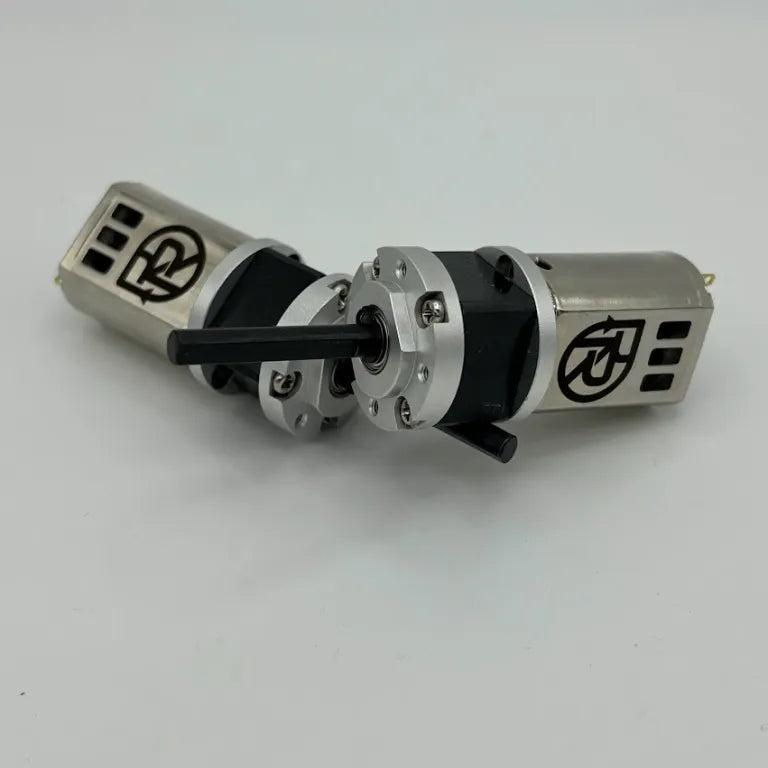

Have you been looking for a super light and compact brushed drive solution? Weighing only 45g, Repeat Compact is the lightest Beetleweight grade brushed drive on the market! Save weight without sacrificing durability with a billet hardened steel output shaft!
Availability: 732 in stock
Repeat RoboticsRepeat Ultra Mk2
Repeat Ultra Mk2 image 0
Repeat Max Brushed
Repeat RoboticsRepeat Max Brushed
$26.00
$26.00
  • Billet 4mm hardened steel shaft, 25mm length
  • Dual bearings on the gearbox output shaft
  • High power 130 motor
  • 45.5g overall weight
  • Ring gear squared to 16.5mm flat to flat
  • 22.6:1 gear ratio
  • 12V specs:
    • 1070rpm free speed
    • 3.85kg.cm stall torque
    • 4.3A stall current

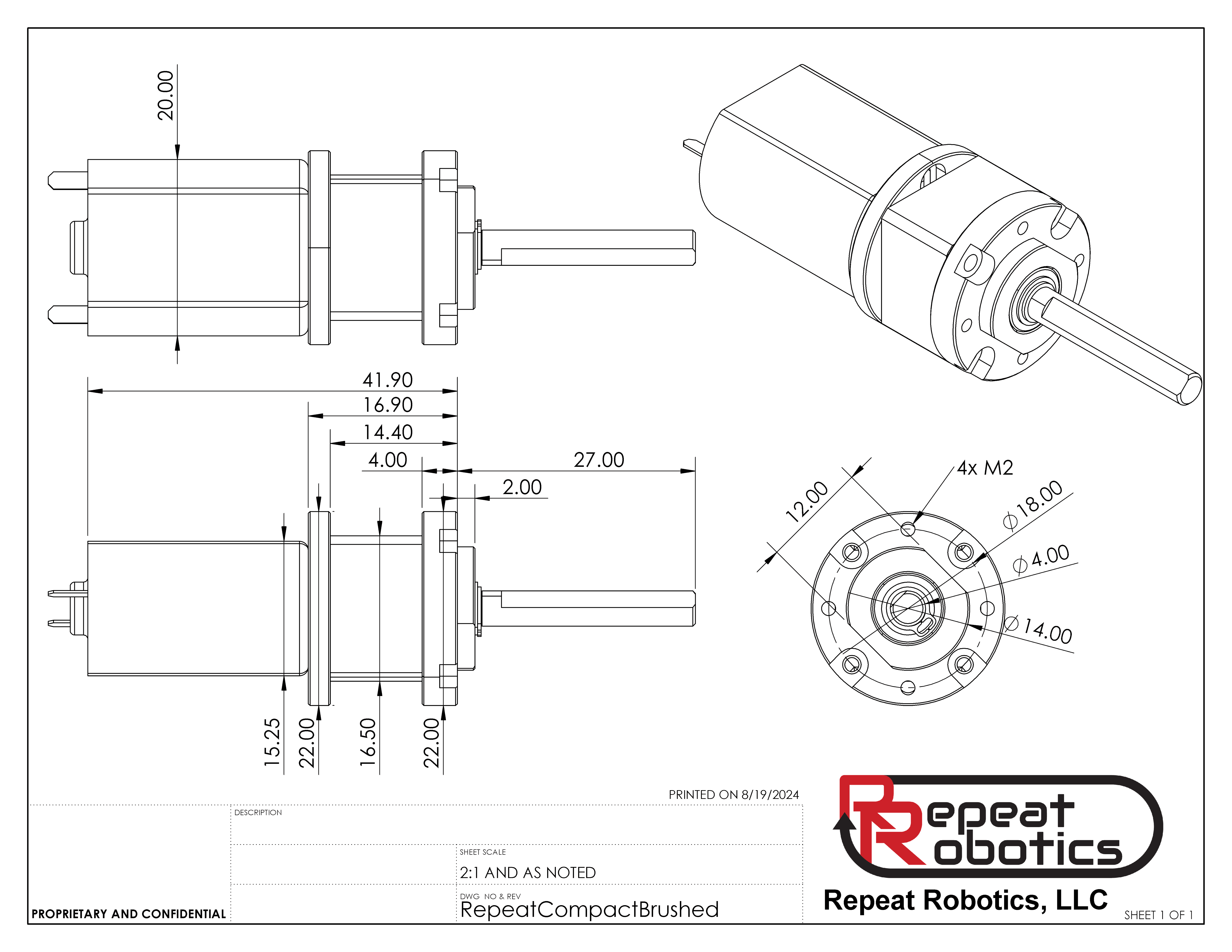

Buy the 6mm upgrade kit and motor here for a discounted price: https://repeat-robotics.com/buy/repeat-compact-6mm-upgrade-bundle/ Get spare parts here: https://repeat-robotics.com/buy/repeat-compact-parts/ Find CAD here: https://grabcad.com/library/repeat-compact-brushed-1 Pairs great with the Dominion Dual Drive ESC: https://repeat-robotics.com/buy/dominion-dual-brushed-drive-esc/
