TVS Spike Absorber

$5.00 - $6.00

Do you have problems with voltage spikes wreaking havoc on your electrical system? Weapon hitting hard but the robot just turns off? This custom board uses TVS diodes to absorb dangerous voltage spikes in combat robots, which can fight electrical gremlins on robots with high voltage (4-6S) or high power weapon systems.

Capacitor (Capacitor): With
$6.00
$6.00
Availability: 136 in stock

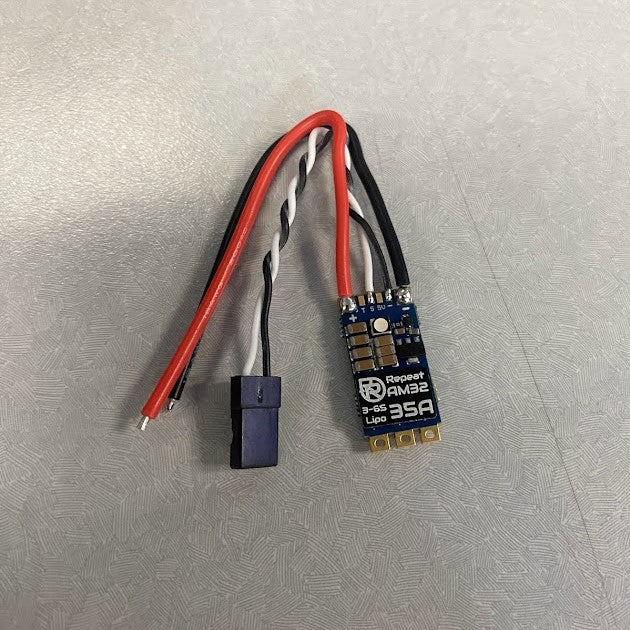

Repeat RoboticsRepeat AM32 Drive ESC
Repeat AM32 Drive ESC image 0
TVS Spike Absorber image 0
$6.00
$6.00

In electrical power systems that use brushless motors, ESCs, and LiPo batteries, high current and voltage peaks are common. To prevent these peaks from damaging connected components, capacitors are typically used, which is an effective method. Capacitors help smooth out voltage fluctuations by storing energy when the voltage rises and releasing it when the voltage drops. However, capacitors may be too slow to handle very short but intense voltage spikes, which can occur in the range of nanoseconds to microseconds and can exceed the normal battery voltage by two to three times. While most components can withstand multiple such spikes even if they exceed their rated voltage, excessively strong or prolonged spikes can damage voltage regulators, capacitors, and FETs. The Spike Absorber is designed to absorb these high-energy spikes before they reach sensitive components. Details

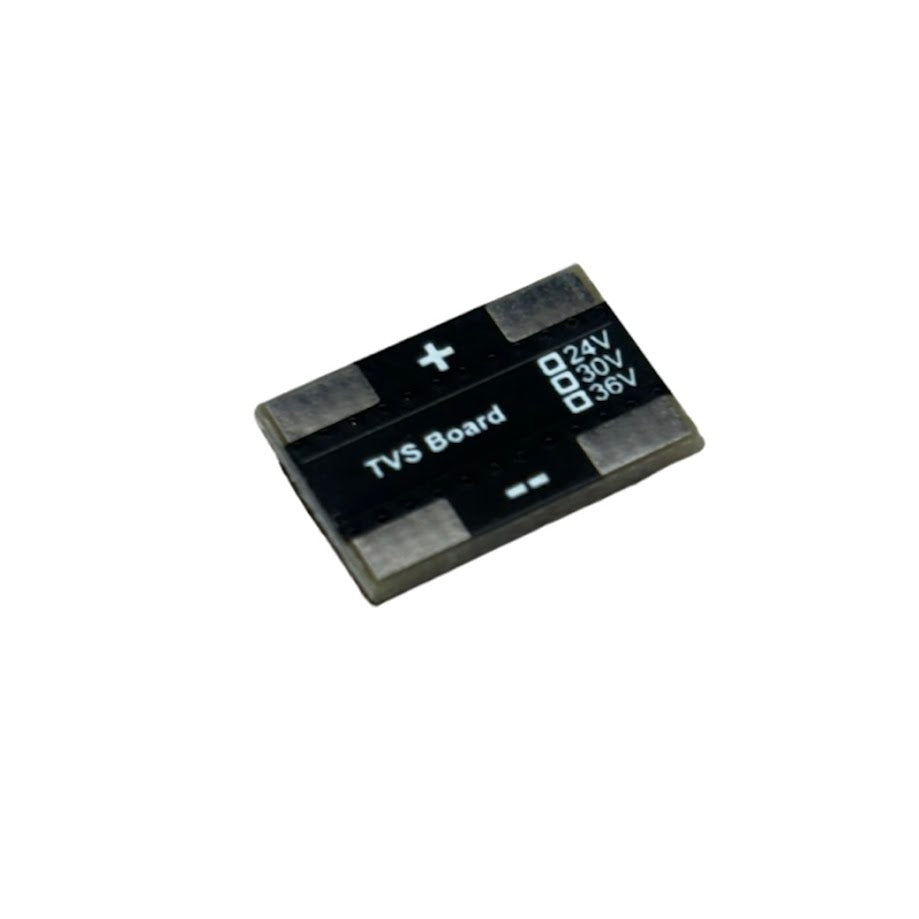

  • Tiny size at just 13.5 x 9 x 3.5mm

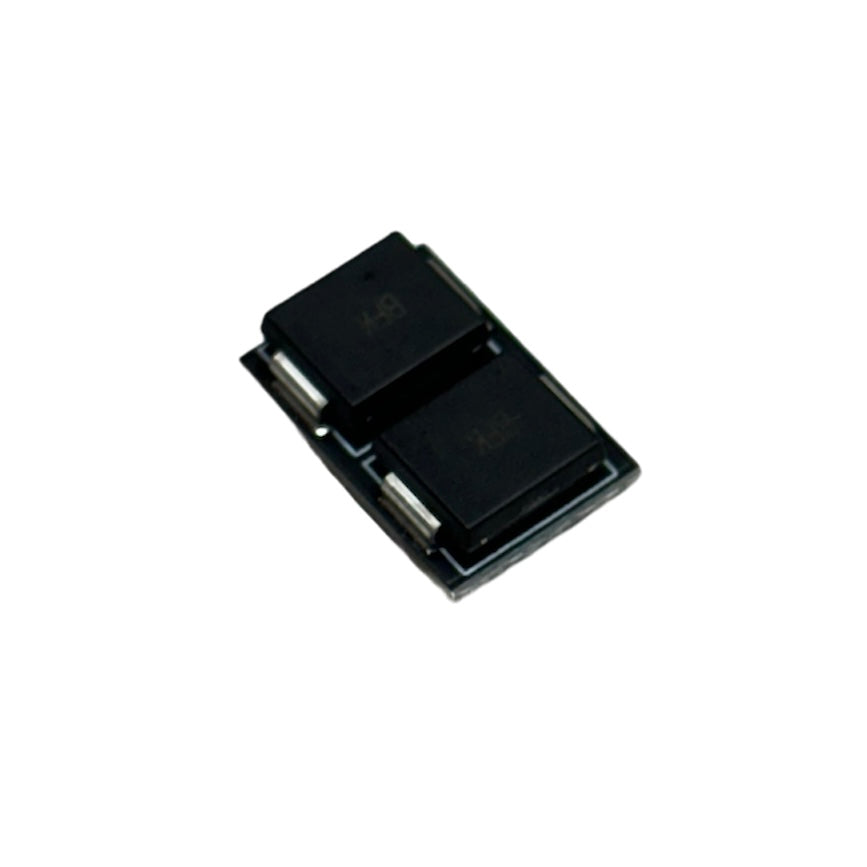

  • 2 TVS diodes to absorb voltage spikes

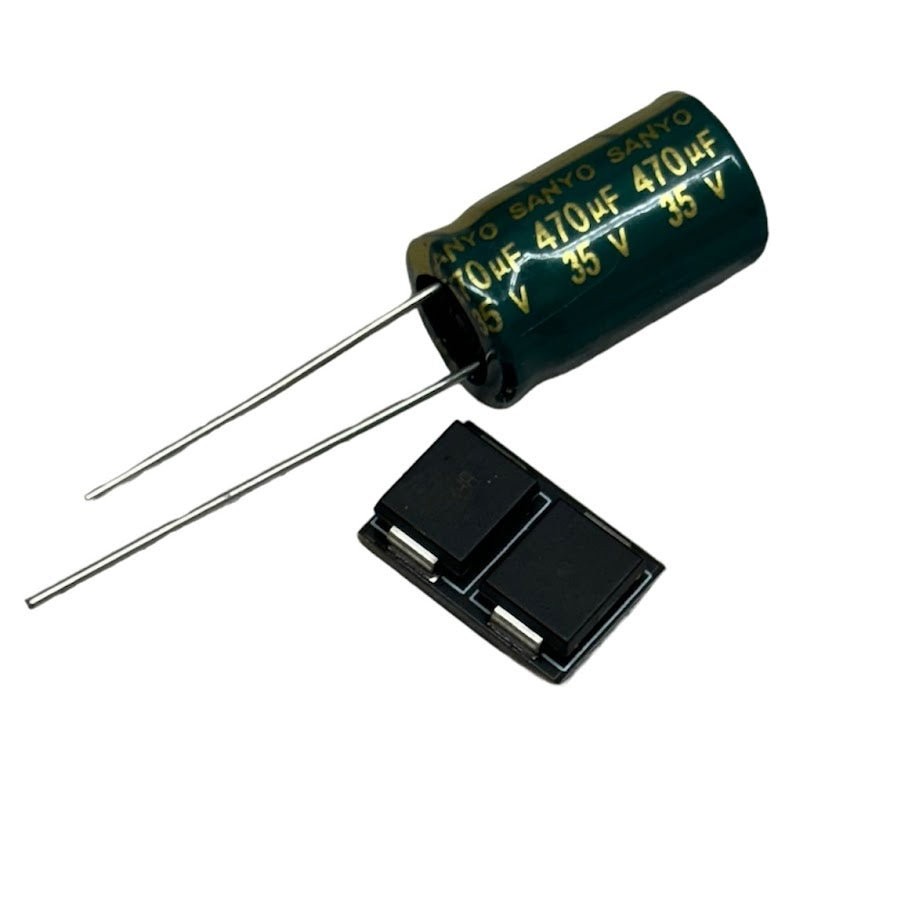

  • Optional 470uf 35V capacitor
  • Cap dimensions 9mm diameter x 17mm length
  • Ideal for 4-6S voltage

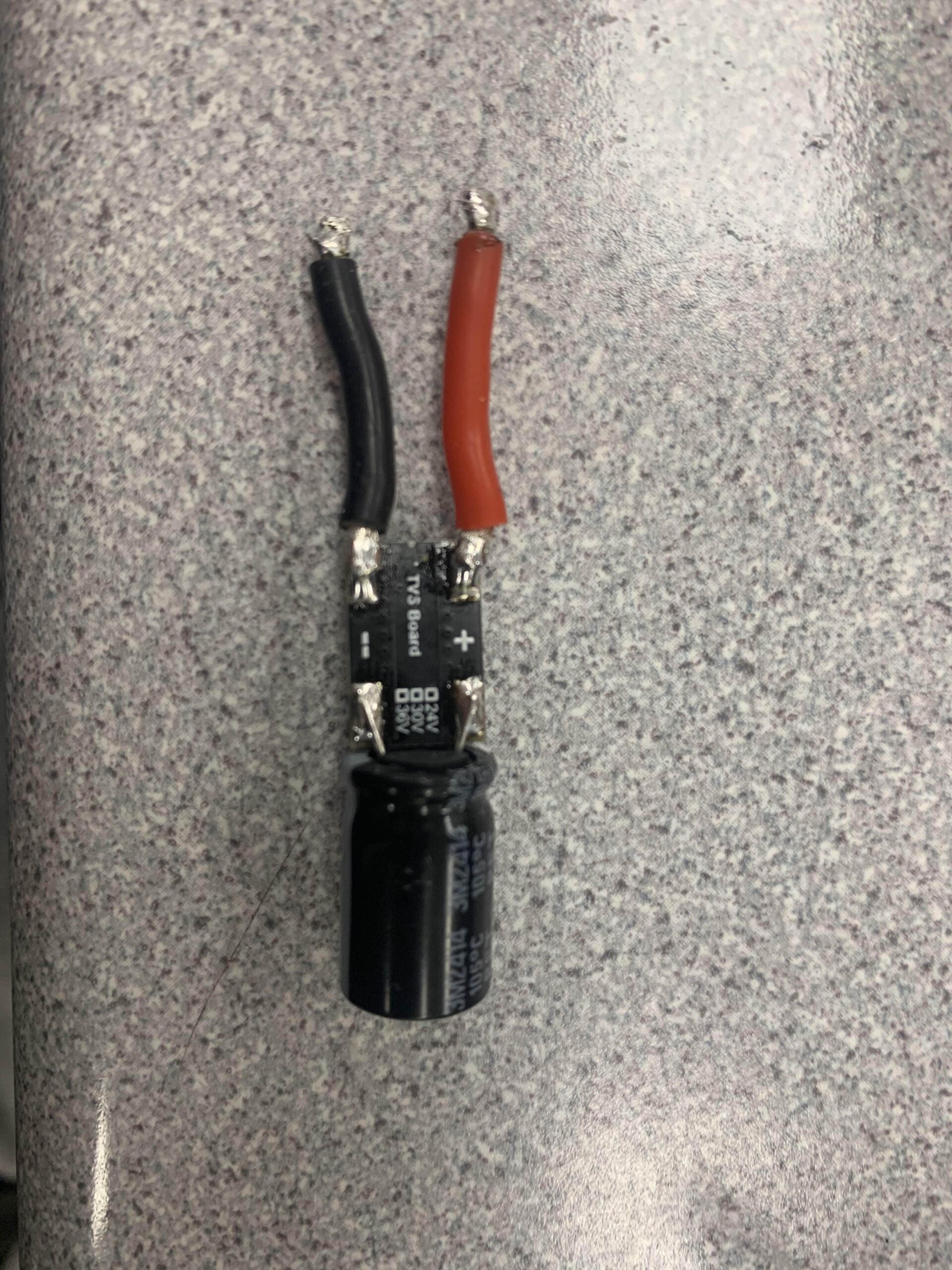

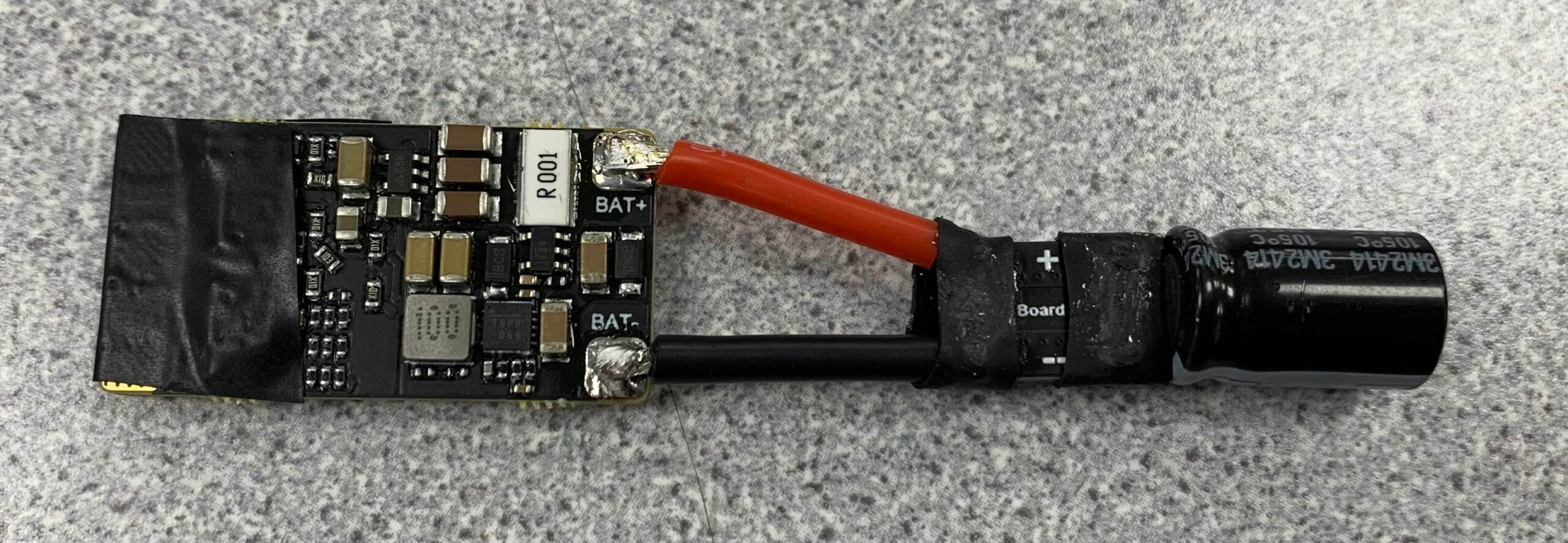

Instructions: Wire in parallel with the power wires as close to your weapon esc as you can. Do not wire inline or you risk blowing the copper traces on the diode board.
