Repeat AM32 Drive ESC

$25.00
$30.00 $25.00
Save $5.00

Have you been hearing about AM32 and want to join the craze? These custom AM32 escs are designed for combat robot drivetrains! Check them out!
Availability: 115 in stock
Repeat RoboticsBudget Ant DESC
Budget Ant DESC image 0
TVS Spike Absorber image 0

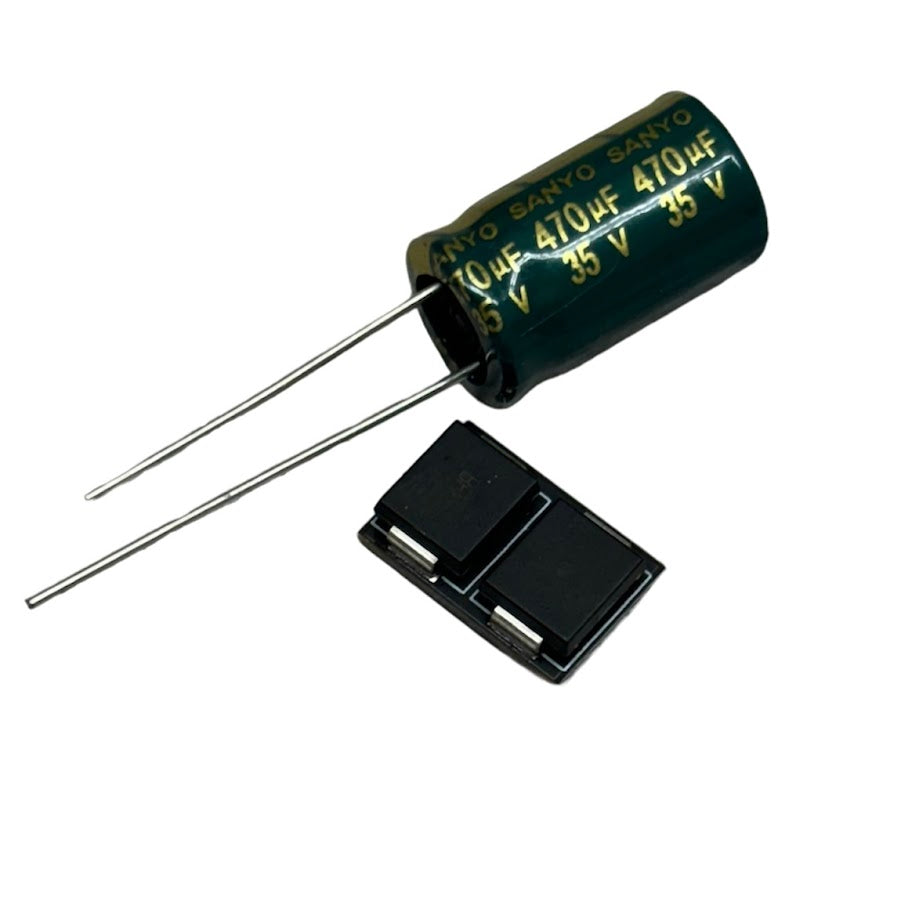

Repeat RoboticsTVS Spike Absorber
Repeat AM32 Drive ESC image 0
$25.00
$30.00 $25.00

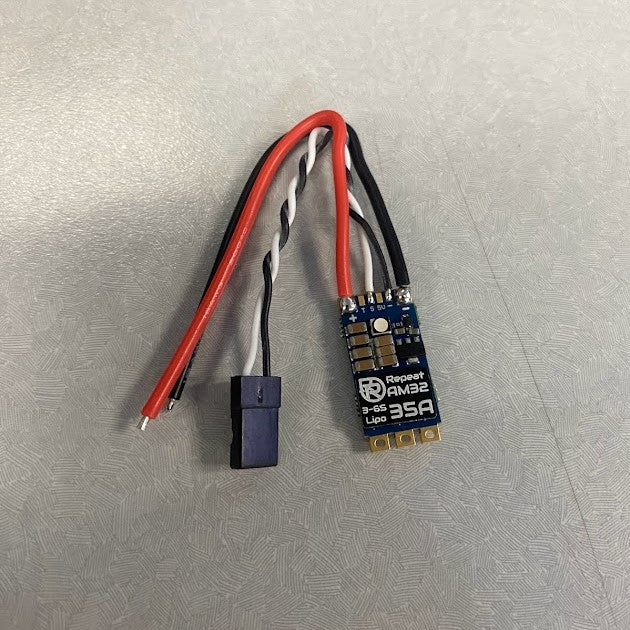

WARNING: REPEAT DRIVE ESCS ONLY WORK WITH BRUSHLESS MOTORS. These will not be able to drive Repeat drive Brushed motors.  Repeat drive AM32 ESC is a 35A custom AM32 firmware ESC that is pre-programmed for smooth bi-directional movement. We take all the guessing out of brushless drive. Simply solder the three wires from your brushless motor onto the pads, plug into your receiver, and drive away! We added 6S capability to make these ESCs work with even more bots! Designed for use with our Repeat Drive Max motors, but should also be able to drive any off-the shelf Antweight or Beetleweight brushless drive motors with minimal tuning. Features:
  • 35A continuous current rated
  • ~5g weight (before wire shortening)
  • 26mm x 13mm x 5mm size
  • AM32 firmware (custom brushless drive firmware developed for rock crawlers)
  • Comes pre-flashed with Repeat Drive Bi-directional settings, tailored for repeat max or repeat mini
  • 3-6S capable
Find the most Up to date version of the AM32 configurator tool here: https://github.com/am32-firmware/am32?tab=readme-ov-file#firmware-release--configuration-tool
