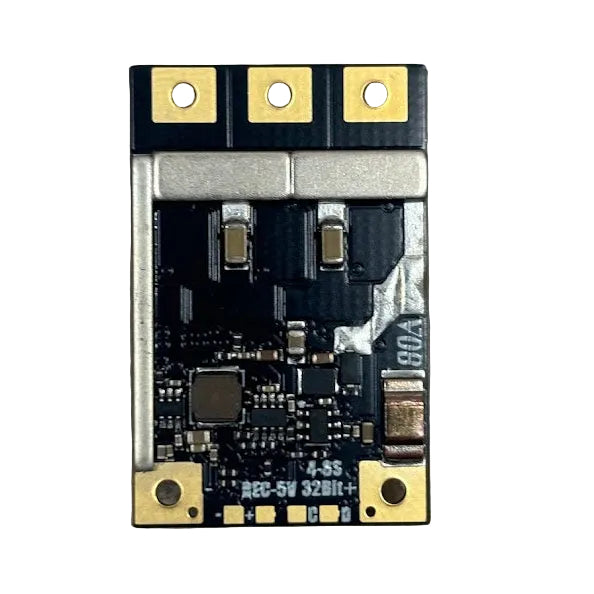

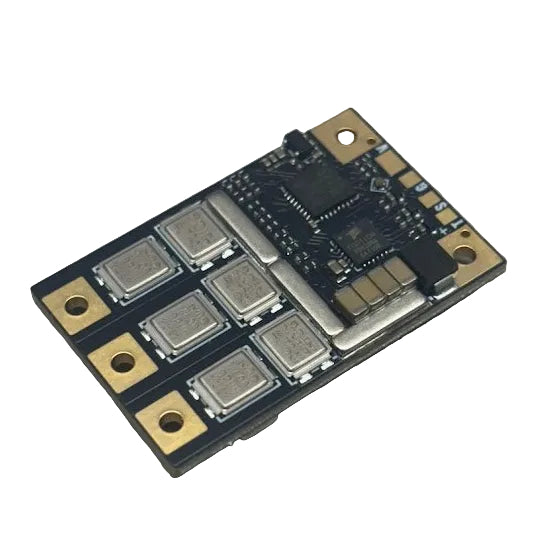

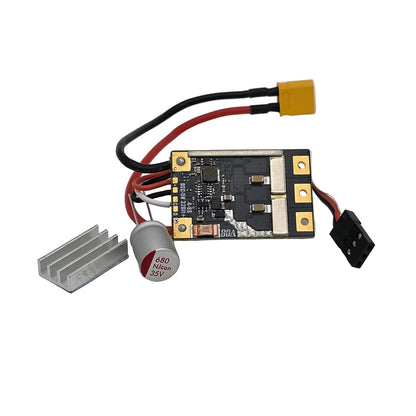

Vortex 80A ESC (Beetle Weapon or Big Bot Drive)

$35.00
$35.00

Have you been looking for a weapon ESC to keep up with the most demanding weapons out there? What about a drive ESC for your bigger bots (12lb or 30lb)? Want a bigger bot esc that comes with a BEC to power your receiver? We've got an esc that does all of these things without breaking the bank! Used in Ammonoid on drive during its 2025 motorama win. Also tested up to 8S on various beetles including Unga Bunga, Teeny Hex, Big G, and various others.

Type: Spinner 80A
Availability: Out of stock
SKU: RR-03-3348
Collections:
$35.00
$35.00

Specification:

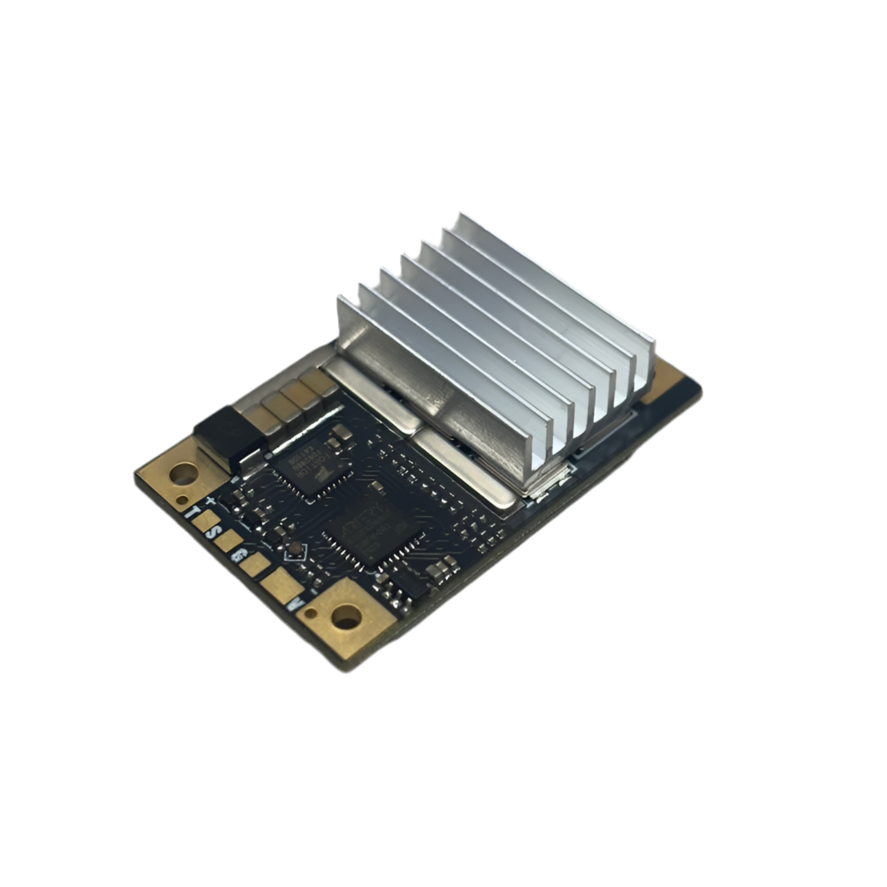

  • Comes with heatsink for the FETs.
  • Size: 36.2 x 24.3mm
  • Weight:
    • 9g just esc
    • 11g with heatsink
    • 20g with cables and cap
  • BEC: 5V 3A
  • Voltage: 10.8V-33.6V (3-8S) lipo battery
  • Firmware: AM32
  • Continuous current: 80A
  • Burst current: 90A(Instant)
  • Peak power: 2000W(Instant)
  • PCB board: 6-layer board with a copper thickness of 3oz inside and outside

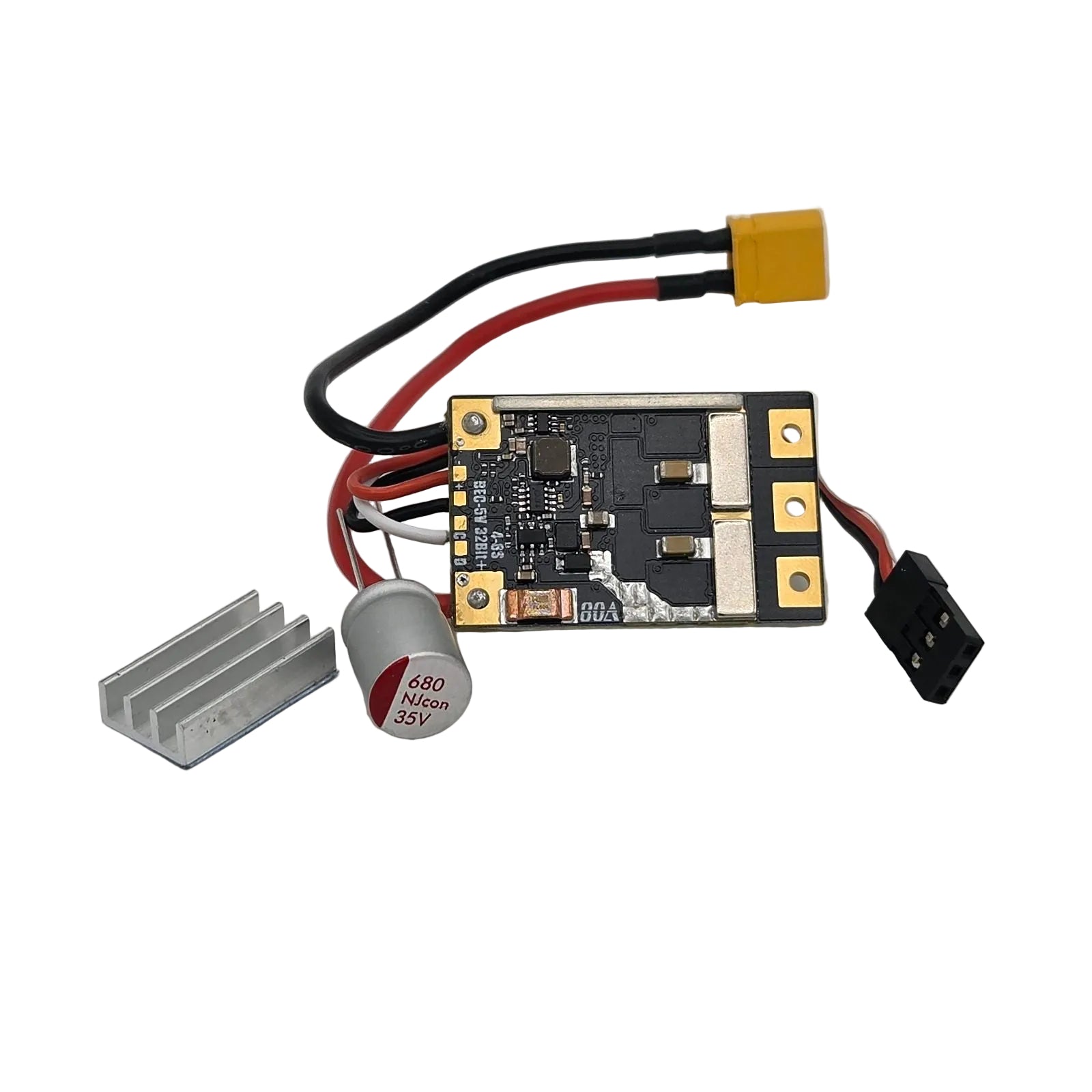

  • As of 6/15 - Comes with low ISR 680uf capacitor
  • As of 6/15 - Comes with pre-soldered signal and power wires

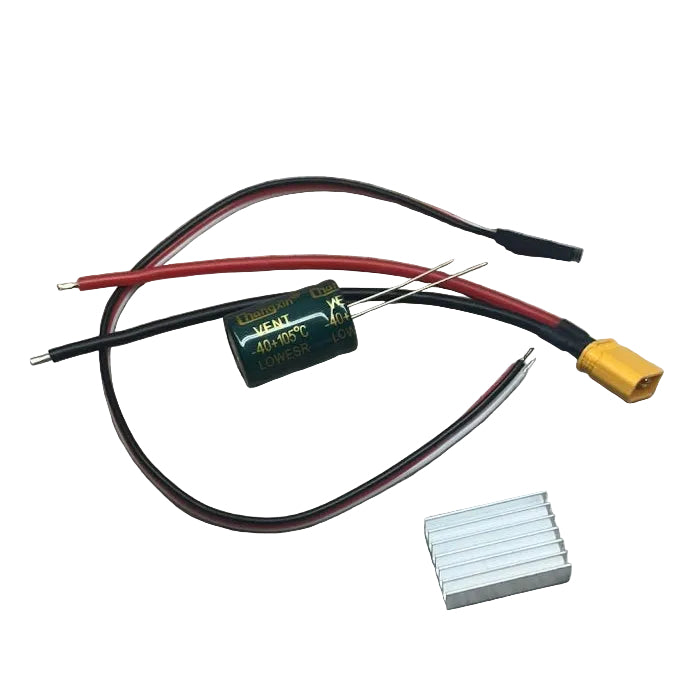

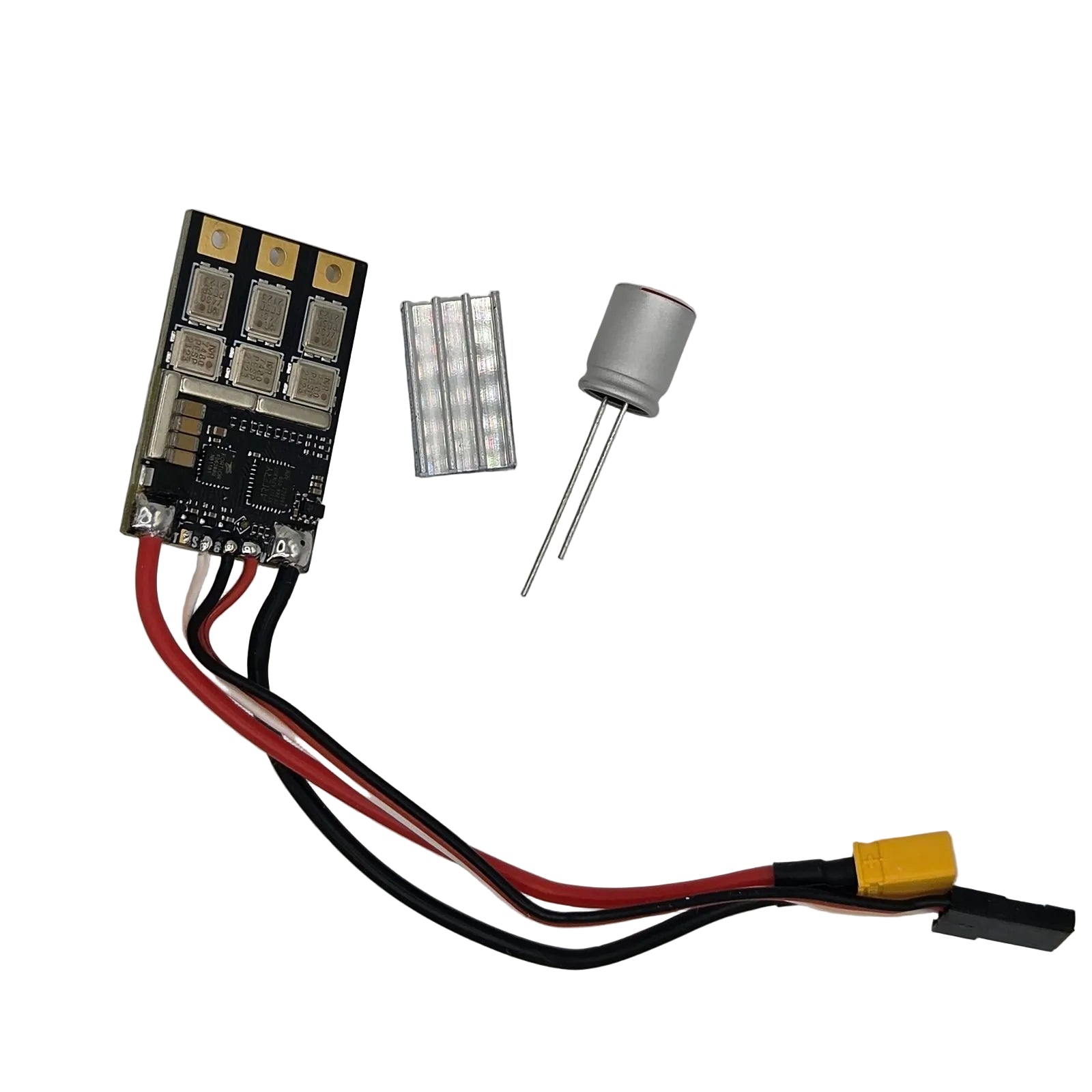

Package includes:

- 1pcs AM32 firmware single ESC
- 1pcs aluminum heat sink
- 1pcs 35V 1500uf high frequency electrolytic capacitor
- 1pcs power cord with XT30 plug
- 1pcs signal cable
