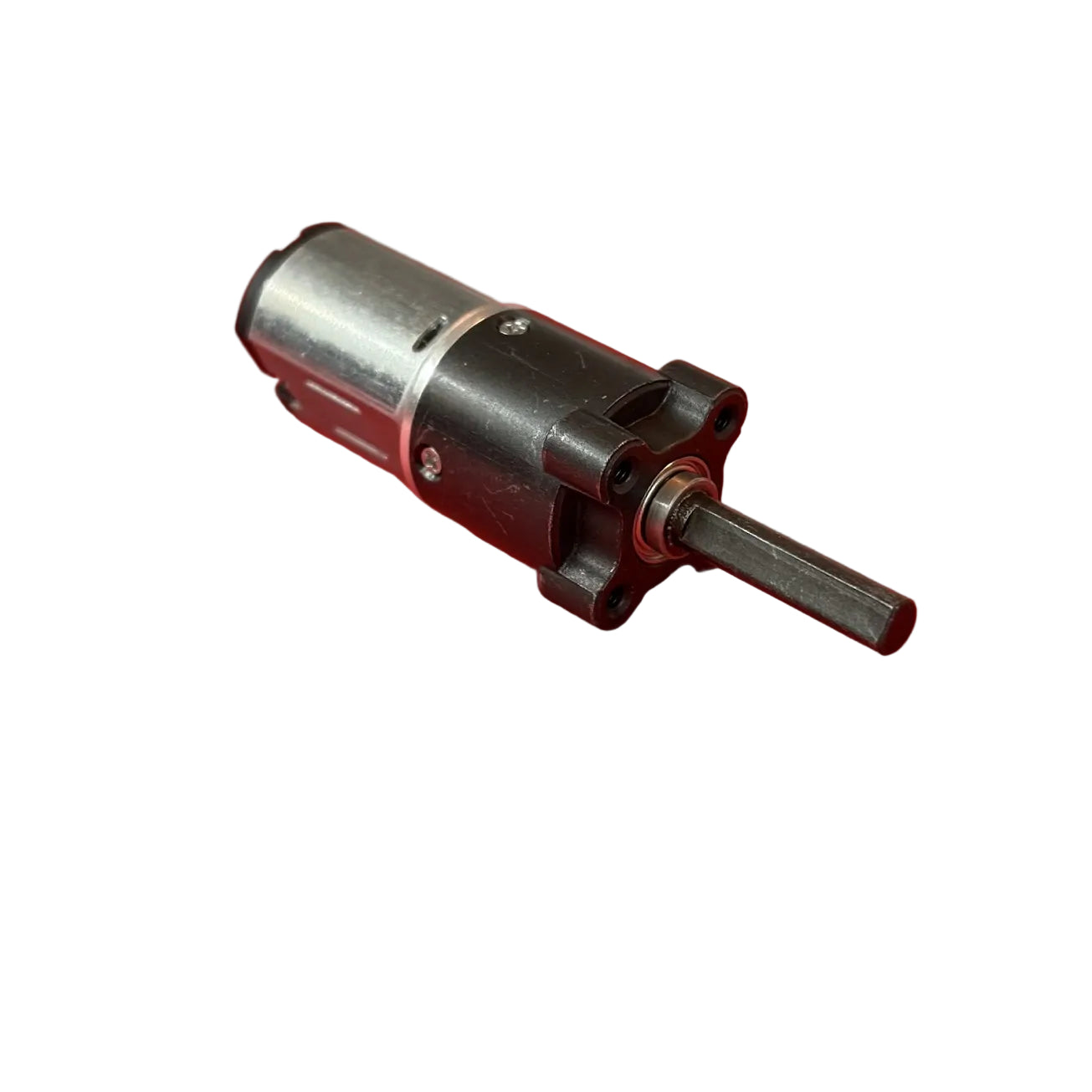

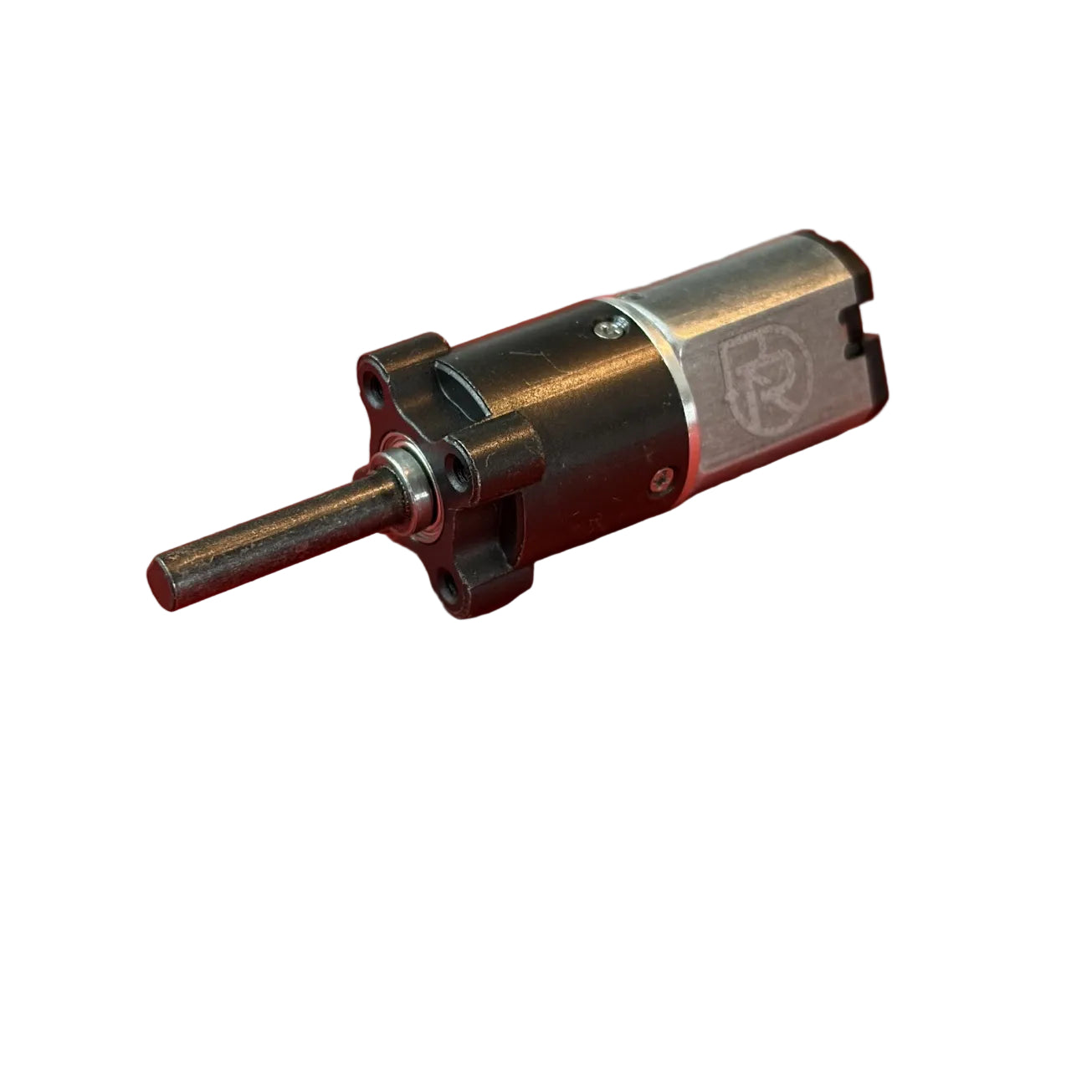

Mini Pro Brushed - Antweight planetary gearmotor

$25.00
$25.00

Tired of bushings failing on your brushed drive motors? Tired of fiddling with super short M2 screws? This upgraded antweight drive motor has a custom tooled outer casing specifically to remove failure modes of the repeat mini brushed motors. Gone are the 3mm shafts bending. No longer will a bushing failing lock up your drive. Rest easily knowing that too long mounting screws won't kill your motor.

Availability: In stock
SKU: RR-01-3264
Collections:
$25.00
$25.00
  • 29.7g
  • Four lobed mounting pattern on the face makes for easy clamp mounting
  • Dual ball bearings supporting the output shaft
  • 4mm hardened steel billet output shaft
  • 4 final stage planet gears (vs the standard 3)
  • Machined planet gears for added durability
  • 4x M2 tapped hole on a 14mm circle for mounting
  • Custom wound 030 brushed motor
  • 2-4s lipo rated voltage
  • 16mm diameter, 22.6:1 all metal planetary gearbox

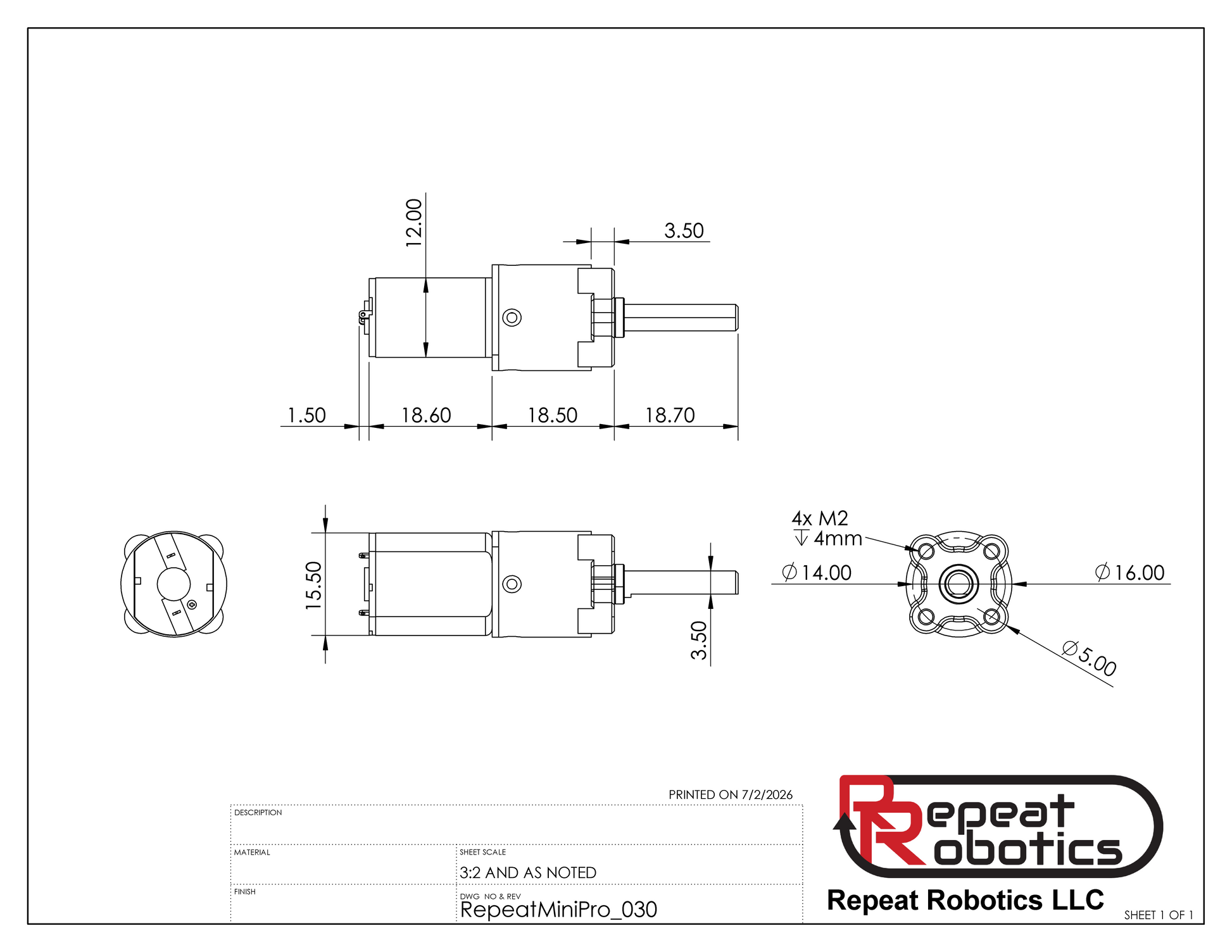

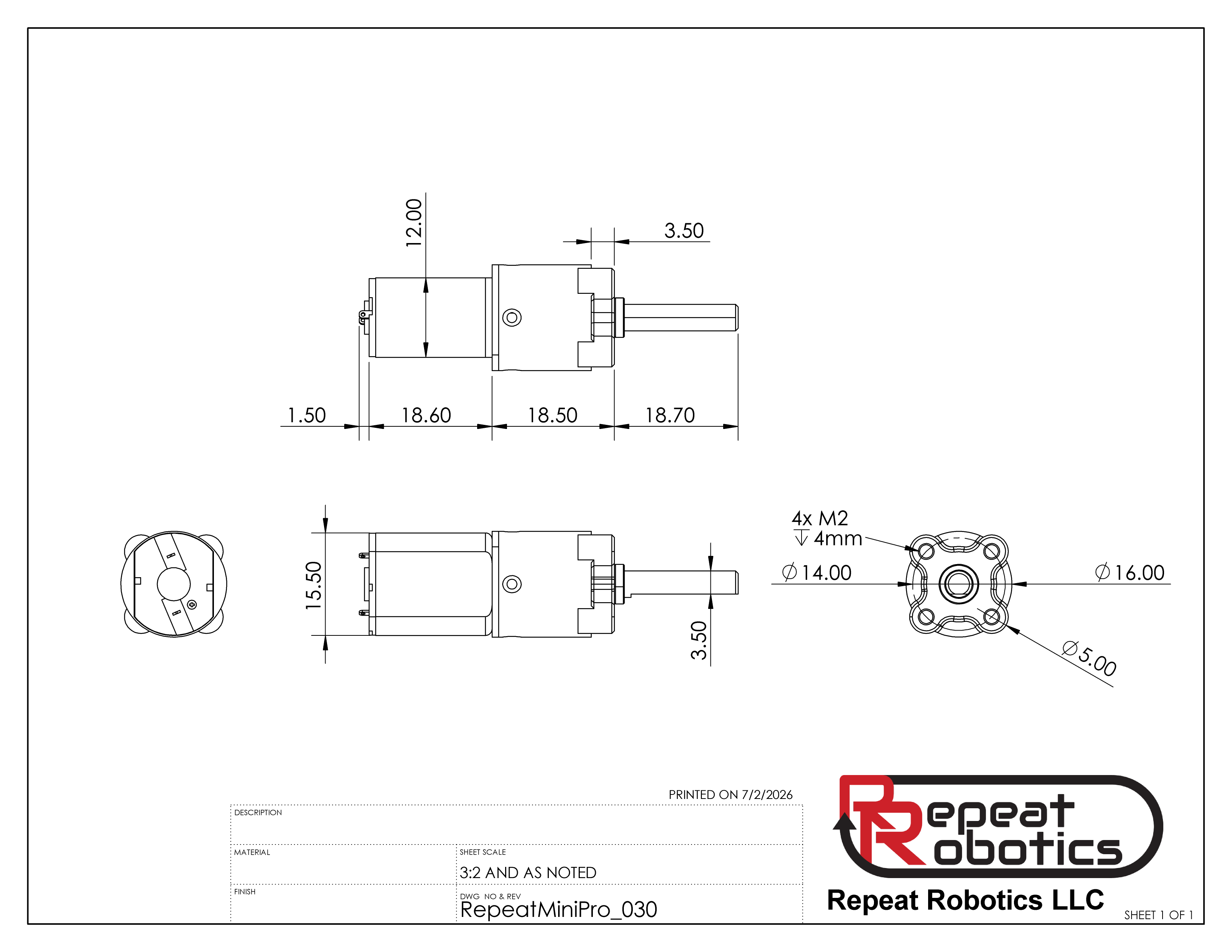

Find the 3D model HERE



Performance

  • 12V input (3S) - 1220rpm free speed - 2A stall current - 1187 g.cm stall torque - 3.72W max power output
  • 7.4V input (2S) - 752rpm
  • 14.8v input (4S) - 1504rpm
