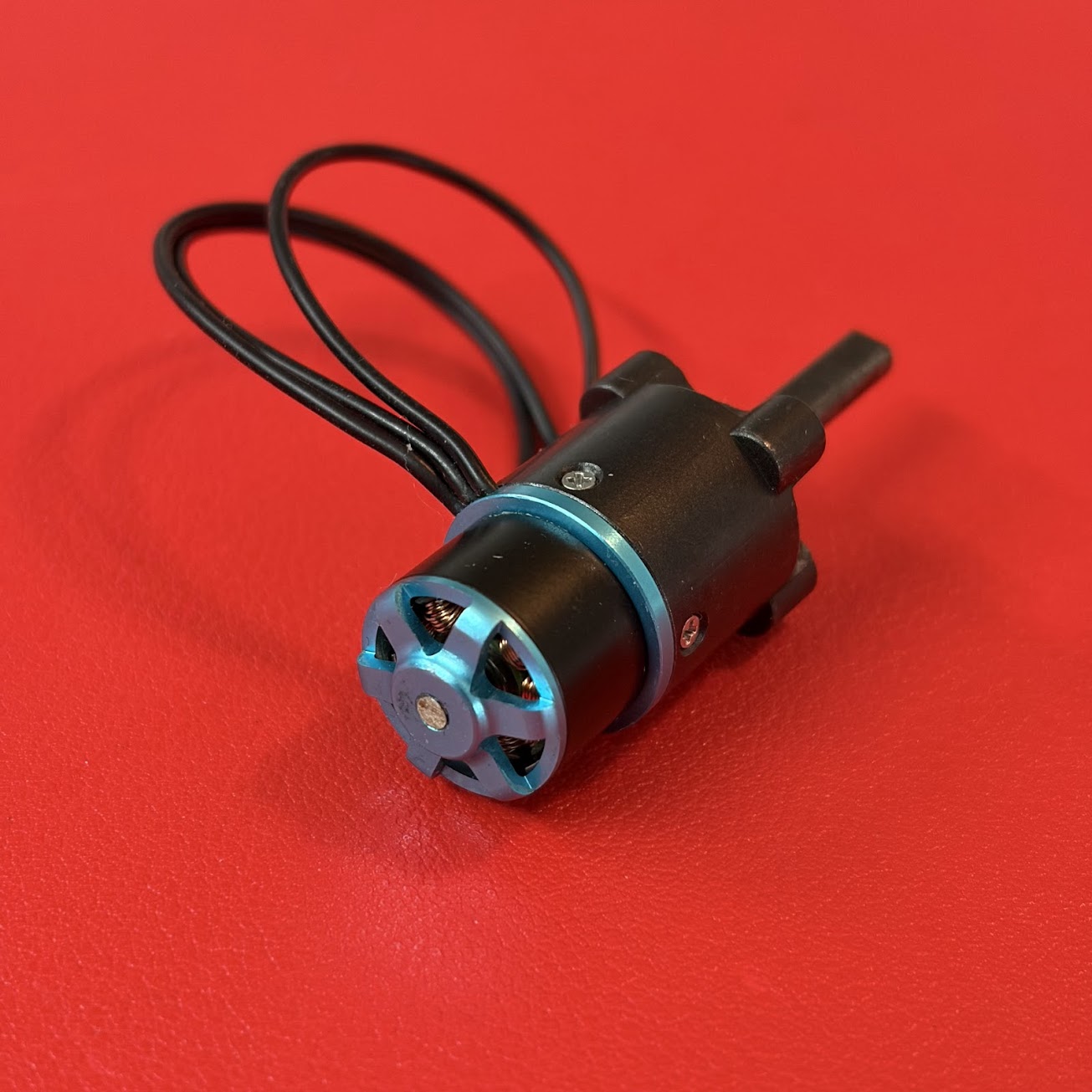

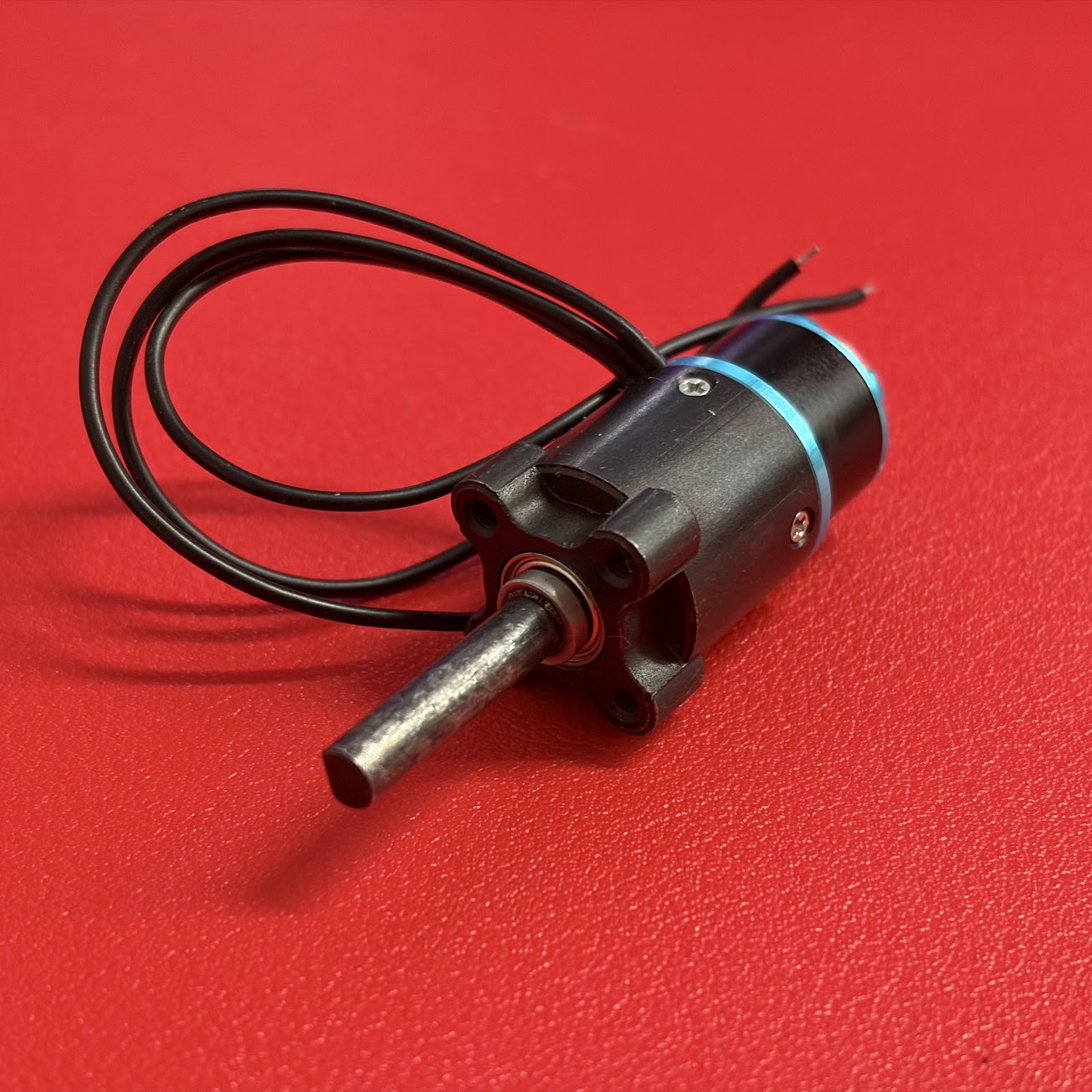

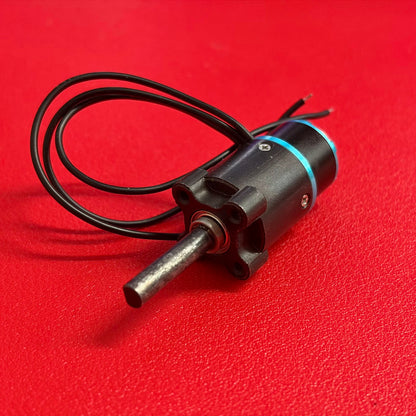

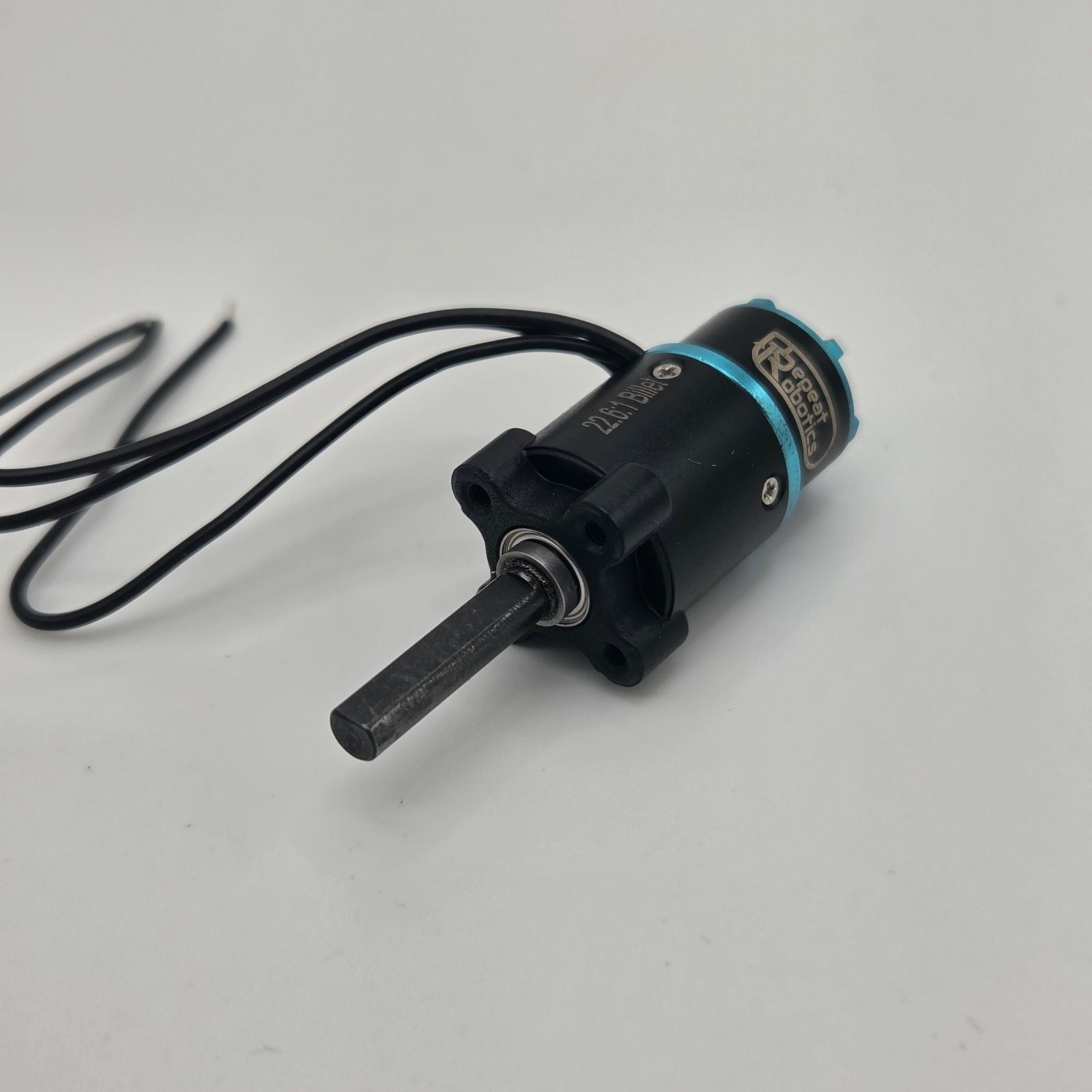

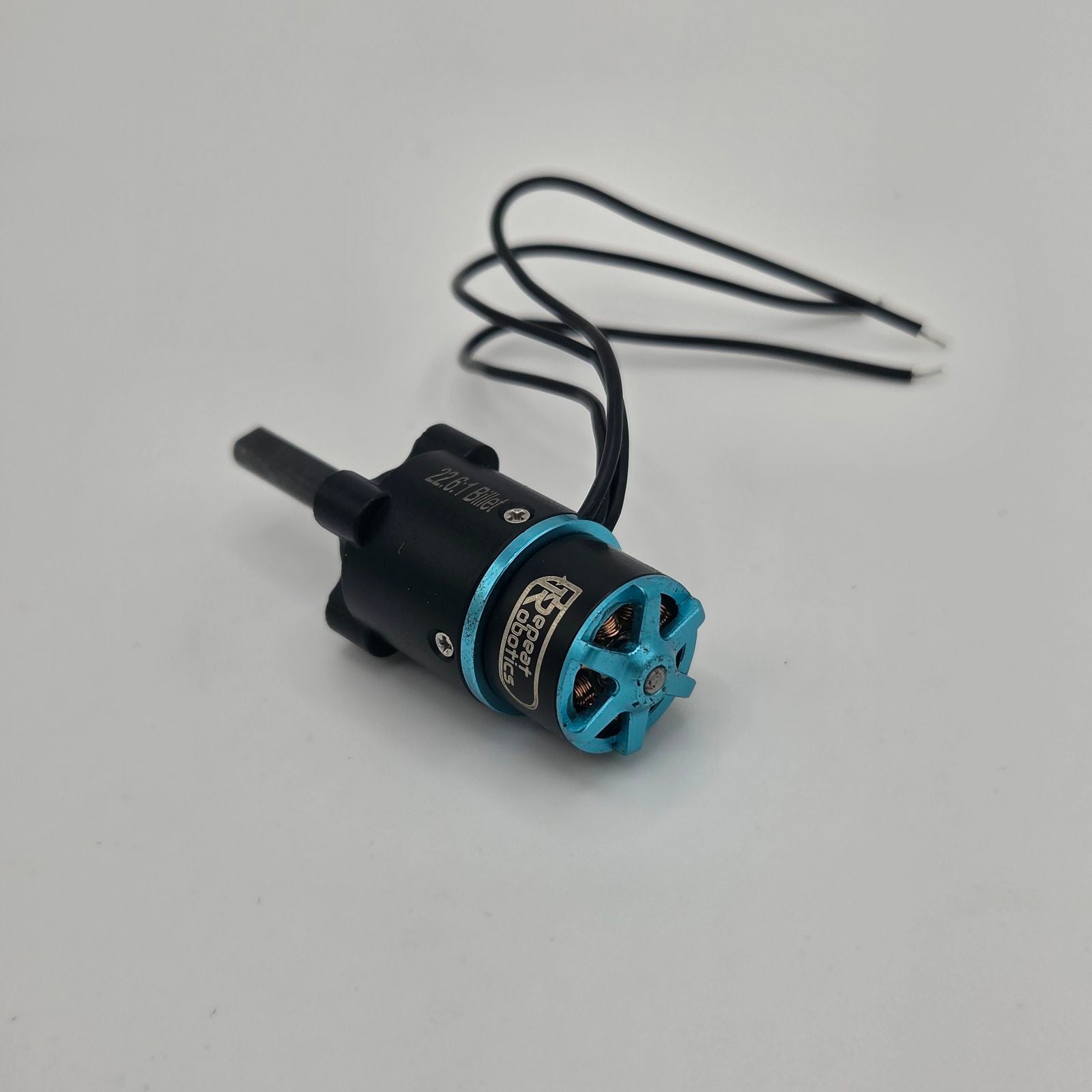

Mini Pro 1106 - Antweight planetary gearmotor

$42.00
$42.00

Tired of bushings failing on your drive motors? Tired of fiddling with super short M2 screws? This upgraded antweight drive motor has a custom tooled outer casing specifically to remove failure modes of the repeat mini brushed motors. Gone are the 3mm shafts bending. No longer will a bushing failing lock up your drive. Rest easily knowing that too long mounting screws won't kill your motor.

Availability: Out of stock
SKU: RR-01-3261
Collections:
$42.00
$42.00
  • 24.8g
  • Four lobed mounting pattern on the face makes for easy clamp mounting
  • Dual ball bearings supporting the output shaft
  • 4mm hardened steel billet output shaft

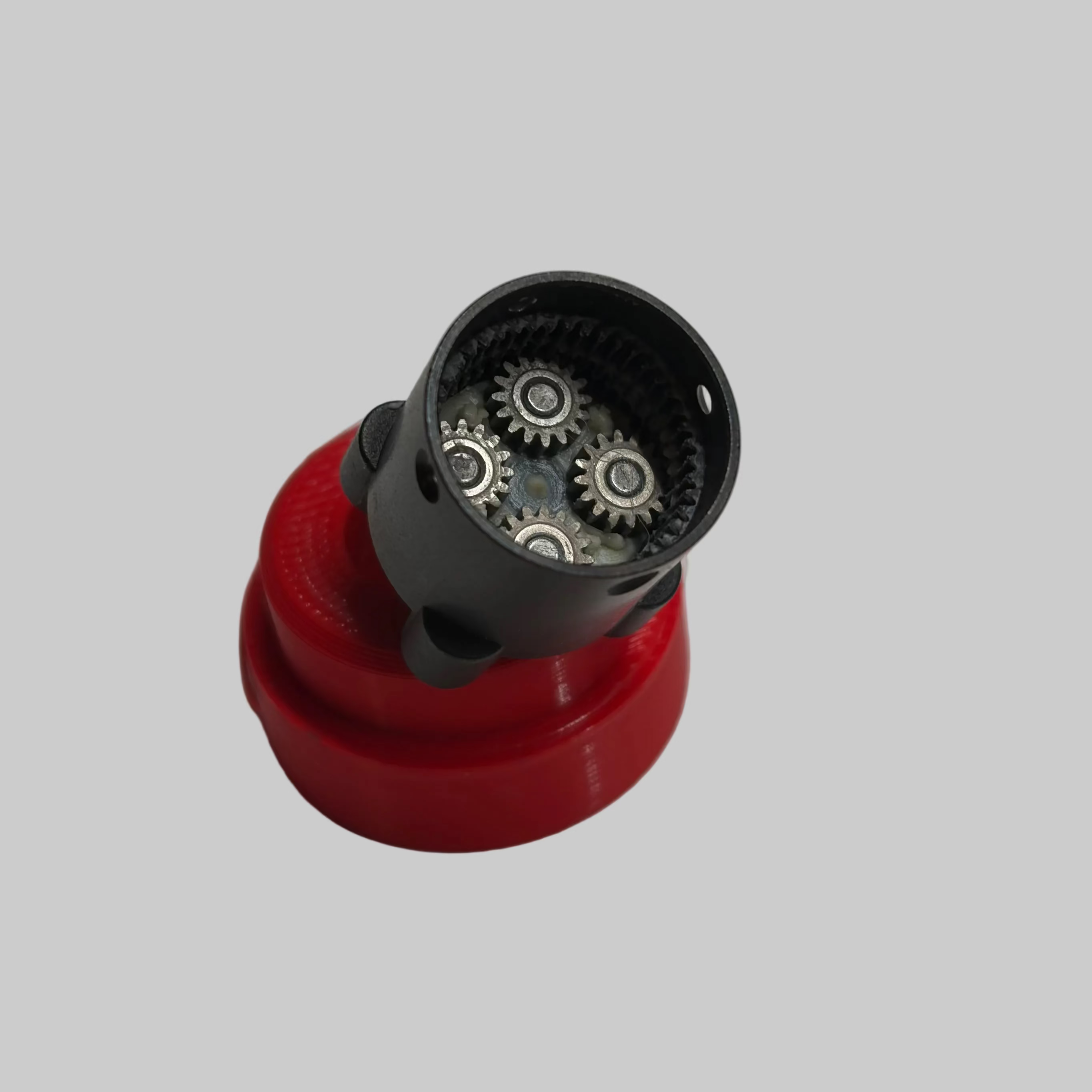

  • 4 final stage planet gears (vs the standard 3)
  • Machined planet gears for added durability
  • 4x M2 tapped hole on a 14mm circle for mounting
  • Custom designed 3500kv 1106 brushless motor
  • 2-4s lipo rated voltage
  • 16mm diameter, 22.6:1 all metal planetary gearbox

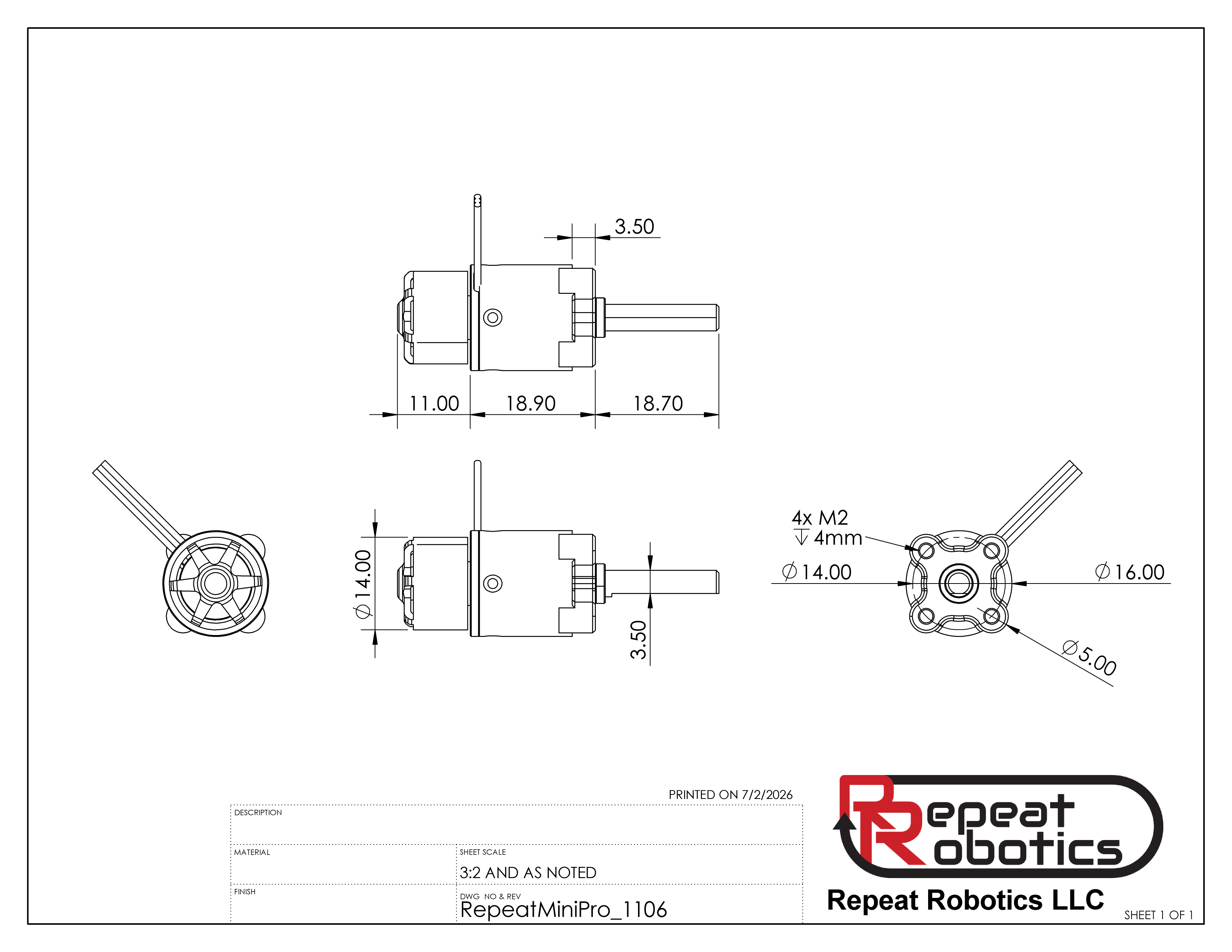

Find the 3D model HERE
