AM32 Micro Drive ESC

$20.00
$22.00 $20.00
Save $2.00

Looking for brushless escs but can't find anything small enough? The Micro AM32 esc is the smallest on the market at 12mm x 18mm! Take the size savings without sacrificing drive performance! Running AM32 firmware tuned for robot drivetrains these are great for 1lb or 3lb drive!

Availability: 139 in stock

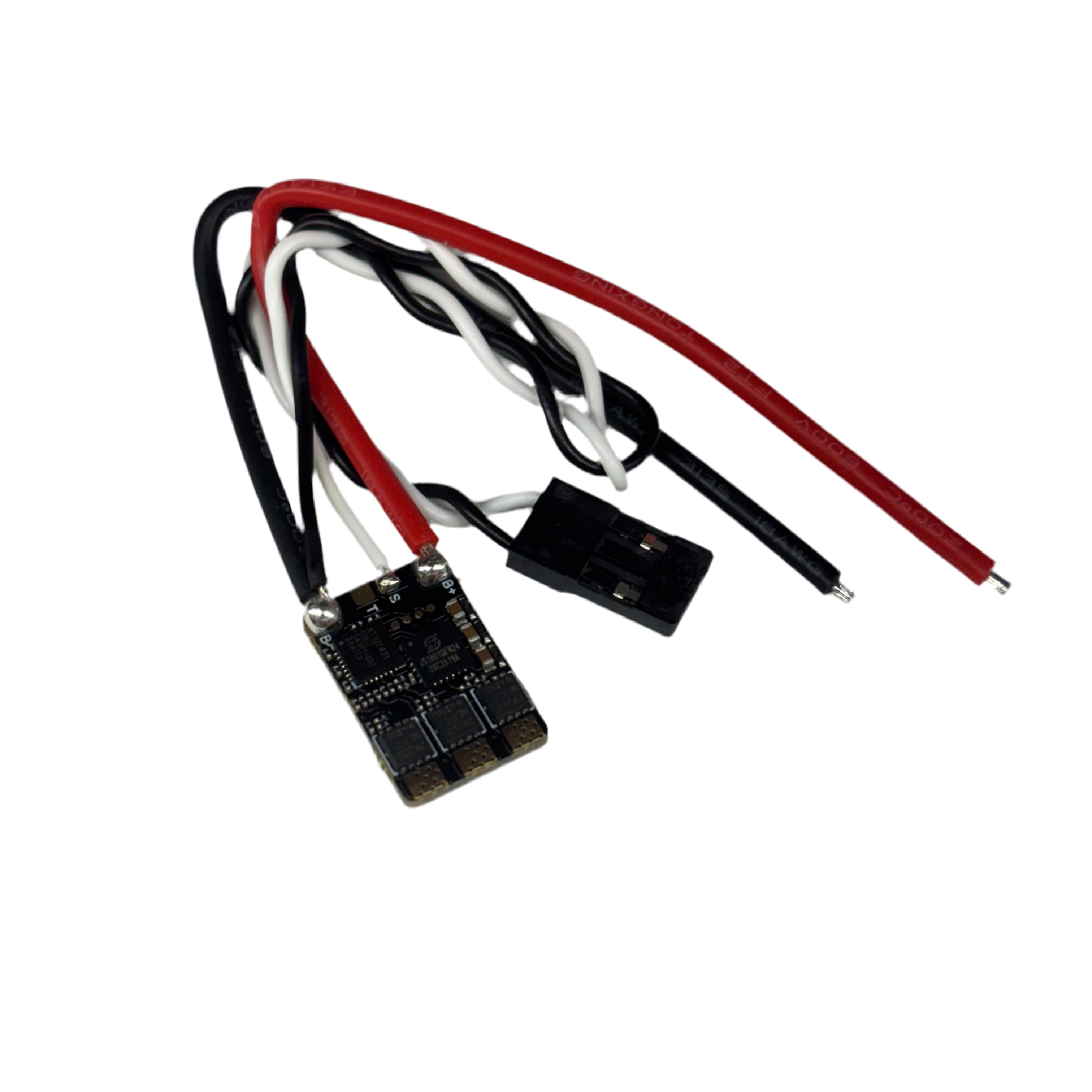

Repeat Micro AM32 Drive ESC image 0
$20.00
$22.00 $20.00

Repeat Micro AM32 ESC is a custom AM32 firmware ESC that is pre-programmed for smooth bi-directional movement. We take all the guessing out of brushless drive, simply solder the three wires from your brushless motor onto the pads, plug into your receiver, and drive away!

Tuned for combat robot brushless drive, these should work off the shelf with just about any 1lb or 3lb drive motor you find!

Features:

  • 25A continuous current rated
  • ~5g weight (with 10cm wires)
  • 18mm x 12mm x 4mm size
  • 3-4S capable
  • AM32 firmware
  • Comes pre-flashed with Repeat Drive Bi-directional settings, tailored for repeat drive solutions
  • Only for brushless motors

Find the most Up to date version of the AM32 configurator tool here: https://github.com/am32-firmware/am32?tab=readme-ov-file#firmware-release--configuration-tool
