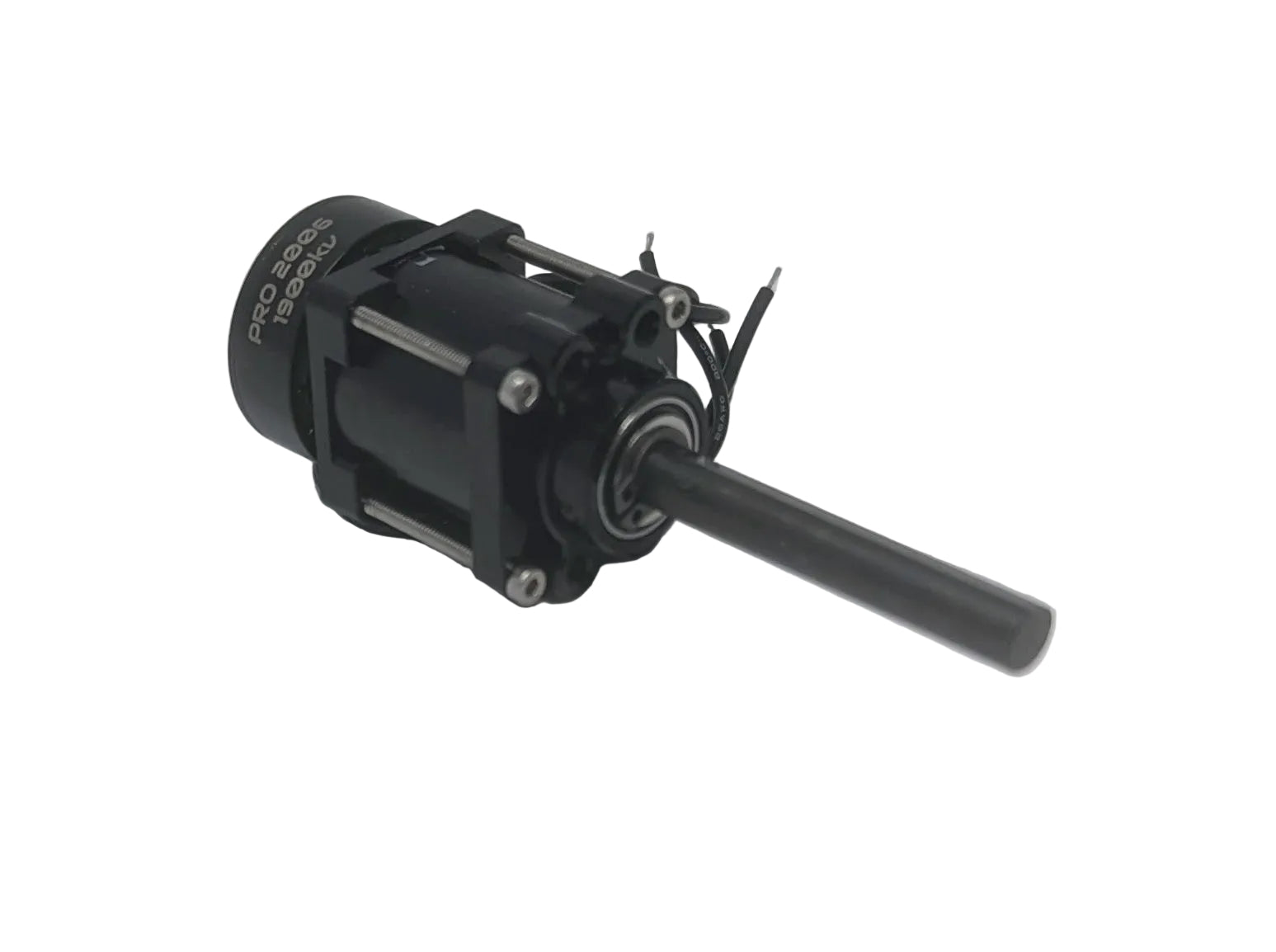

Repeat Drive Pro

$25.00 - $65.00

Does your beetleweight need more drive power? Not happy with any of the options on the market? Tired of trying to put your own shafts into a 2xxx motor to get all the torque??? Repeat drive pro is modeled after the drivetrain that drove lynx to 3 world championship titles. Its a customized 24mm 27:1 gearbox with a massive 2207.5 motor slapped on it. This motor gives more torque than any 3lber could ever hope to use, but sometimes overkill is best.

kV: 2500kv (4S version)
Motor Size: 2006
Type: Replacement Motor
$25.00
$25.00
Availability: 110 in stock
$25.00
$25.00

2006 Motor Features:

  • Custom wound 2006 brushless motor
  • 1900kv - 2-6S voltage
  • 2500kv - 2-4S voltage
  • 24mm, 27:1 custom designed all metal planetary gearbox
  • 6mm "D" extra long output shaft (cut to the length that you need to save weight)
  • Custom billet 4130 final planet carrier and output shaft
  • Output shaft c-clip has been changed to minimize the groove and provide the strongest product.
  • 64.5g weight
  • Custom square M3 facemount hole pattern (9mm apart, 22mm hole circle (~9x20mm rectangle))
CAD model: https://grabcad.com/library/repeat-drive-pro-2006-1

2207 Motor Features:

  • Custom wound 2207.5 brushless motor
  • 1900kv - 2-6S voltage, 1065W on 6S
  • 2500kv - 2-4S voltage, 709W on 4S
  • 24mm, 27:1 custom designed all metal planetary gearbox
  • 6mm "D" extra long output shaft (cut to the length that you need to save weight)
  • Custom billet 4130 final planet carrier and output shaft
  • Output shaft c-clip has been changed to minimize the groove and provide the strongest product.
  • ~80g weight
  • Custom square M3 facemount hole pattern (9mm apart, 22mm hole circle (~9x20mm rectangle))
CAD model: https://grabcad.com/library/repeat-drive-pro-1

2006 Replacement Motor :

  • Ready to bolt onto a pro gearbox
  • Comes with pinion gear already attached
Re-greasing is recommended for high voltage usage and improved performance. Replacing the grease with a thinner grease or oil will reduce load and heating.
