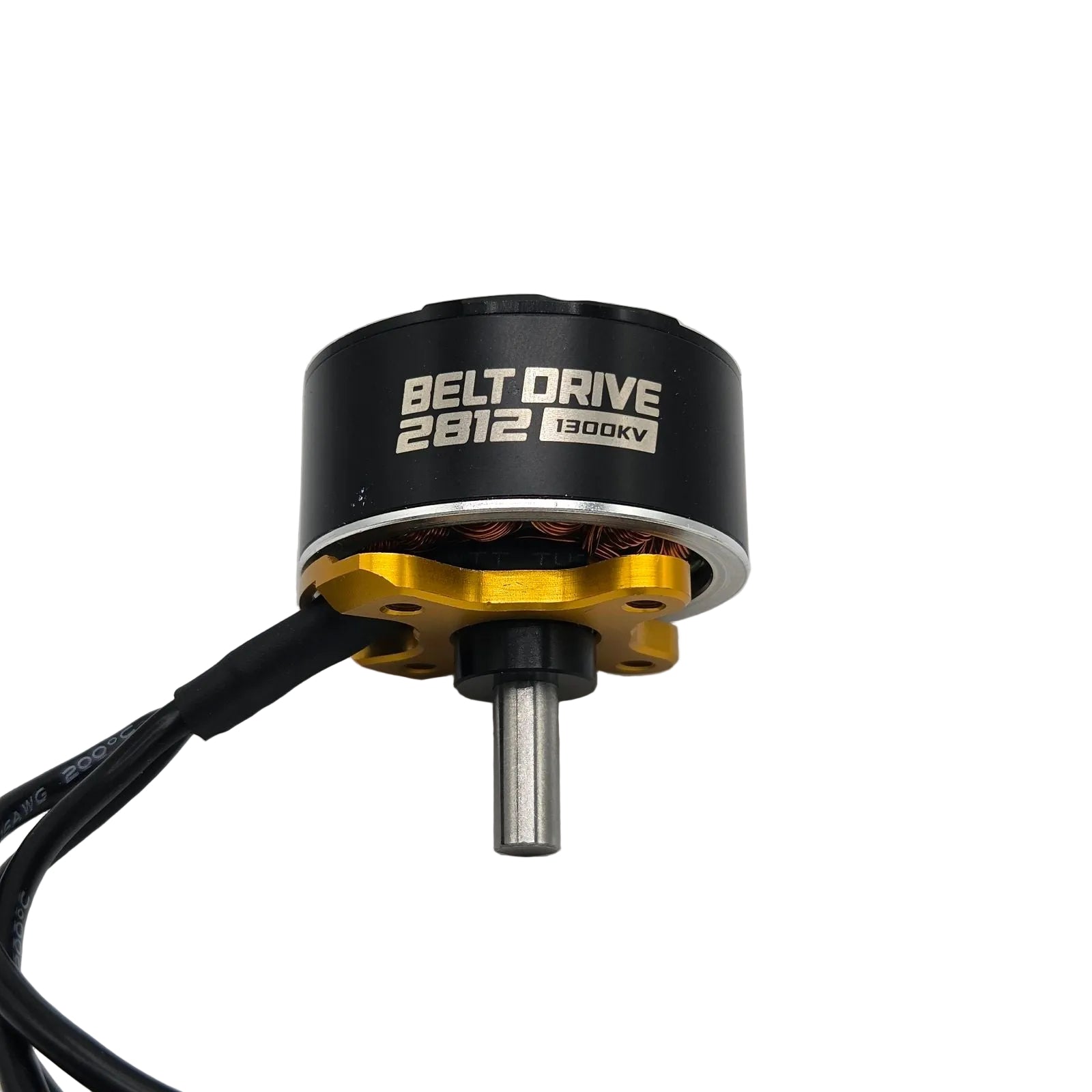

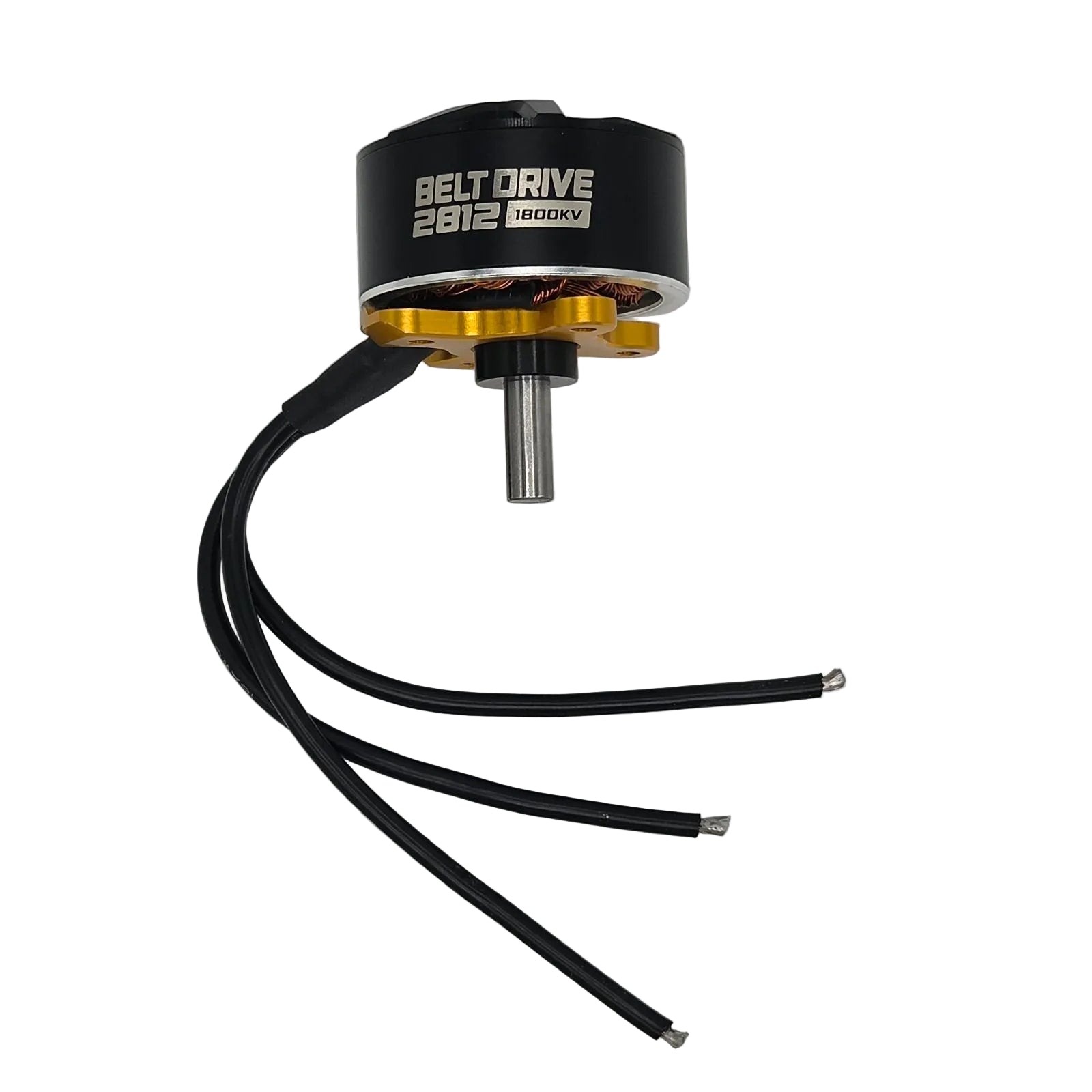

Belt Drive 2812

$35.00
$35.00

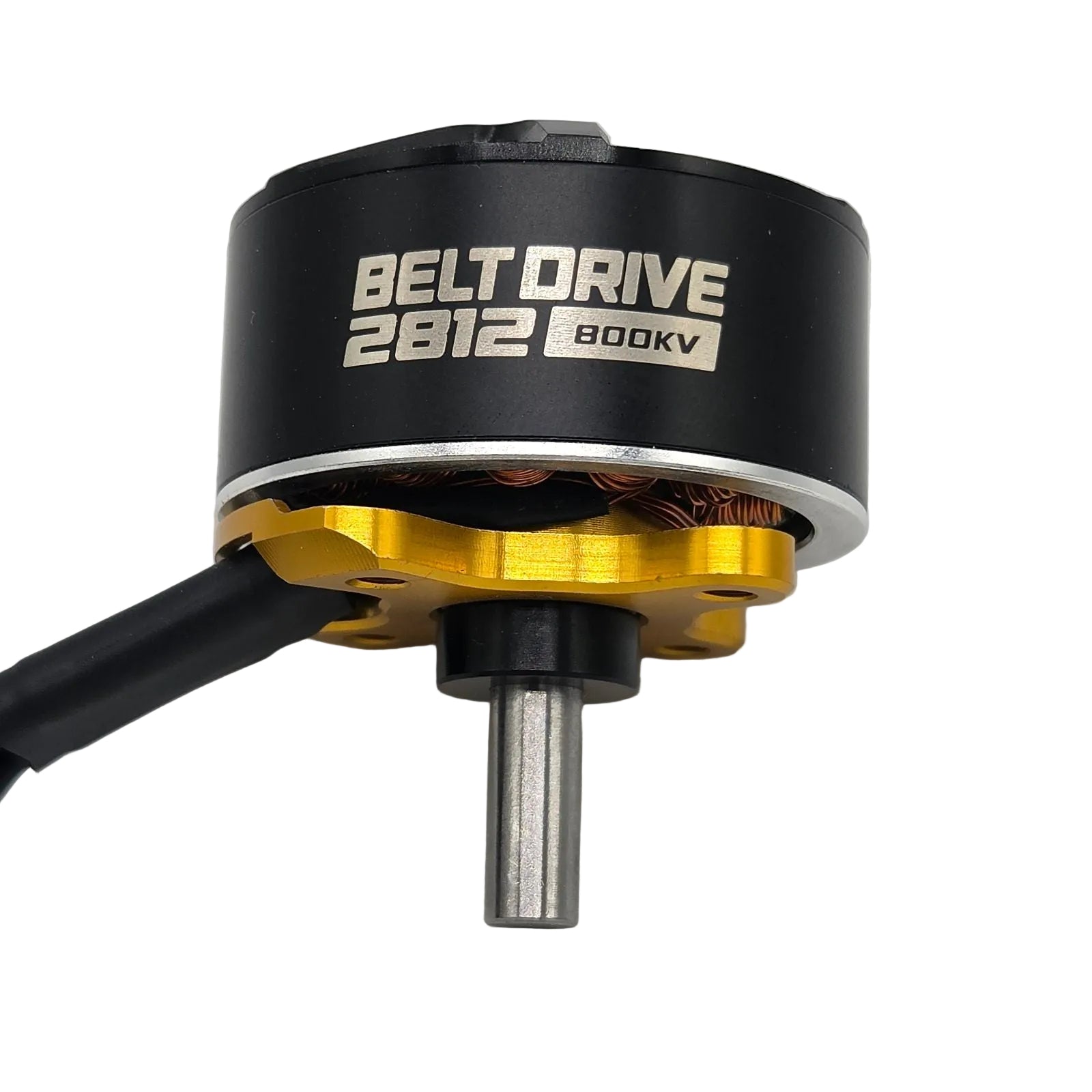

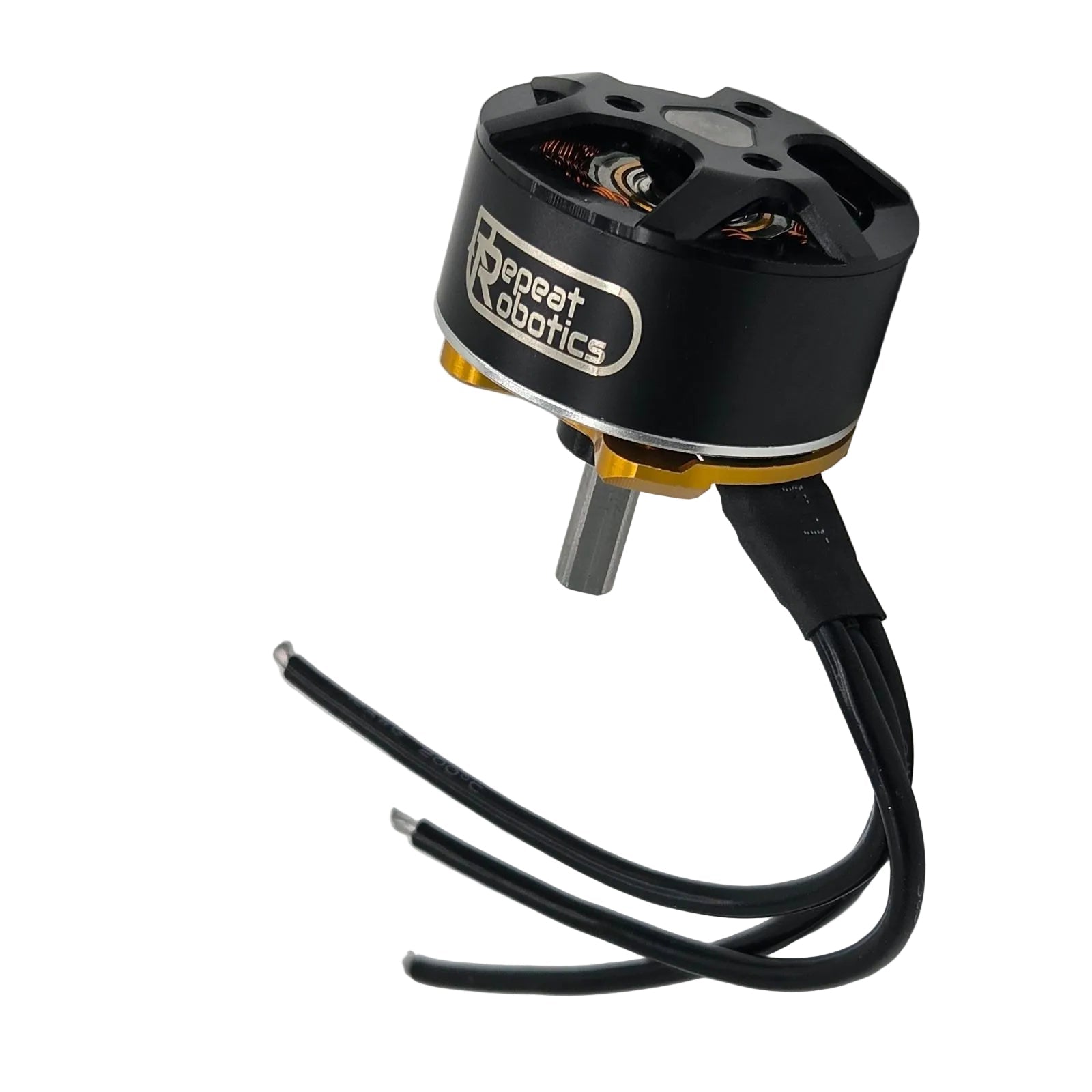

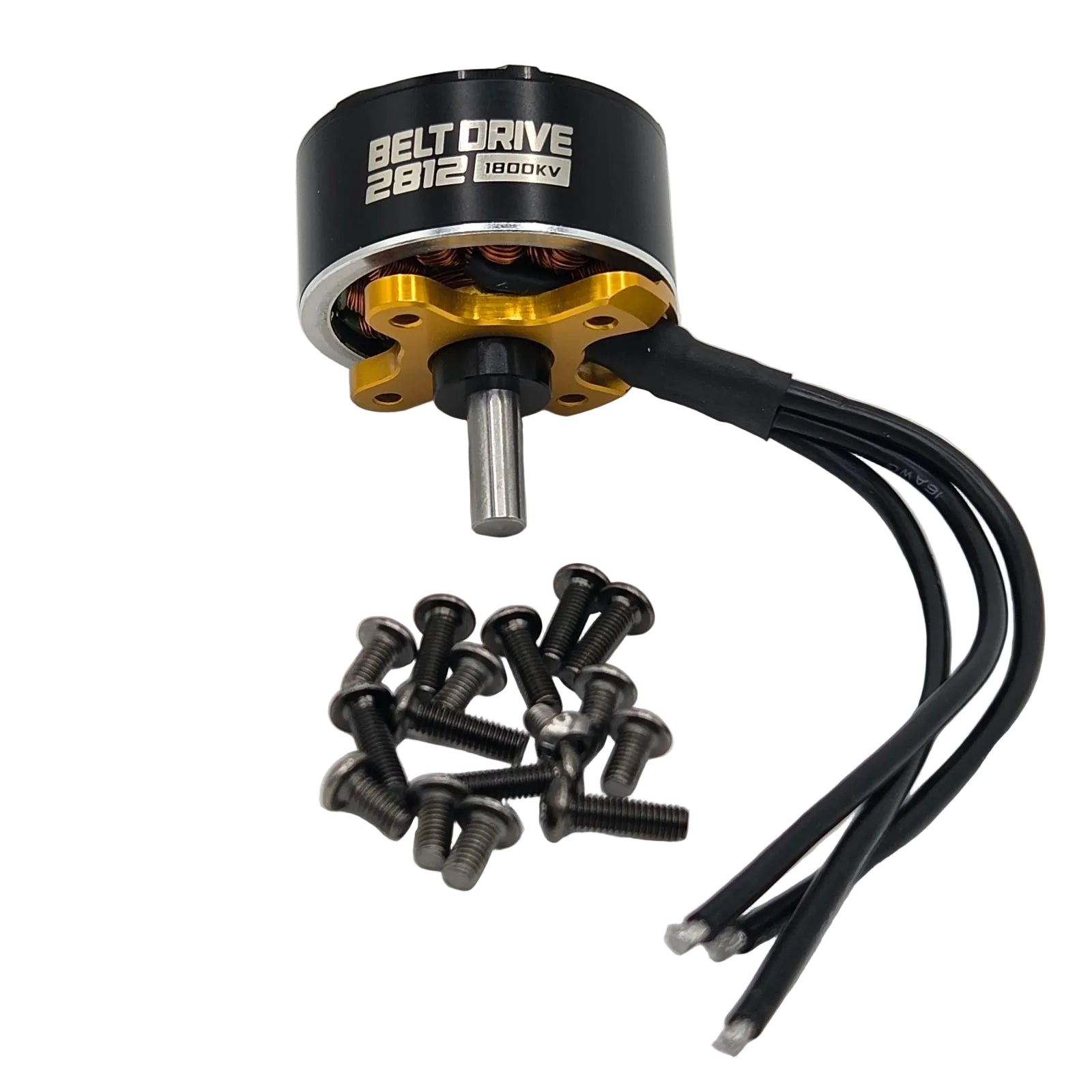

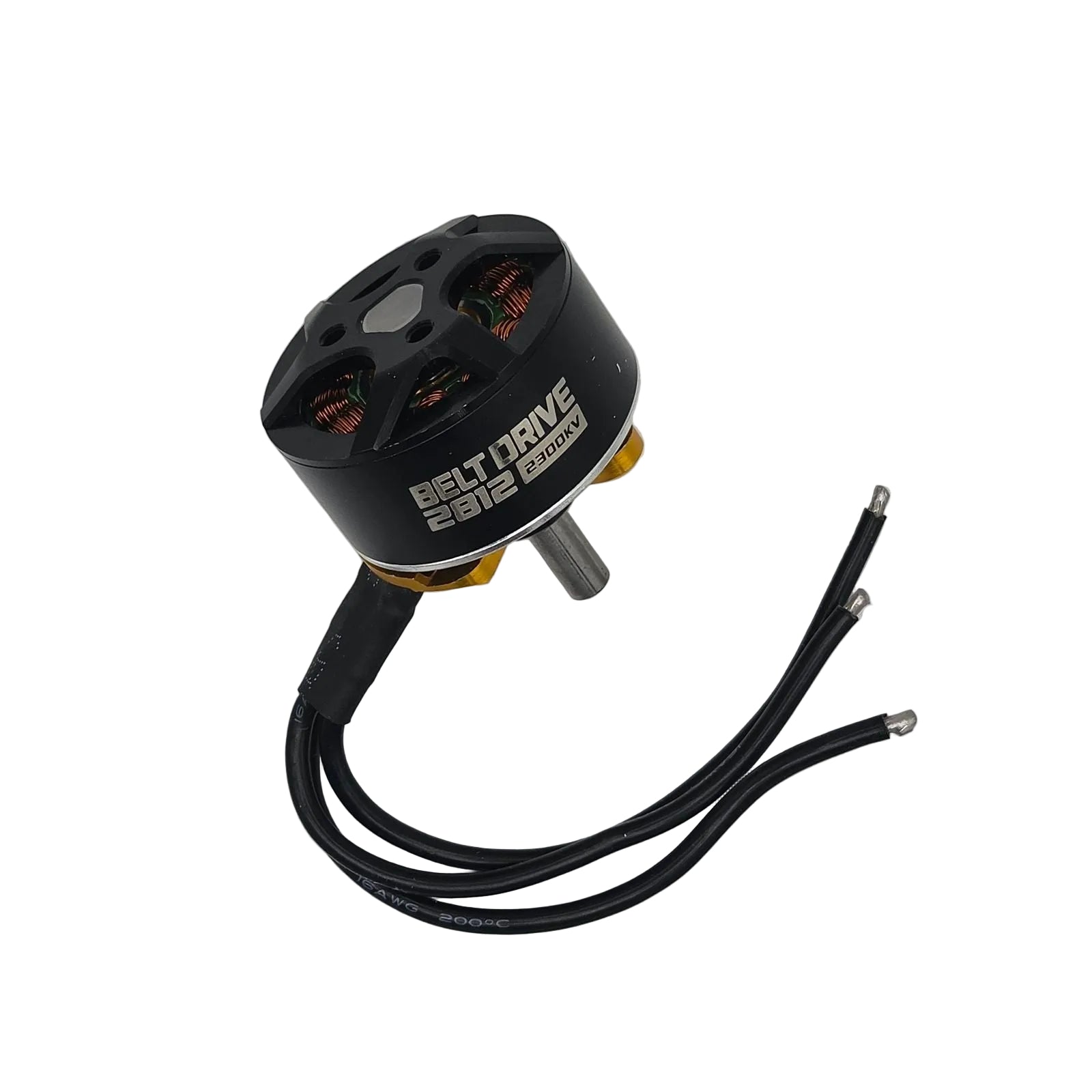

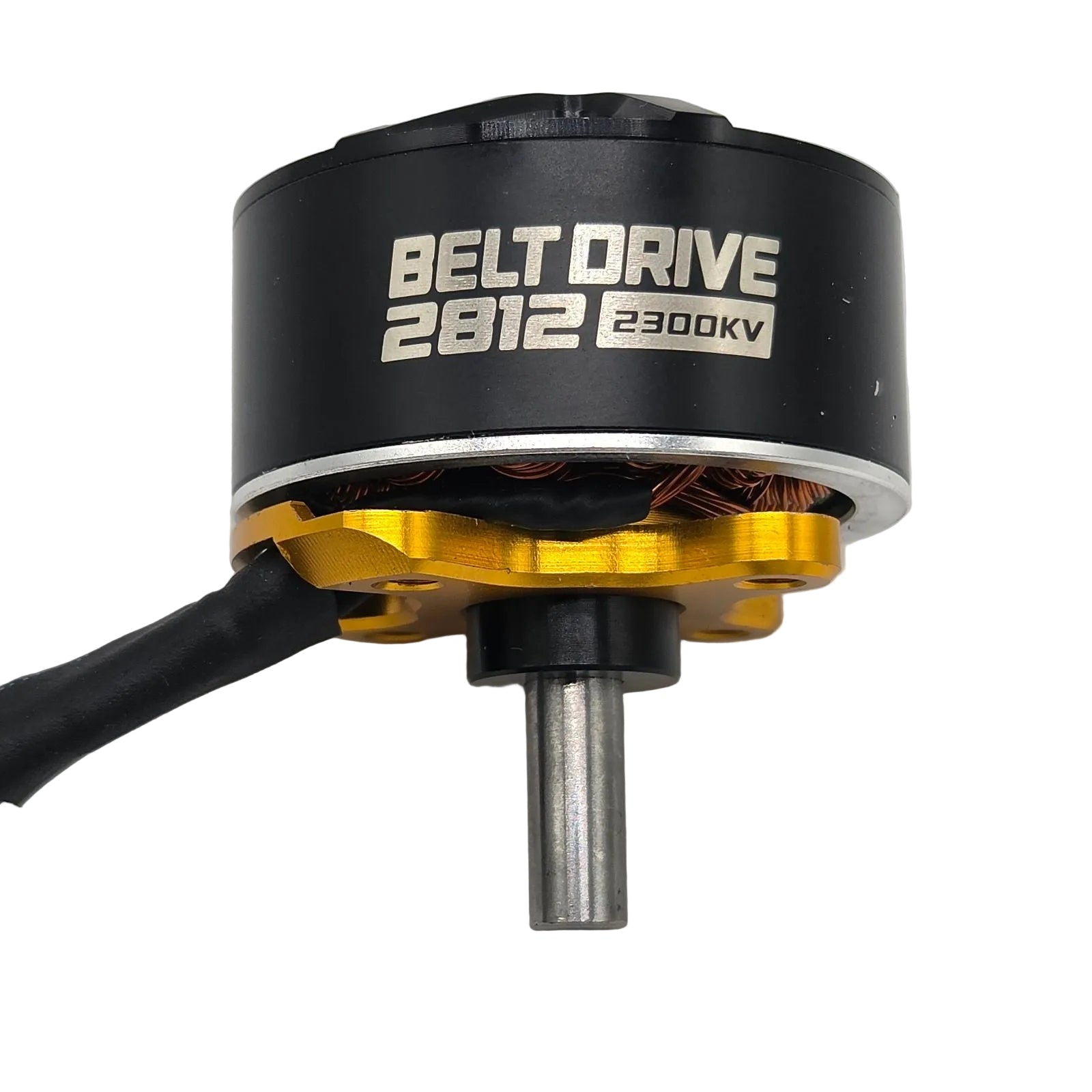

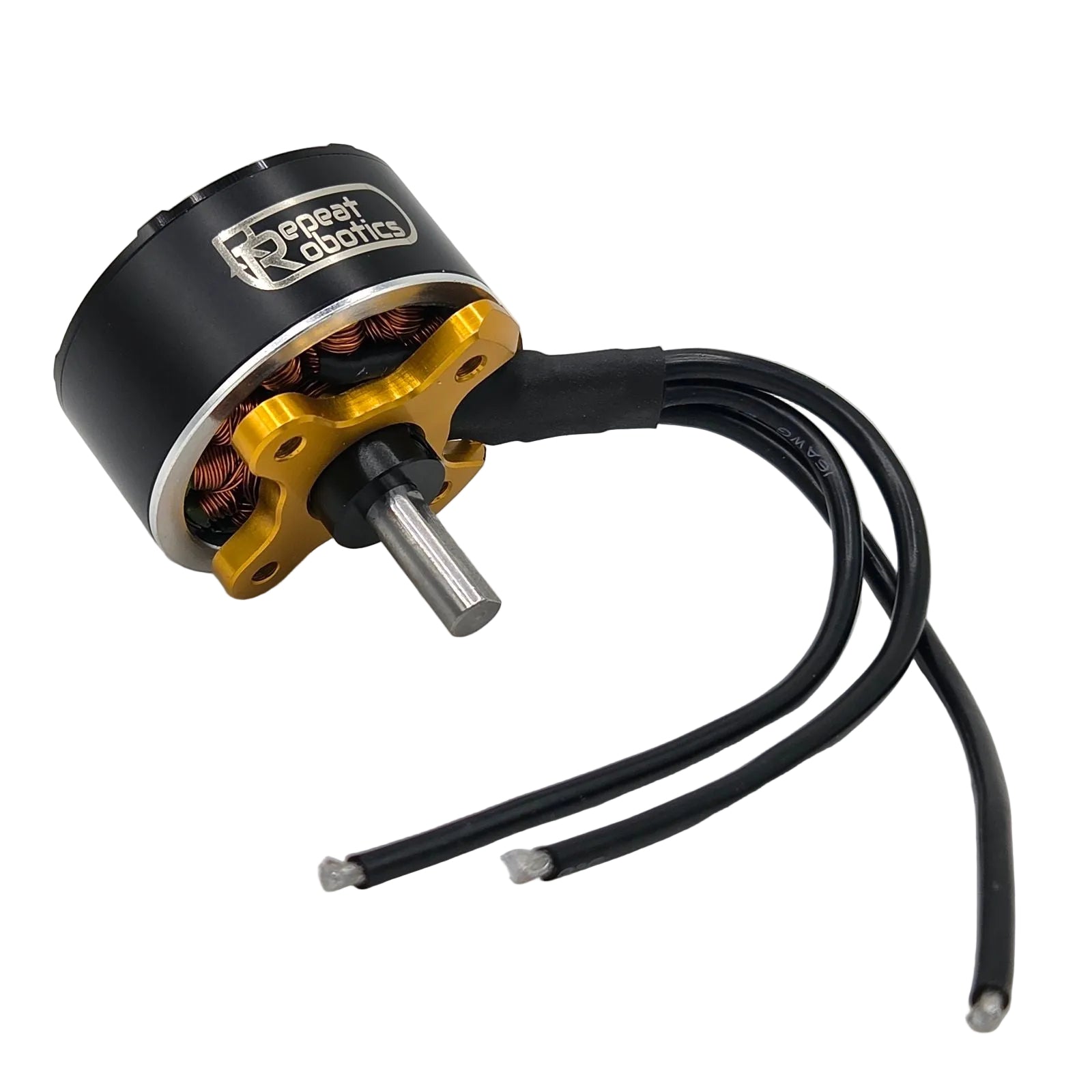

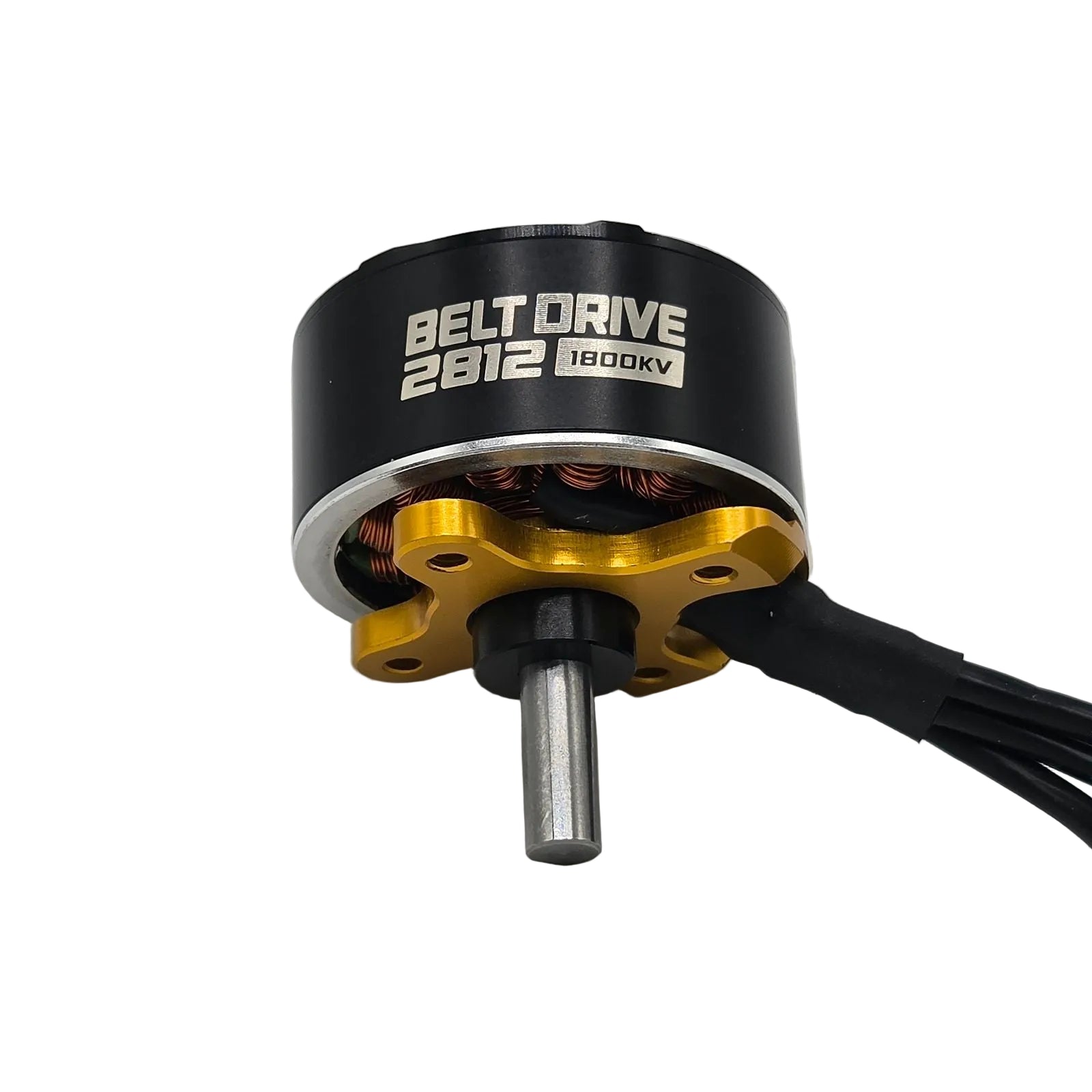

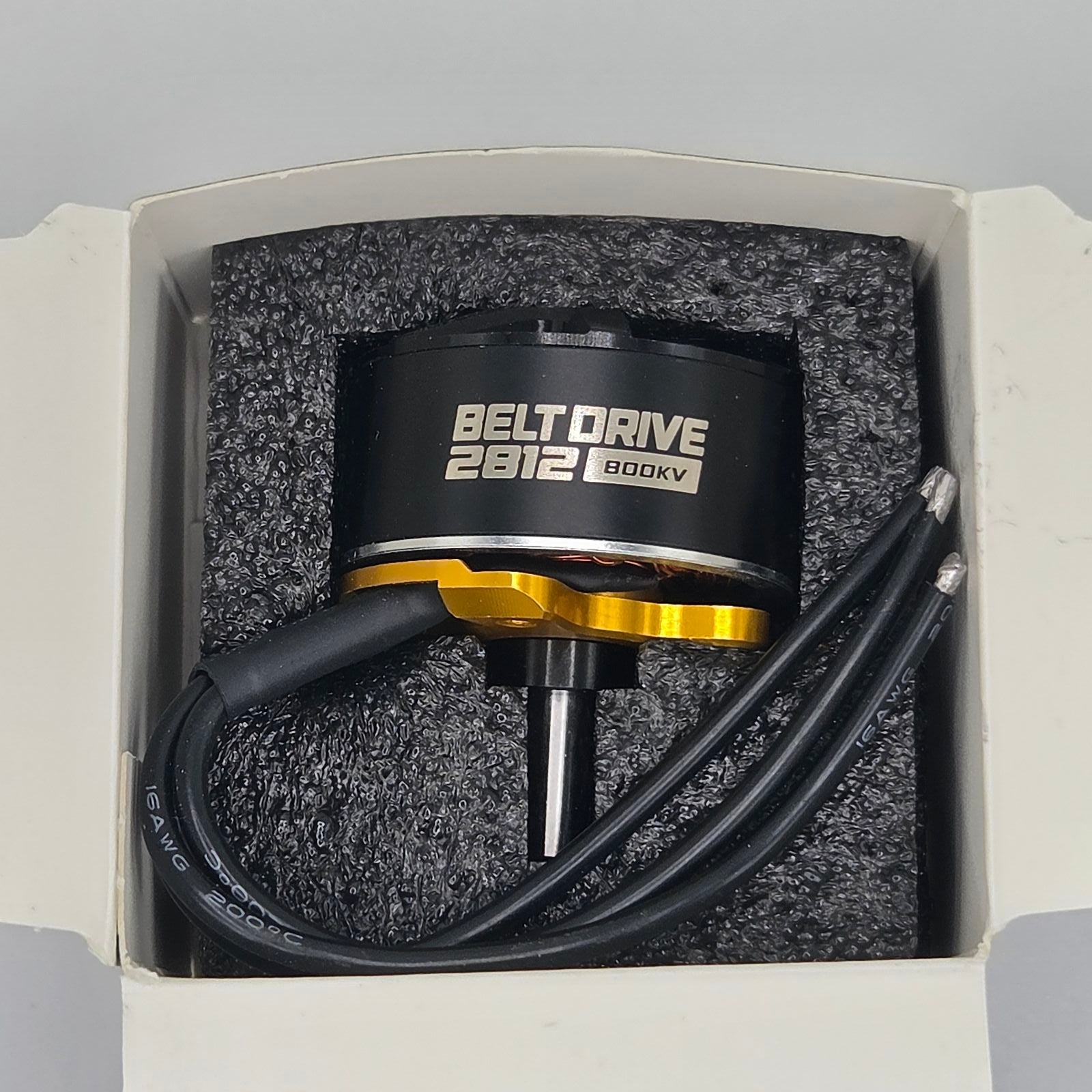

Want more power without all the extra weight? This 2812 motor was designed specifically for 3lb belt drive weapon systems to be durable while lightweight! Featuring a 5mm flanged D shaft for mounting pulleys and 3X m3 holes on the top if you wish to drive around the can! The shaft collar has a T6 drive to make it easy to torque down!

KV: 800
Availability: In stock
SKU: RR-02-3298
Collections:
$35.00
$35.00

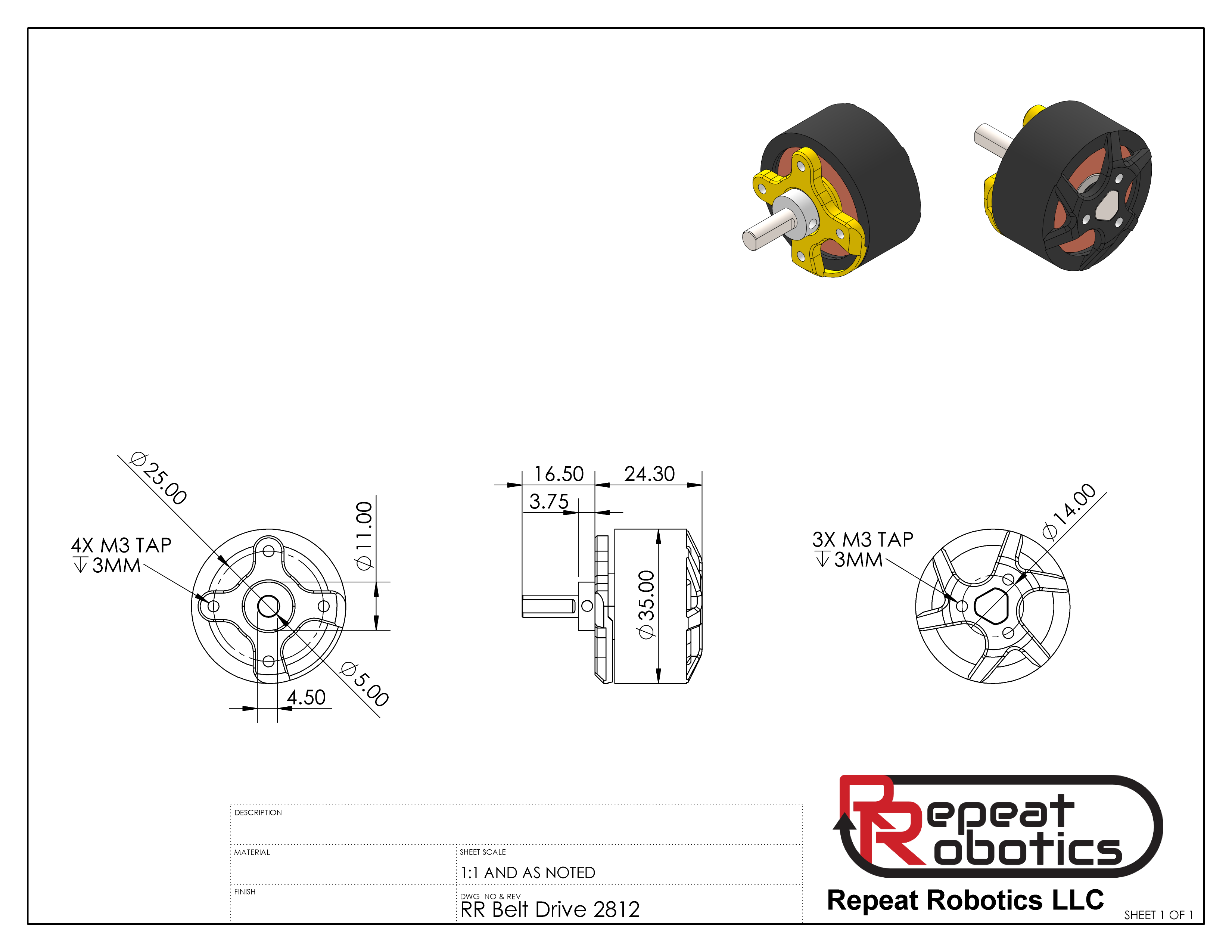

  • 24.3mm height x 35mm diameter
  • 85g weight with full wires
  • 2812 size stator
  • Available in 800, 1300, 1800, or 2300kv
    • 800 - 2-8S rated
    • 1300 - 2-6S rated
    • 1800 - 2-6S rated
    • 2300 - 2-5S rated
  • Square 25x25mm M3 mounting pattern
  • 5mm stainless steel shaft
  • Flanged shaft to ensure motor can is held on
  • Double caged magnets to prevent cracking
  • Shaft retained by a custom T6 drive shaft collar on a separate shaft flat

Designed for:

  • Belt drive from the shaft
  • Inverted timing belt drive on the can
  • 3D printed pulleys on the can
  • Mates directly to repeat magnum gearboxes for a lightweight 12lber drive option loosen the shaft collar before installing pinion)

Find 3D model HERE

Motor Performance:
All tests were spinning a used repeat beater bar with the 19:30 MB v-belt system, and a stock Vortex 80A esc and a 4S lipo. We will work to get more test data at different voltages with different standard ratios as we have time.

  • 800kv - 71mph@62W, 135W peak
  • 1300kv - 109mph@115W, 583W peak
  • 1800kv - 142mph@183W, 953W peak
  • 2300kv - 171mph@262W, 1247W peak
