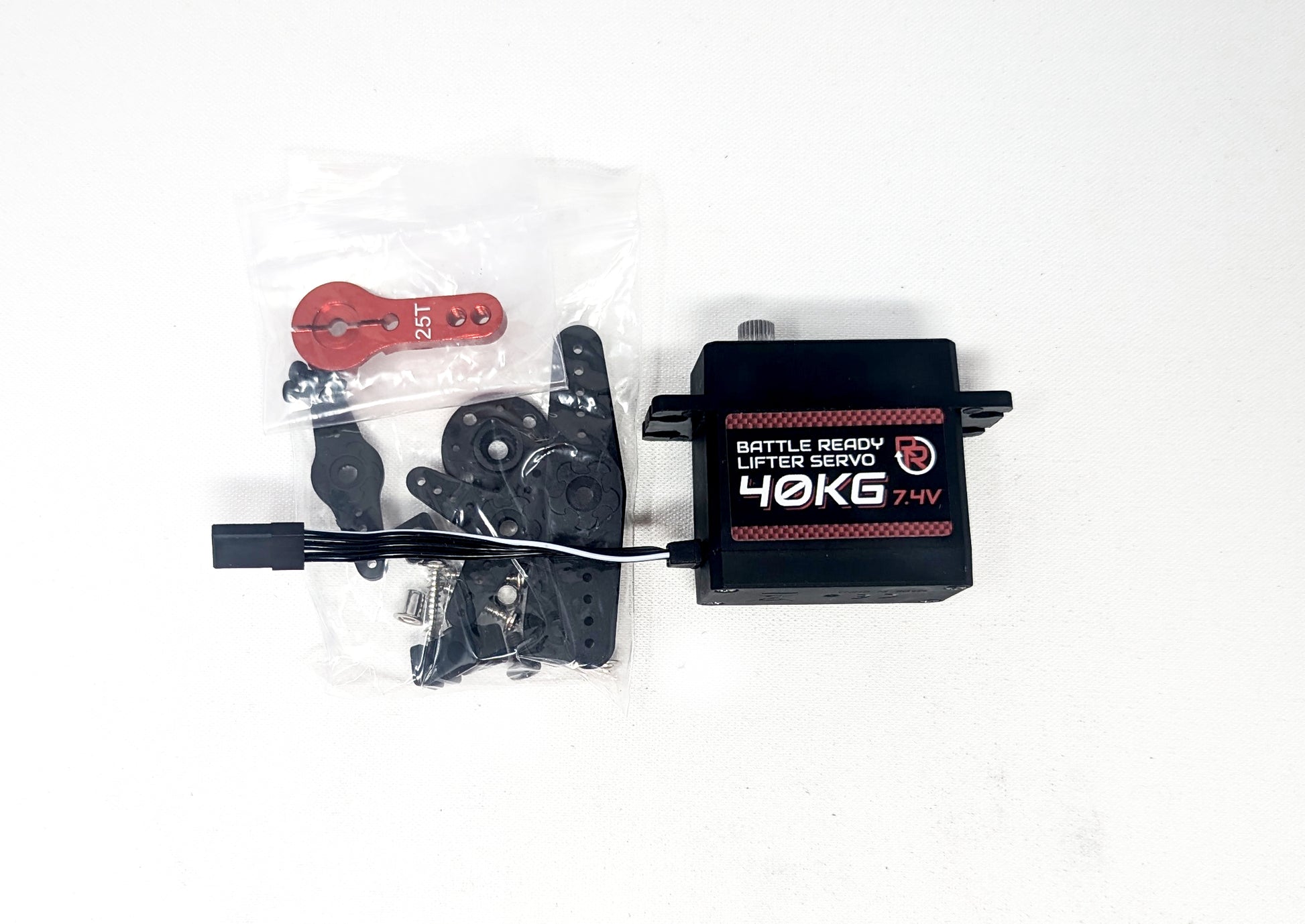

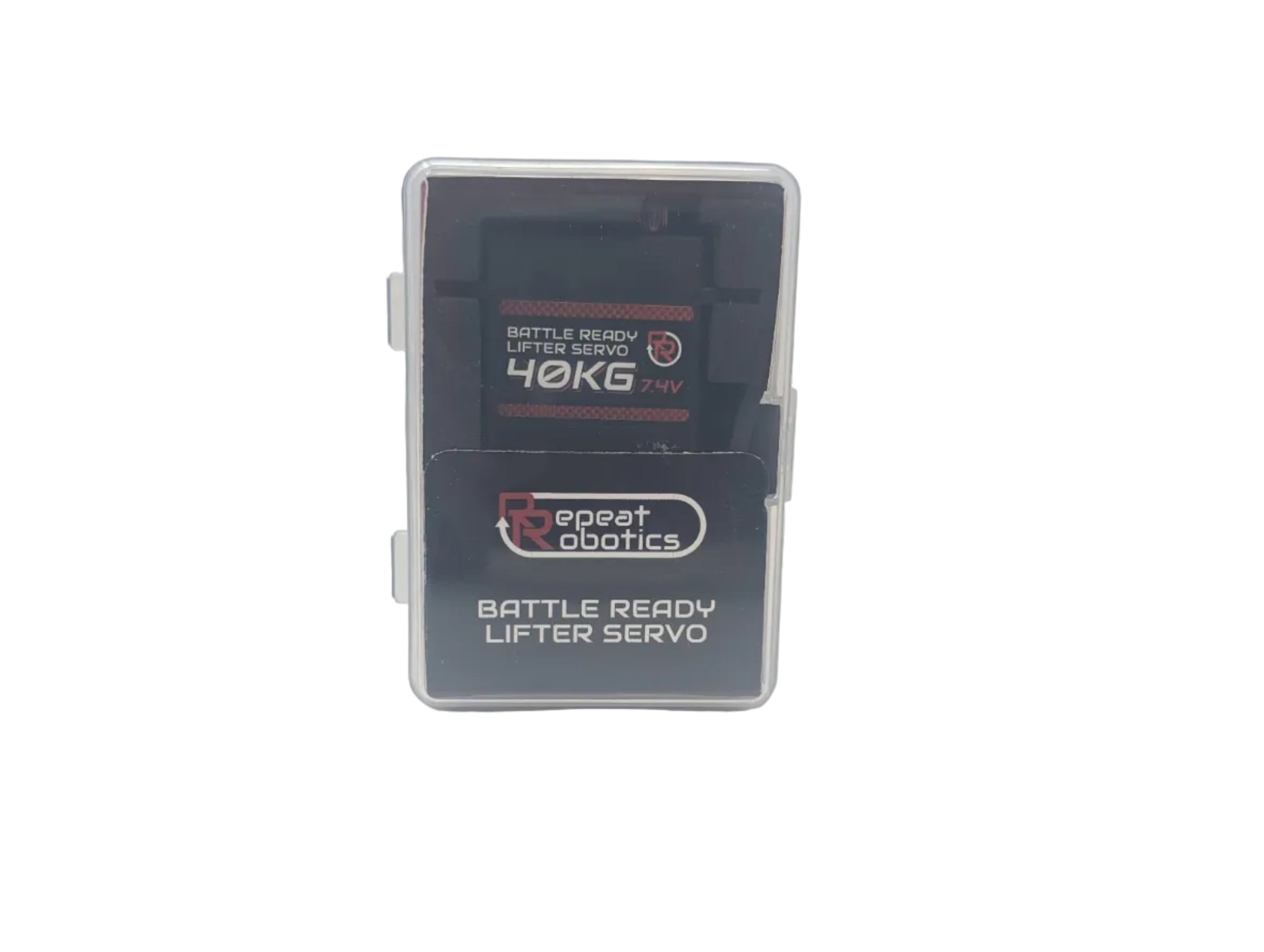

Battle Ready Lifter Servo - 40kg

$25.00
$25.00
Availability: 161 in stock
Repeat RoboticsXL Timing Belts
XL Timing Belts
17T 3M doublewide pulley image 0
Repeat RoboticsDoublewide pulley - 17T HTD3M
$25.00
$25.00
  • TRUE 270 degree performance with 1000-2000us input signal

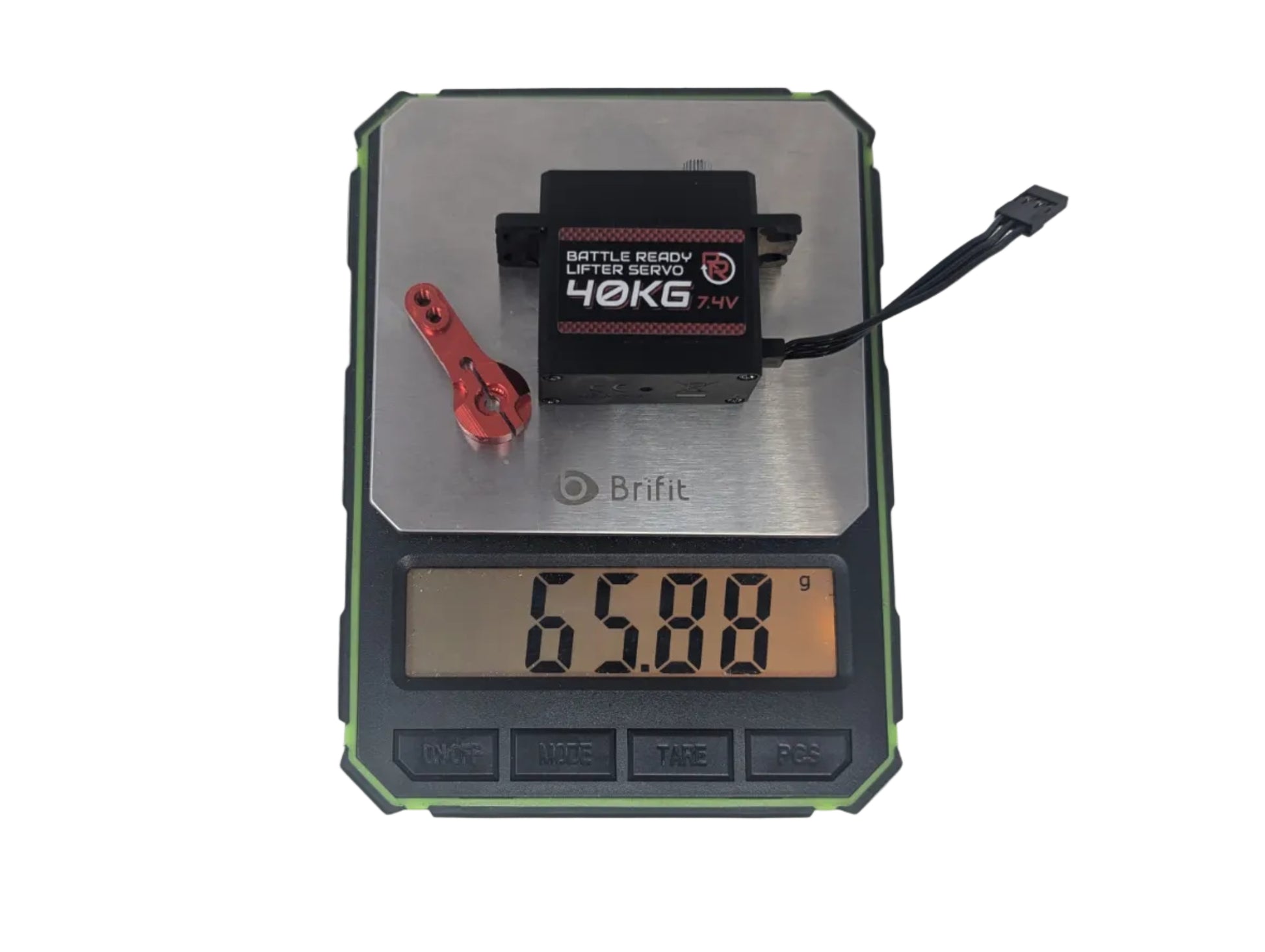

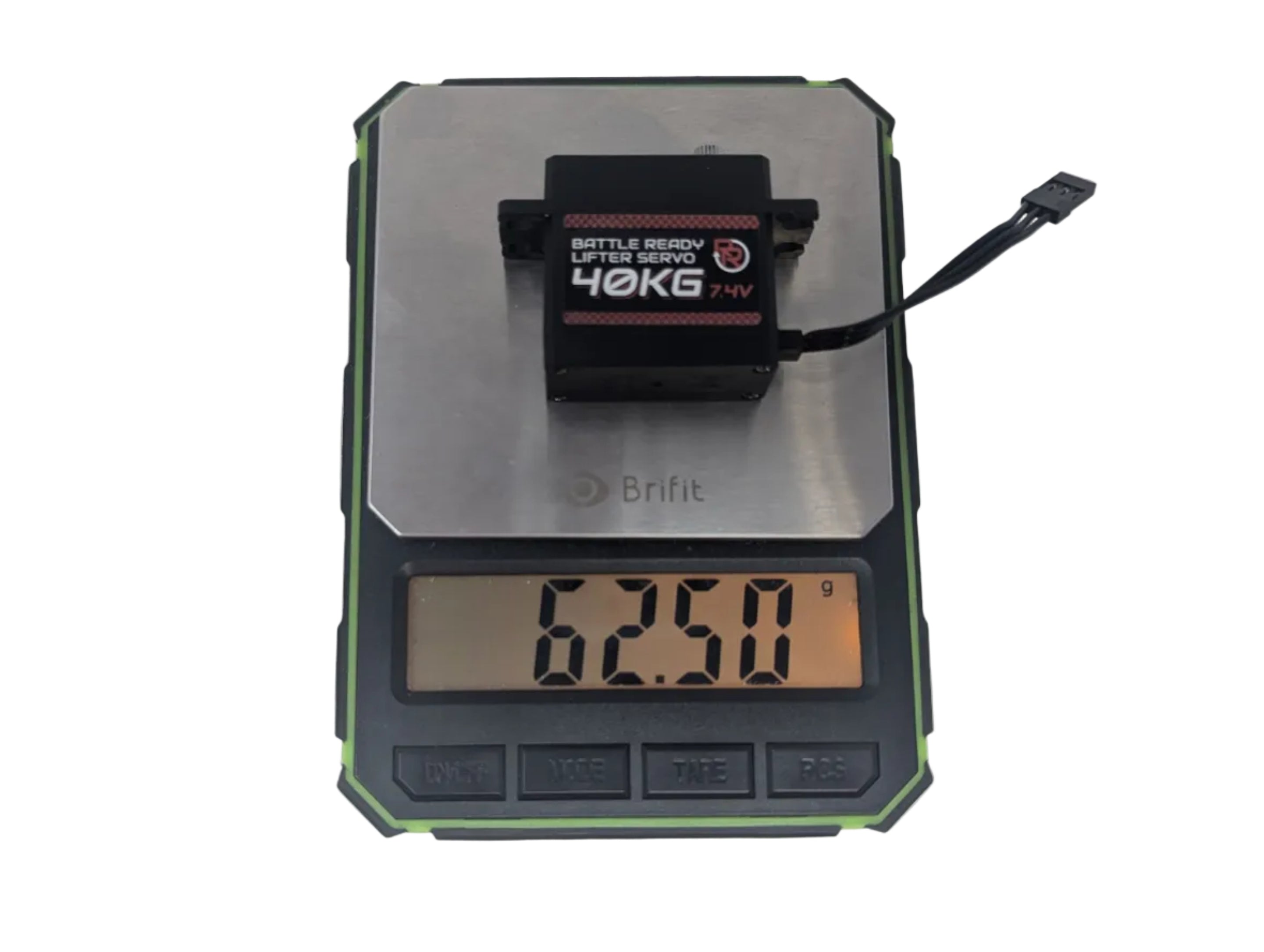

  • 66 g with servo horn installed (62.5g without horn)
  • 40kg stall torque at 7.4V
  • 0.16s per 60 degrees at 7.4V
  • Comes with upgraded aluminum servo horn
  • Wire length shortened to 5cm, to avoid long wire loops inside your bot
  • Stall protection enabled to prevent damage
  • Standard size servo with upgraded internals
    • Gear size increased
    • Gears changed to steel
    • Pinion gear spot welded to shaft
    • Stall current limiting enabled
    • Gear ratio optimized for combat robot use
  • Great for 1lb or 3lb control bots!

Pairs great with our micro inline servo BEC for higher voltage robots
https://repeat-robotics.com/products/micro-inline-servo-bec

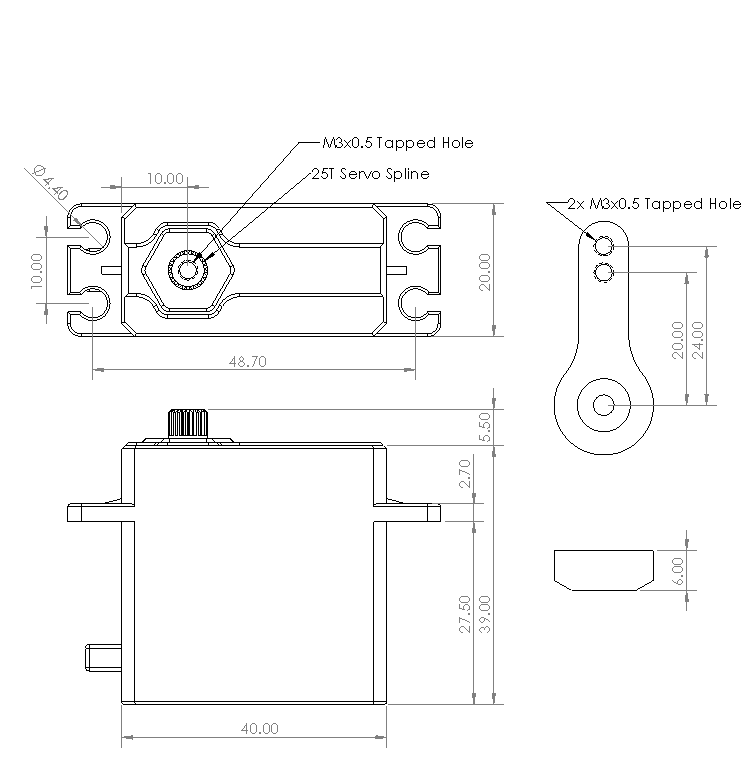

Check out the 3D model: https://grabcad.com/library/repeat-40kg-battle-servo-1
