Beetleweight Wedge

$45.00 - $50.00

Tired of those pesky horizontals getting the better of you? Want to be able to tank their hits but don't know how? Introducing the 2mm Titanium wedge, designed for the peter bar kit but able to be used with all sorts of other bots. Tested on our own personal robots Ablation and Abomination, this wedge geometry has fought bots such as Droopy, Billy, Beetlejuice, T3, and plenty of other horizontal spinning bots with minimal damage. We haven't totaled a wedge yet!

Beetle Wedge 3D Prints (Printed Part): With
$50.00
$50.00
Availability: 265 in stock
Repeat RoboticsPeter Bar Kit - Frame
Peter Bar Kit - Frame image 0
Repeat 2836 brushless motor image 0
Repeat RoboticsRepeat 2836 brushless motor
Beetleweight Wedge image 0
$50.00
$50.00

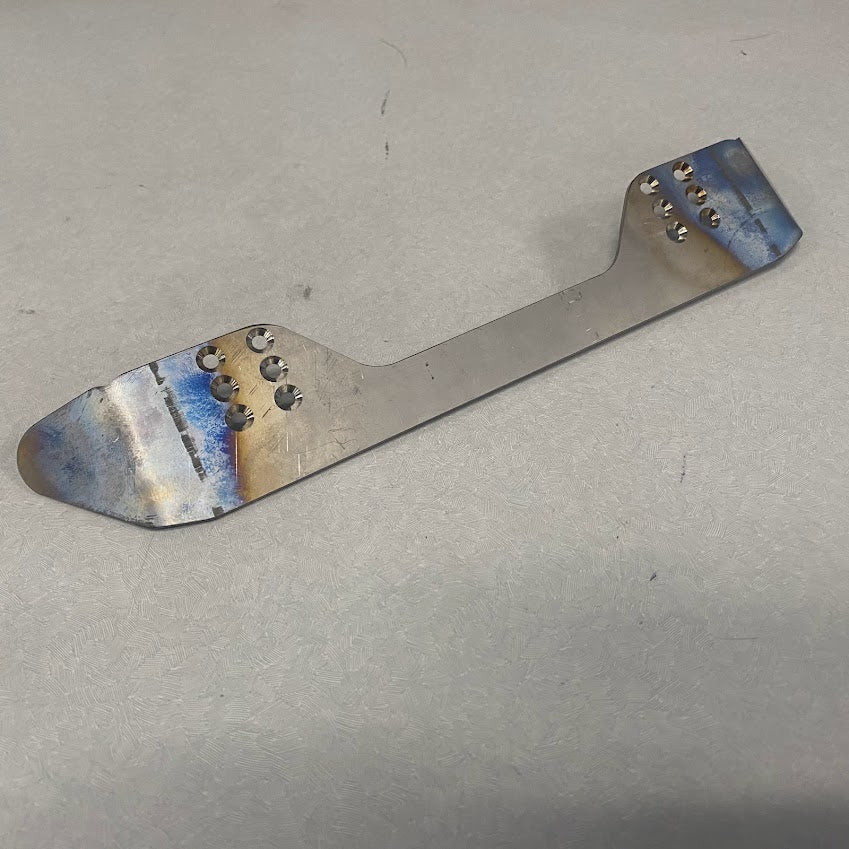

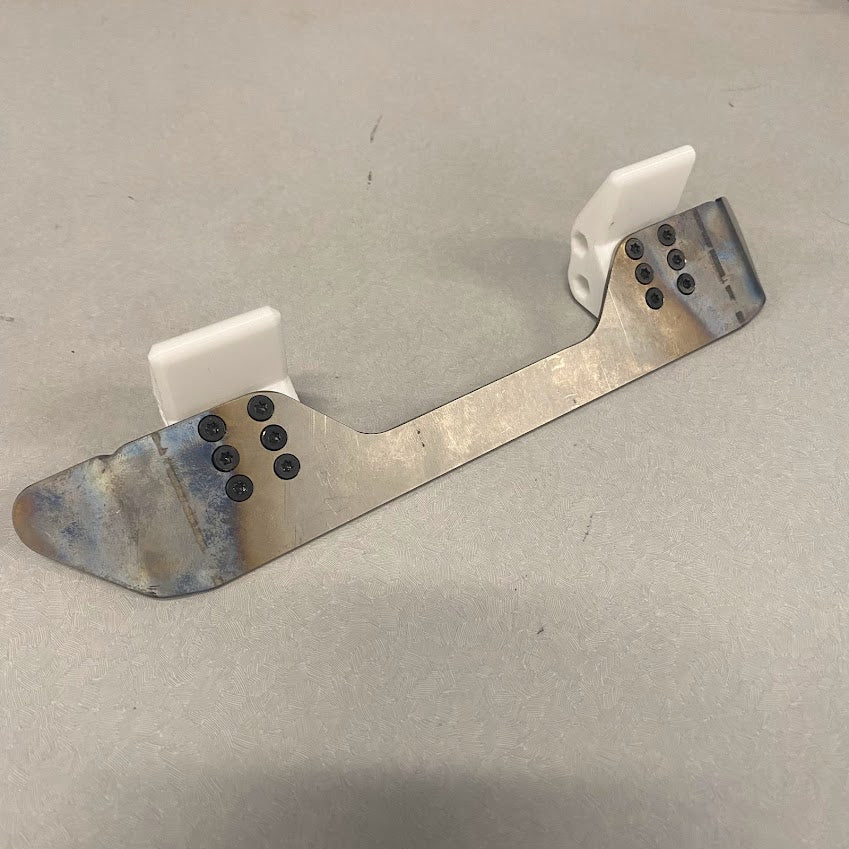

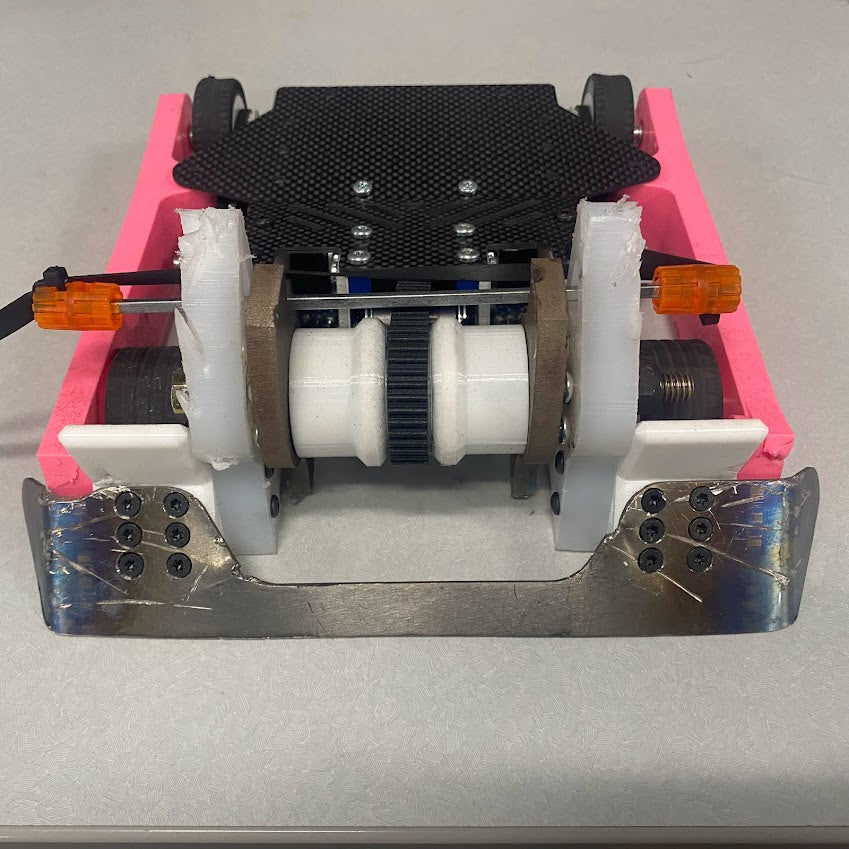

This wedge is designed for the peter bar kit! Made from 2mm grade 5 titanium at a 45 degree angle with countersunk screw holes, this wedge will deflect horizontal spinners all day! The 3D printed mounts are designed for the peter bar kit frame geometry, with the mounts having 105mm of space between them.

Specs

  • 60g titanium wedge
  • ~100g with printed mounts and screws
  • Mounts 3d printed out of durable TPU
  • Includes 14x T10 drive #6x 0.5in plastite screws (2 extra)
  • Wedge bend angles are manually bent and are +- 10 degrees

3D printed parts are made to order, so they could delay shipment. Find the 3D model here: https://grabcad.com/library/peter-bar-kit-wedge-1
