Drive Axle Beetle Mk2 (4 pack)

$10.00 - $12.00

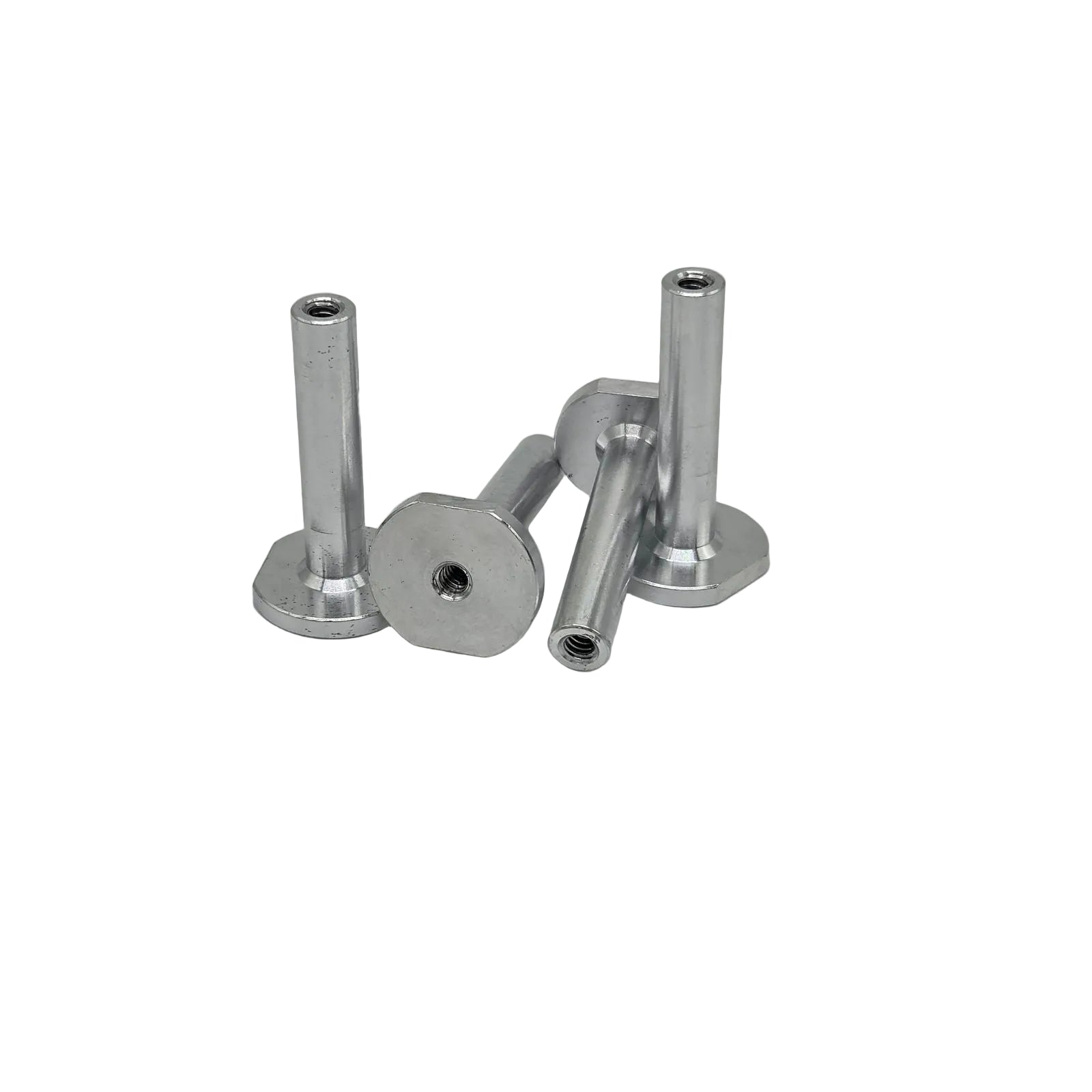

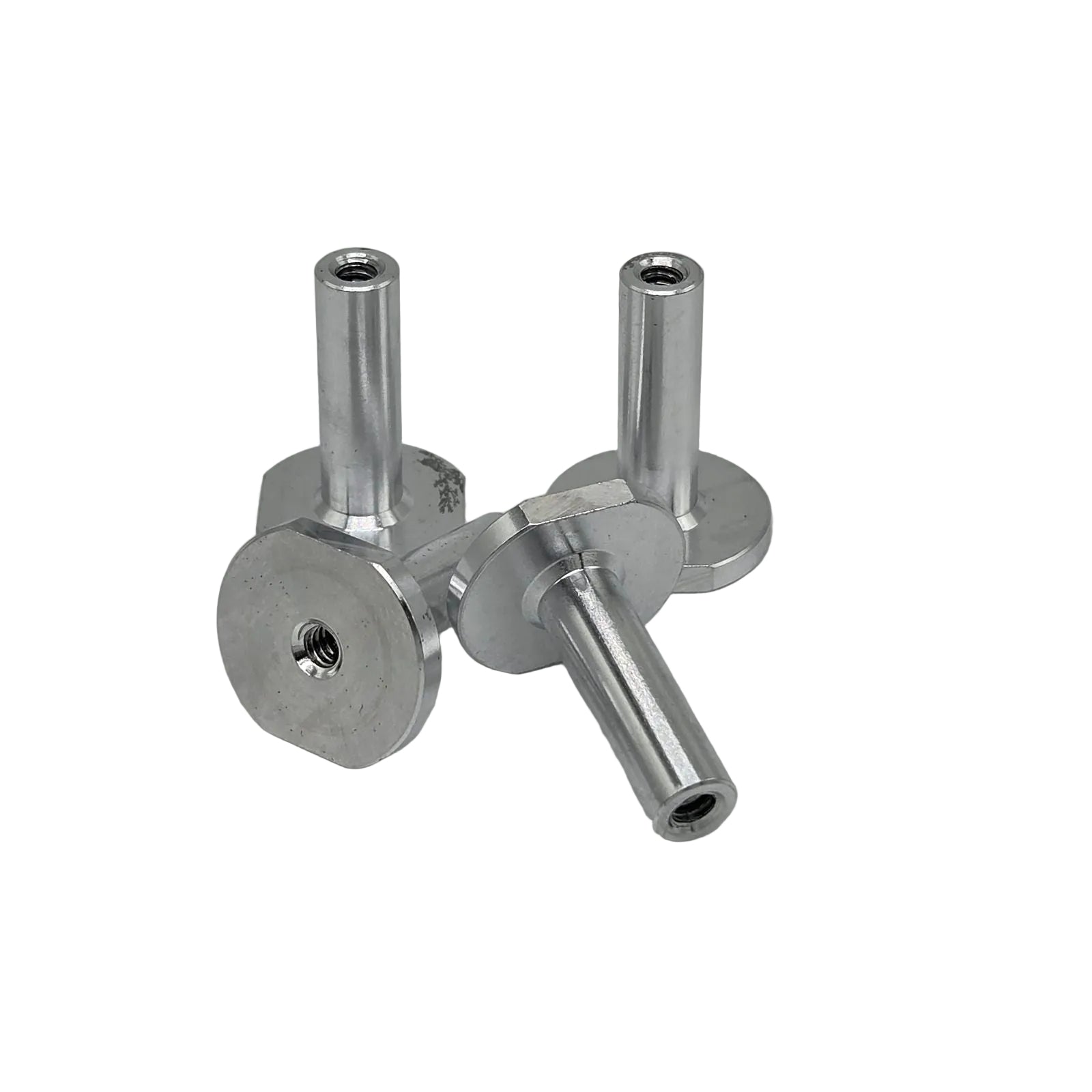

Repeat Drive Axle is a 1/4" flanged, 7075 aluminum standoff, designed to be used in Beetleweight drive applications. An increasing amount of insect weight combat robots use plastic frame rails, these axles have a flanged section to keep them perpendicular to your frame and your drive running smooth.

Size: Short
$10.00
$10.00
Availability: 178 in stock
Fingertech RoboticsFingertech Switch
Fingertech Switch image 0
Repeat Gold Screw Hub (2pcs) image 0
Repeat RoboticsGold Screw Hub for custom wheels (2 pack)
$10.00
$10.00

Features

  • Updated design includes 5/8" wrench flats! (As of 5/12)
  • High strength 7075 Aluminum material
  • Slightly undersized 1/4 inch shaft to fit bushings and bearings
  • Undersized 17.8mm flange to fit into 18mm pockets for extra strength
  • Tapped for 6-32 screws
  • Generous chamfer at the base of the standoff increases strength
  • 7.5g for a set of 2 long axles (~4 g each)
  • 6.2g for a set of 2 short axles (~3g each)

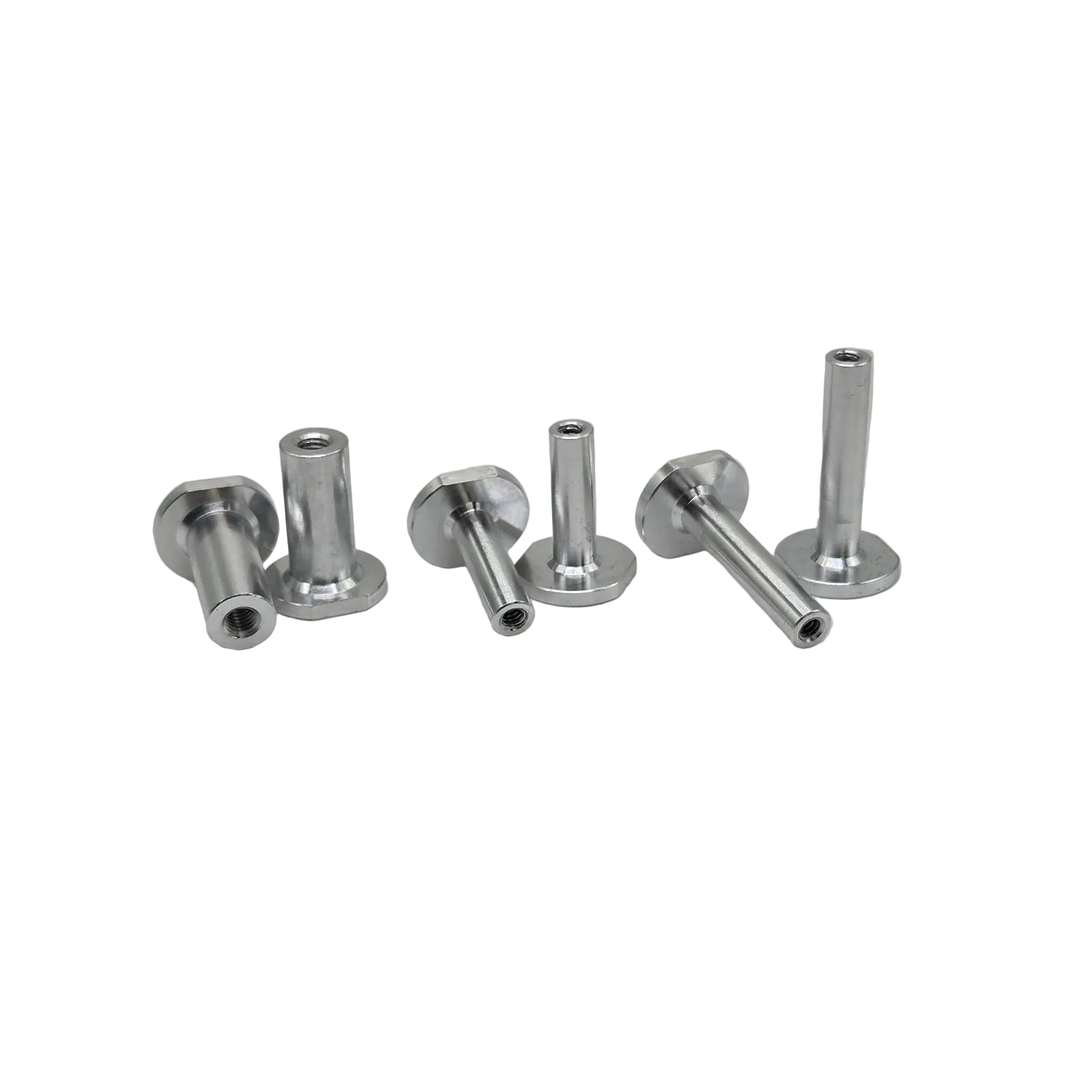

  • Now 2 length options for shorter wheels or bots who run cleats!
  • Sold in a set of 4

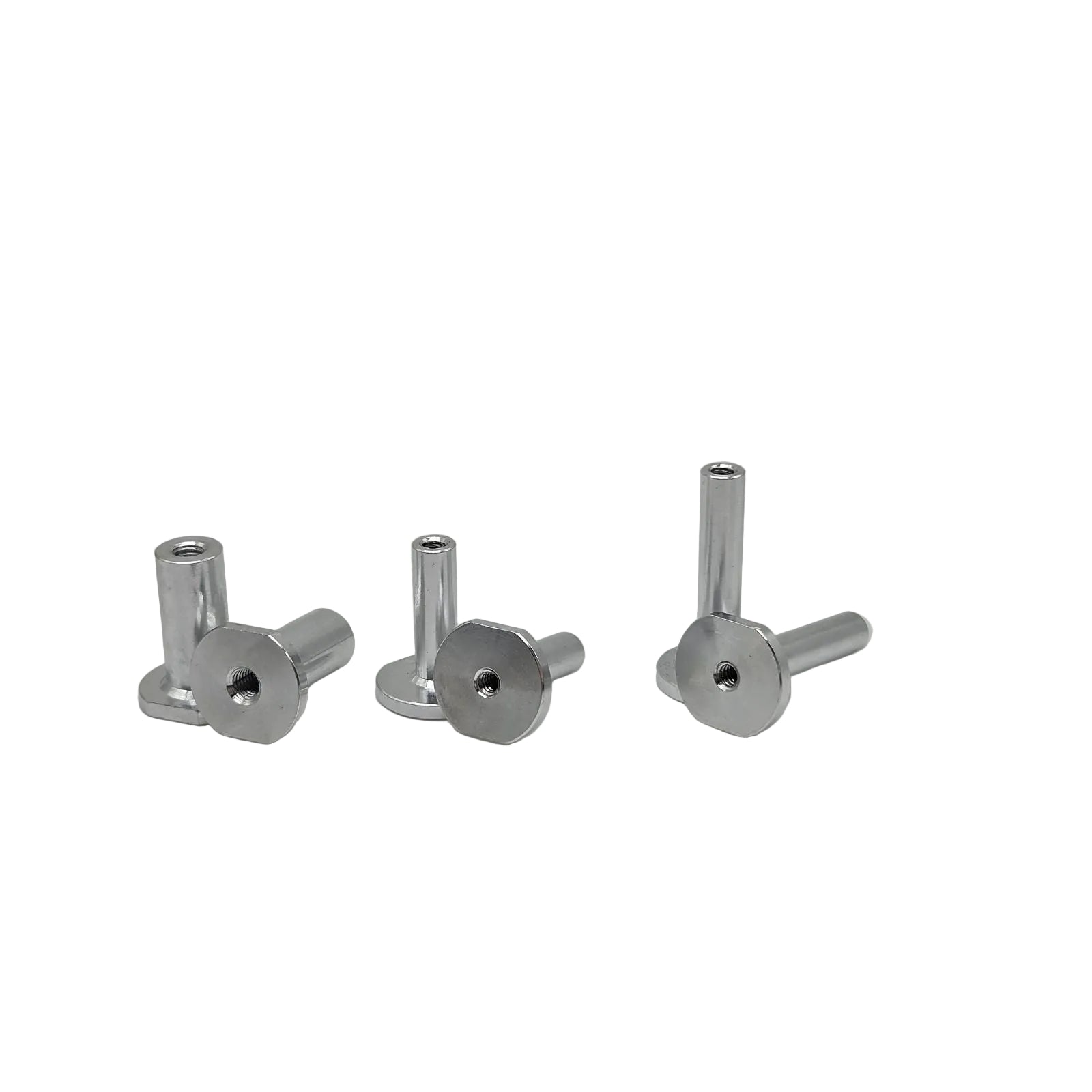

High Load Version

  • Slightly undersized 3/8 inch shaft to fit bushings and bearings
  • Undersized 17.8mm flange to fit into 18mm pockets for extra strength
  • Tapped for 10-32 screws
  • 5/8" flats on the base
  • 9.8g for a set of 2 high load axles (~5g each)

Includes four (4) custom machined aluminum axles

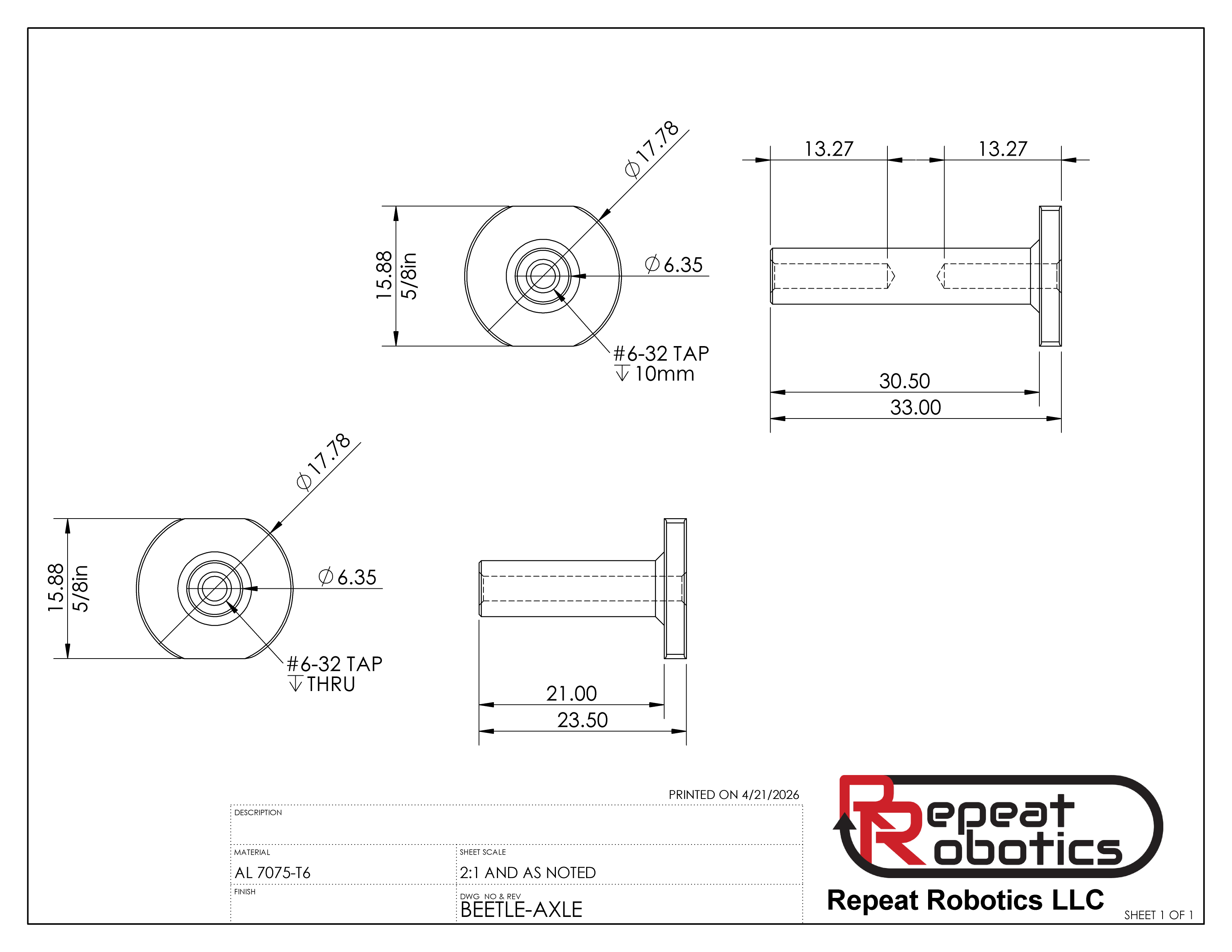

Find the 3D models below:

Short
Long
High Load (short)
