Drive Axle Ant (4 pack)

$8.00
$8.00

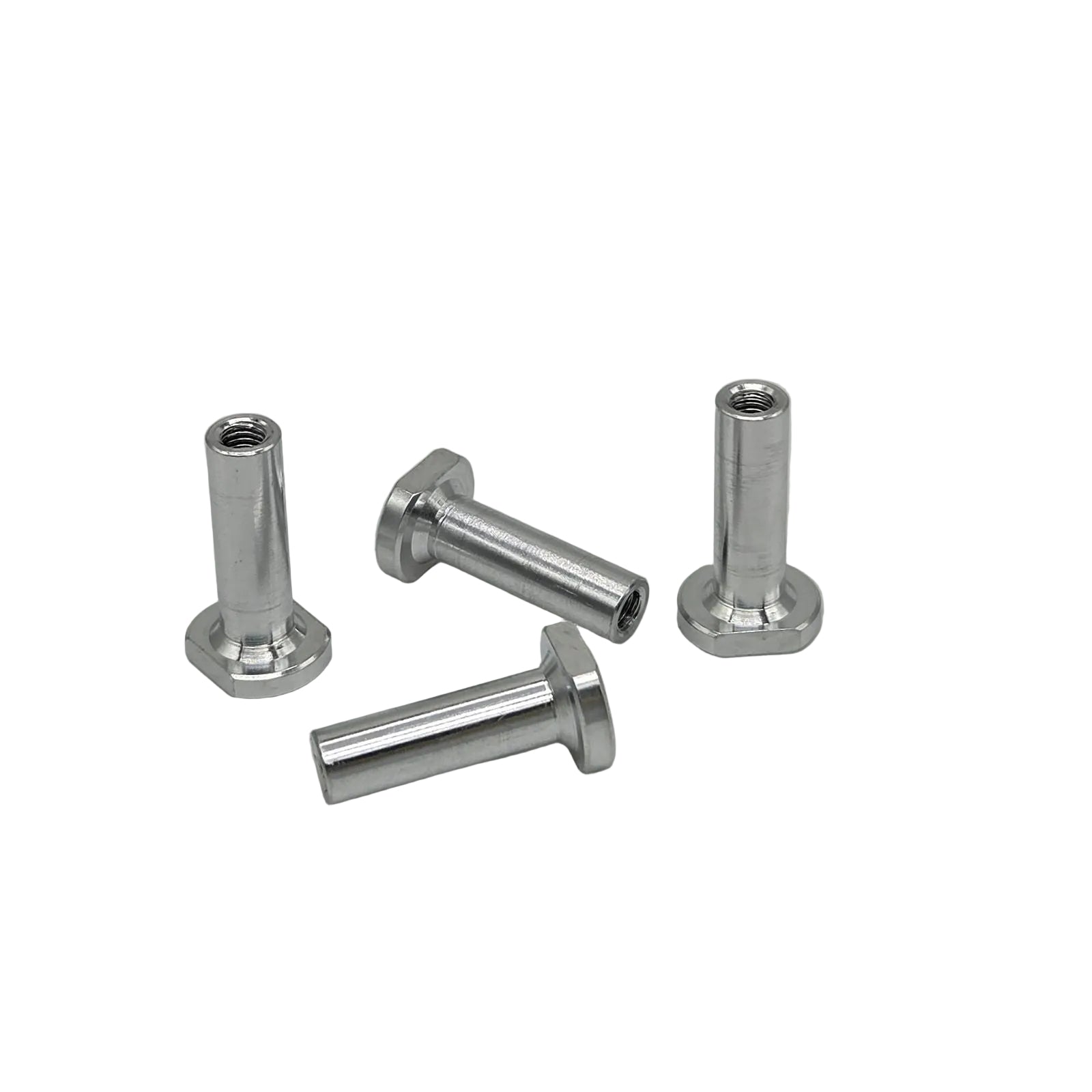

Repeat Drive Axle Ant is a 5mm flanged, 7075 aluminum standoff, designed to be used in Antweight drive applications. An increasing amount of insect weight combat robots use plastic frame rails, these axles have a flanged section to keep them perpendicular to your frame and your drive running smooth.

Length: 16mm
Availability: In stock
SKU: RR-04-3366-PK4
Collections:
Repeat RoboticsBeater Bar Parts
Repeat Beater Bar Parts image 0
V Belts and Pulleys image 0
Repeat Robotics6MM V Belts and Pulleys
$8.00
$8.00

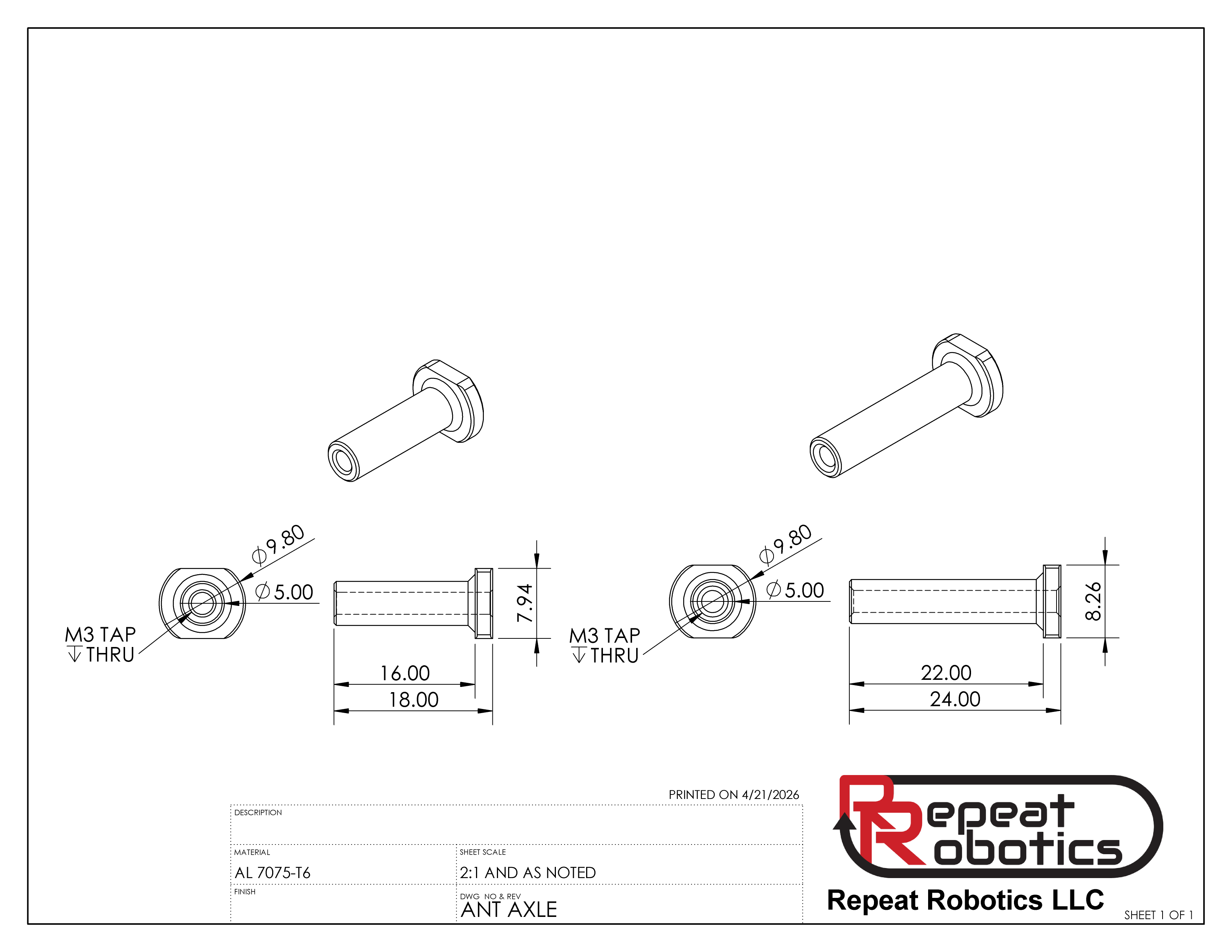

Features

  • High strength 7075 Aluminum material
  • Slightly undersized 5mm shaft to fit bushings and bearings
  • Undersized 9.8mm flange to fit into 10mm pockets for extra strength
  • Tapped for M3 screws
  • Generous chamfer at the base of the standoff increases strength
  • ~1 gram weight per part
  • Sold in a set of 4
  • 16mm axles now have wrench flats!
  • 22mm axles are still sold with rounded bases

3D Model: https://grabcad.com/library/repeat-drive-axle-ant-1
