Antweight Aluminum Hubmotor Beater Parts

$18.00 - $32.00

Looking for a hard hitting beater solution for your 1lb robot? This aluminum bar is designed to dish out hard hits nonstop! Tested in 1lb tournaments on 3 continents and over 100 fights, these are proven to pack a punch and keep on going.

Type: Black Beater
$32.00
$32.00
Availability: 48 in stock
Repeat RoboticsTangent Drive 1406 - Antweight drive motor
Repeat Tangent Drive Motors image 3
Repeat Beater Bar Parts image 0
Repeat RoboticsBeater Bar Parts
$32.00
$32.00

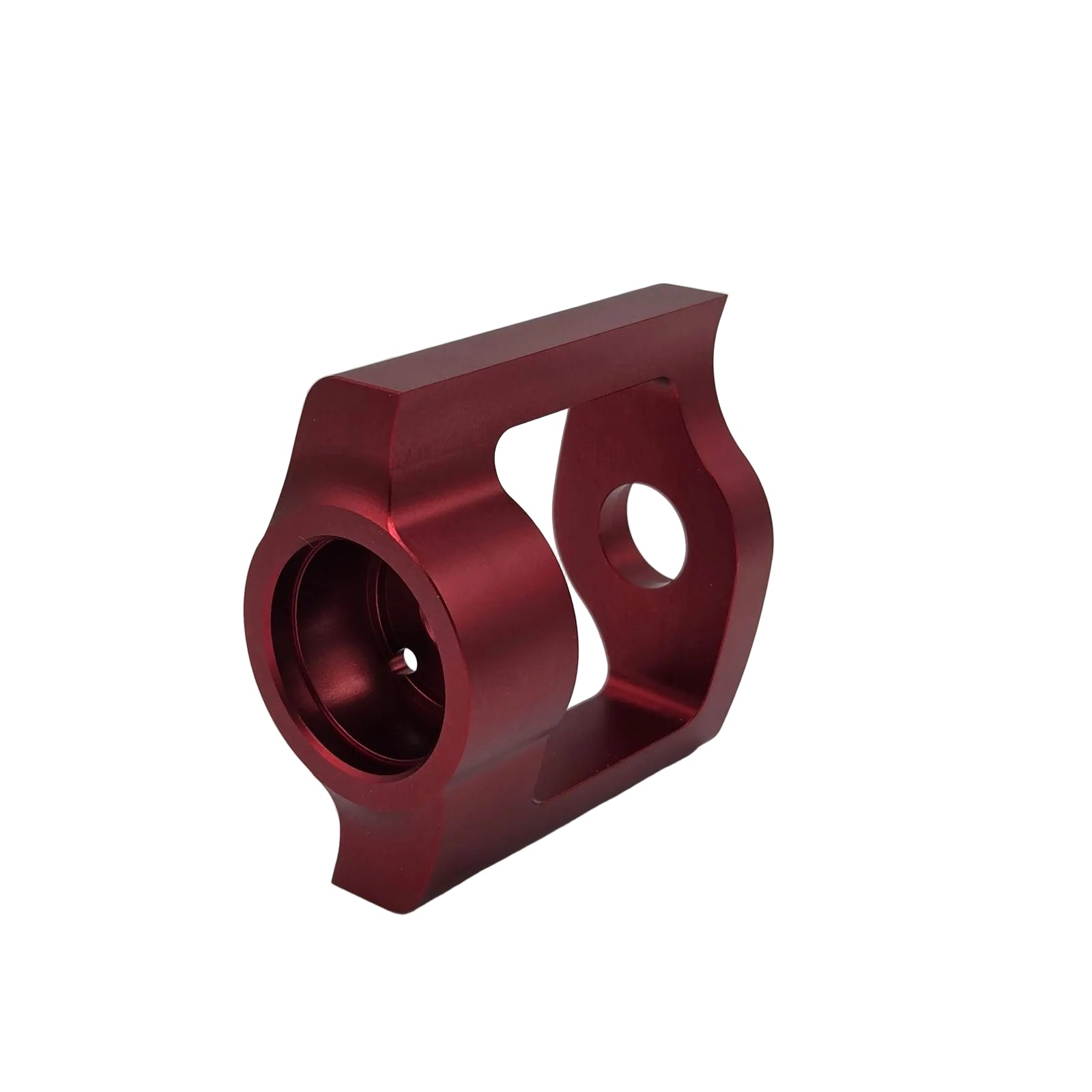

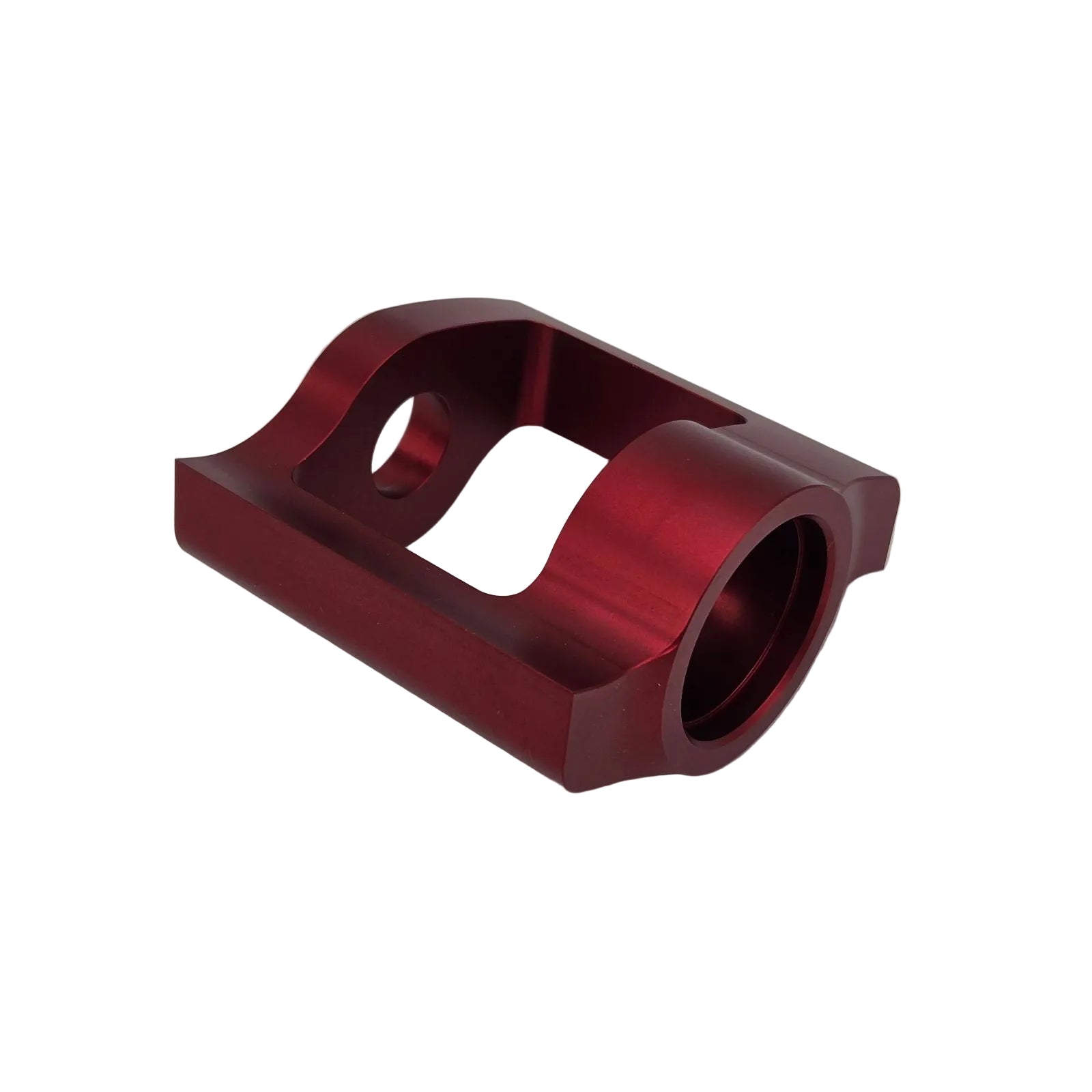

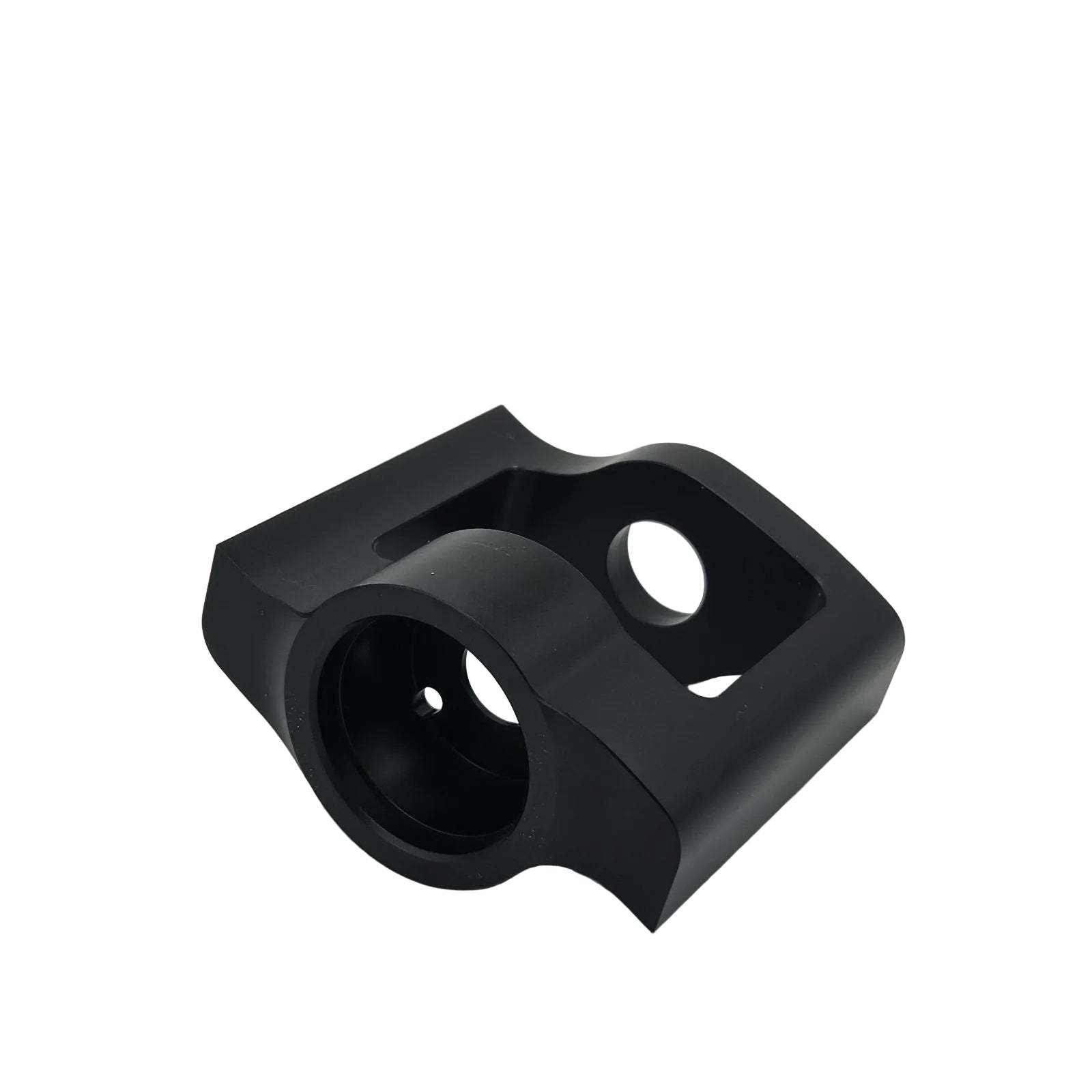

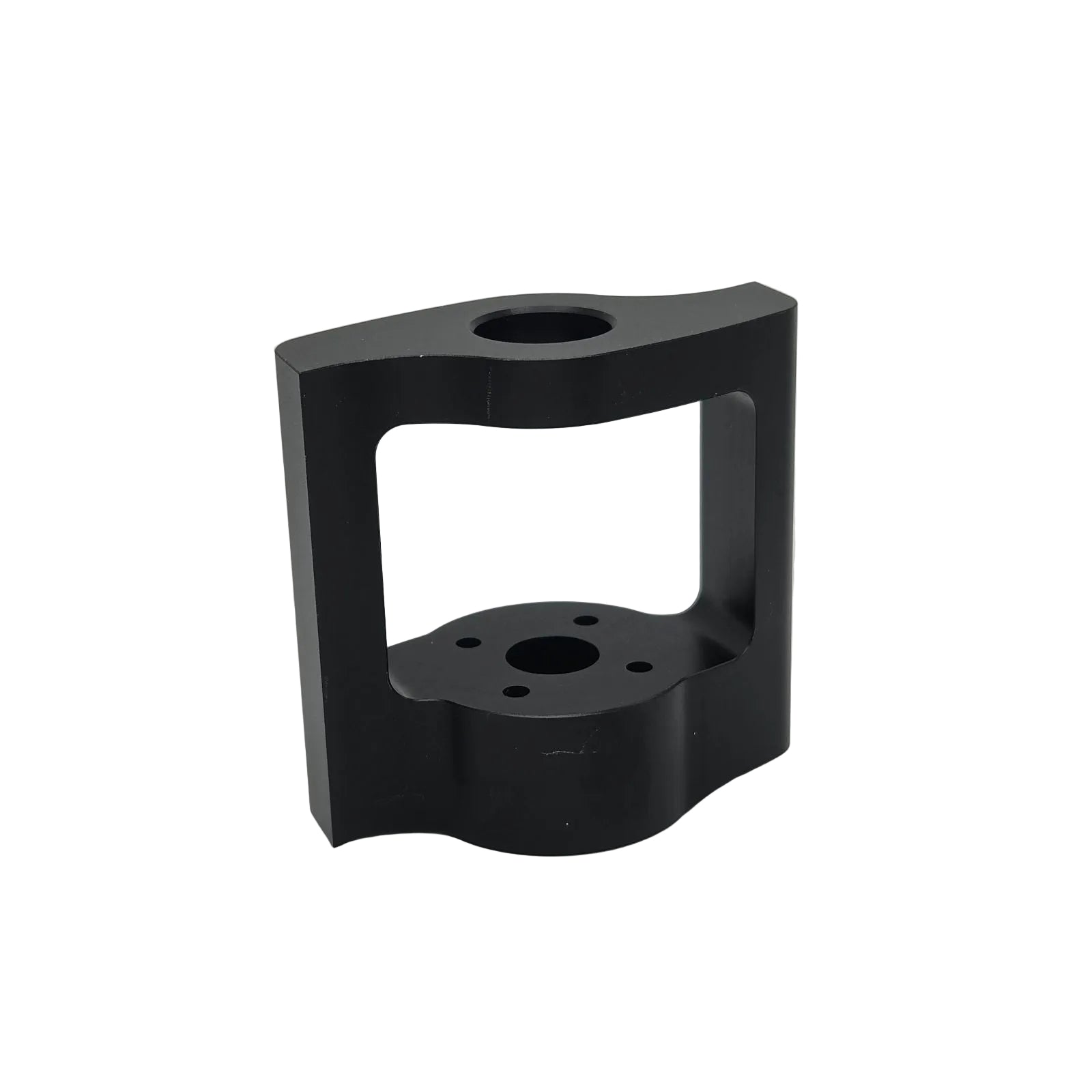

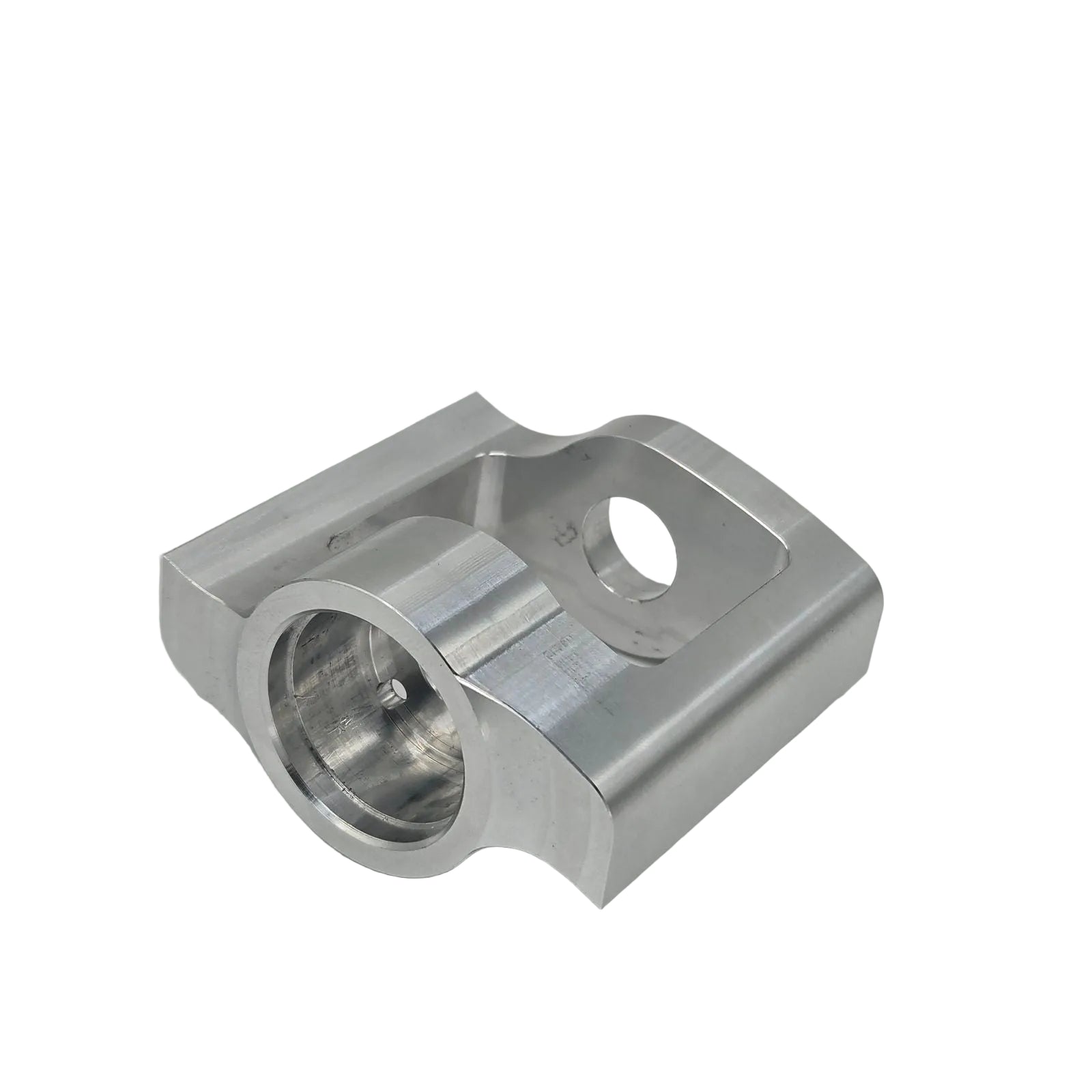

Beater

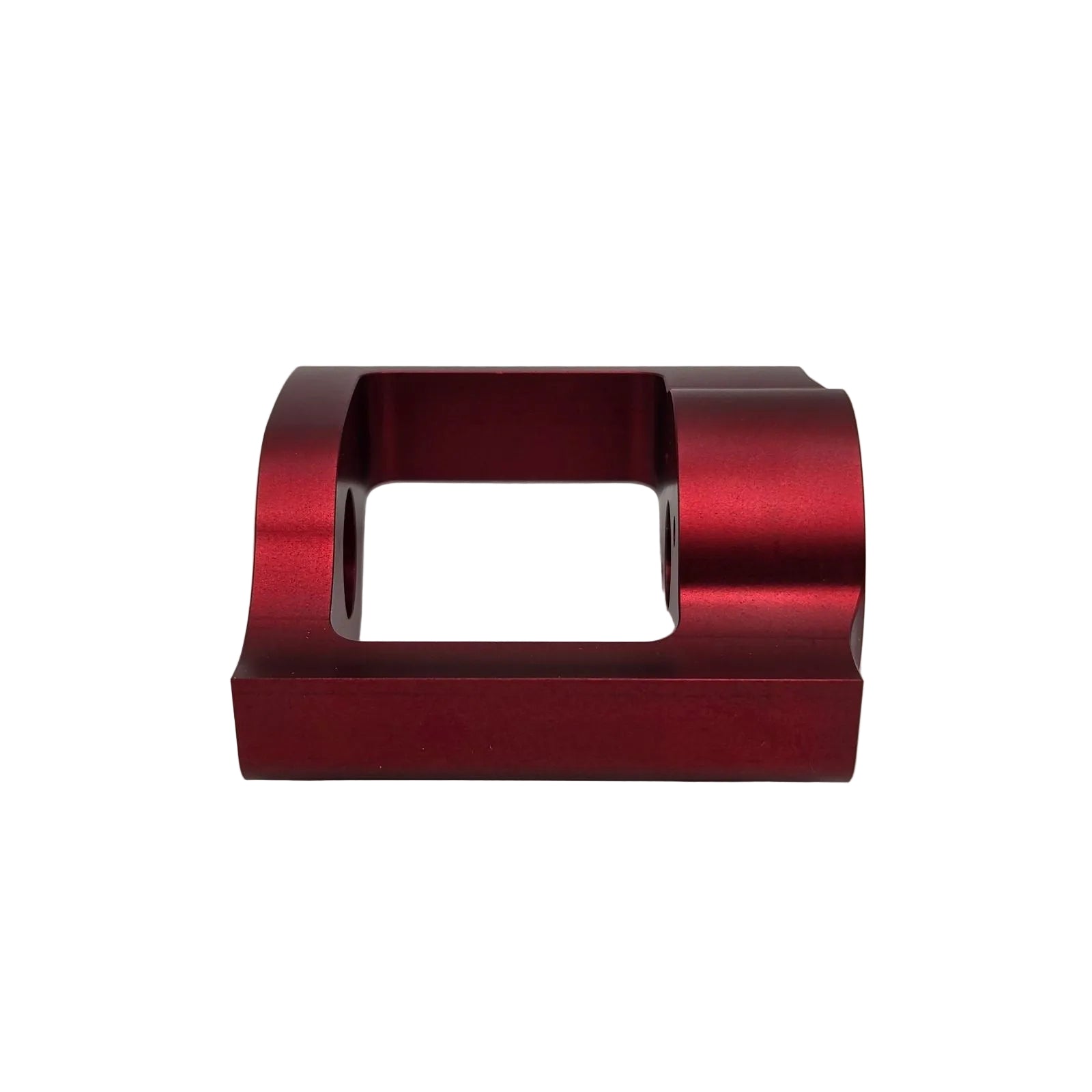

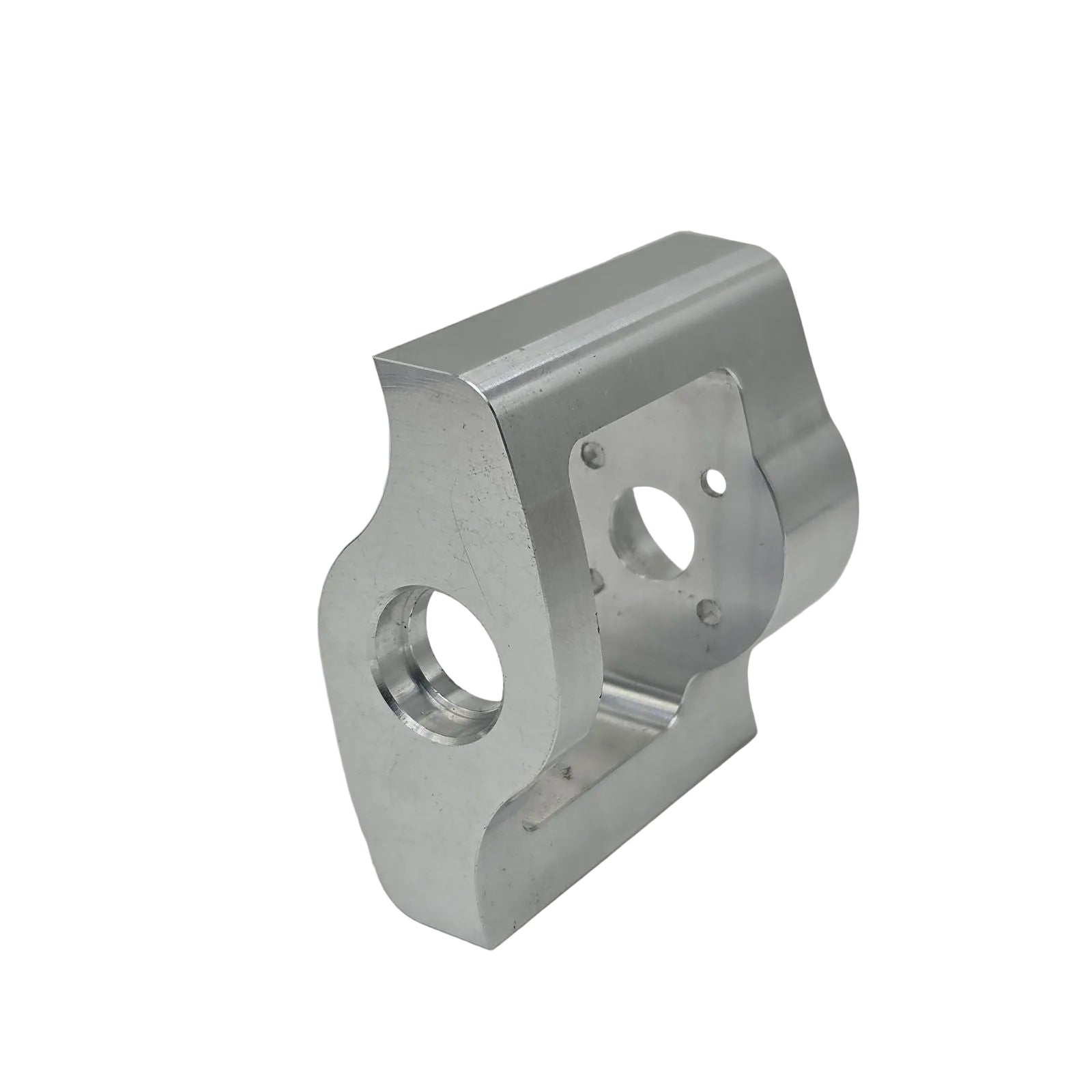

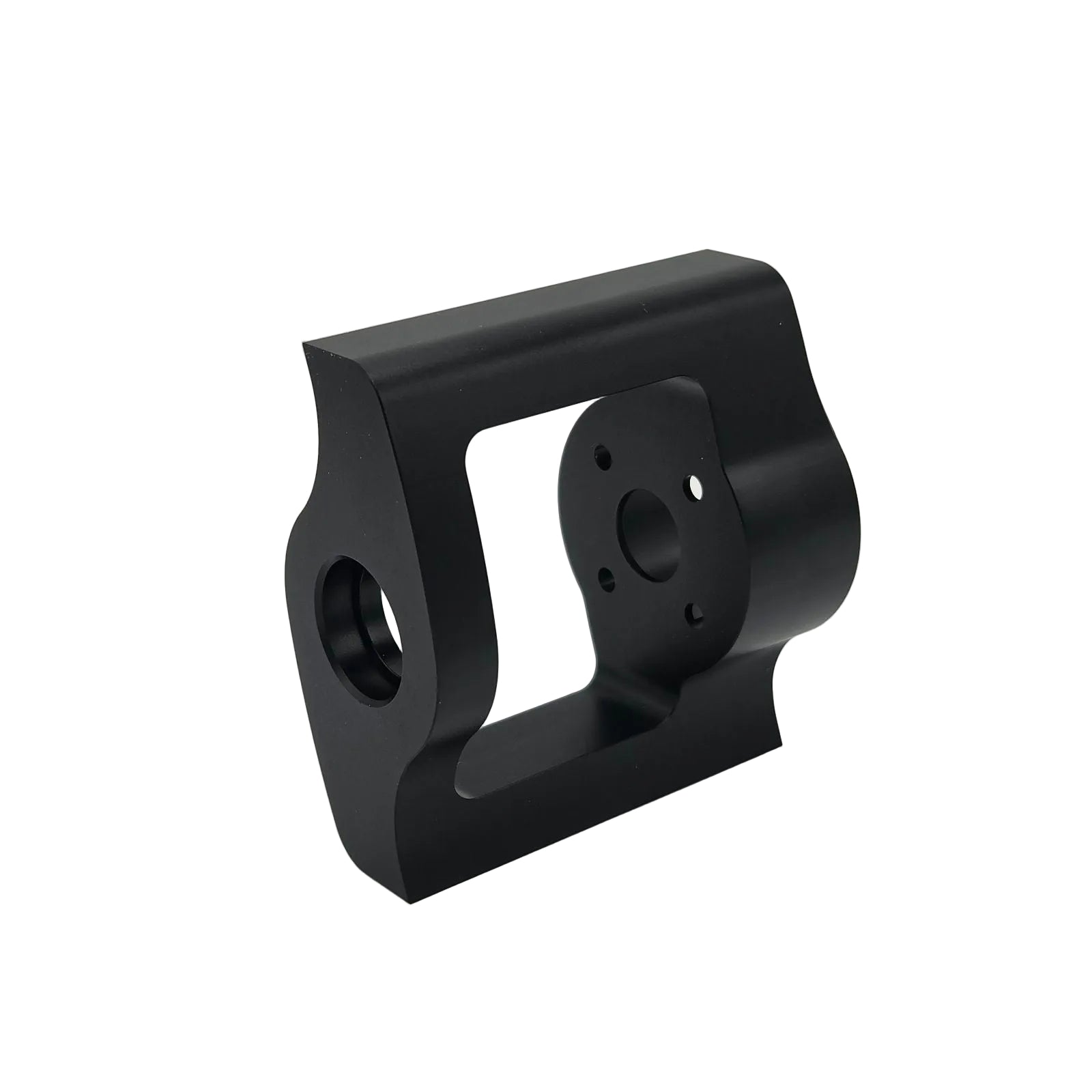

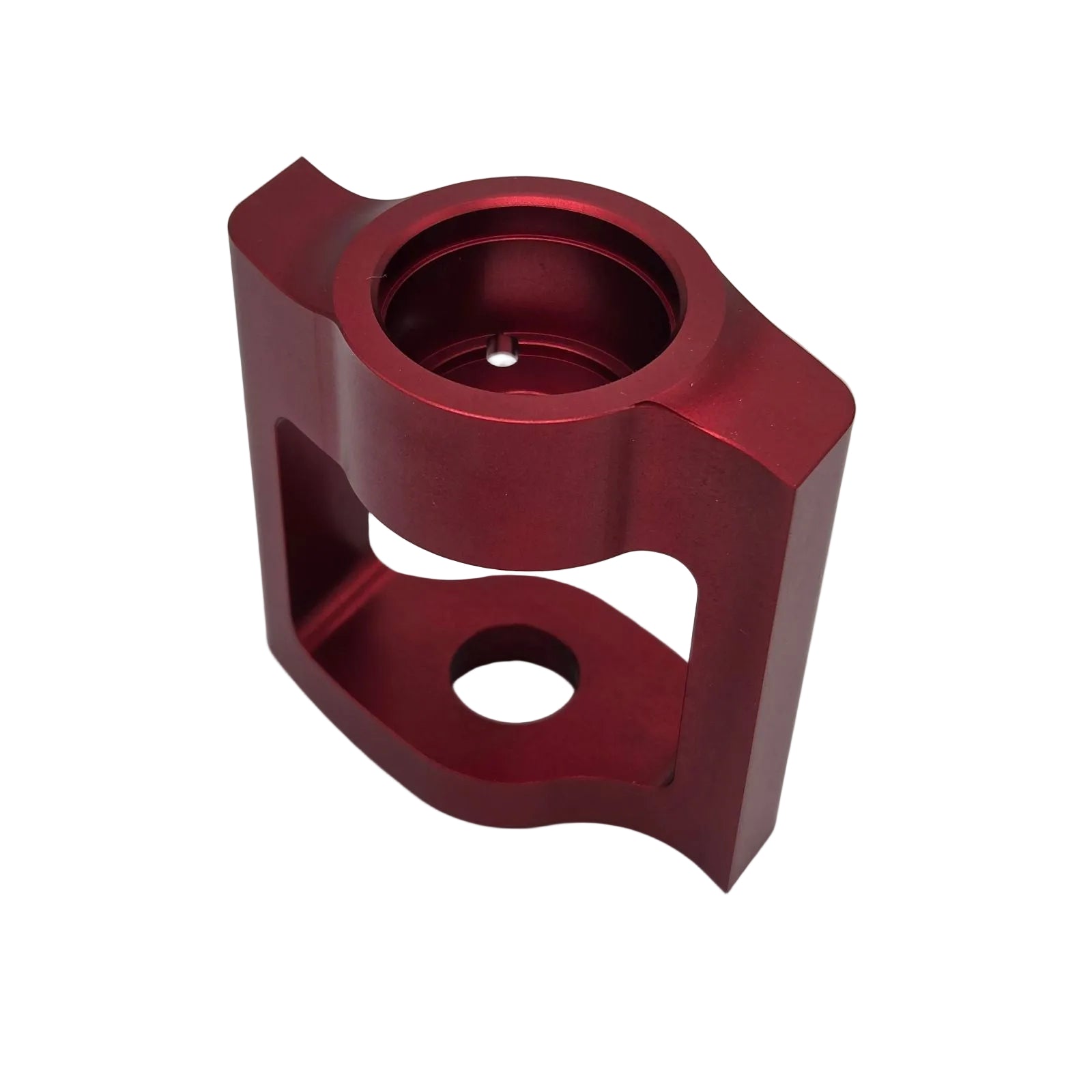

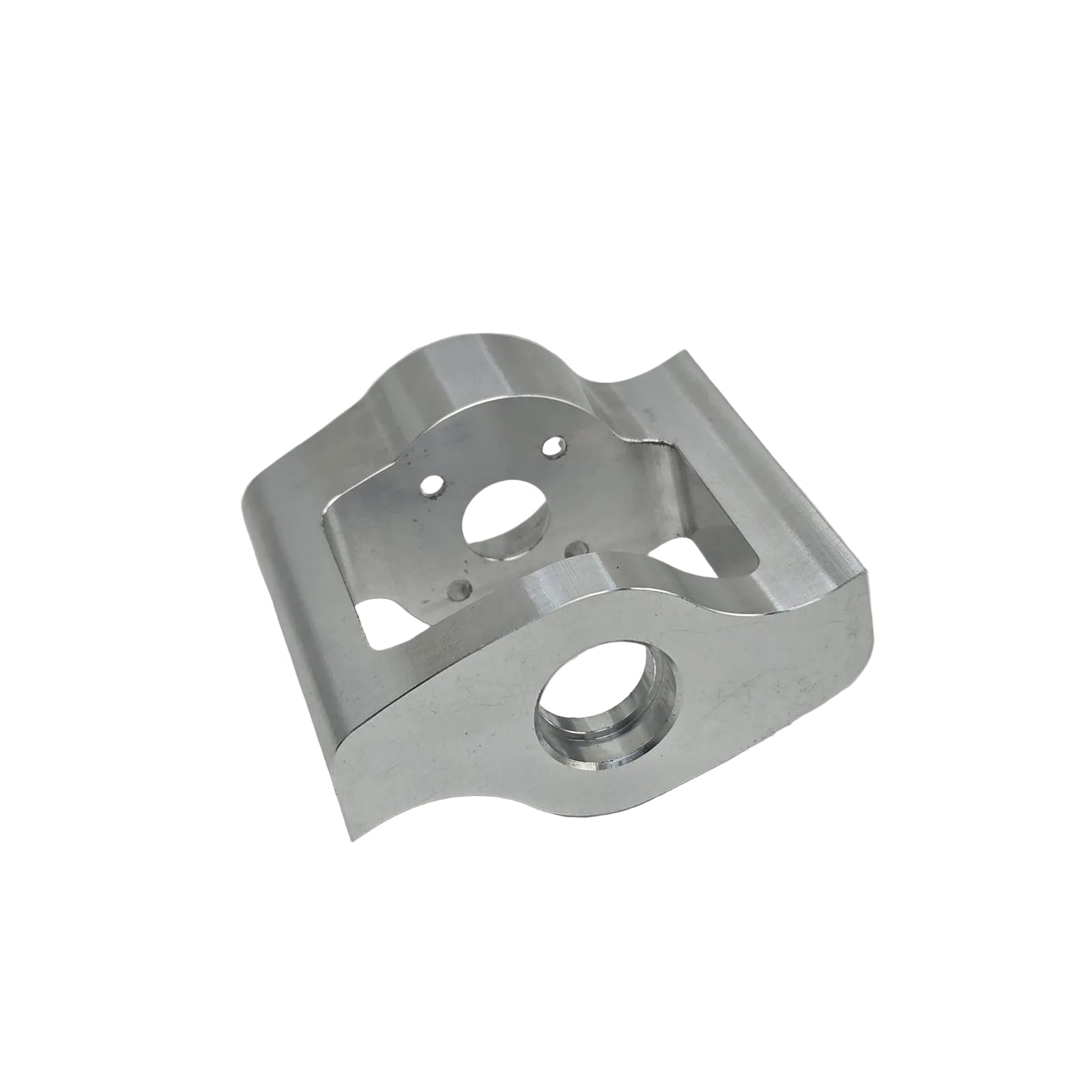

  • 91g weight
  • Symmetric tooth style for even wear
  • Durable 7075-T6 aluminum
  • Designed to fit repeat 2207 hubmotor internals

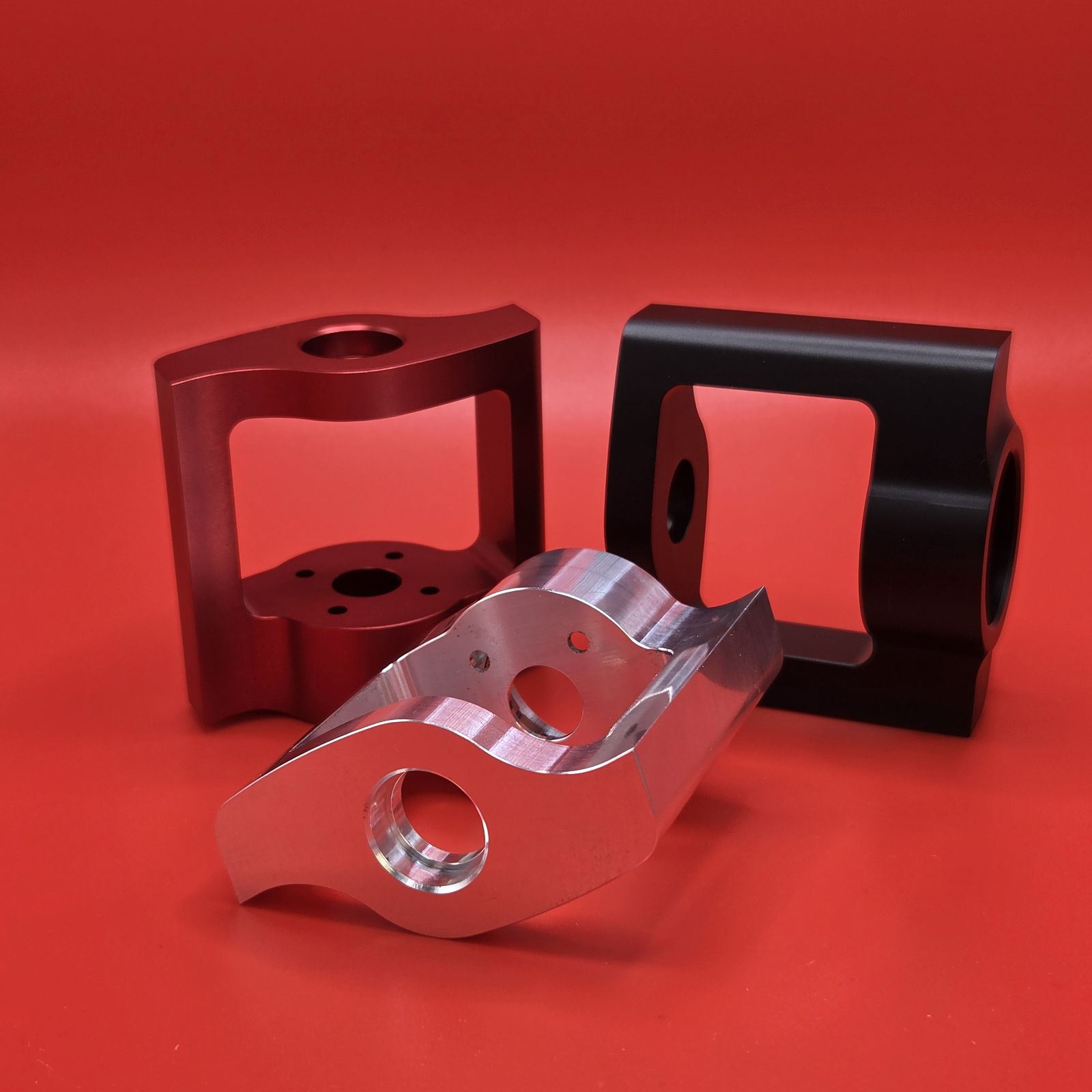

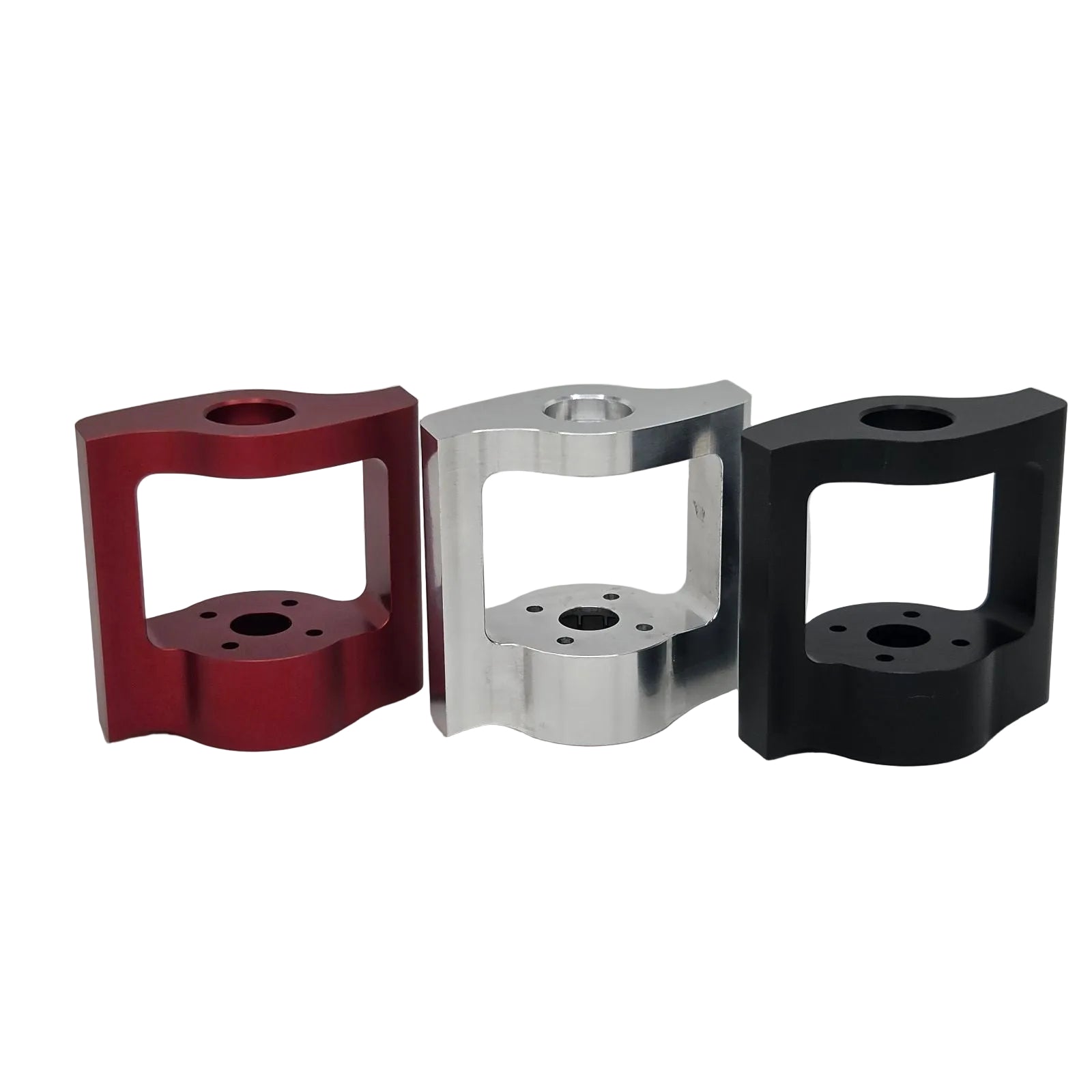

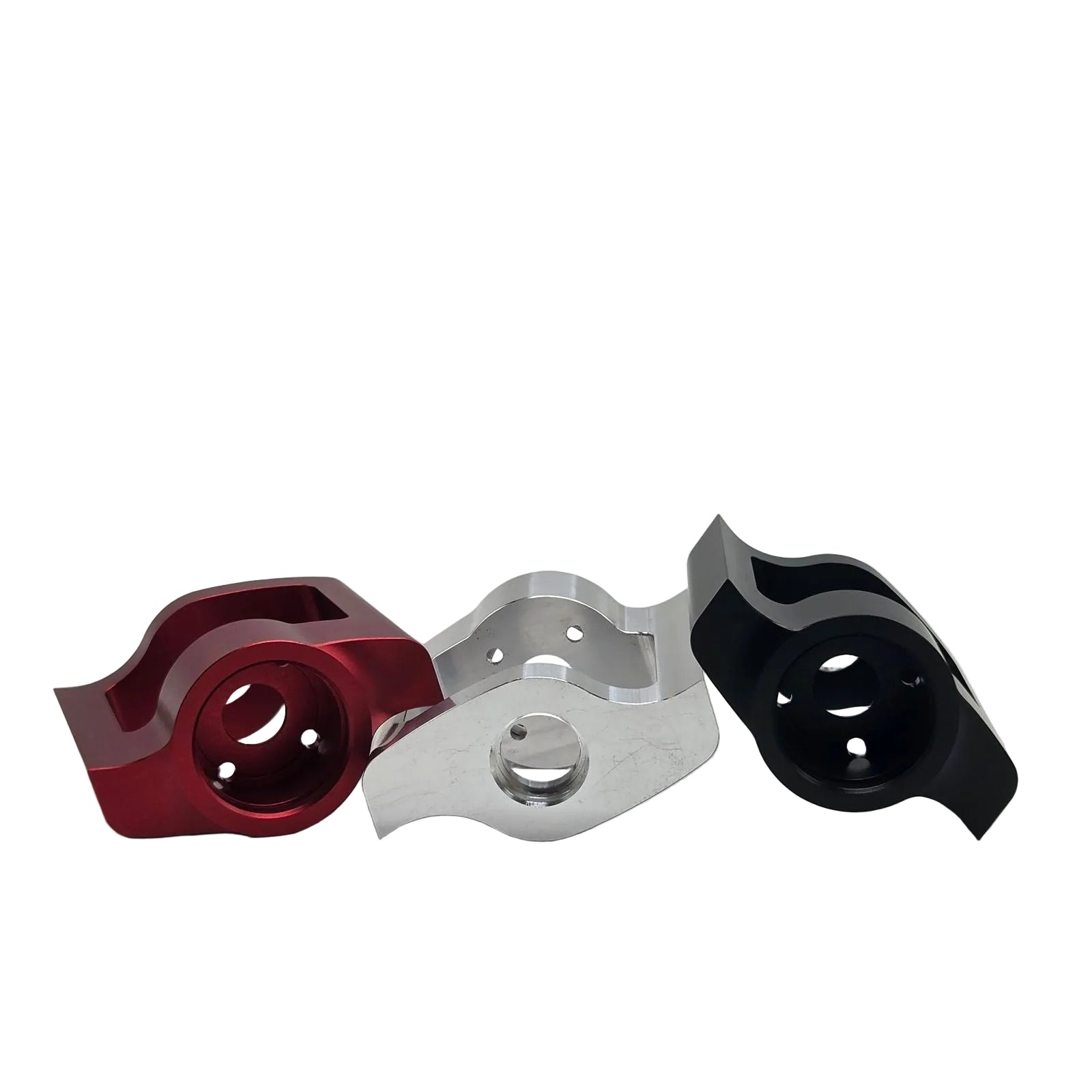

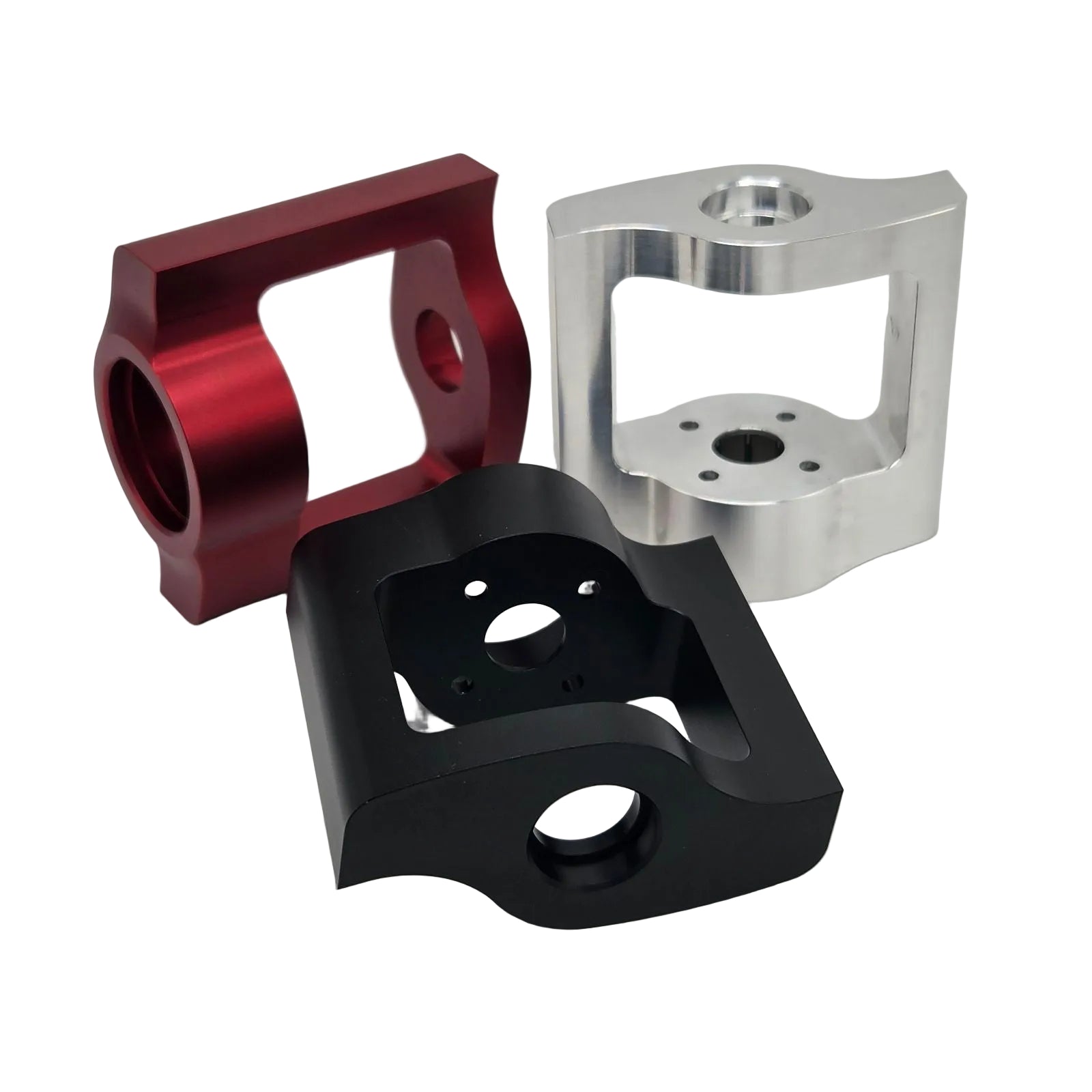

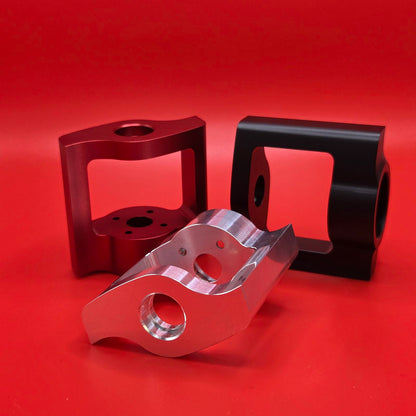

  • Comes in Raw aluminum, Red anodize, or Black anodized finish
  • Includes 1x beater bar

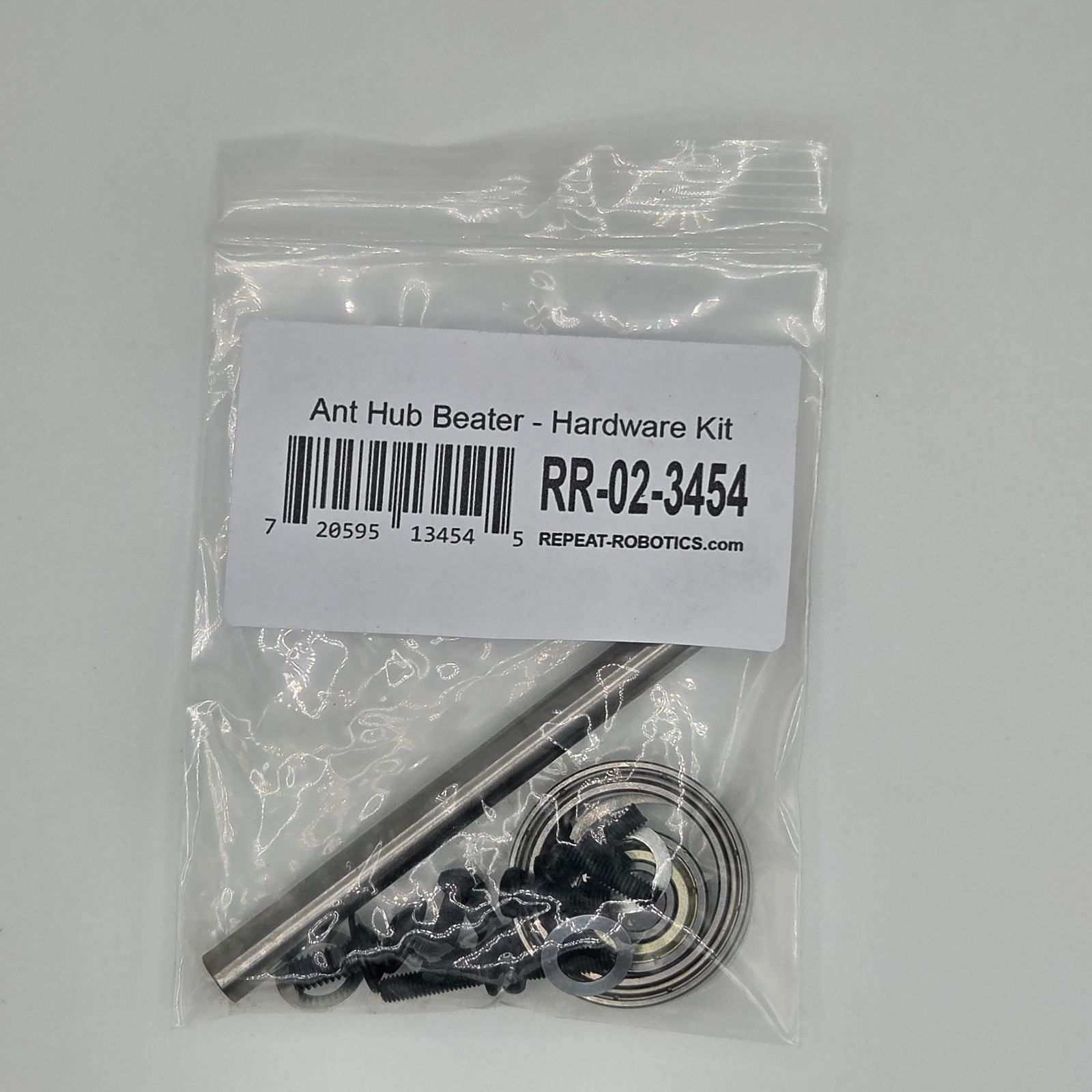

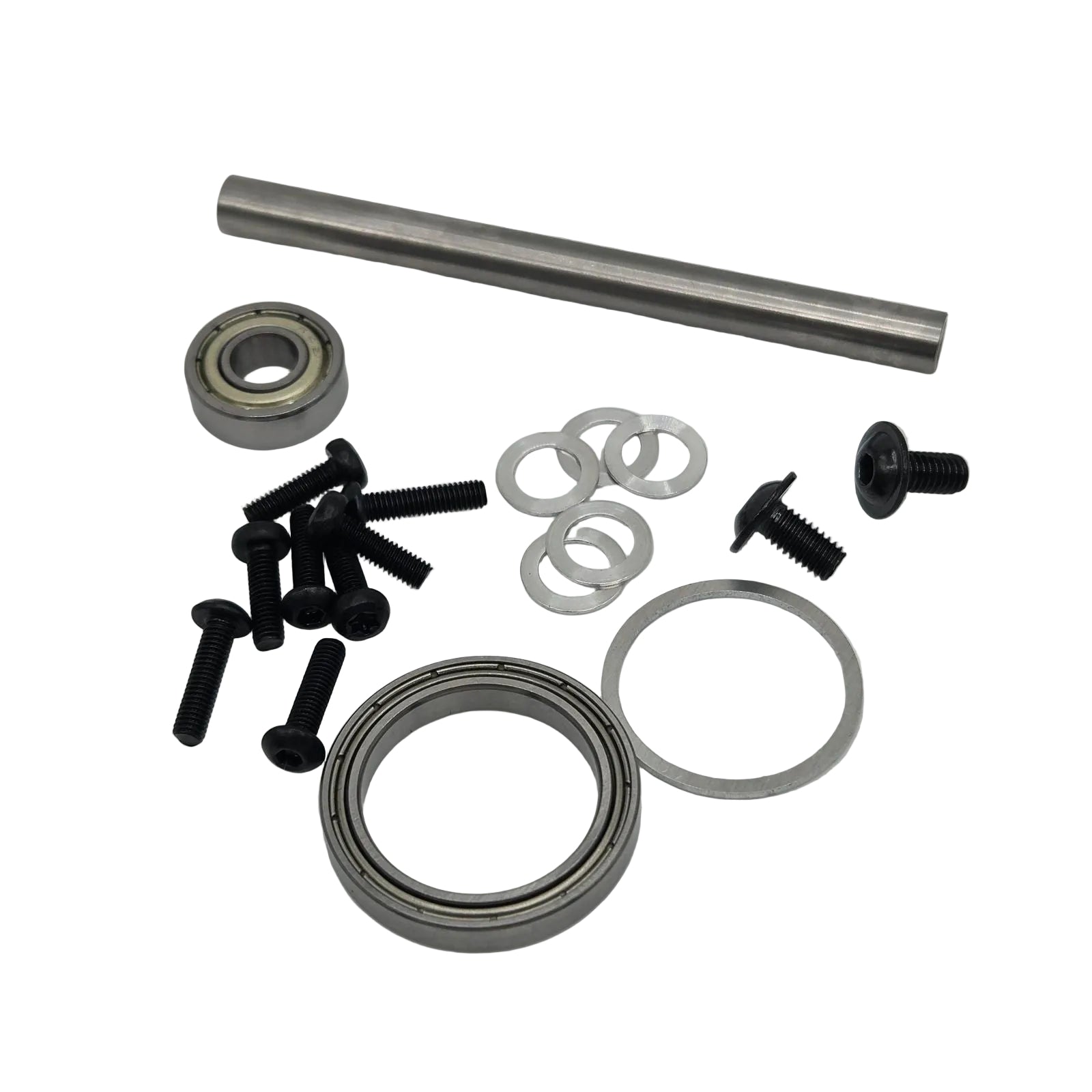

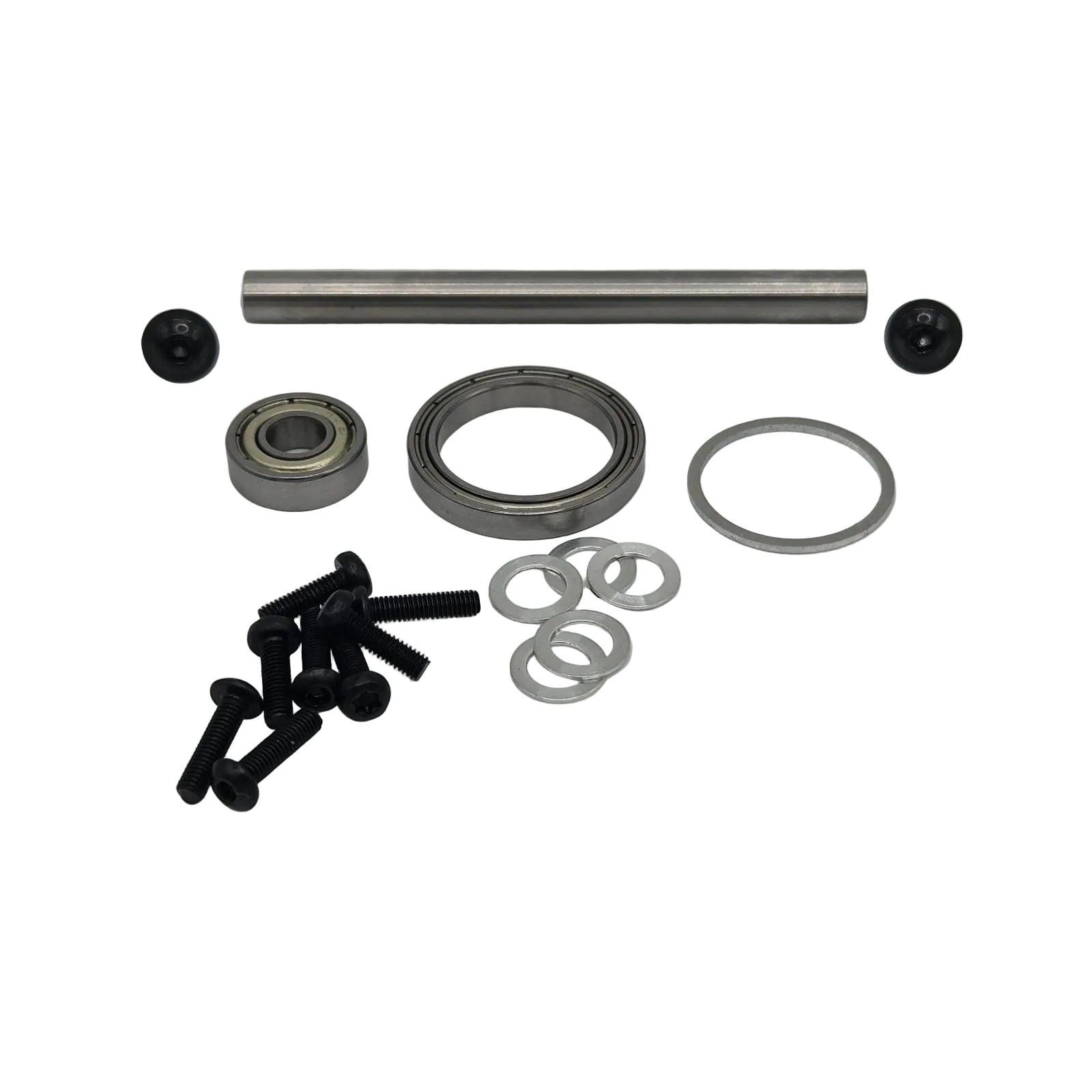

Hardware Kit

Contents include:

1x Custom Grade 5 Ti shaft, 0.25x3in, end tapped M4
2x M4x8mm flanged button head screws
4x M3x12mm button head screws
4x M3x10mm button head screws
1x R4 high speed bearing
1x 6704 ring bearing
1x hubmotor shim washer
5x far side shim washers



Watch the video assembly guide HERE

Find the 3D model HERE
Magnet Ring Press Tool HERE



NOTE:

The custom Ti shafts were slightly oversized so the R4 bearing does not easily fit onto them. This can be fixed by sanding one side so the bearing slips on

The beater ID for both magnet ring and R4 bearing are a loose fit. We recommend attaching the magnet ring/bearing into the beater with Loctite 638 (green) or a little bit of super glue.
