Regular price
$79.00
Regular price
Sale price
$79.00
Description
- 144g total weight including hardware and hubmotor
- 98g spinning mass
- 2.5 inch diameter, 2.5 inch frame center to center
- Designed for .25 inch thick frame rails
- Includes everything for one hubmotor beater weapon
- Comes in 1200 or 1800kv

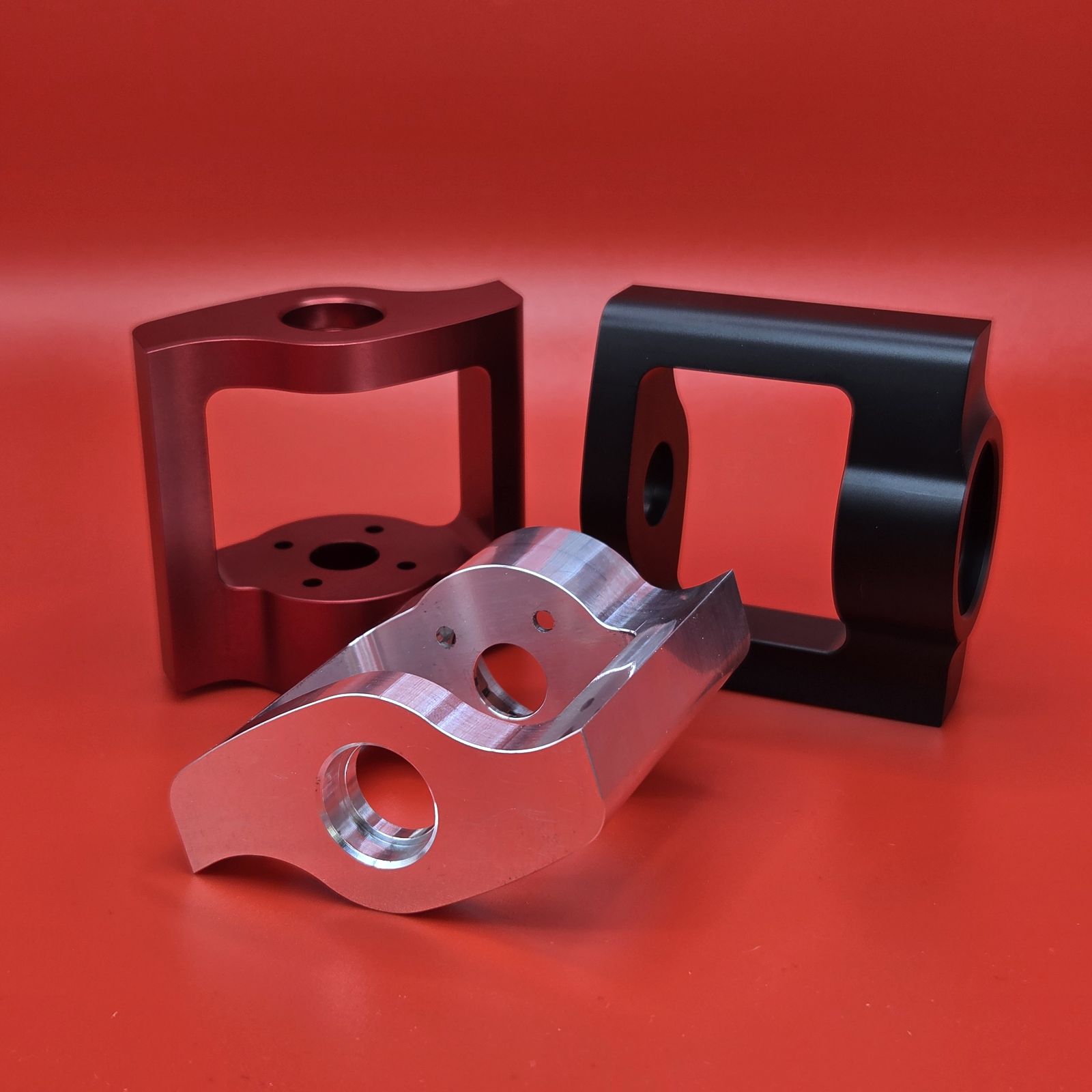

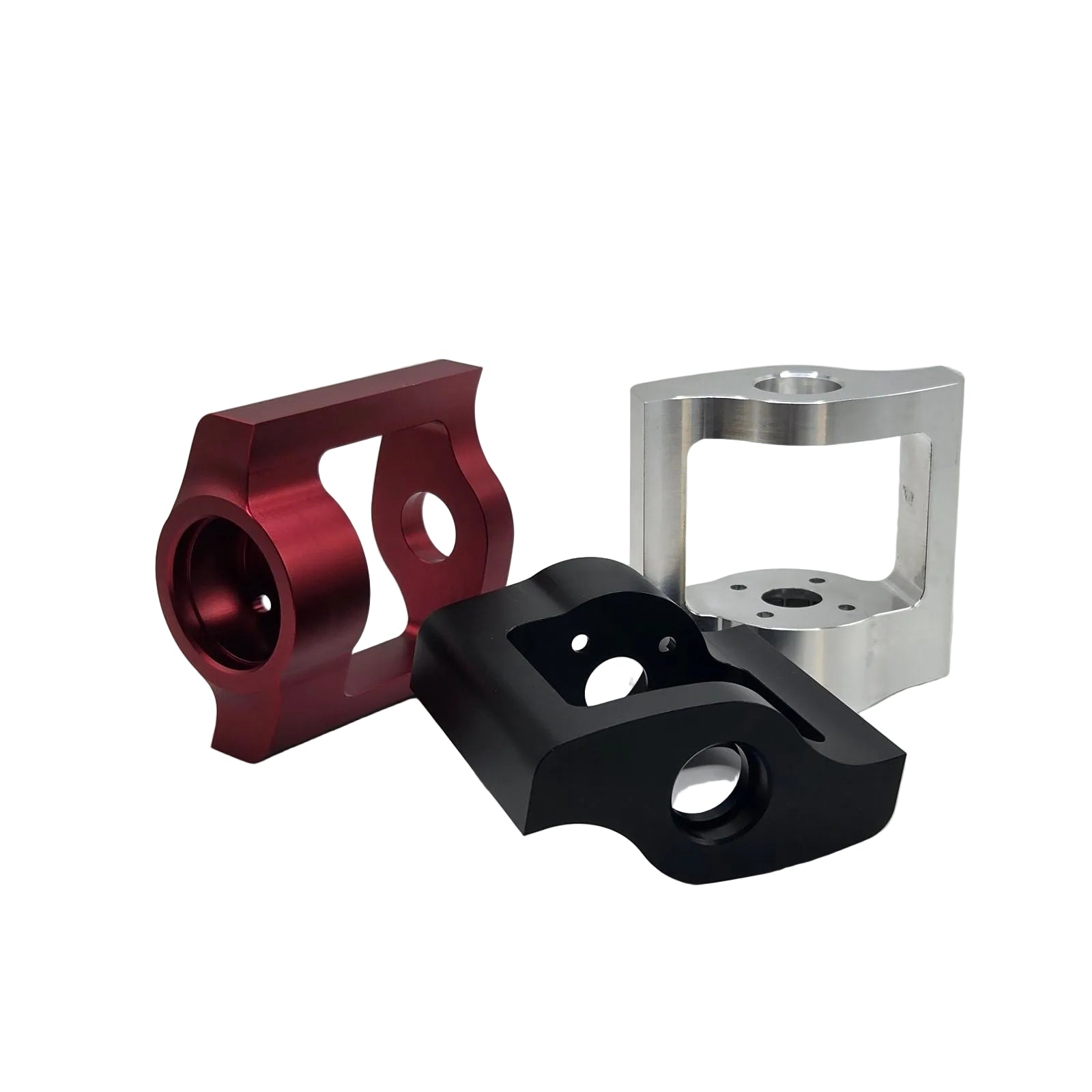

- Color: Red, Black, Raw Aluminum
- Beater is 7075-T6 aluminum
- Contents include
1x Beater
1x Magnet Ring
1x Stator
2x Mounting Washers
1x Hardware Kit
Watch the video assembly guide HERE

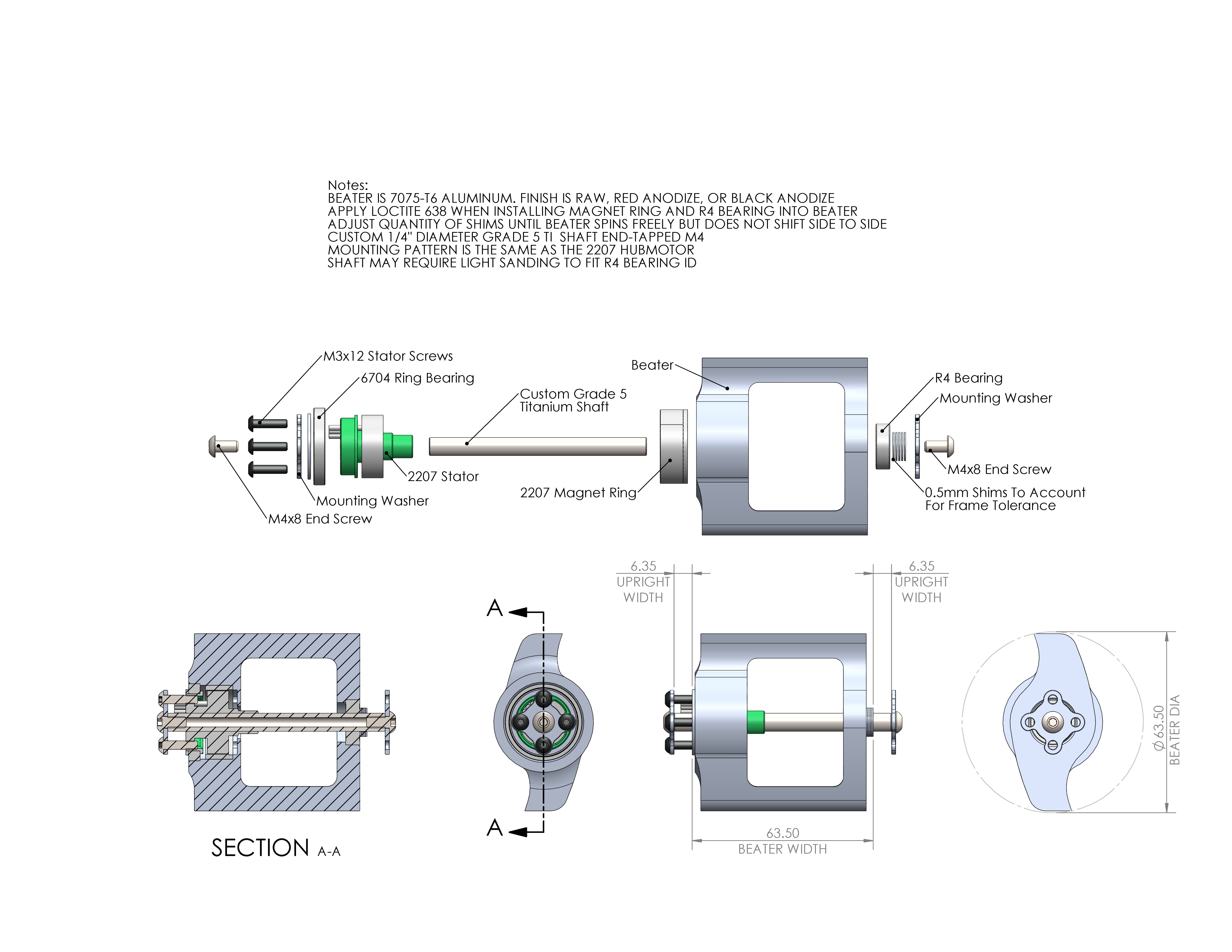

Find the 3D model HERE
Magnet Ring Press Tool HERE
NOTE:
The custom Ti shafts were slightly oversized so the R4 bearing does not easily fit onto them. This can be fixed by sanding one side so the bearing slips on
The beater ID for both magnet ring and R4 bearing are a loose fit. We recommend attaching the magnet ring/bearing into the beater with Loctite 638 (green) or a little bit of super glue.
