Repeat Micro AM32 Drive ESC

$20.00
$22.00 $20.00
Save $2.00

Looking for brushless escs but can't find anything small enough? The Micro AM32 esc is the smallest on the market at 12mm x 18mm! Take the size savings without sacrificing drive performance! Running AM32 firmware tuned for robot drivetrains these are great for 1lb or 3lb drive!

If the product status says backorder, it means we have the escs but have not flashed them with the correct settings. If you place an order on backorder it should be shipped out within 1-2 days.
Availability: In stock

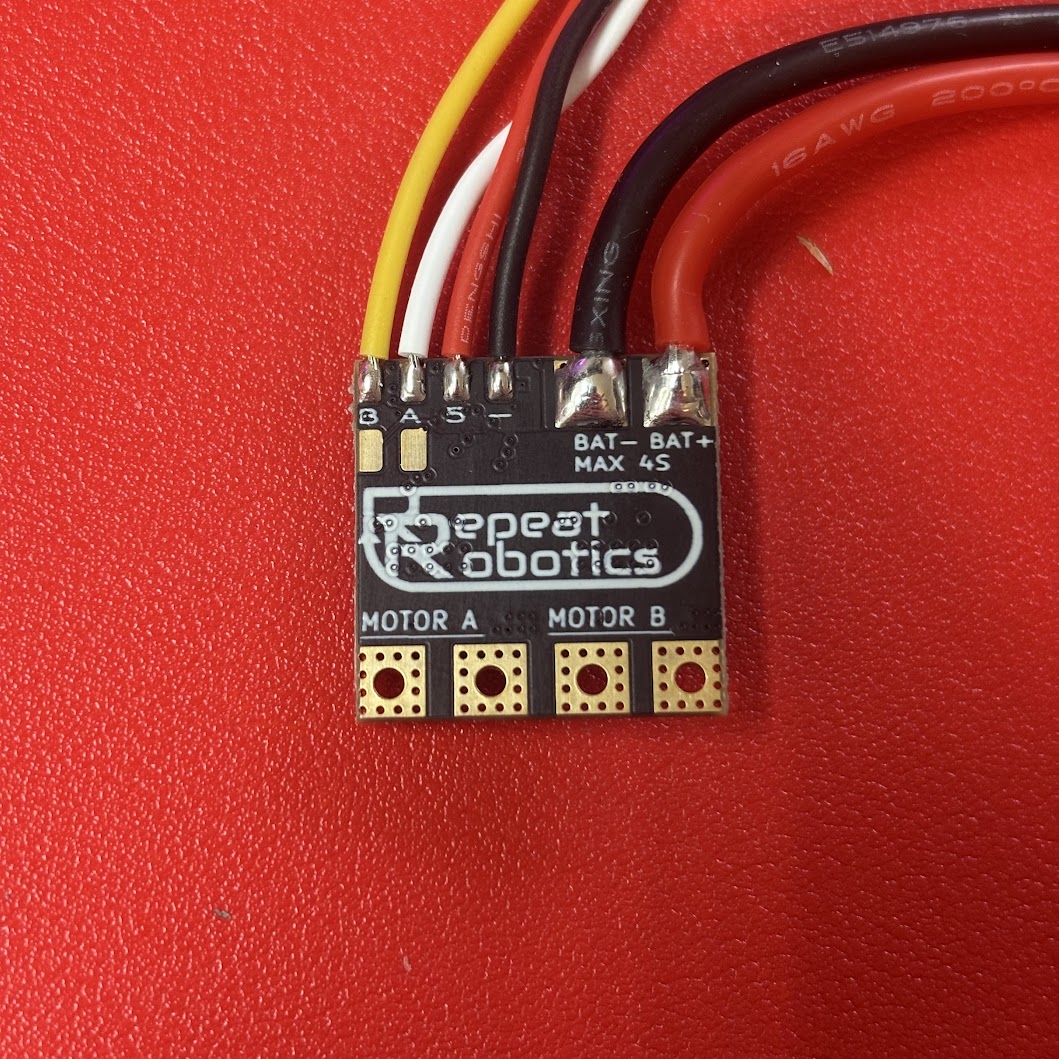

Repeat RoboticsDominion Dual Brushed Drive ESC
Dominion Dual Brushed Drive ESC image 0

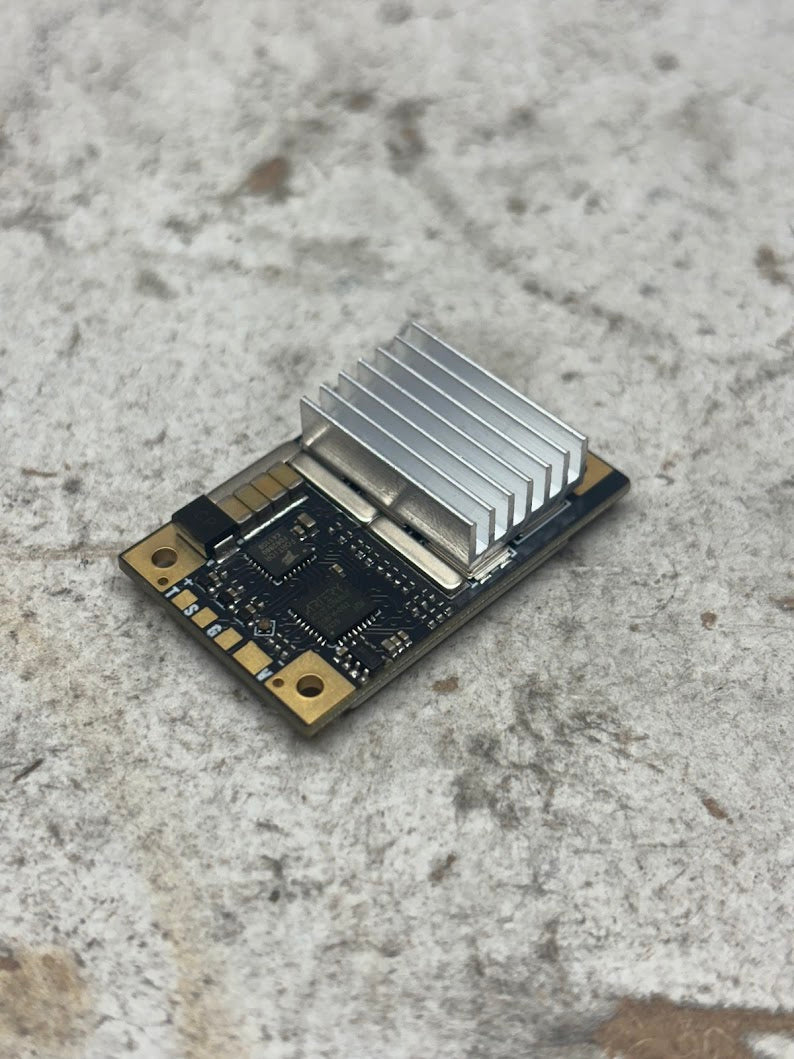

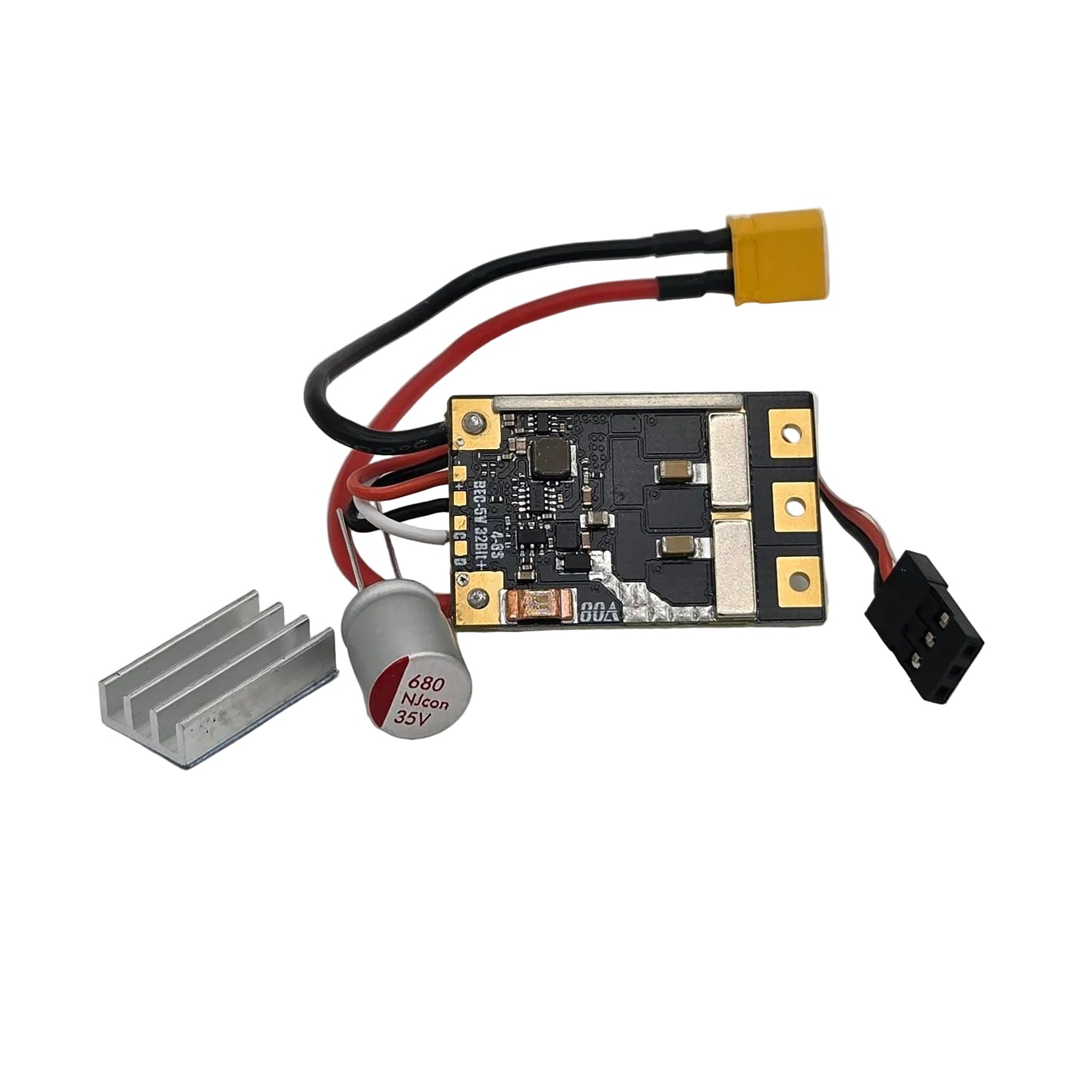

Vortex 80A ESC (Beetle Weapon or Big Bot Drive) image 0
Repeat RoboticsVortex 80A ESC (Beetle Weapon or Big Bot Drive)
Repeat Micro AM32 Drive ESC image 0
$20.00
$22.00 $20.00

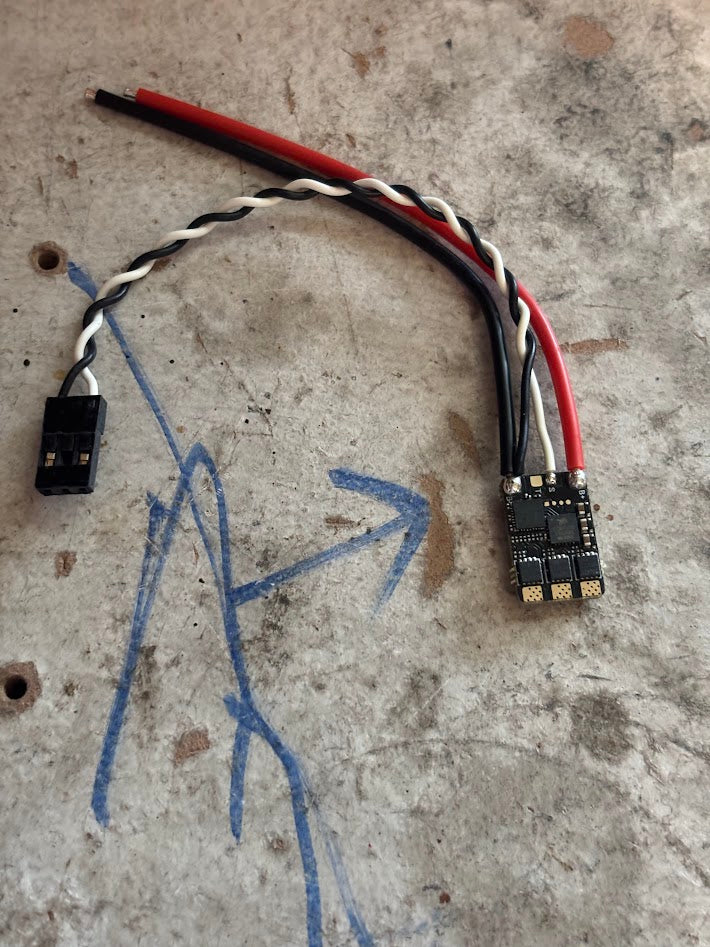

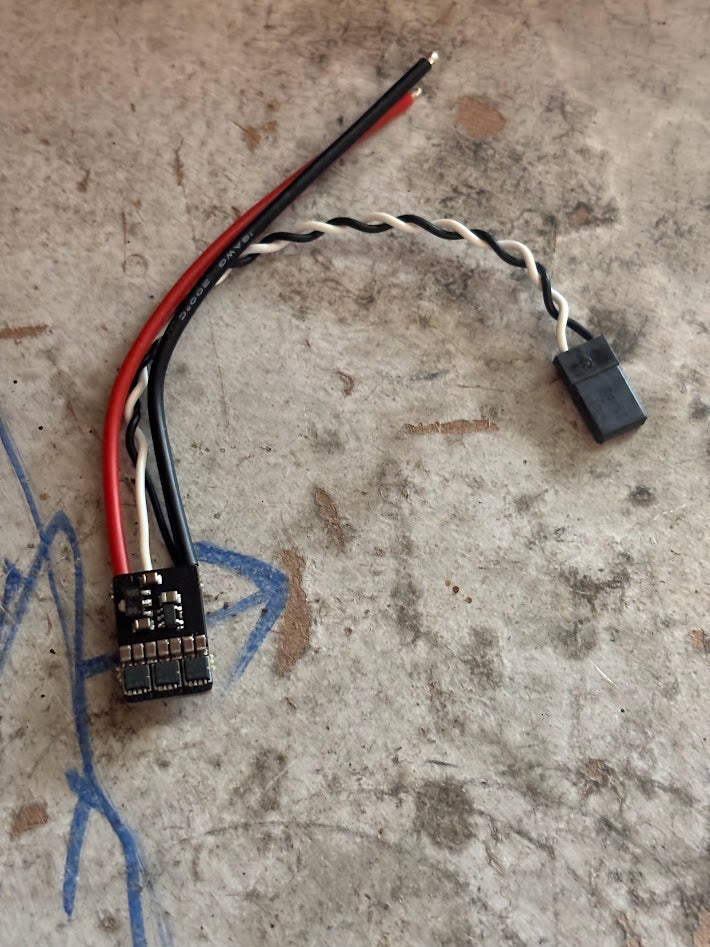

WARNING: REPEAT DRIVE ESCS ONLY WORK WITH BRUSHLESS MOTORS. These will not be able to drive Repeat drive Brushed motors.  Repeat Micro AM32 ESC is a custom AM32 firmware ESC that is pre-programmed for smooth bi-directional movement. We take all the guessing out of brushless drive, simply solder the three wires from your brushless motor onto the pads, plug into your receiver, and drive away! Designed for use with our Repeat Drive line of motors, but should also be able to drive any off-the shelf Antweight or Beetleweight brushless drive motors with minimal tuning.

Features:

  • 25A continuous current rated
  • ~5g weight (with 10cm wires shortening)
  • 18mm x 12mm x 4mm size
  • AM32 firmware
  • Comes pre-flashed with Repeat Drive Bi-directional settings, tailored for repeat drive solutions
  • 3-4S capable

Find the most Up to date version of the AM32 configurator tool here: https://github.com/am32-firmware/am32?tab=readme-ov-file#firmware-release--configuration-tool
