Flysky FS2A Receiver

$13.00
$13.00

Want a tiny receiver for your robot? This tried and true FS2A receiver has been used in bots for years! Its tiny size makes it even easier to fit your electronics in your bot!
Availability: 326 in stock
Repeat RoboticsBlheli_s 35A Ant Weapon ESC
Readytosky 35A blheli_s Ant Weapon ESC image 0

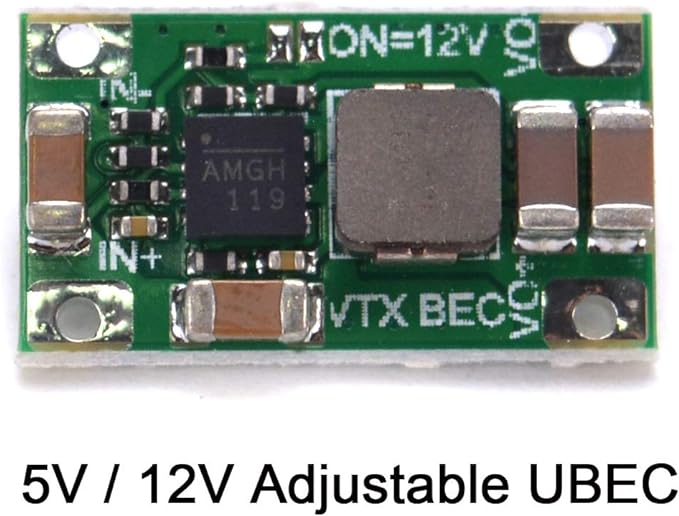

Micro 5V/12V BEC image 0
Misc. ElectronicsMicro 5V/12V BEC
Flysky FS2A Receiver image 0
$13.00
$13.00

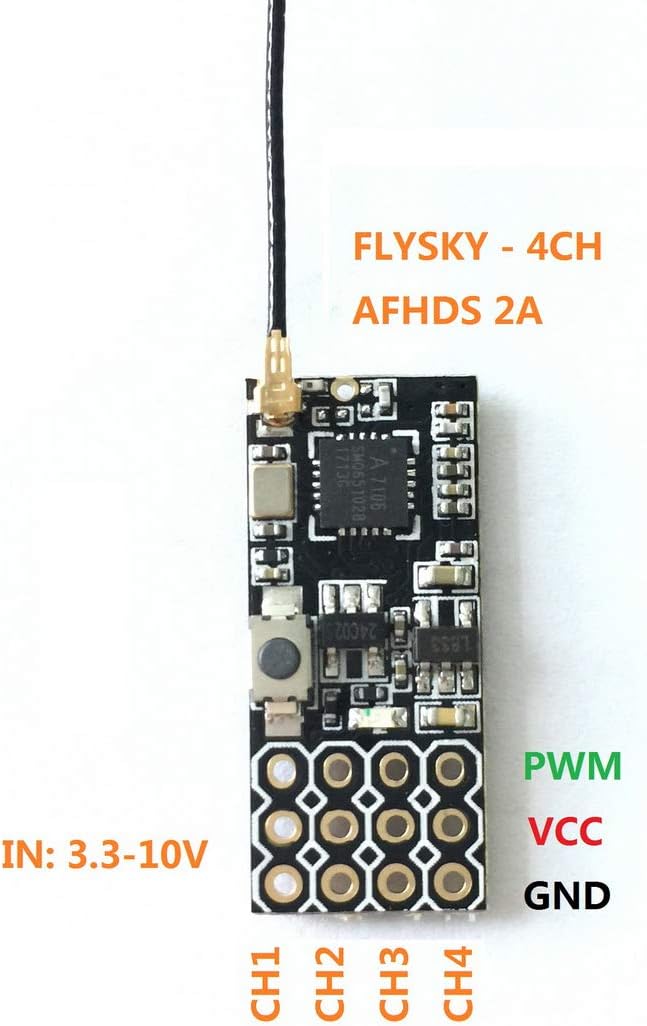

  • AFHDS 2A protocol
  • Small 11x25mm size

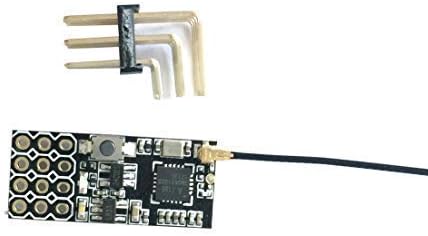

  • Comes with pins to adapt the receiver to standard RC servo plugs
  • Comes with clear heat-shrink
  • 4 channels PWM output
  • Failsafe capability
  • ~1g weight without pins, ~2g weight with pins

Bind instructions:

  1. Hold the button on the receiver and power on the bot/receiver. The blue light should flash, indicating it is in bind mode.
  2. Set the transmitter to the AFHDS 2A protocol and set it into bind mode. The receiver should change from flashing to a slow flash when it detects the transmitter.
  3. Get the transmitter out of bind mode and the receiver light should change to solid power on.

Failsafe procedure:

In order to set the failsafe, you need to power on the robot, set the sticks on the transmitter to where you want the failsafe to set to, then long press the receiver bind button until the blue light flashes quickly a few times.

If this doesn't work, then you should be able to set the failsafe through your transmitter menu.
