Repeat Drive Magnum

$25.00 - $75.00

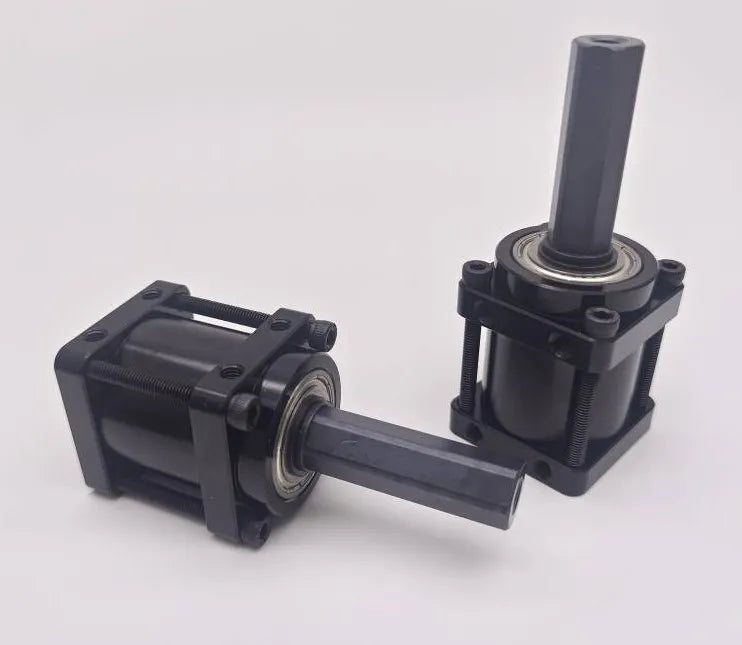

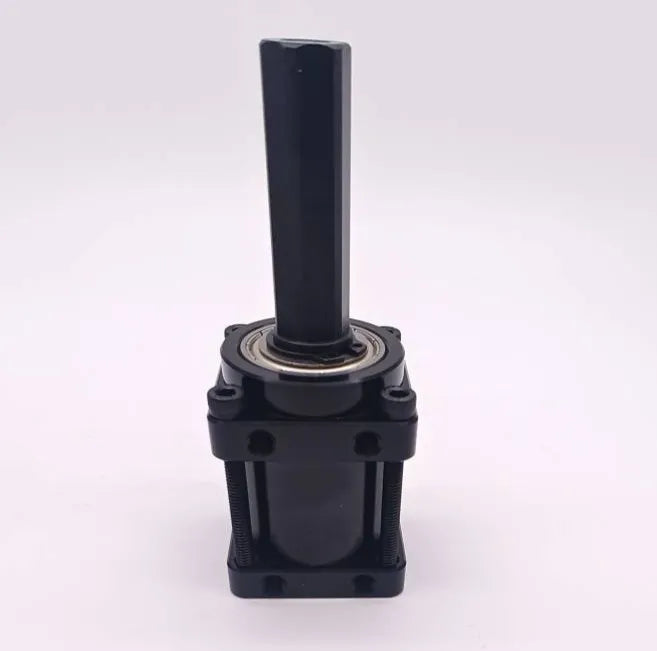

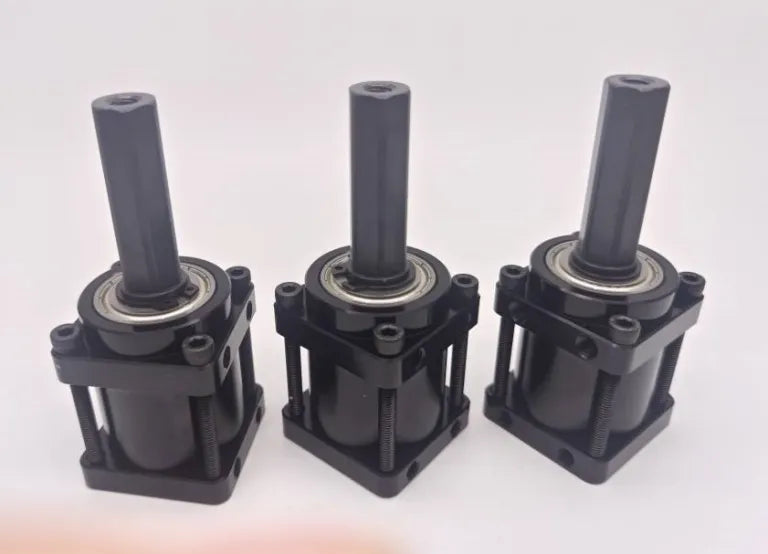

Been looking for an easy to use, off the shelf solution for 12 or 30lber direct drive gearboxes? These gearboxes come ready for combat, with extra large hardened steel output shafts, massive bearings, all in a compact package! These gearboxes are designed to mate to common 35xx outrunners or 36xx inrunners with 5mm shafts.

Type: Gearbox Only
$55.00
$55.00
Availability: 15 in stock
Repeat RoboticsRepeat Tangent Drive Motors
Repeat Tangent Drive Motors image 0
Repeat Ultra Mk2 image 0
Repeat RoboticsRepeat Ultra Mk2
$55.00
$55.00

Gearbox:

  • 19:1 ratio
  • 1/2in hex shaft to fit common accessories
  • Billet final carrier and output shaft made from hardened 4140 steel
  • M6 end tap on shaft for retaining
  • Dual 6902 15mm ID bearings
  • 4x M5 mounting holes on top/bottom of the gearbox
  • 5mm bore pinion (comes with 1x pinion)
  • Designed for 35xx outrunners or 36xx inrunners with 17mm shaft length.
  • ~250g weight
  • BLACKĀ  A E S T H E T I C
  • Comes pre-greased

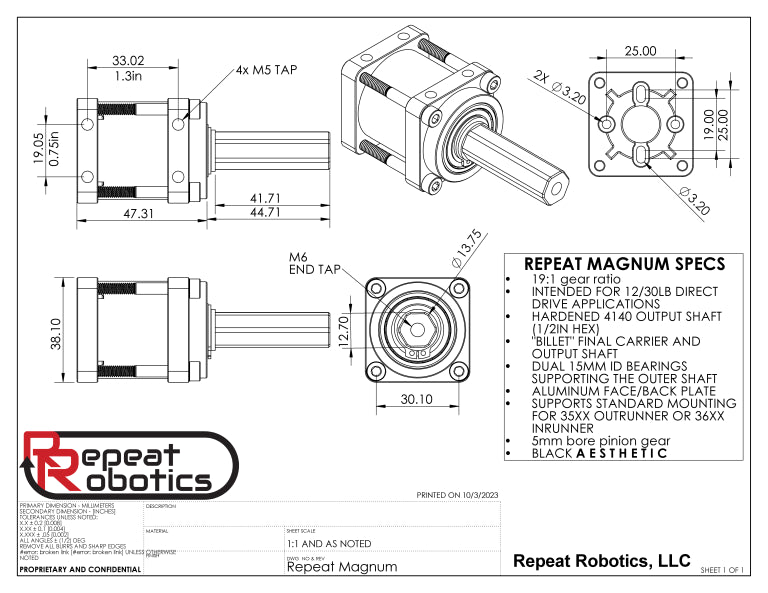

3D Model: https://grabcad.com/library/repeat-drive-magnum-gearbox-1

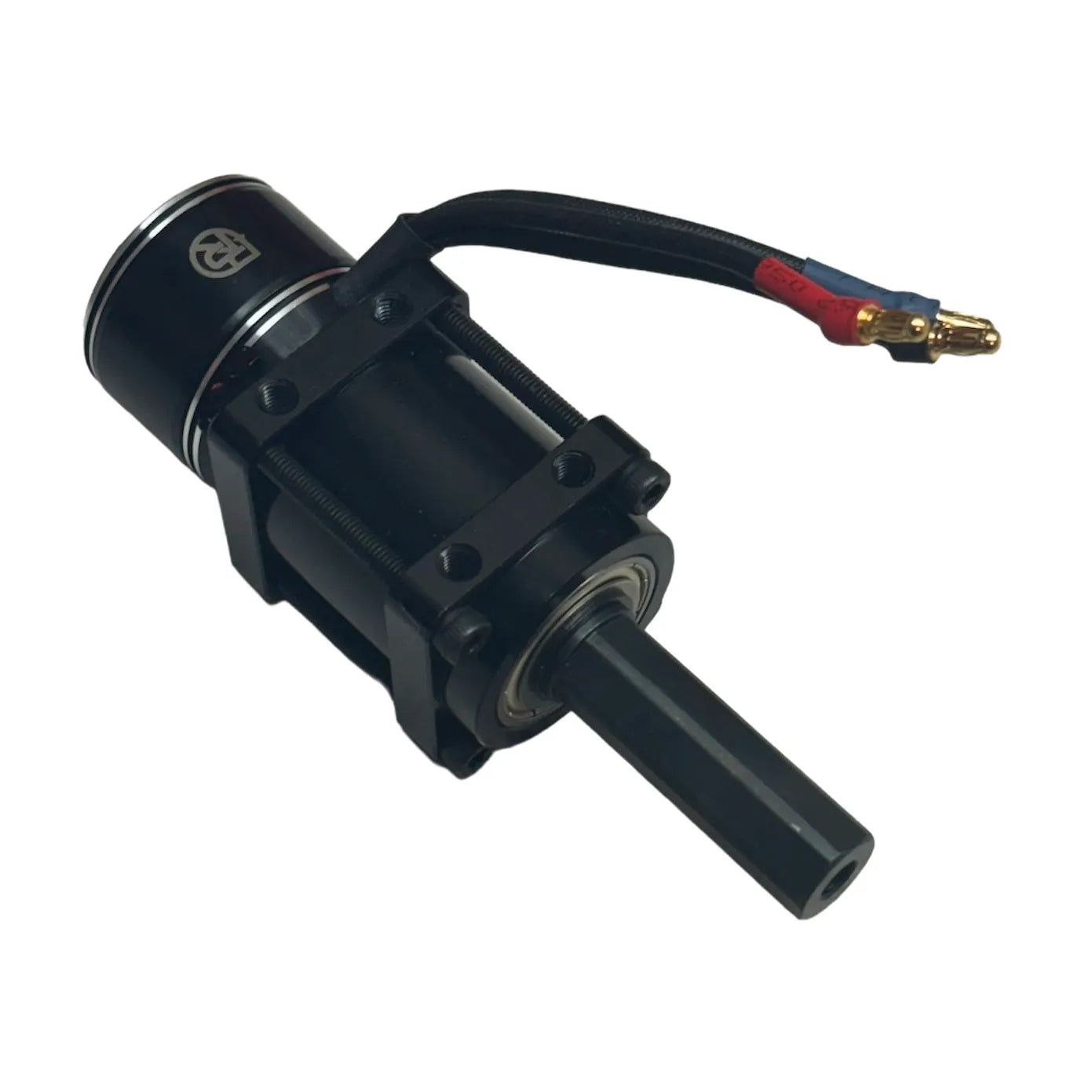

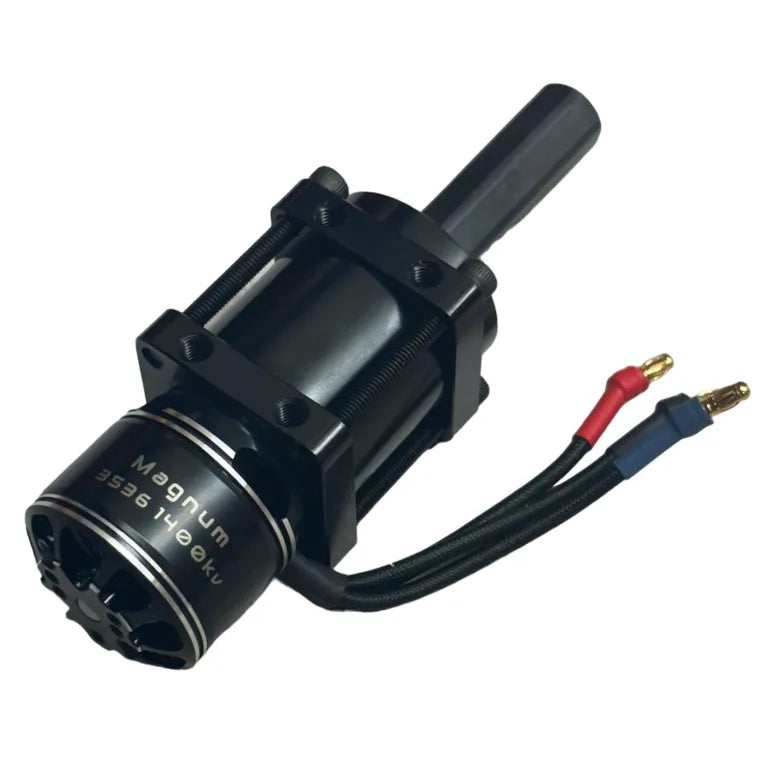

Gearmotor:

Now takes the guesswork out of mating a motor to the repeat magnum.
  • Comes with a 3536 mated to the gearbox
  • 1400kv for use up to 6S
  • 345g weight with wires and connectors
Pairs great with our new 80A AM32 drive esc: https://repeat-robotics.com/buy/vortex-80a-esc-beetle-weapon-or-big-bot-drive/
Re-greasing is recommended for high input speeds. Running the gearbox with stock grease at high rpms can cause unwanted thermal effects that will cause your motors to draw more current and run less efficiently. We recommend SCH100 grease.
Check out spare parts here: https://repeat-robotics.com/buy/repeat-drive-magnum-spare-parts/
