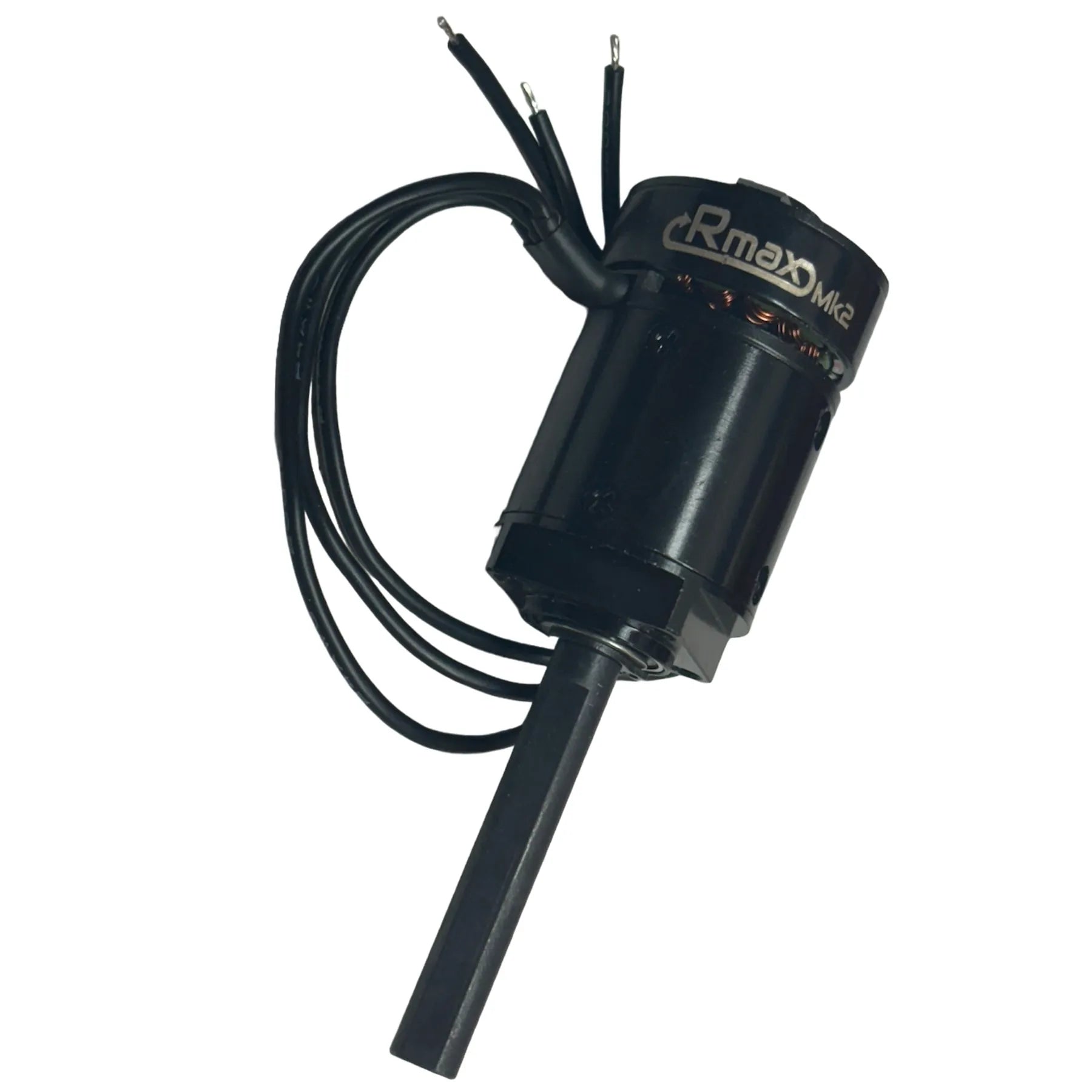

Max Brushless 2006 Mk2 - Beetleweight planetary gearmotor

$20.00 - $50.00

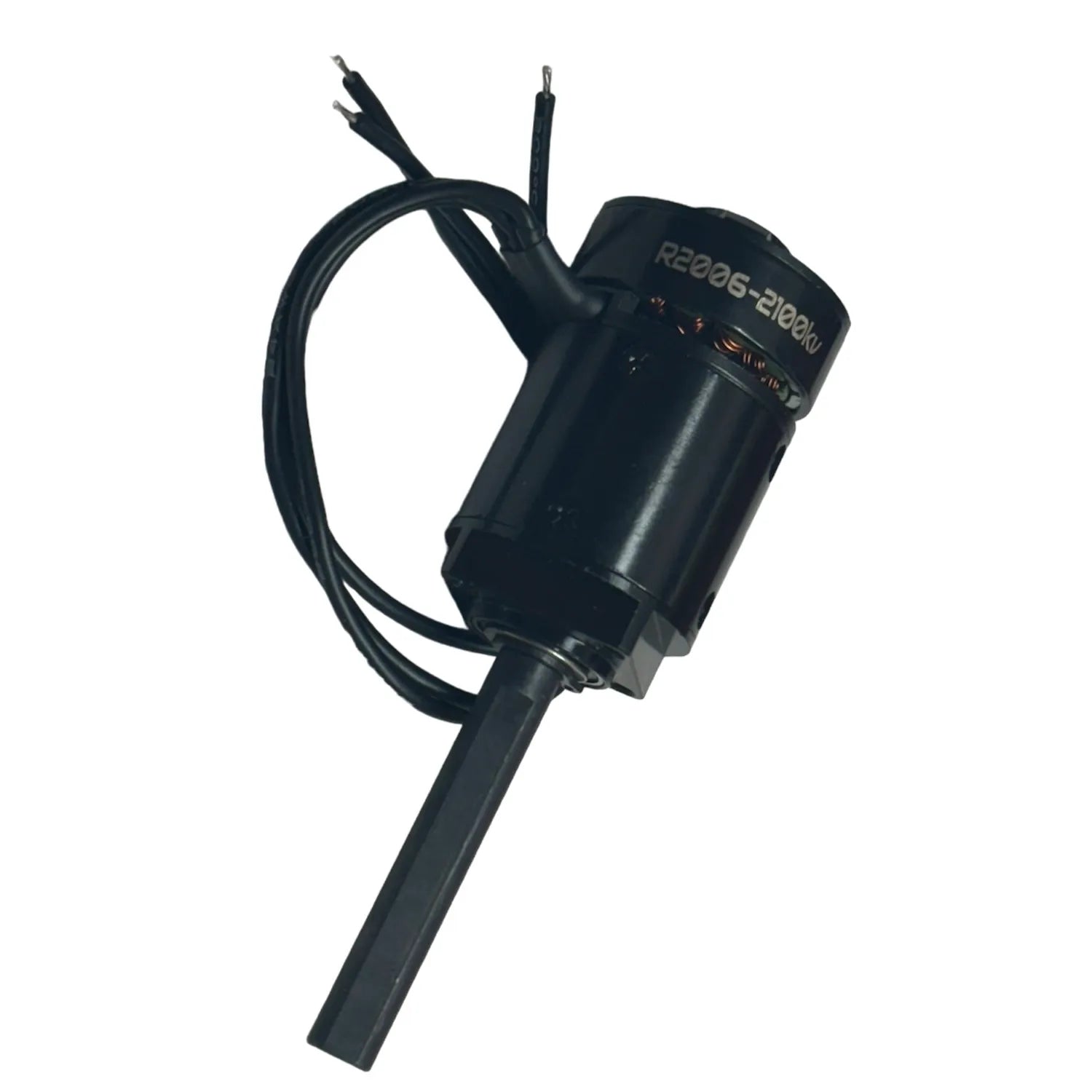

Does your beetleweight need more drive power? Not happy with any of the options on the market? Tired of trying to put your own shafts into a 2xxx motor to get all the torque??? Repeat drive max V2 is an improvement on the original. It comes with a 2100kv 2006 brushless motor mated to a 24mm 27:1 planetary gearbox designed to be the toughest beetleweight drive motor on the market.

** As of 6/2024 max has moved to V2, including M3 mounting, square faceplates, and a larger 2006 motor directly integrated into the gearbox **

Type: Replacement motor
$20.00
$20.00
Availability: 175 in stock
Repeat RoboticsCompact Brushless 1806 - Beetleweight planetary gearmotor

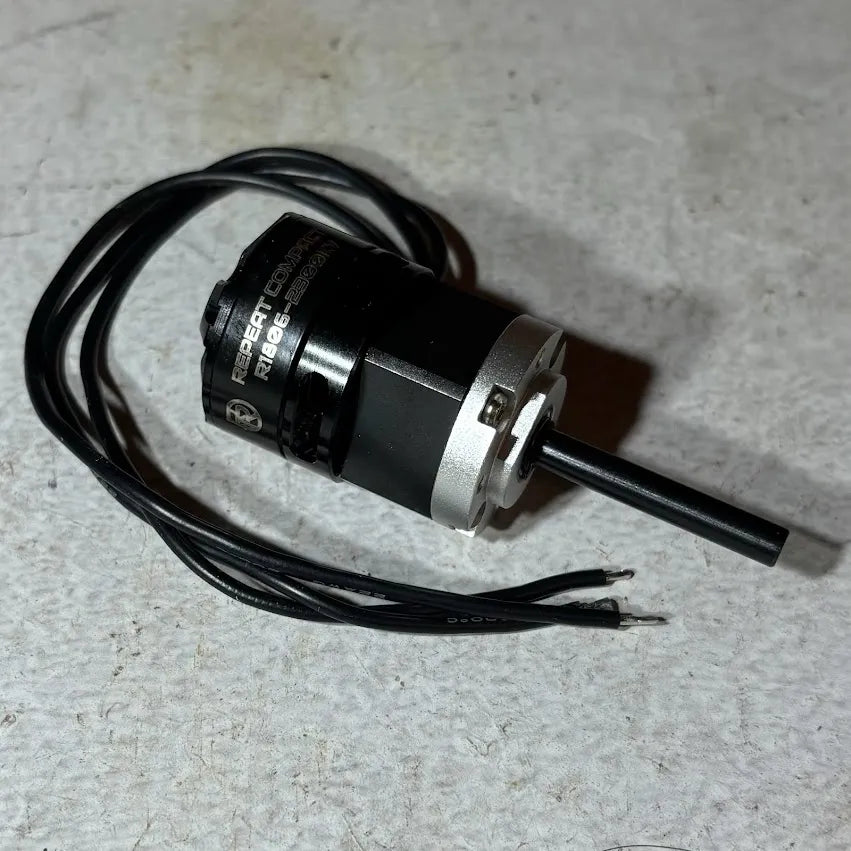

Compact Brushless 1806 - Beetleweight planetary gearmotor
Repeat Tangent Drive Motors image 0

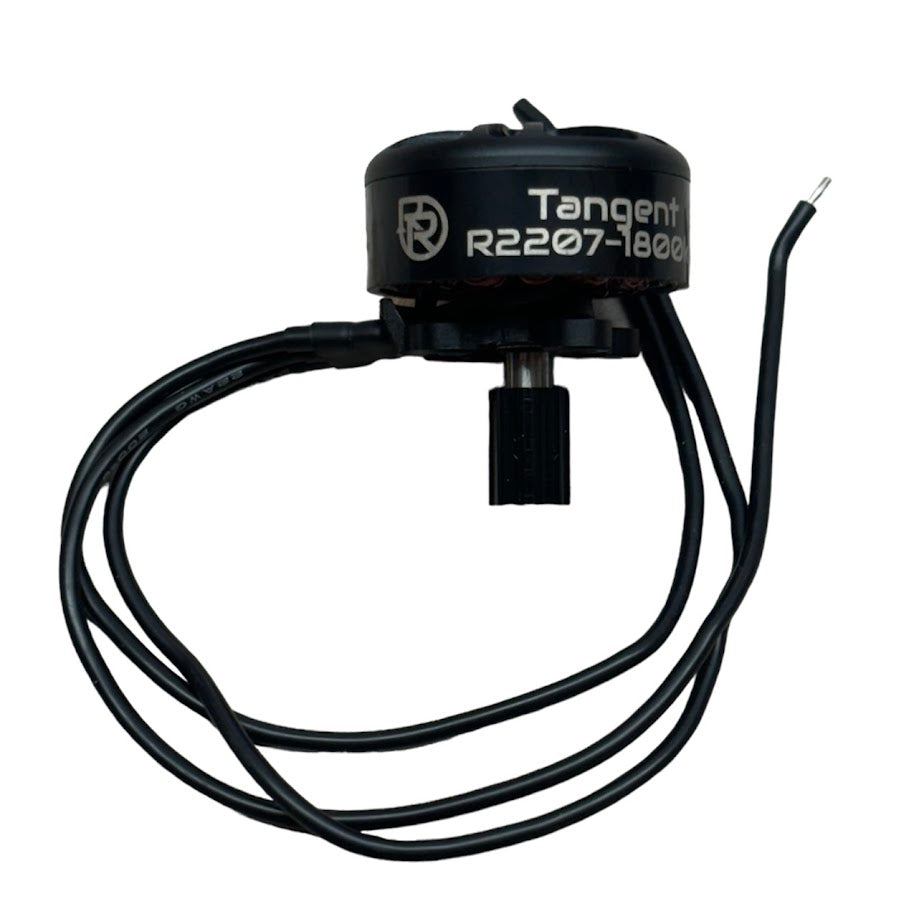

Repeat RoboticsTangent Drive 2207 - Beetleweight drive motor
$20.00
$20.00

Upgrades from Mk2:

  • M3 Faceplates come standard. No need to buy them separately

Features:

  • 66g weight
  • 4x19mm M3 face mount hole pattern
  • 2s-6s rated voltage
  • 24mm, 27:1 all metal planetary gearbox

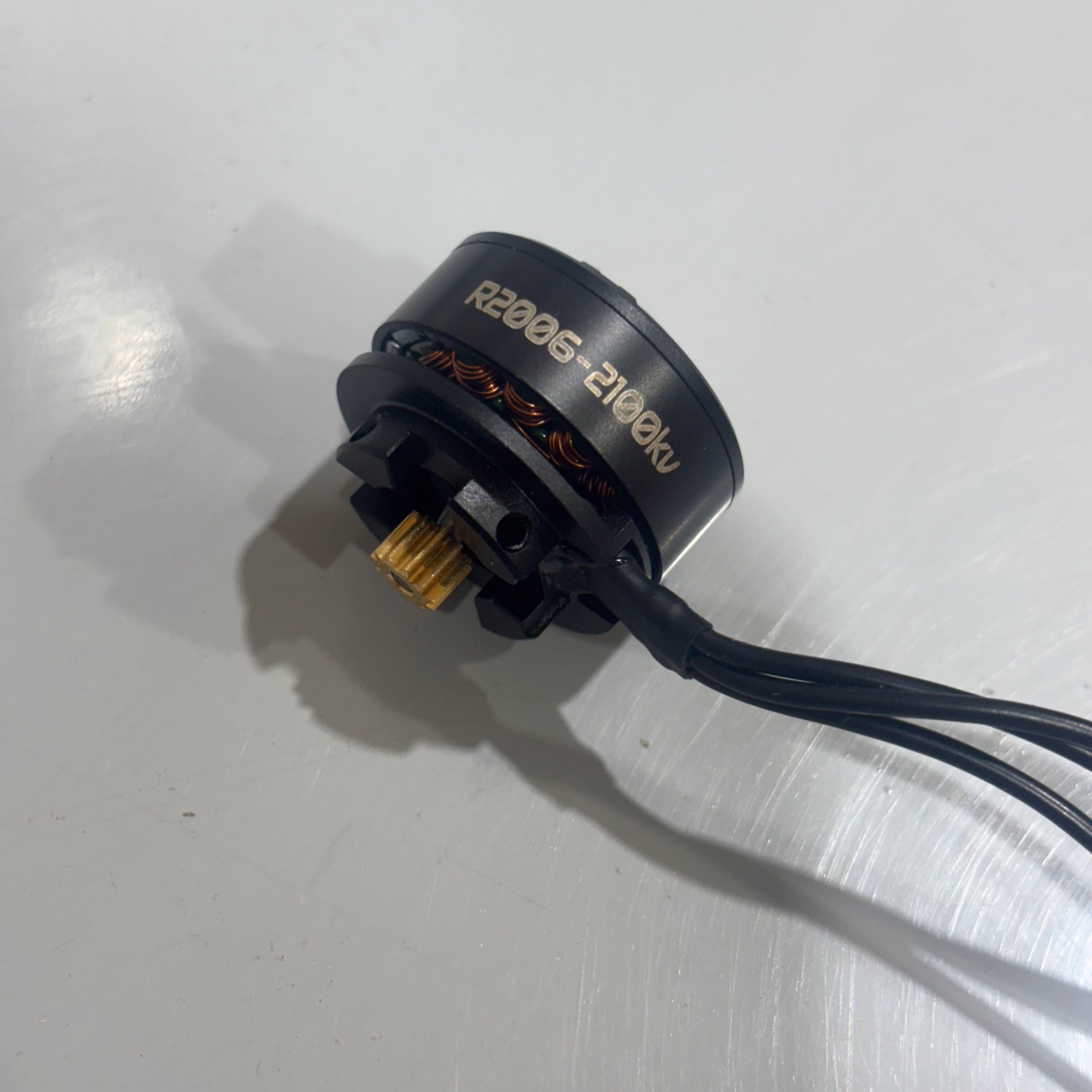

  • Custom wound 2006 brushless motor directly integrated into the gearbox
  • 6mm "D" extra long output shaft (cut to the length that you need to save weight)
  • Custom billet 4130 final planet carrier and output shaft
  • Output shaft c-clip has been changed to minimize the groove and provide the strongest product.
  • Faceplate comes with flats built in to facilitate clamp mounting.
  • Motor is integrated into the gearbox to minimize footprint.

Performance

  • 12V input (3S) 863rpm free speed
  • 14.8V input (4S) 1151rpm
  • 22.2v input (6S) 1726rpm

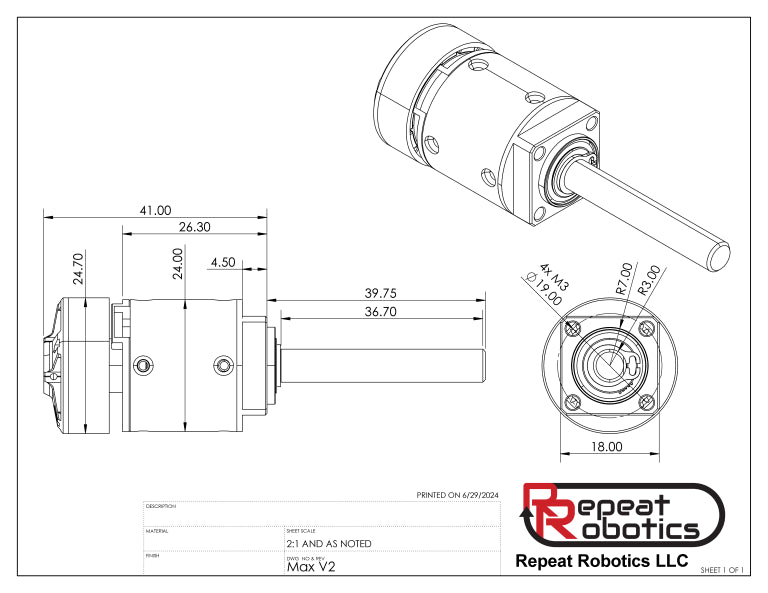

CAD model

https://grabcad.com/library/repeat-drive-max-1

Re-greasing is recommended for high voltage usage and improved performance. Replacing the grease with a thinner grease or oil will reduce load and heating.
