Repeat Drive Axle Mk2 (2pcs)

$5.00 - $6.00

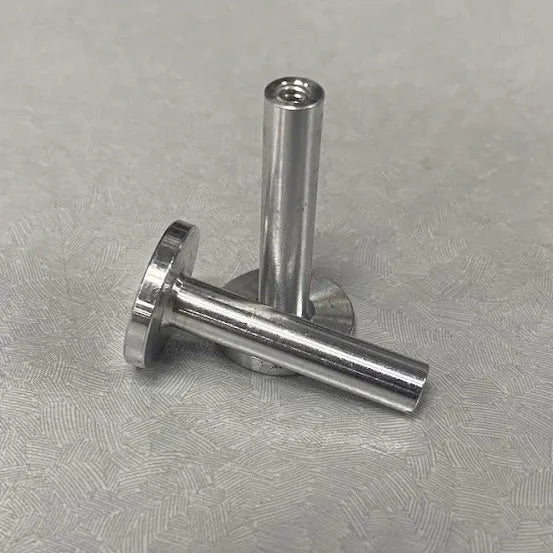

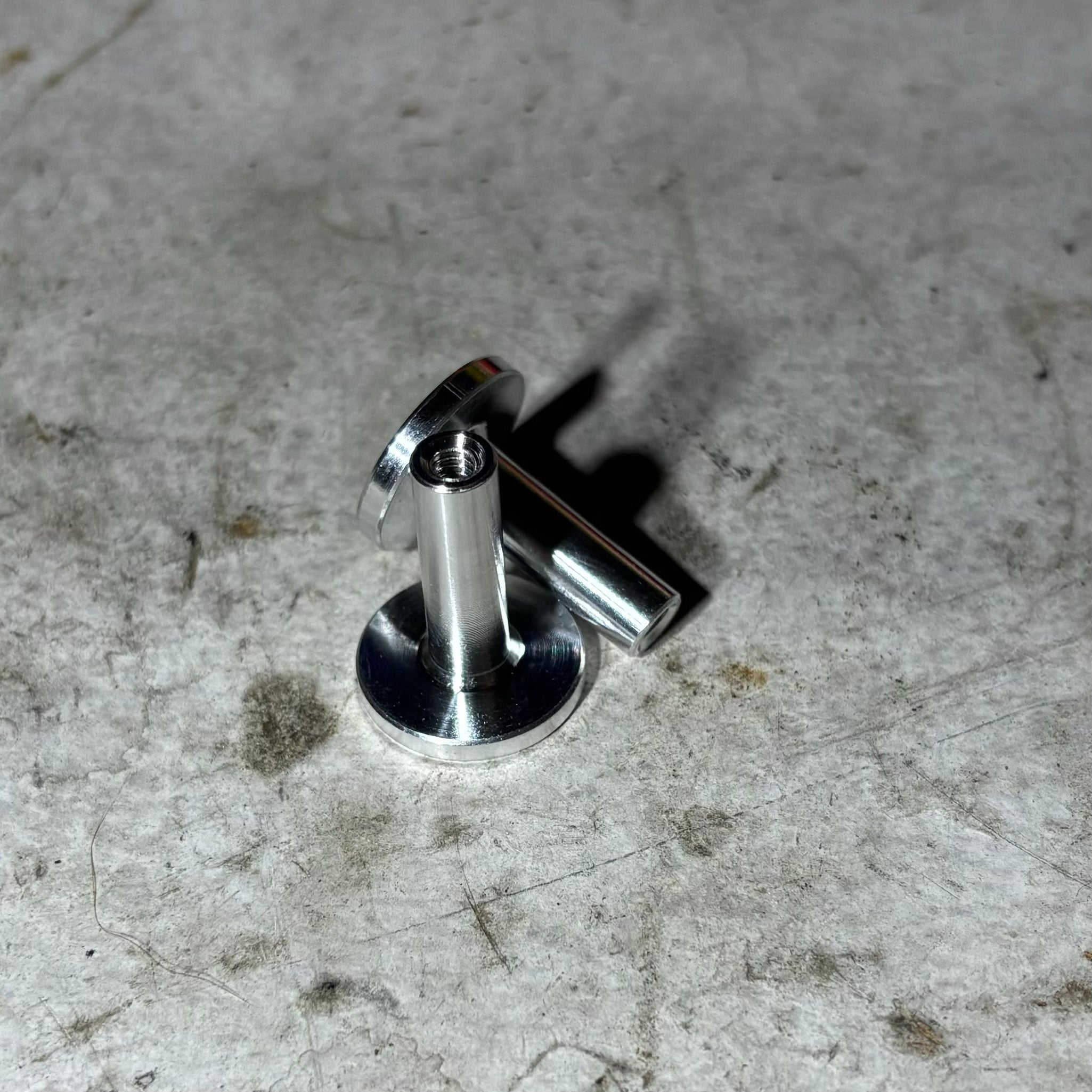

Repeat Drive Axle is a 1/4" flanged, 7075 aluminum standoff, designed to be used in Beetleweight drive applications. An increasing amount of insect weight combat robots use plastic frame rails, these axles have a flanged section to keep them perpendicular to your frame and your drive running smooth.

Size: Short
$5.00
$5.00
Availability: 241 in stock
Repeat RoboticsHubmotor weapon blades
Hubmotor weapon blades image 0
Repeat Gold Screw Hub (2pcs) image 0
Repeat RoboticsRepeat Gold Screw Hub (2pcs)
$5.00
$5.00

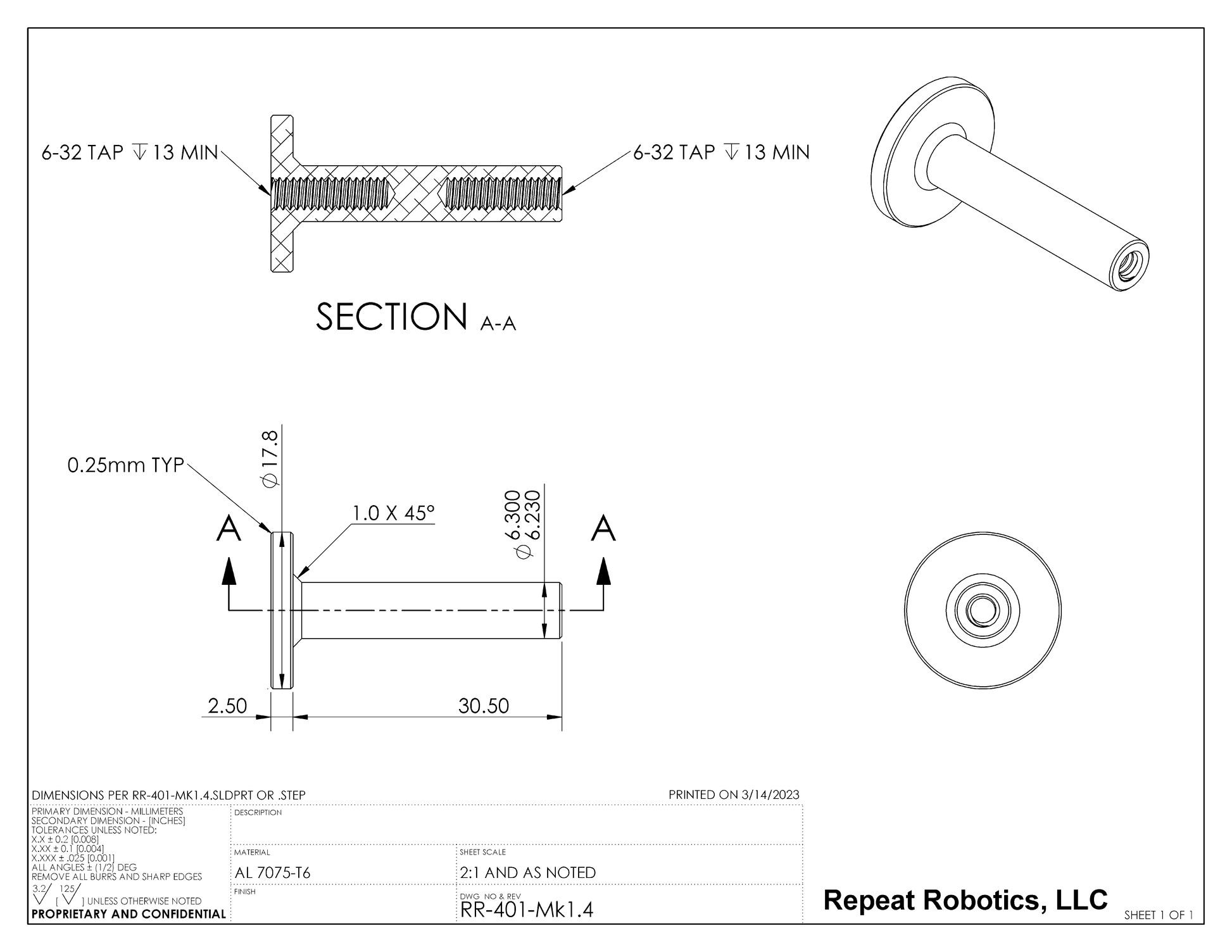

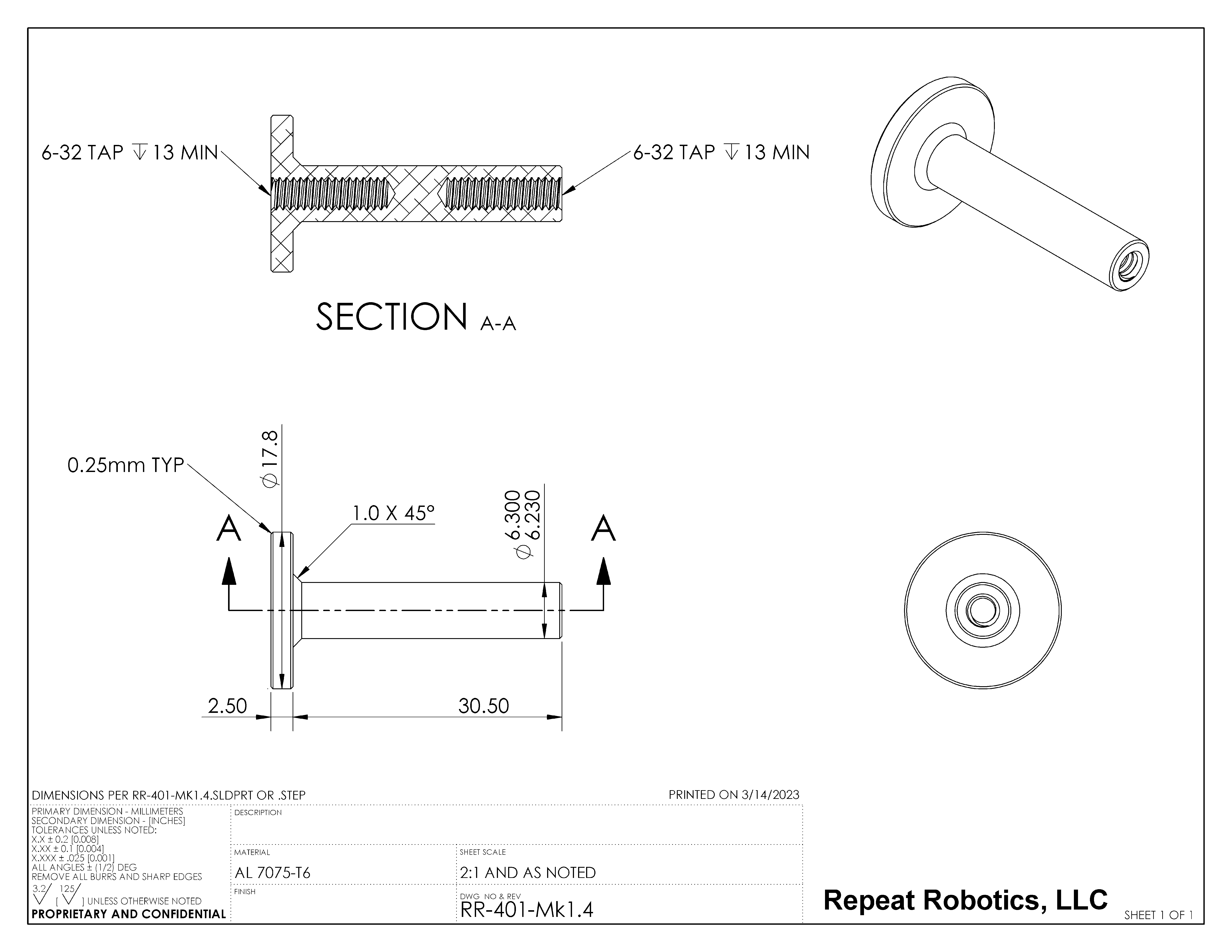

Features

  • High strength 7075 Aluminum material
  • Slightly undersized 1/4 inch shaft to fit bushings and bearings
  • Undersized 17.8mm flange to fit into 18mm pockets for extra strength
  • Tapped for 6-32 screws
  • Generous chamfer at the base of the standoff increases strength
  • 7.5g for a set of 2 long axles (~4 g each)
  • 6.2g for a set of 2 short axles (~3g each)
  • 9.8g for a set of 2 high load axles (~5g each)

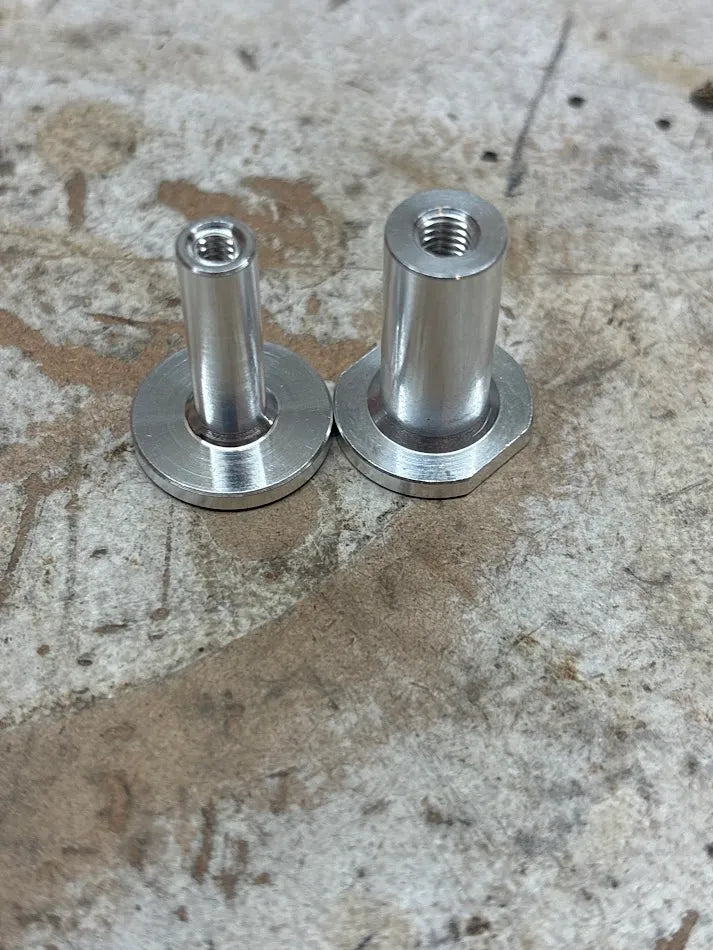

  • Now 2 length options for shorter wheels or bots who run cleats!

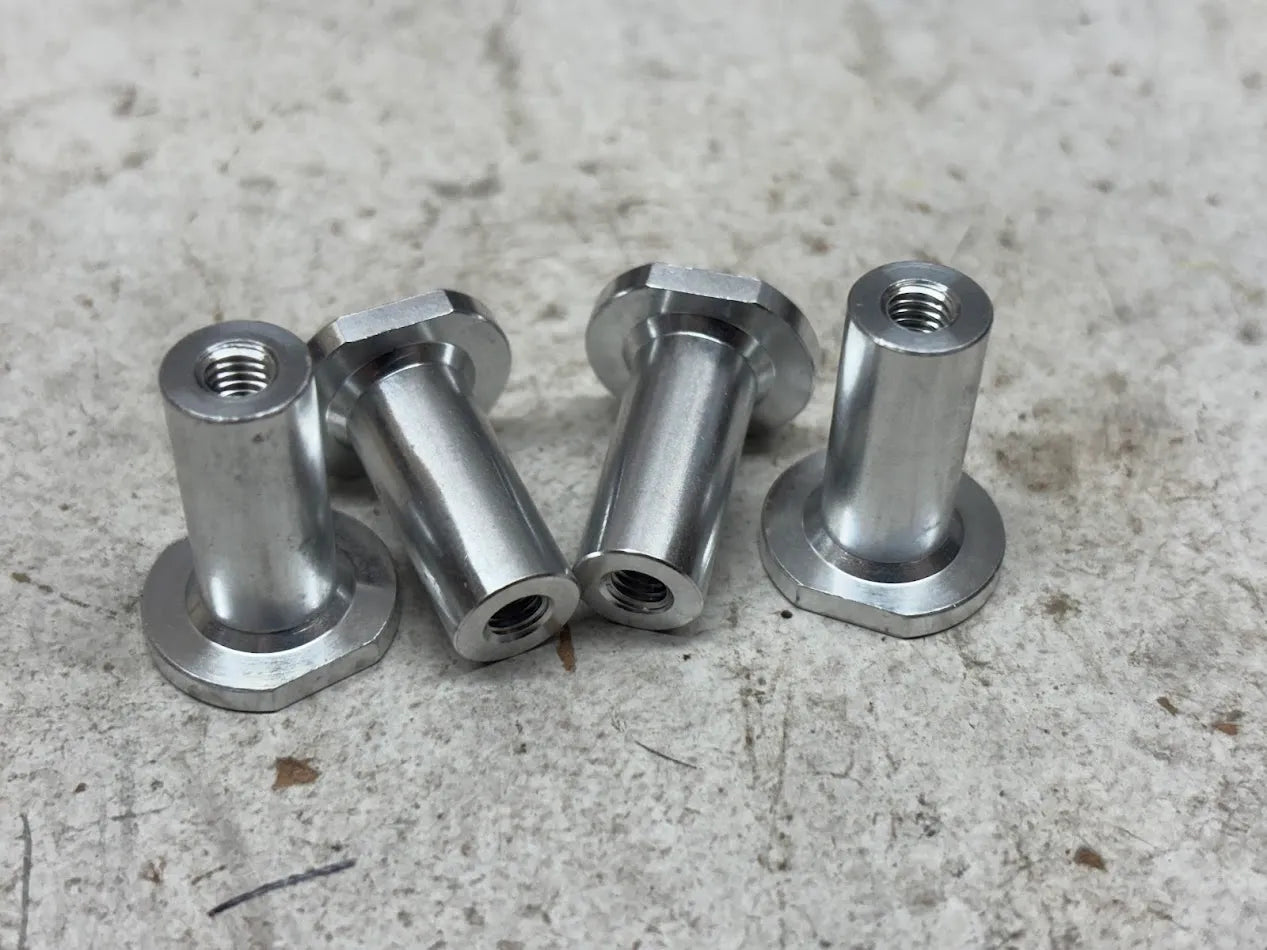

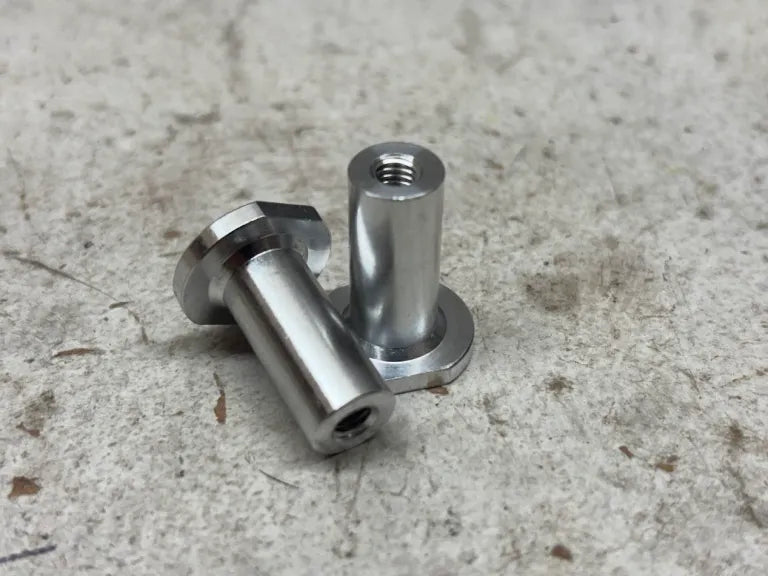

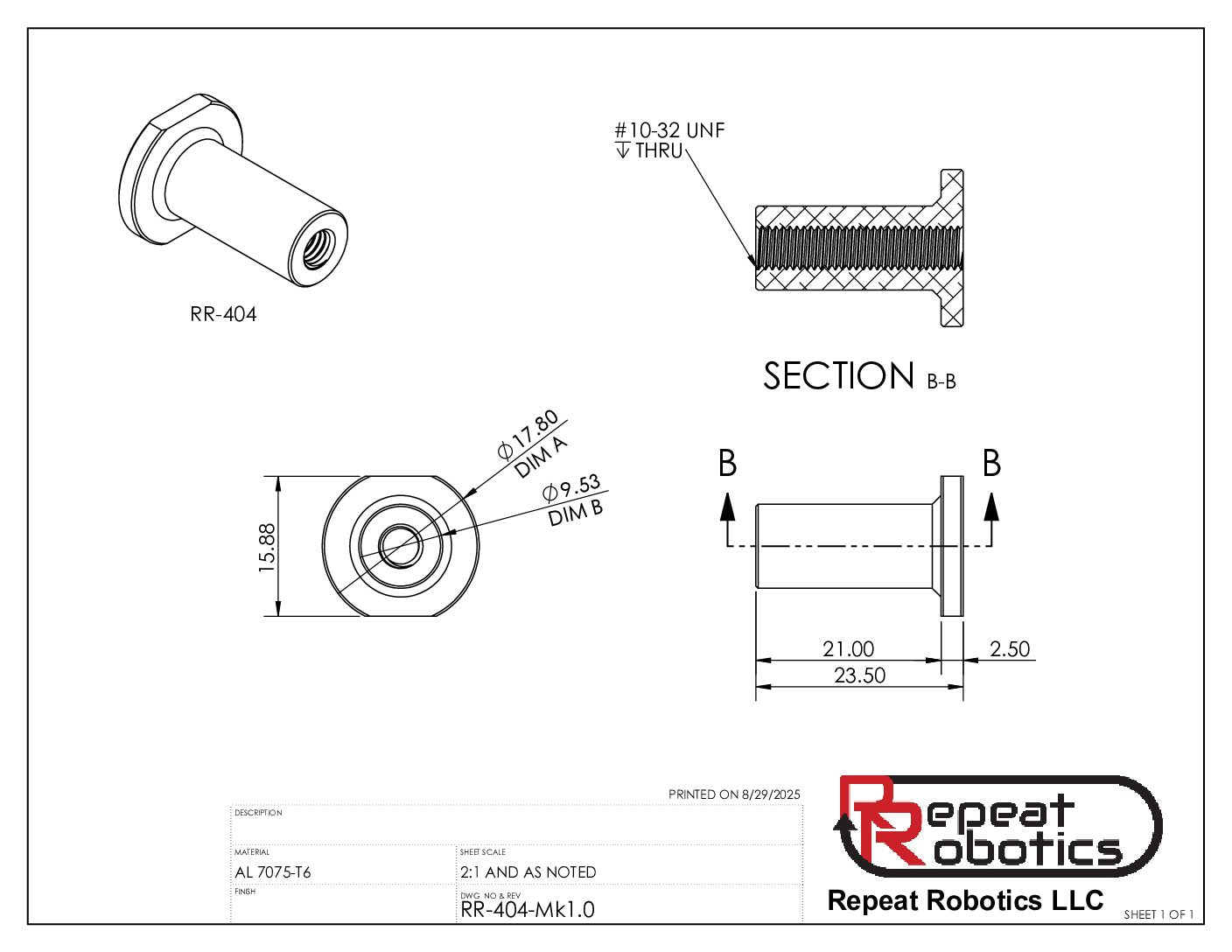

High Load Version
  • Slightly undersized 3/8 inch shaft to fit bushings and bearings
  • Undersized 17.8mm flange to fit into 18mm pockets for extra strength
  • Tapped for 10-32 screws
  • 5/8" flats on the base
Includes two (2) custom machined aluminum axles *Product may differ in appearance or quantity from the provided photos 3D Model: https://grabcad.com/library/repeat-drive-axle-mk2-1
