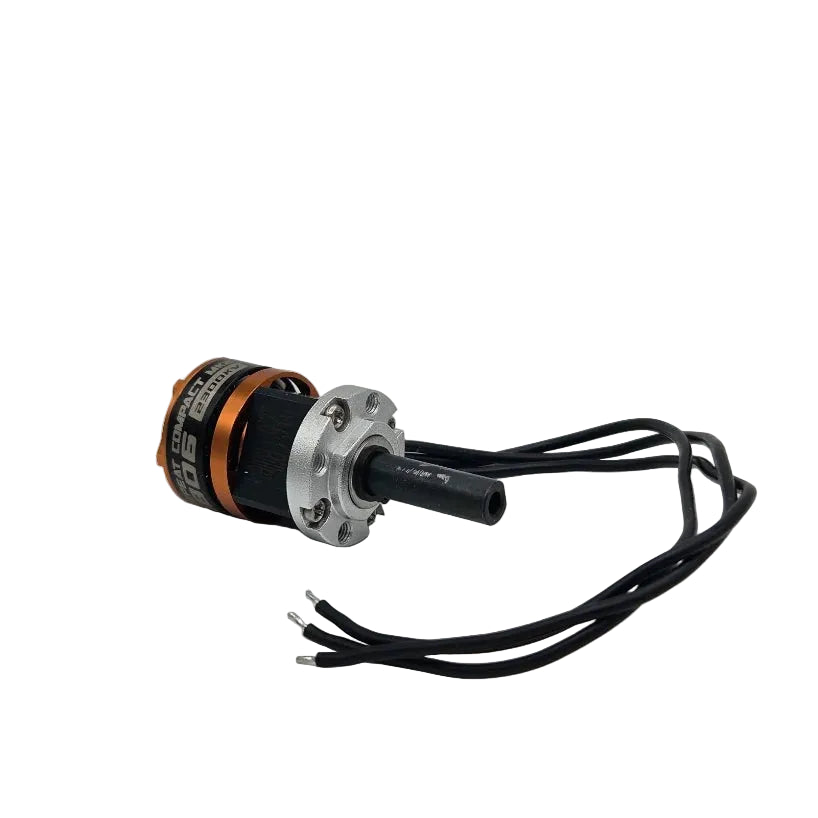

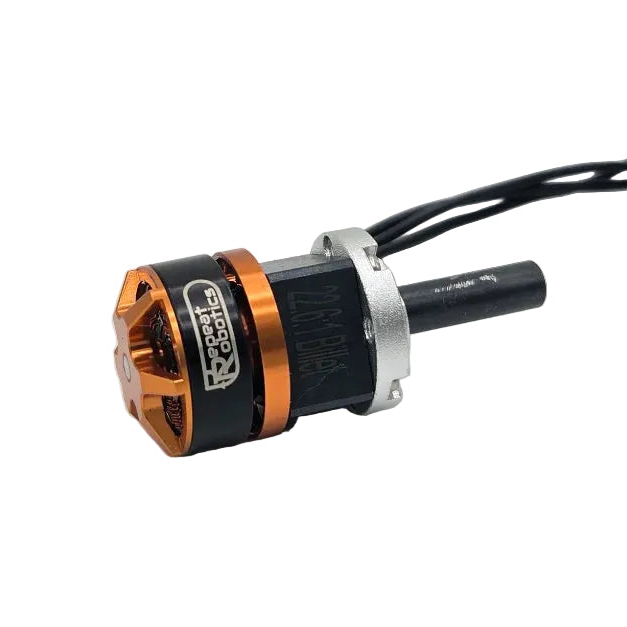

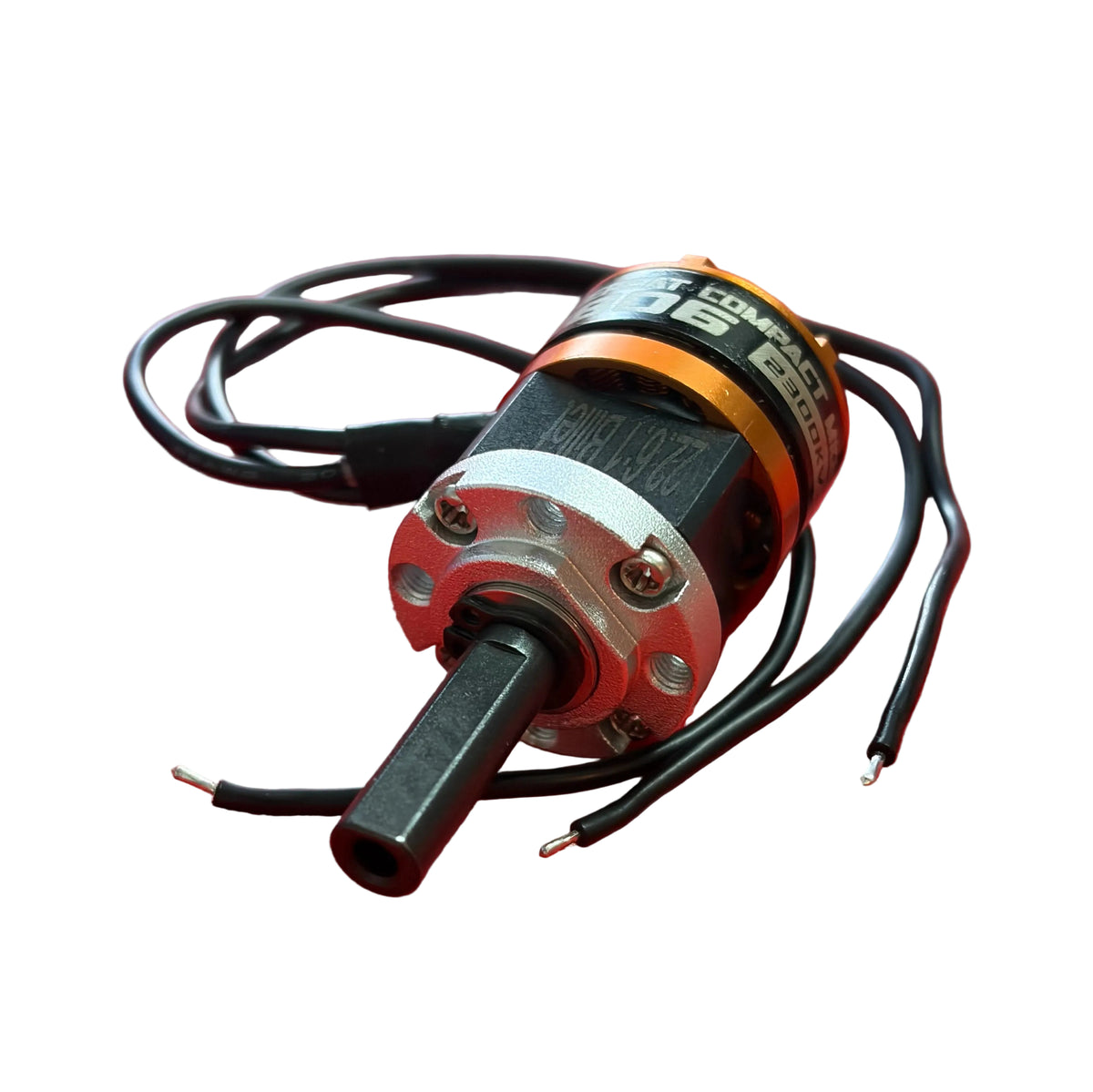

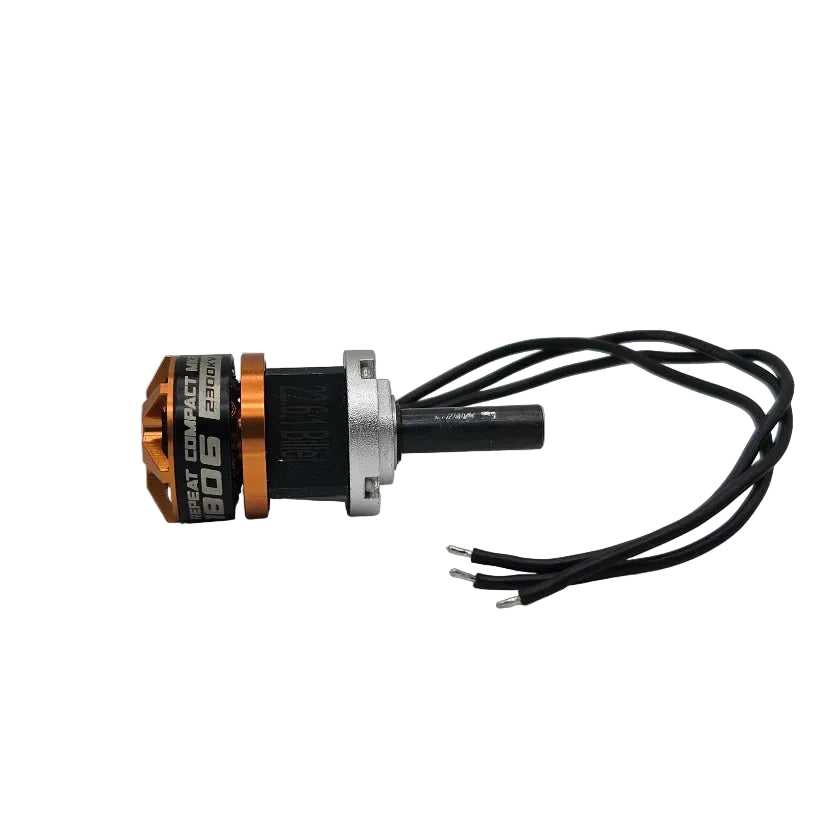

Repeat Compact 1806 Mk2 - Beetleweight planetary gearmotor

$20.00 - $50.00

The Repeat Compact 1806 Mk2 is an ultra-durable, lightweight planetary gearmotor engineered specifically for 3lb Beetleweight combat drive. Dropping weight down to just 42g, the Mk2 brings serious structural upgrades: a billet 6mm hollow output shaft, machined internal gearing, M3 mounting, 4-planet gears in the final stage, and a D-shaft motor pinion to eliminate pinion slip. Try one out today!

Type: Gearmotor
$50.00
$50.00
Availability: In stock
SKU: RR-01-3309
Collections:
Repeat RoboticsRepeat Rubber flex wheels (2 Pack), (All Sizes)
Repeat Rubber flex wheels (2 Pack), (All Sizes)
$50.00
$50.00

Take your drive system to the next level with the Repeat Compact 1806 Mk2, the next evolution of the lightest brushless beetle drive motor on the market. Redesigned from the ground up for better impact resistance and relentless reliability, the Mk2 sheds weight while upgrading the internals for more durability.

Gearmotor Specs:

  • Weight: 42g with full wires, 39.5g without wires
  • 6mm hollow billet hardened steel shaft

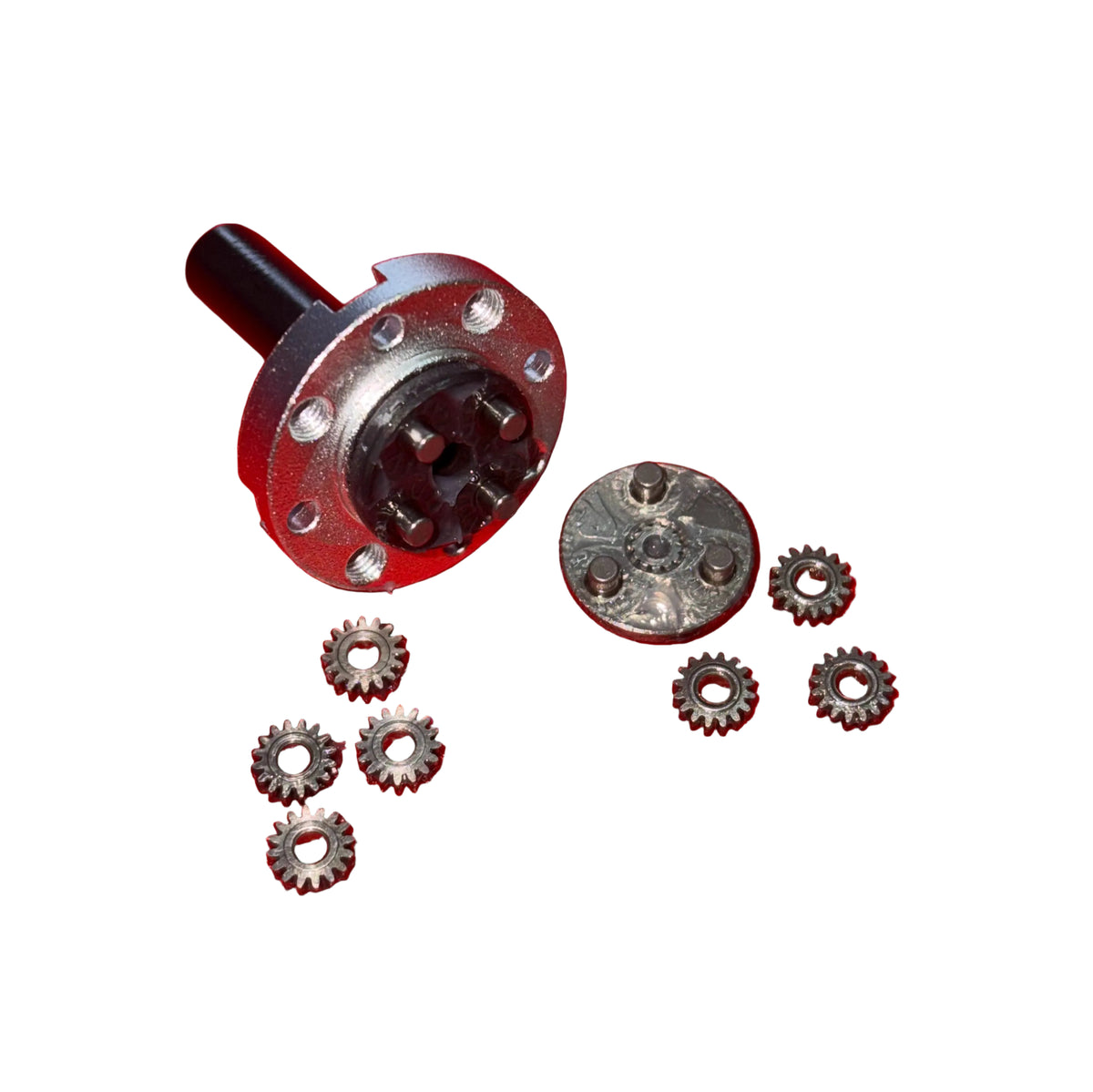

  • Hobbed and hardened steel internal gearing
  • 4 final stage gears for 33% more strength
  • D-shaft pinion gear to eliminate pinion slip

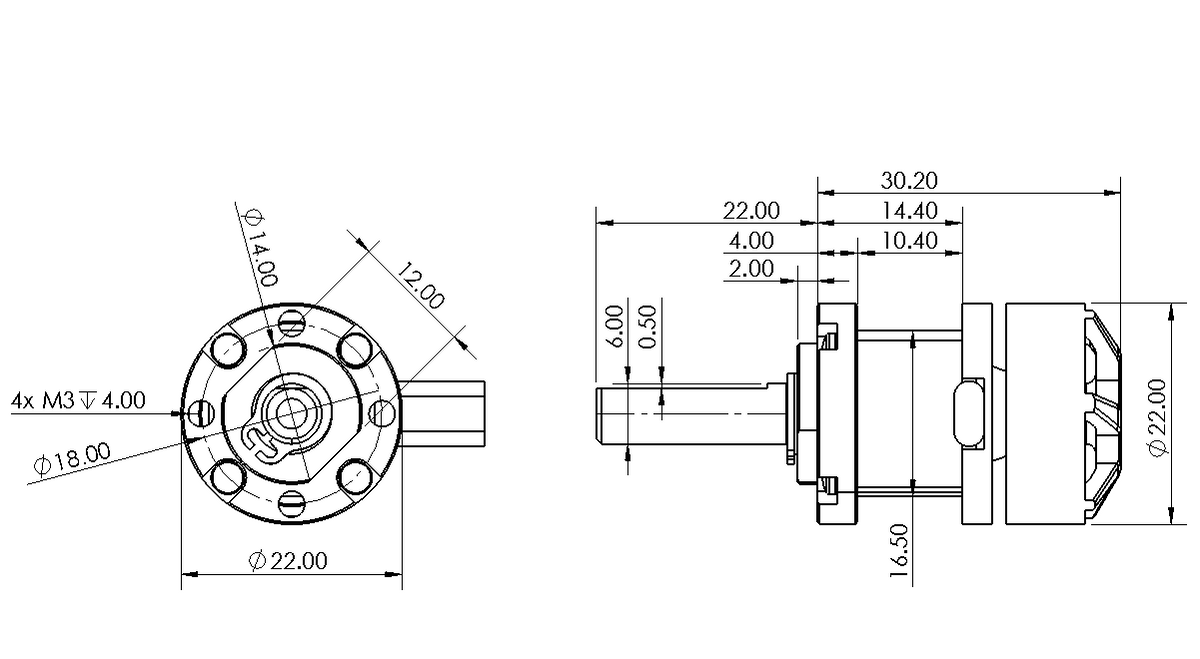

  • 4x M3 x 18mm mounting hole pattern
  • 22.6:1 reduction ratio
  • 2300kv 1806 redesigned for smaller size and lighter weight
  • 1130 RPM on 3S, 1500RPM at 4S lipo
  • Voltage Rating: 2-5S
  • 35A bidirectional AM32 esc recommended

Replacment motor

  • 18.25g with wires, 15.75g without wires

Find the full 3D model HERE
