Vert Belt Hub - Beetle

$12.50 - $37.50

Want to run a belt drive vertical spinner without the hassle of designing a custom weapon hub or dealing with a fragile 3D printed hub? This belt hub is specifically engineered to provide maximum durability without breaking the bank or the scale. This hub along with our custom steel shaft takes all the guesswork out of your next vert design! Try it out paired with our Belt Drive 2812 and V-belt pulley setup!

Type: MB V-belt Hub
$37.50
$37.50
Availability: In stock
SKU: RR-03-3482
Collections:
Repeat RoboticsBelt Drive 2812
Belt Drive 2812
Repeat Foam Wheels - 1.75in WIDE
Repeat RoboticsRepeat Foam Wheels - 1.75in WIDE
$37.50
$37.50

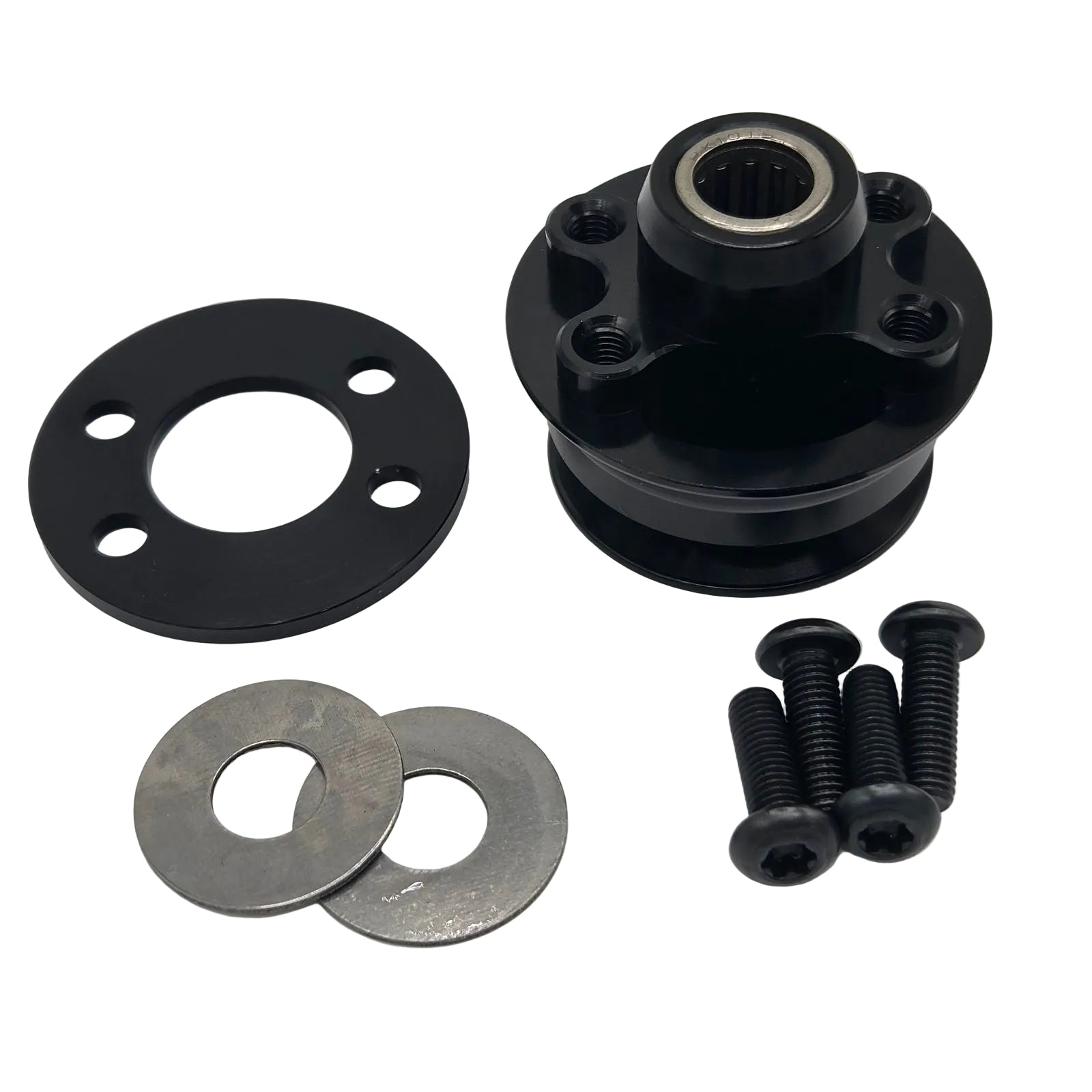

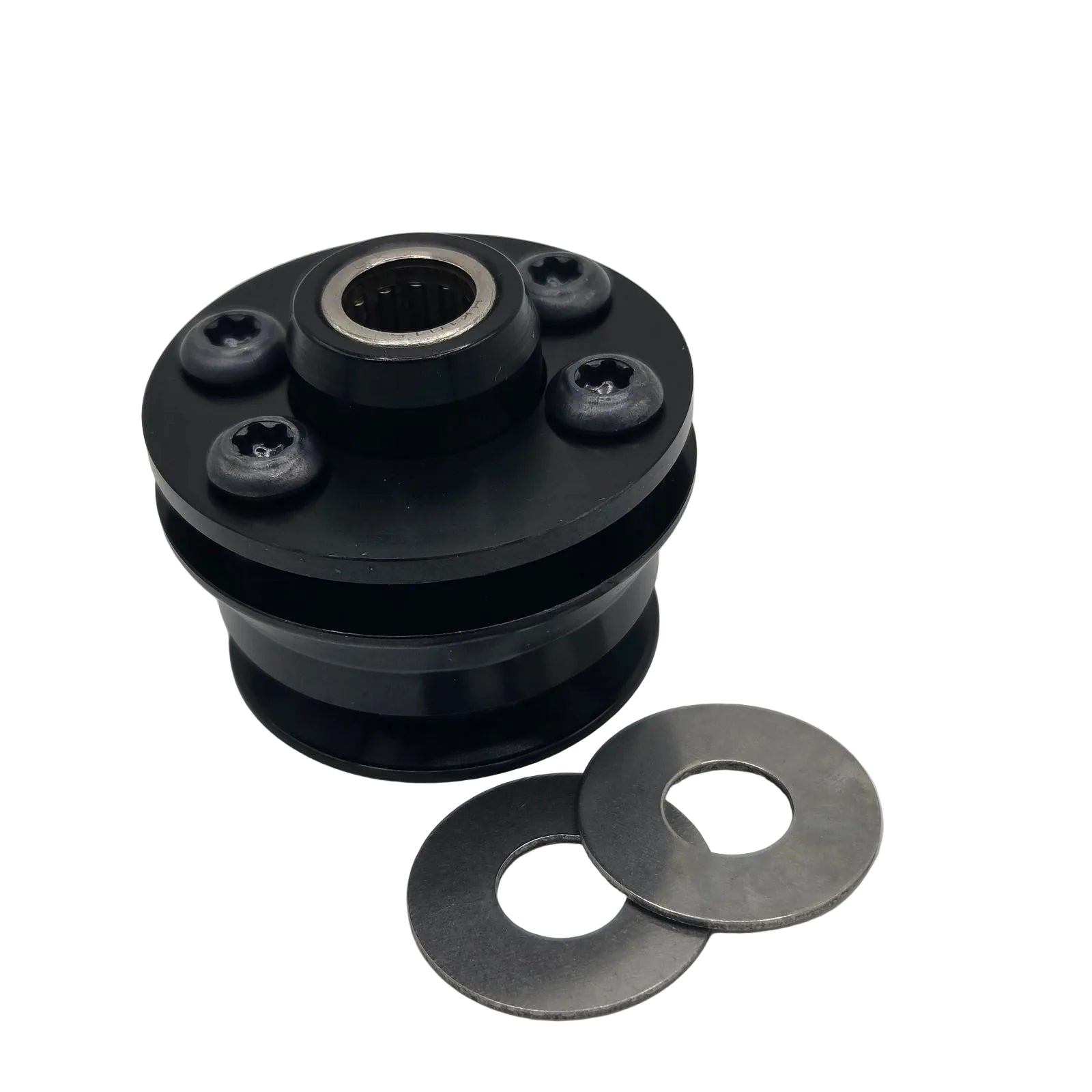

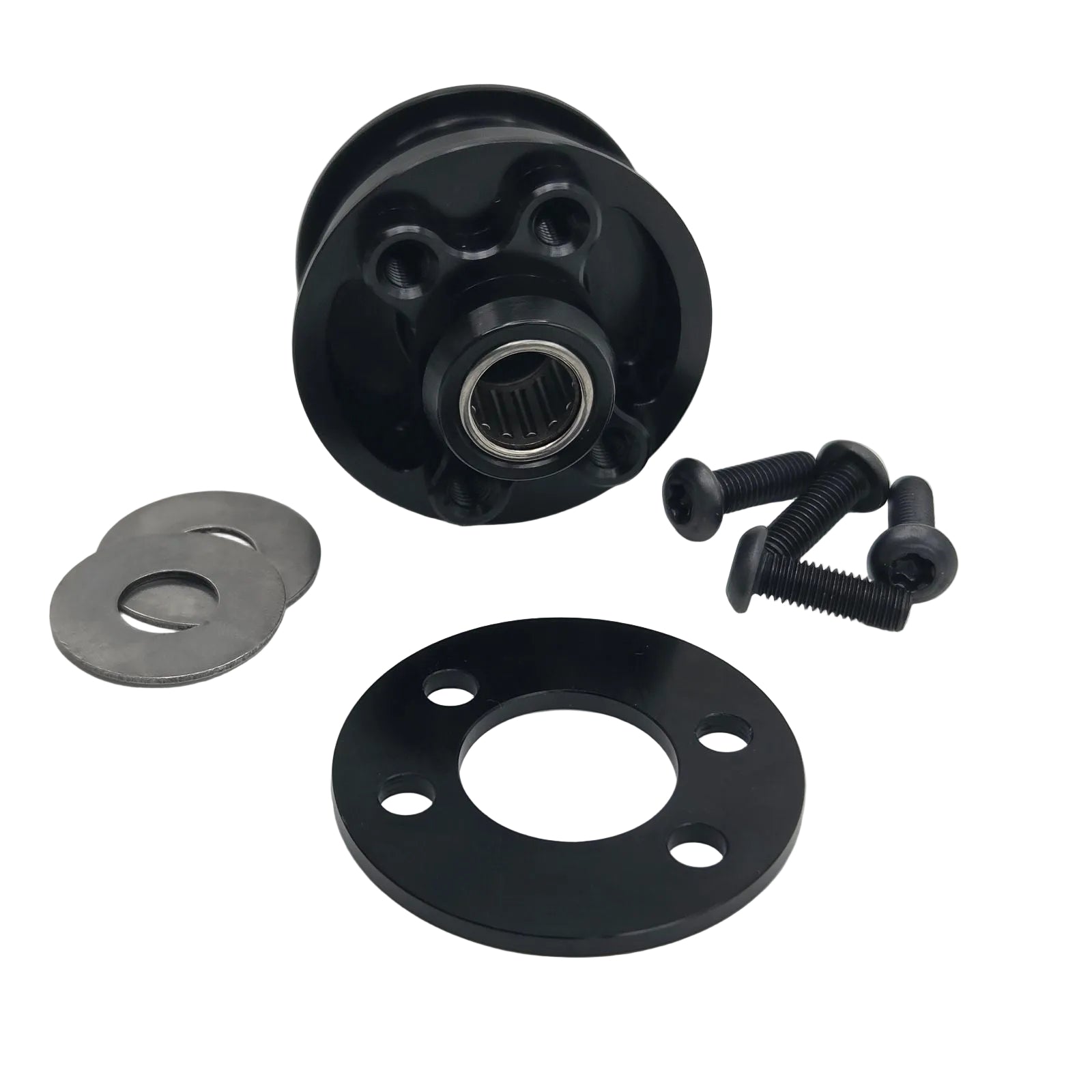

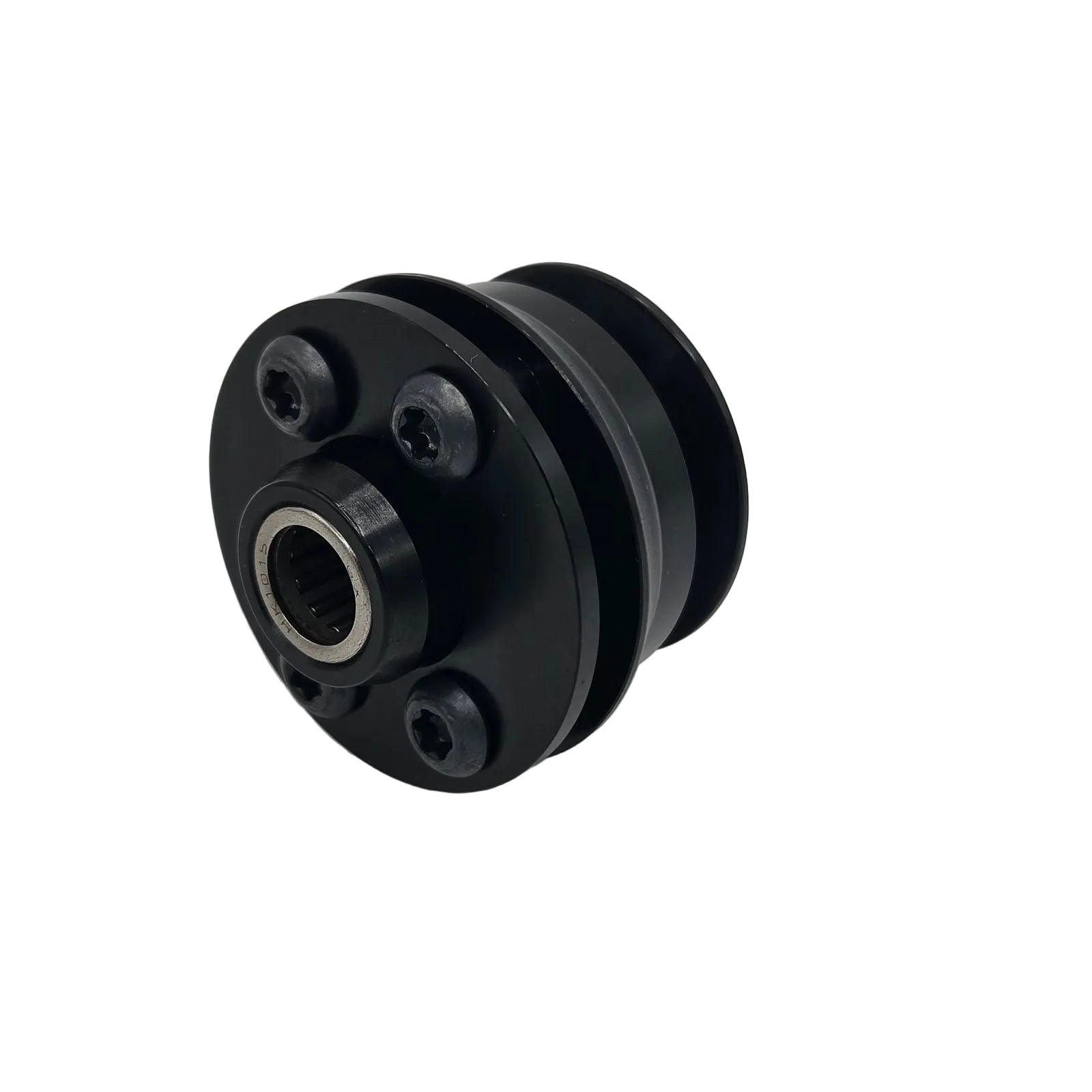

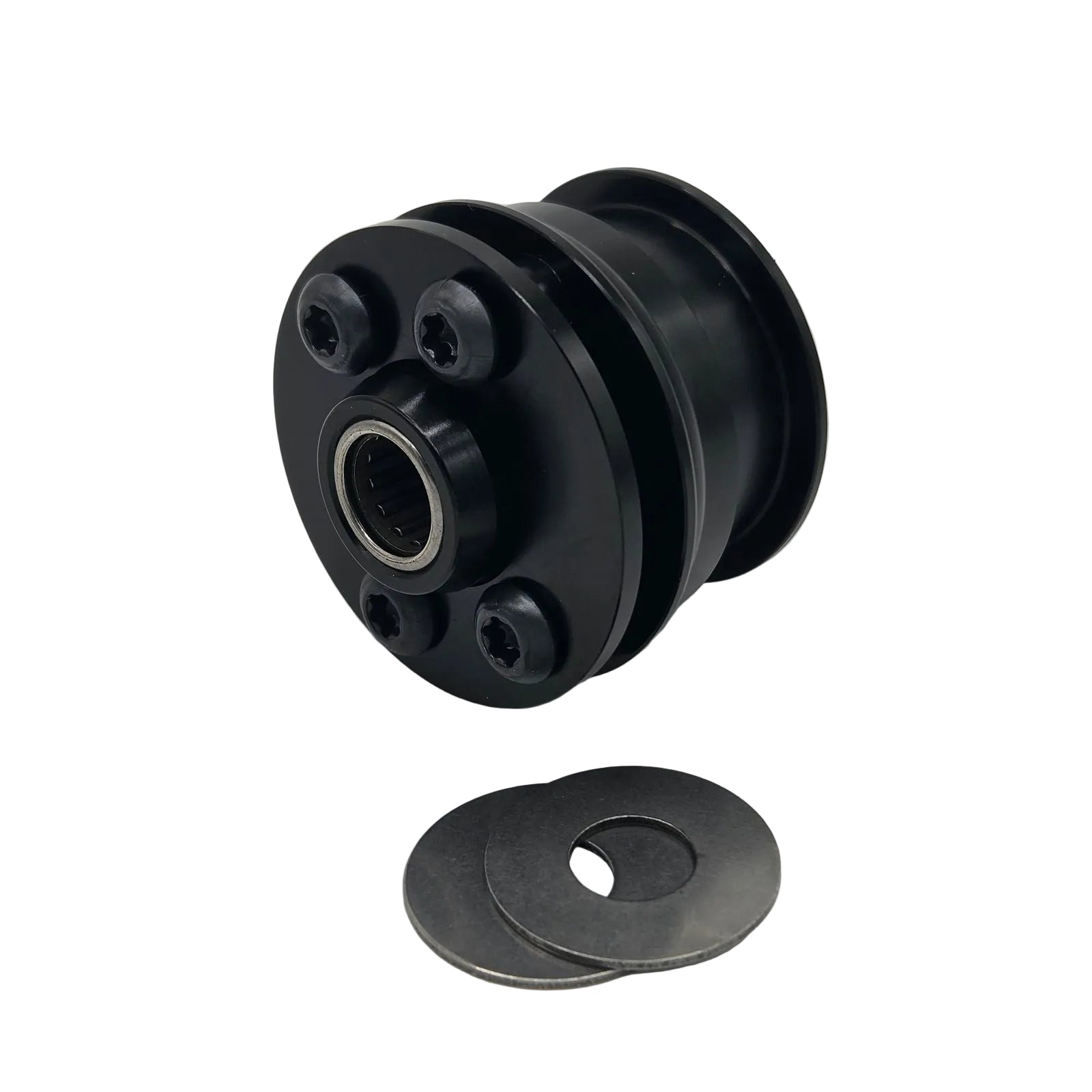

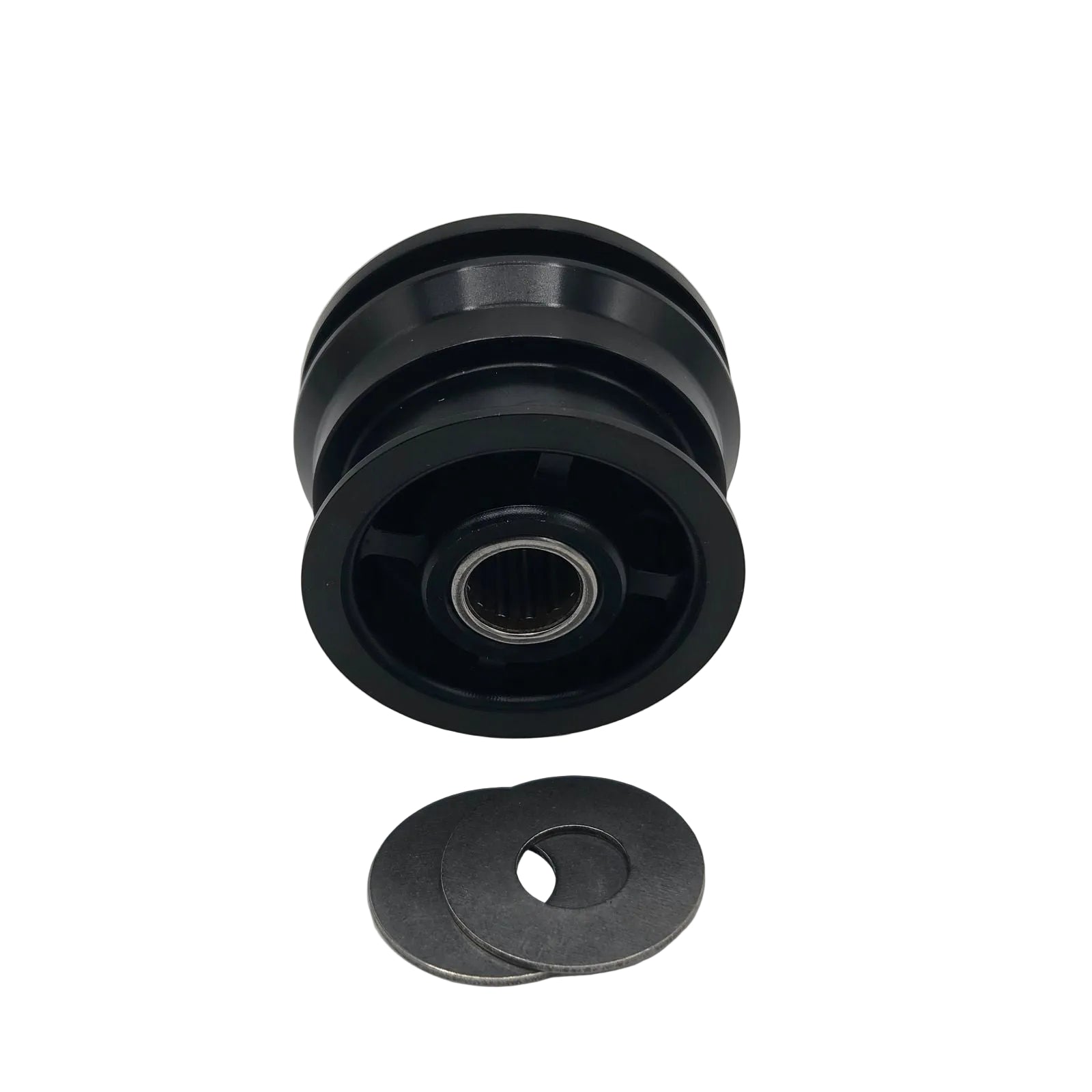

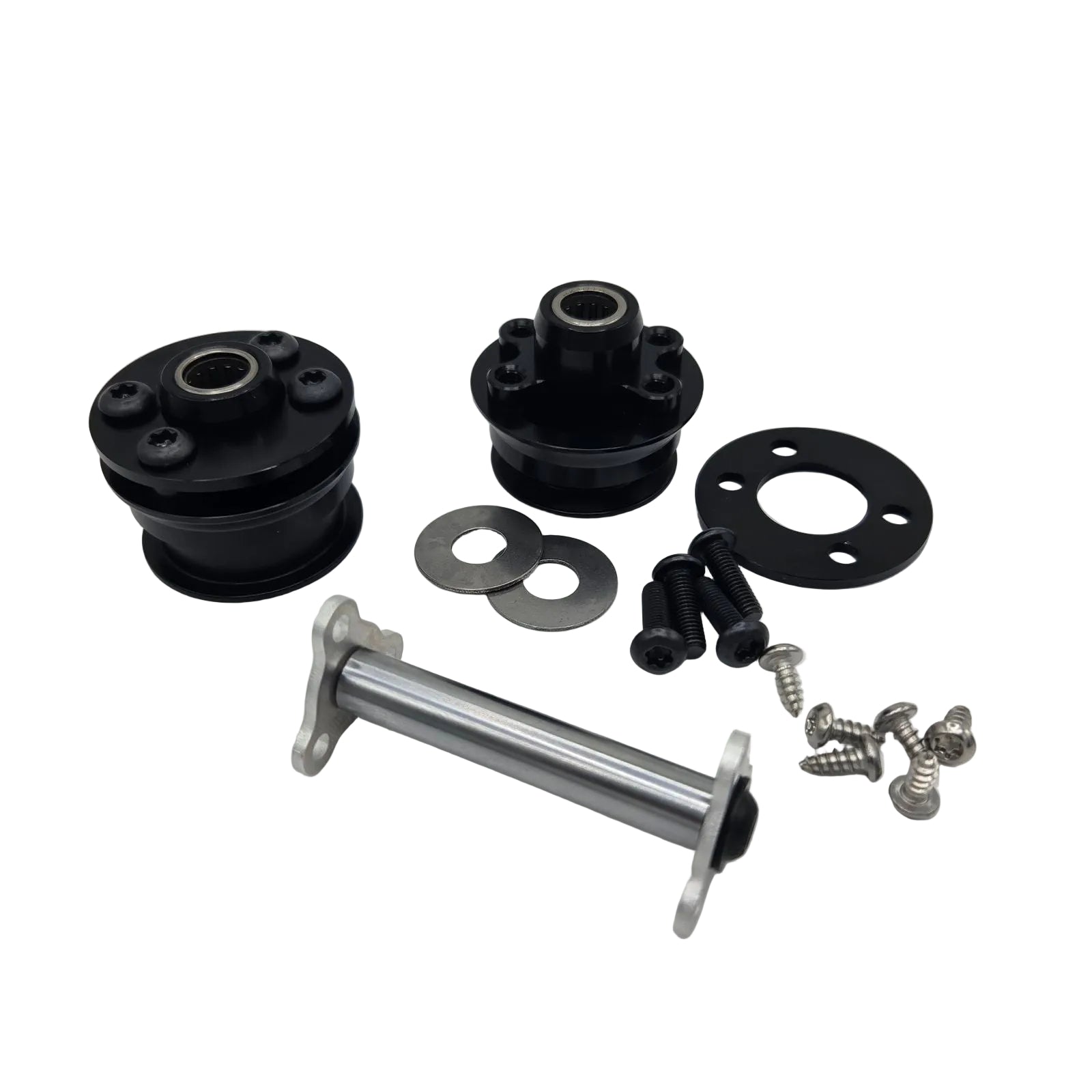

MB v-belt

  • Made from durable 7075-T6 aluminum
  • Comes with 2x HK1015 bearings installed for 10mm shaft
  • 4x M5 screws for mounting blade with included washer
  • 45mm dia, 35.7mm width
  • Designed for 5mm or 1/4" AR blades (can also fit 3/8” blades)
  • 36mm pitch diameter for 6mm V-belt
  • Includes hardened steel washers to put between hub and uprights
  • 60.5 grams just hub
  • 81.3 grams assembly
  • Black Anodized

Flat Timing Belt

  • Made from durable 7075-T6 aluminum
  • Comes with 2x HK1015 bearings installed for 10mm shaft
  • 4x M5 screws for mounting blade with included washer
  • 45mm dia, 35.7mm width
  • Designed for 5mm or 1/4" AR blades
  • 34mm pulley diameter
  • Includes hardened steel washers to put between hub and uprights
  • 57.4 grams just hub
  • 78.2 grams assembly
  • Black Anodized

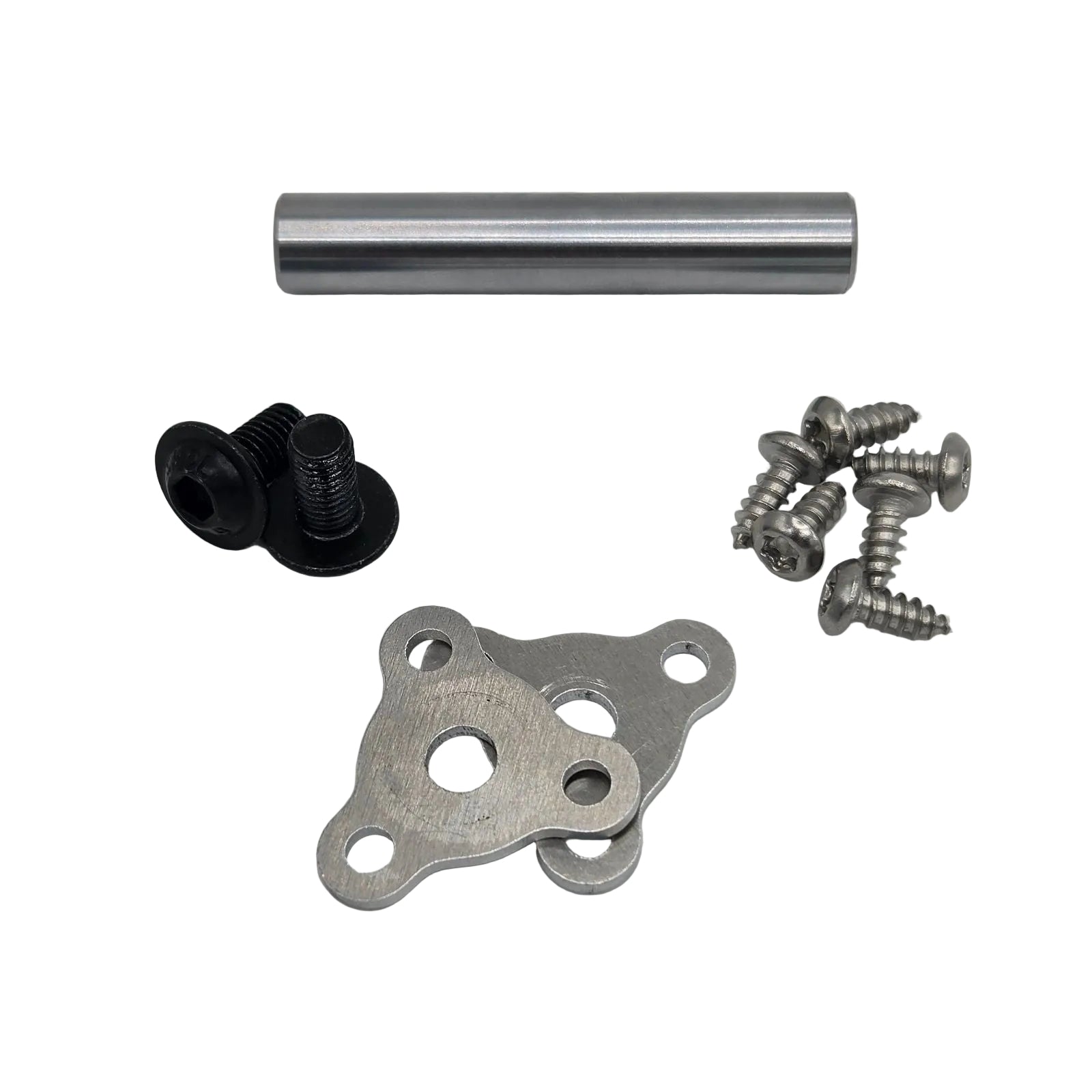

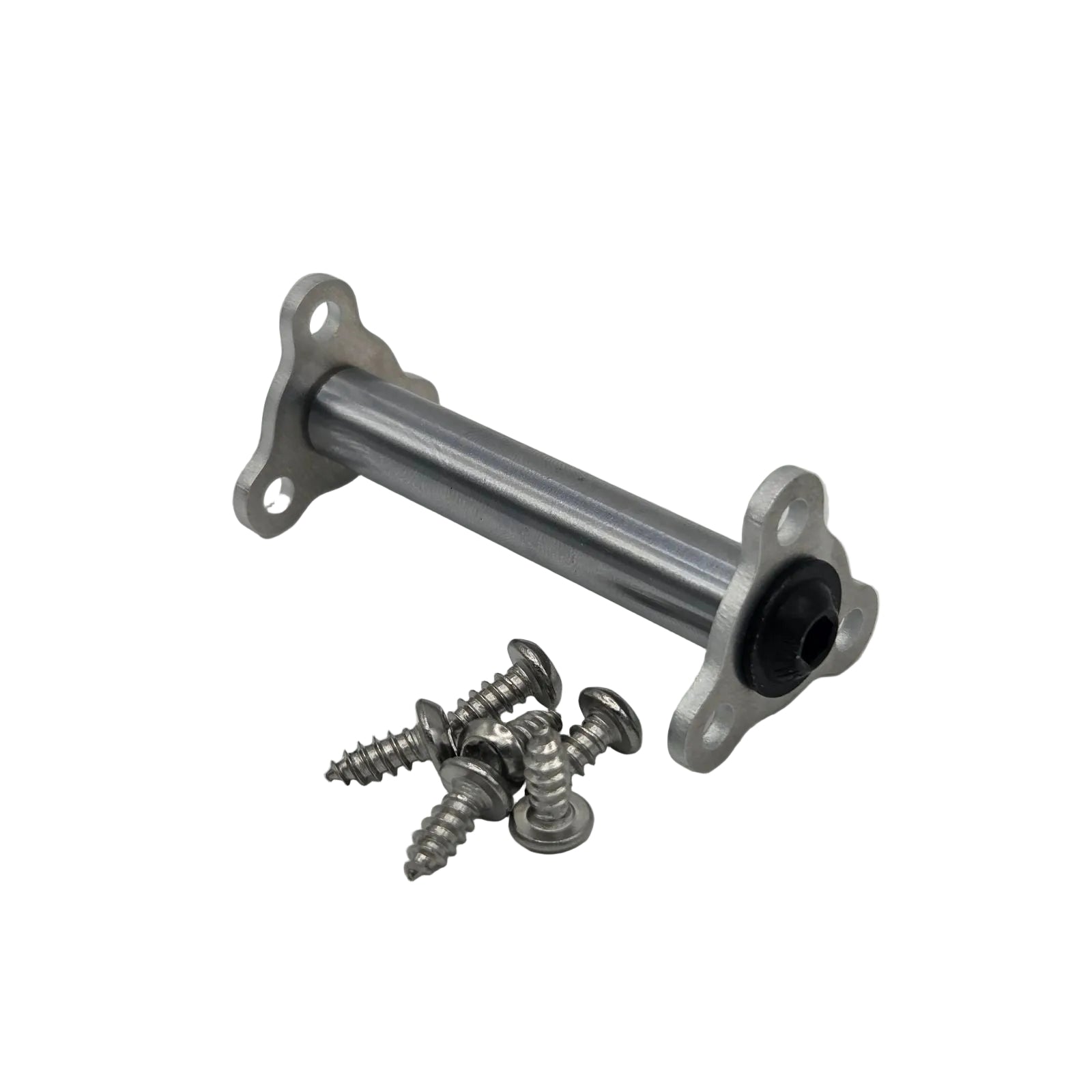

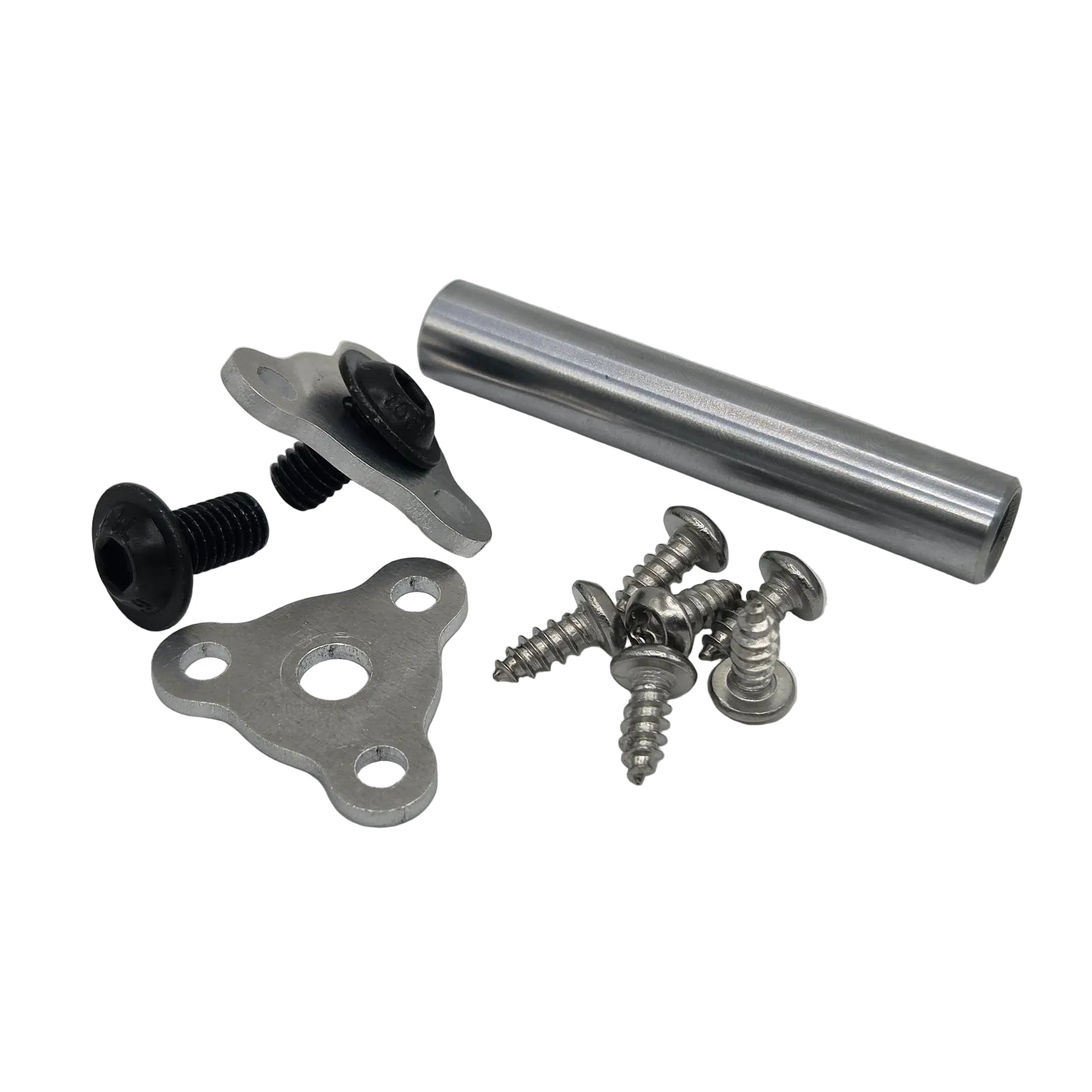

Shaft

  • Made from 52100 hardened steel
  • M6 end tapped (comes with flanged M6 screws)
  • 10mm dia x 57.15mm length designed for 3/8" UHMW uprights
  • Comes with custom aluminum anti-wallowing washers
  • Includes M4 self tapping screws to mount the washers
  • Includes hardened steel washers to put between hub and uprights
  • 25.4 grams just shaft
  • 42 grams assembly

Find the 3D model HERE
