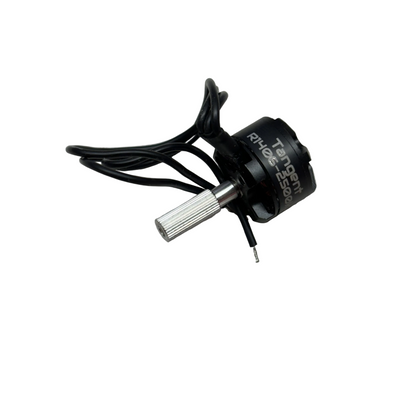

Tangent Drive 1406 - Antweight drive motor

$20.00
$20.00

Have you wanted to build a tangent drive robot? Normal drone motors make structure challenging because the shafts come out the side opposite the mount. Now with repeat tangent drive motors, the shaft comes out the side where the mounting is, making tangent drive easier than ever before! Pair with repeat drive axles to take all the complexity out of your super speed drivetrain! Use our Repeat AM32 dual brushless drive esc to get rid of the jitters and make your robot drive smoother than ever before!

Motor size: 1406
Availability: 33 in stock
Repeat RoboticsAR600 Hubmotor weapon blades
AR600 Hubmotor weapon blades
Readytosky 35A blheli_s Ant Weapon ESC image 0
Repeat RoboticsBlheli_s 35A Ant Weapon ESC
Repeat Tangent Drive Motors image 3
$20.00
$20.00

Features:

  • UPDATE (6/17/25) - 1500kv
  • 2-4S voltage
  • Comes with 5mm diameter knurled tangent drive shaft
  • Suggested 0.3mm to 0.8mm interference (depending on wheel design)
  • Weight
    • 13g with full length wires
    • 12g with no wires

Find the full 3D model:  https://grabcad.com/library/tangent-drive-1406-motor-1

Make sure to test out the chosen interference amount with your specific chassis and wheel designs. Too little interference and the shaft slips on the wheels before they slip on the ground. Too much and you'll just be loading your motors too much causing them to burn out eventually
