Repeat Mini Brushed Mk2 (1pcs)

$4.00 - $20.00

Have you stripped the gearboxes on your drive motors leaving your bot stranded in the arena? Scared of the cost and complexity of brushless drive? I have the solution you've been waiting for. Enter Repeat Drive Brushed Mk2. More powerful motors that run cooler and give you even more performance.

Type: 4mm shaft
$20.00
$20.00
Availability: 386 in stock
Dominion Dual Brushed Drive ESC image 0
Repeat RoboticsDominion Dual Brushed Drive ESC
$20.00
$20.00

Features:

  • Custom wound 030 brushed motor
  • 2s-4s rated voltage (Recommended for 3S usage)

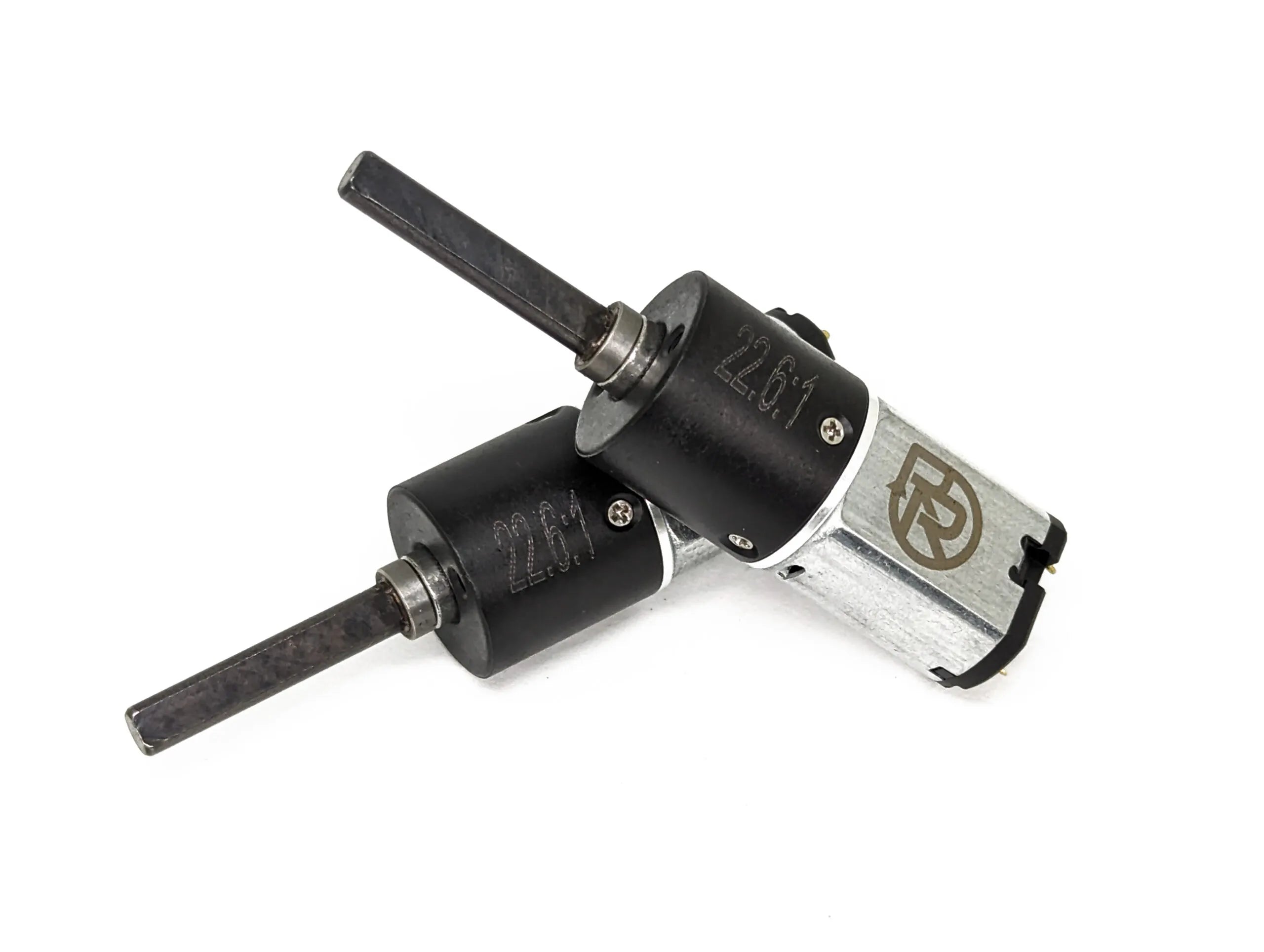

  • 16mm, 22.6:1 all metal planetary gearbox

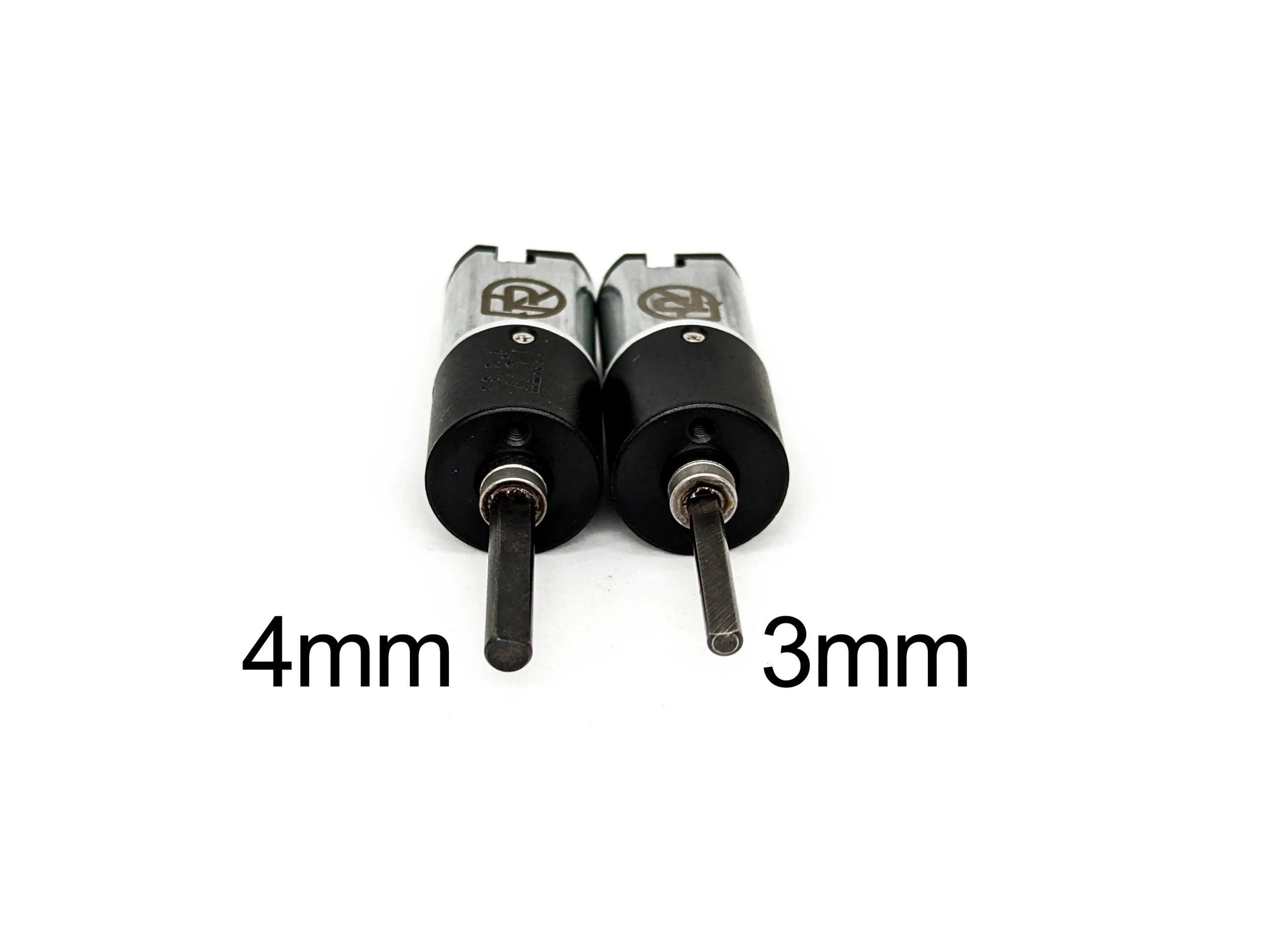

  • 3mm or 4mm "D" extra long output shaft (we recommend cutting off any extra length)

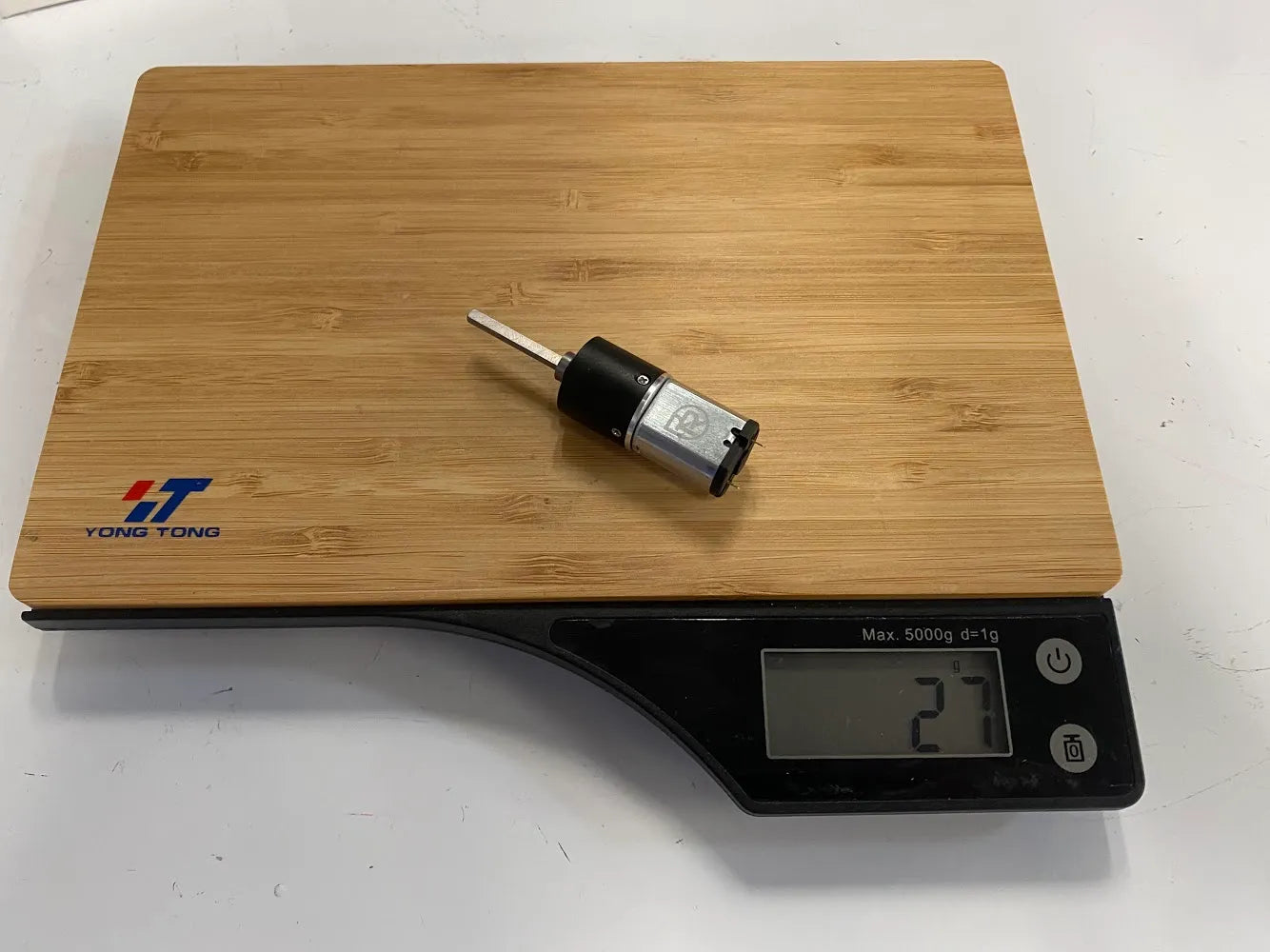

  • 26.5g weight - 3mm shaft
  • 27.5g weight - 4mm shaft

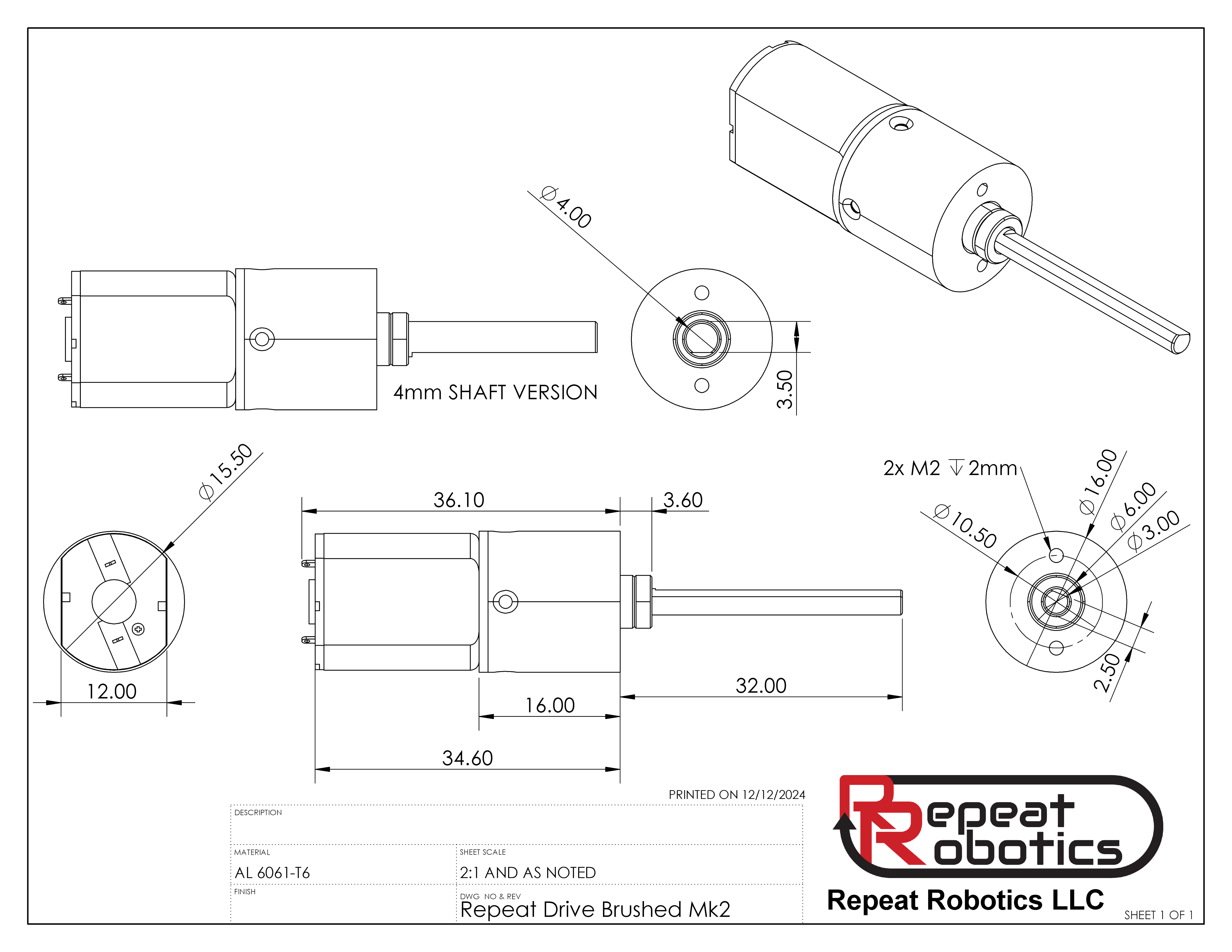

  • 10.5mm M2 Face mount hole pattern
  • Comes ready for combat, just solder the motor leads to an esc and you're on your way.
Performance
  • 12V input (3S) - 1220rpm free speed - 2A stall current - 1187 g.cm stall torque - 3.72W max power output
  • 7.4V input (2S) - 752rpm
  • 14.8v input (4S) - 1504rpm
Disclaimers: These gearboxes can only accept ~2mm of face screw engagement. Using screws that are too long will result in damage.
These motors are being used in combat, where anything might happen. I am unable to accept returns for battle damaged products.
