Repeat 2822 Mk3

$20.00
$20.00

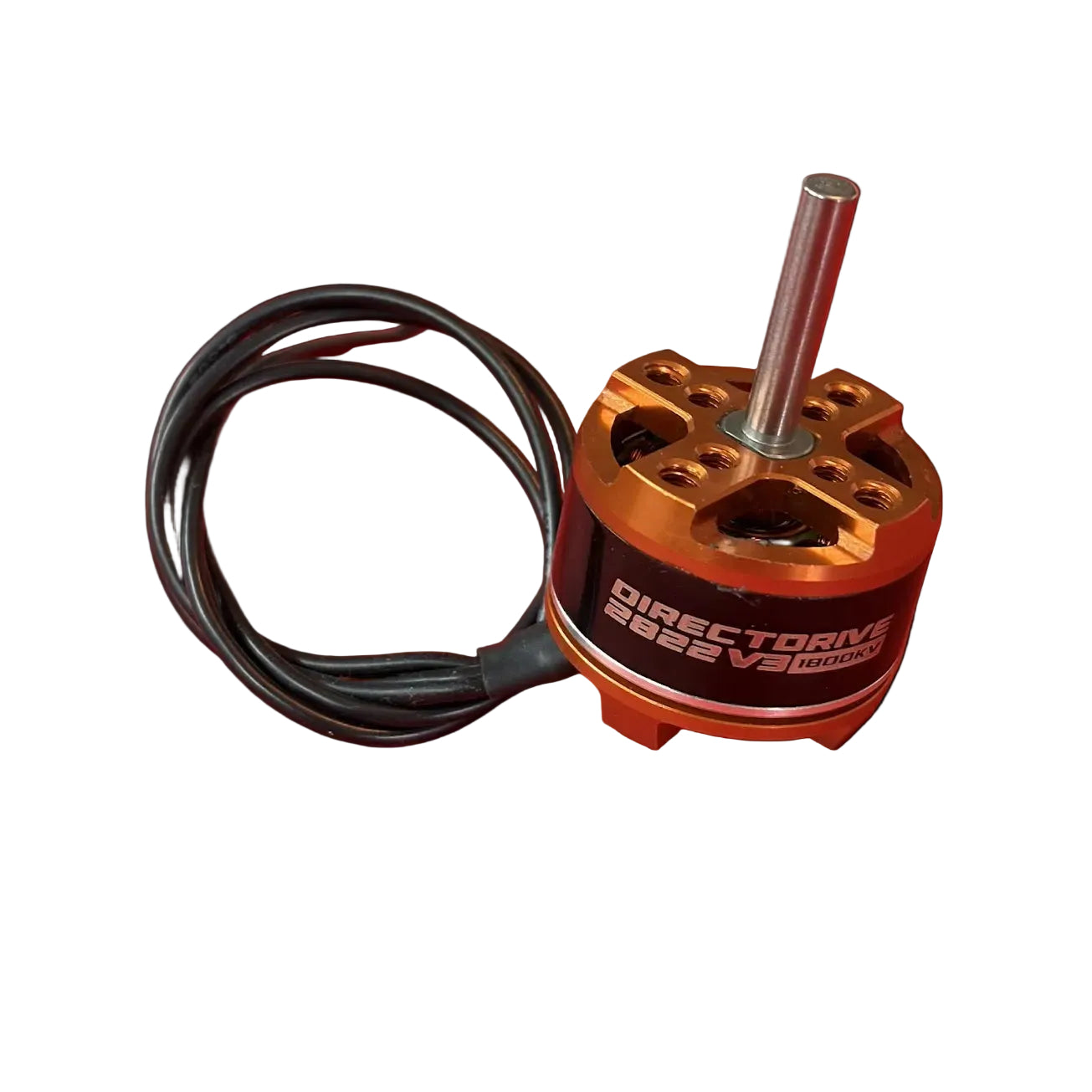

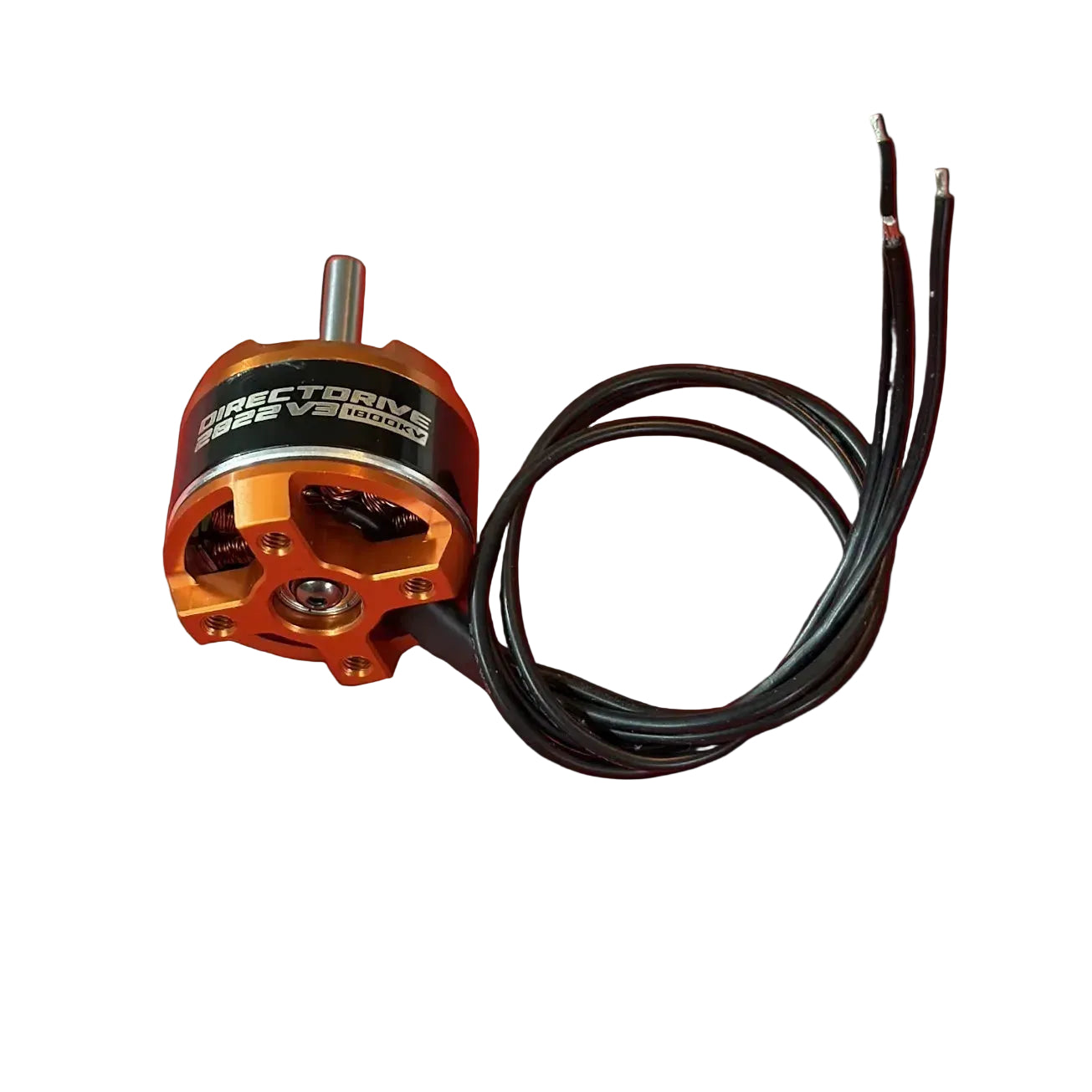

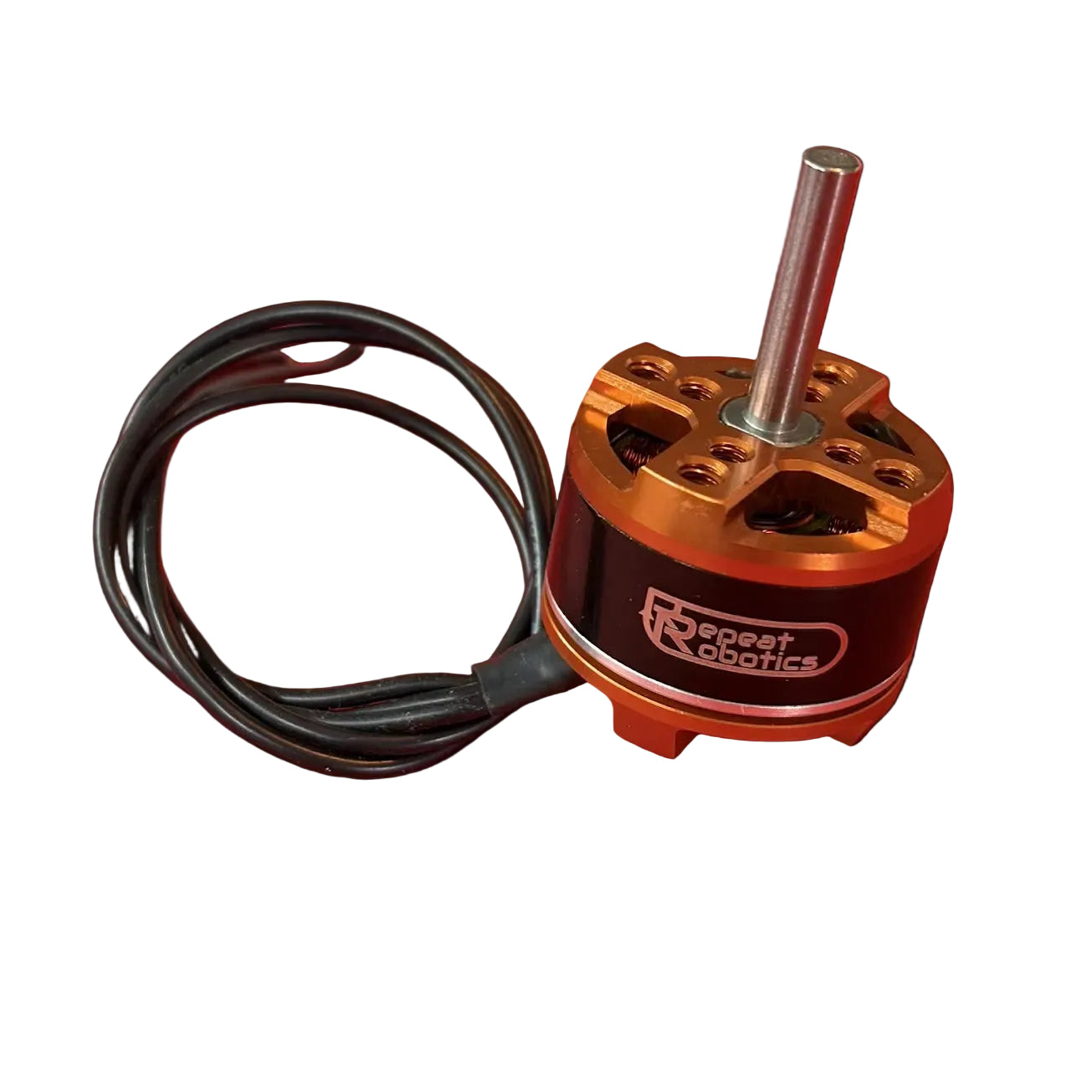

Looking for a durable weapon motor for your 1lb antweight robot? This motor is re-designed from the ground up to take advantage of our years of experience to make the most durable product possible! Great for full combat or plastic classes, this motor is versatile, working on drums, verts, horizontals, and more!

Kv: 1100
Availability: 147 in stock
Repeat Robotics2207 Antweight Battle Ready Hubmotor
2207 Antweight Battle Ready Hubmotor image 0
Mini Brushless 1106 Mk4 - Antweight planetary gearmotor (1pcs)
Repeat RoboticsMini Brushless 1106 Mk4 - Antweight planetary gearmotor (1pcs)
$20.00
$20.00
  • 46 grams with full length wires
  • 2-4S rated
    • 1100kv rated to 6S
  • Choose between 1100, 1800, and 2300kv options!
  • 4mm hardened steel shaft with a positive keying feature into the can
  • Shaft held into the motor with M2.5 screw. No more decapitations from c-clips breaking.
  • 20mm shaft is great for double supporting with a 4mm bearing
    • Shaft can also be cut to length
  • Wires are silicone jacketed stranded copper for easier soldering. No more stator enamel coated wires!

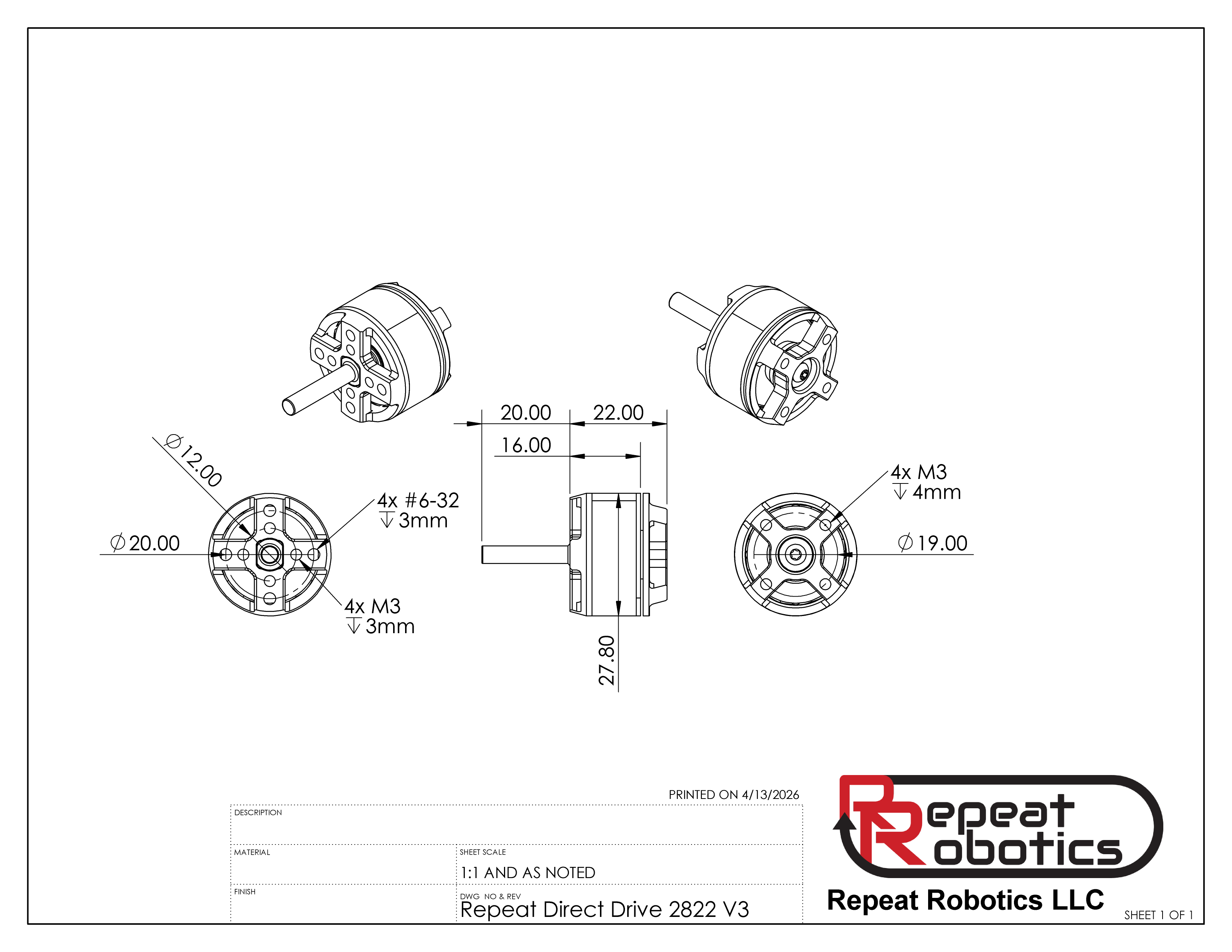

  • 4x #6-32 tapped holes at 20mm diameter on the blade side
  • 4x M3 tapped holes at a 12mm diameter on the blade side
  • 4x M3 mount holes at a 19mm hole pattern to attach to your chassis
  • Rotor design optimized for keying with 3D printed parts
  • Base shape optimized for keying with 3D printed parts
  • Magnets are each double supported, reducing inertial cracking

Choosing KV value:

  • 1100kv is recommended for horizontal weapons
  • 1800kv is recommended for vertical weapons
  • 2300kv is recommended for small diameter drum weapons

Find the 3D model on grabcad: https://grabcad.com/library/repeat-direct-drive-2822-v3-1
